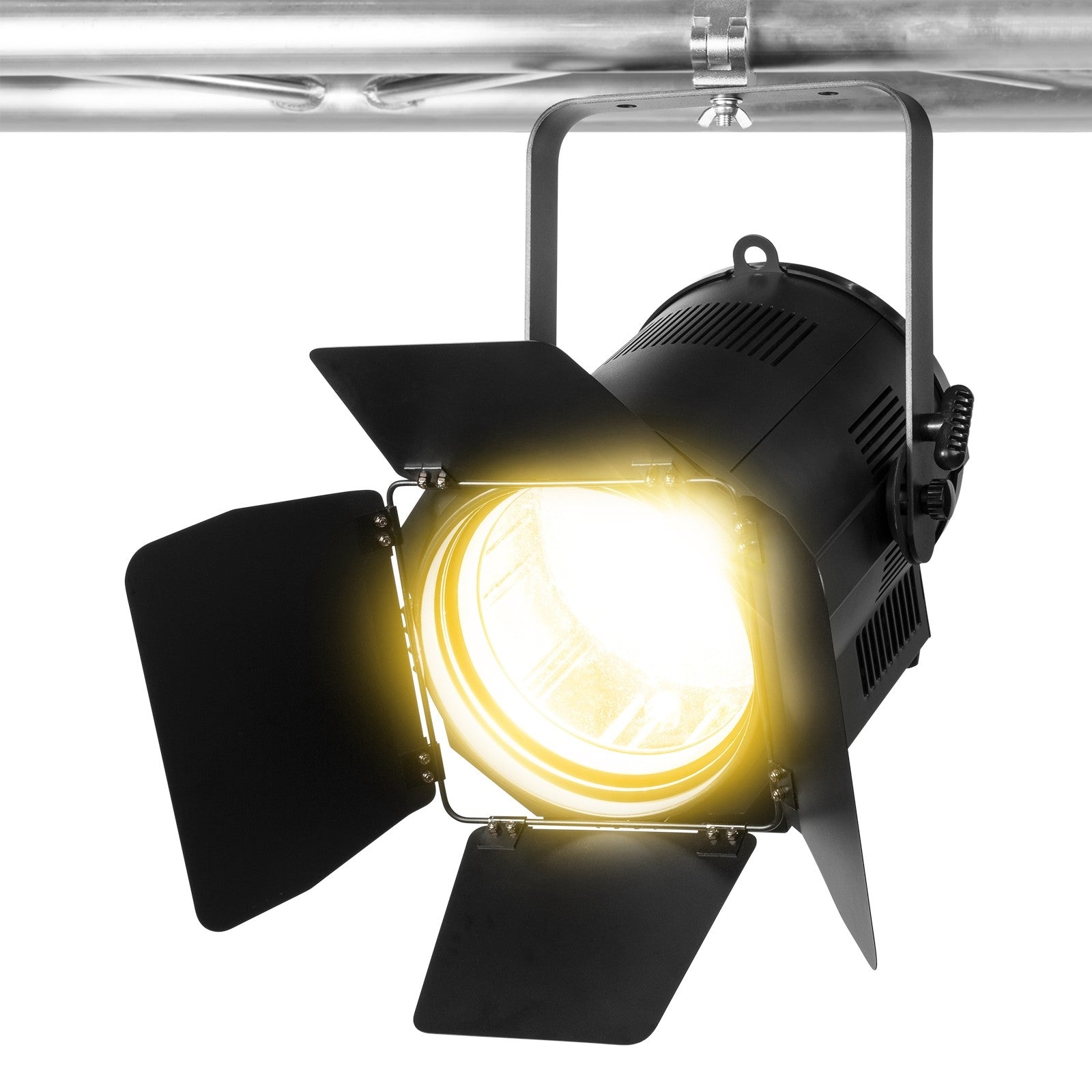

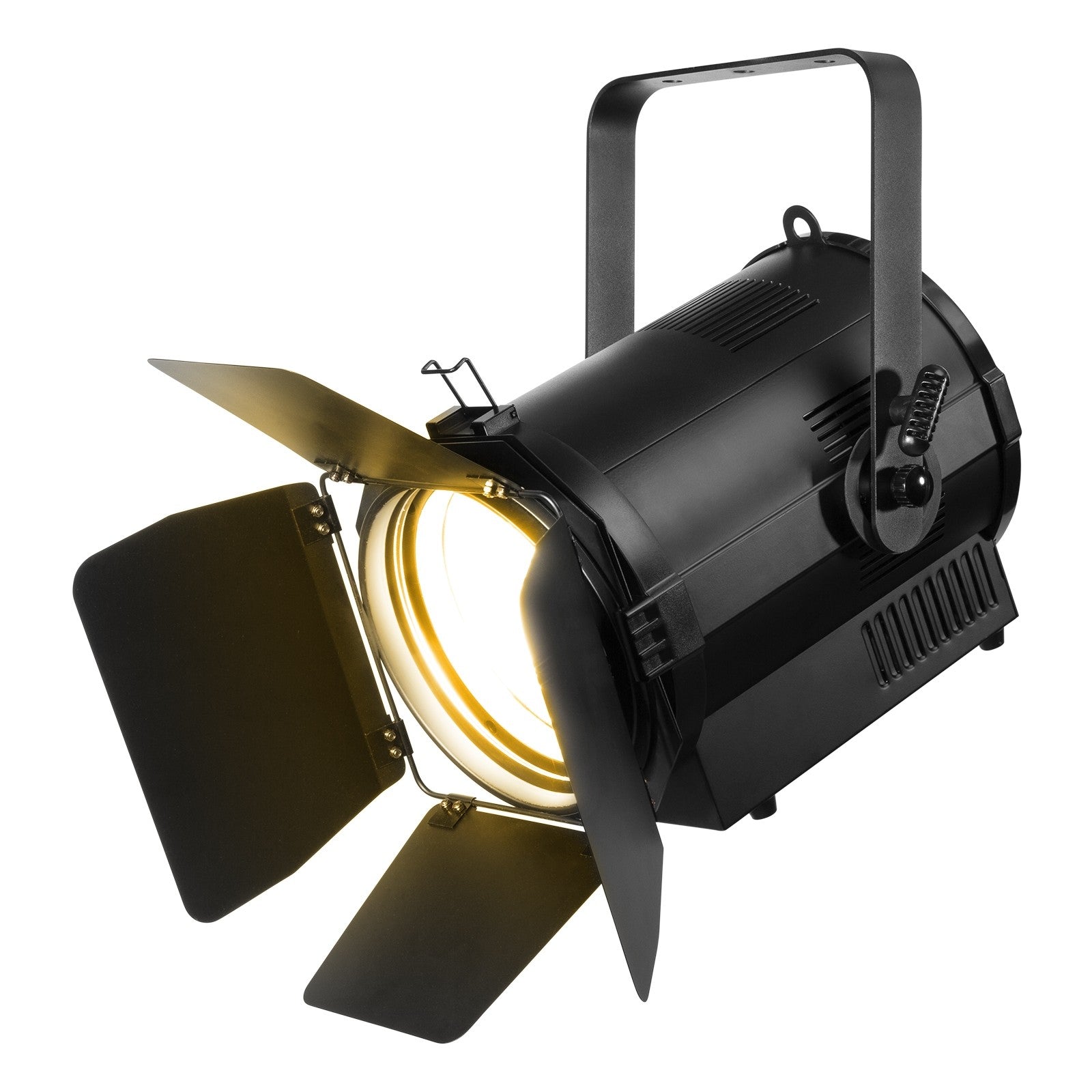

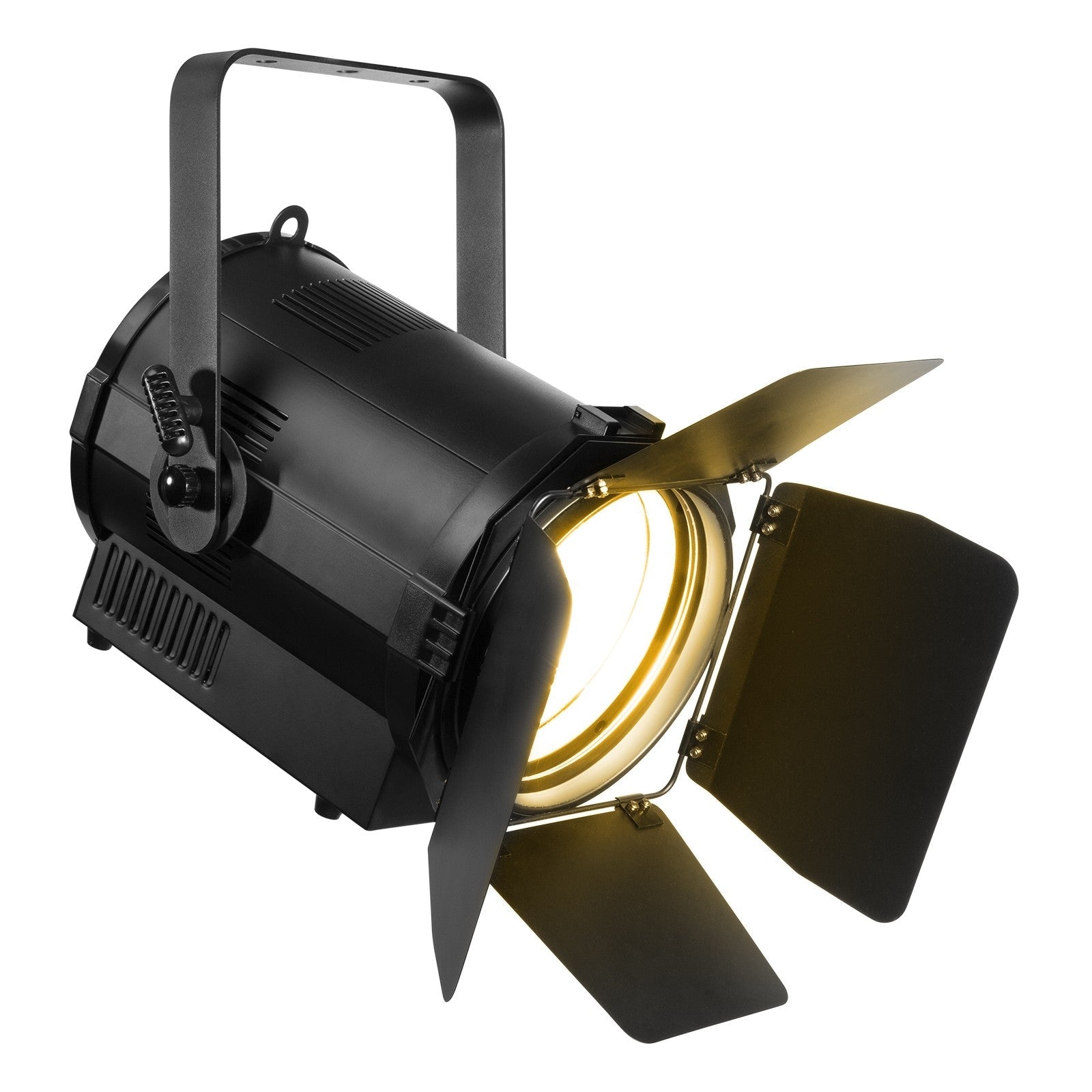

beamZ Pro BTF300Z - Professional Fresnel Spotlight with Motorized Zoom, 300W Warm White LED
The beamZ Pro BTF300Z is a state-of-the-art Fresnel spotlight designed to replace and outperform traditional tungsten spotlights. Equipped with a powerful 300W COB (Chip-on-Board) LED engine, this spotlight generates an exceptionally soft and homogeneous 3200K warm white light field. Its advanced technology makes it the ideal solution for professional environments where light quality, quiet operation, and energy efficiency are crucial. From theaters and television studios to corporate events and exhibitions, the BTF300Z delivers outstanding performance, precise control, and unmatched reliability.
Main Features
-
300W COB LED Light Source: The heart of the BTF300Z is its high-power COB LED, which provides intense and uniform light from a single source, eliminating multiple shadows. With a color temperature of 3200K, it perfectly replicates the warmth of classic tungsten lighting and boasts an estimated lifespan of 50,000 hours, drastically reducing maintenance and lamp replacement costs.
-
Superior Light Quality (CRI 98): With a Color Rendering Index (CRI) of 98 and a TLCI of up to 98, this light ensures that the colors of costumes, sets, and skin tones appear natural and vibrant. This color fidelity is essential for video, film, and television productions, where precision is paramount.
-
High-Precision Motorized Zoom: Its high-quality optical system is complemented by a motorized zoom function that covers a wide range of 8° to 60° (field angle), allowing you to adjust the light beam from a concentrated spot to a general wash quickly and quietly, all controllable via DMX.
-
Professional Control and Smooth Dimming: Offers complete control via DMX (1, 2, 3, or 4 channels) or manually from its color LCD panel. 16-bit dimming allows for incredibly smooth, seamless transitions and fades to black. It also features selectable PWM for flicker-free operation in front of cameras and adjustable dimmer curves to emulate the behavior of halogen lamps.
-
Robust Construction and Silent Operation: Its lightweight yet durable aluminum housing is designed for life on tour and heavy use. The intelligent cooling system with a temperature-controlled fan ensures the spotlight operates virtually inaudibly, activating only when absolutely necessary, making it perfect for noise-sensitive environments.
Benefits for the Professional

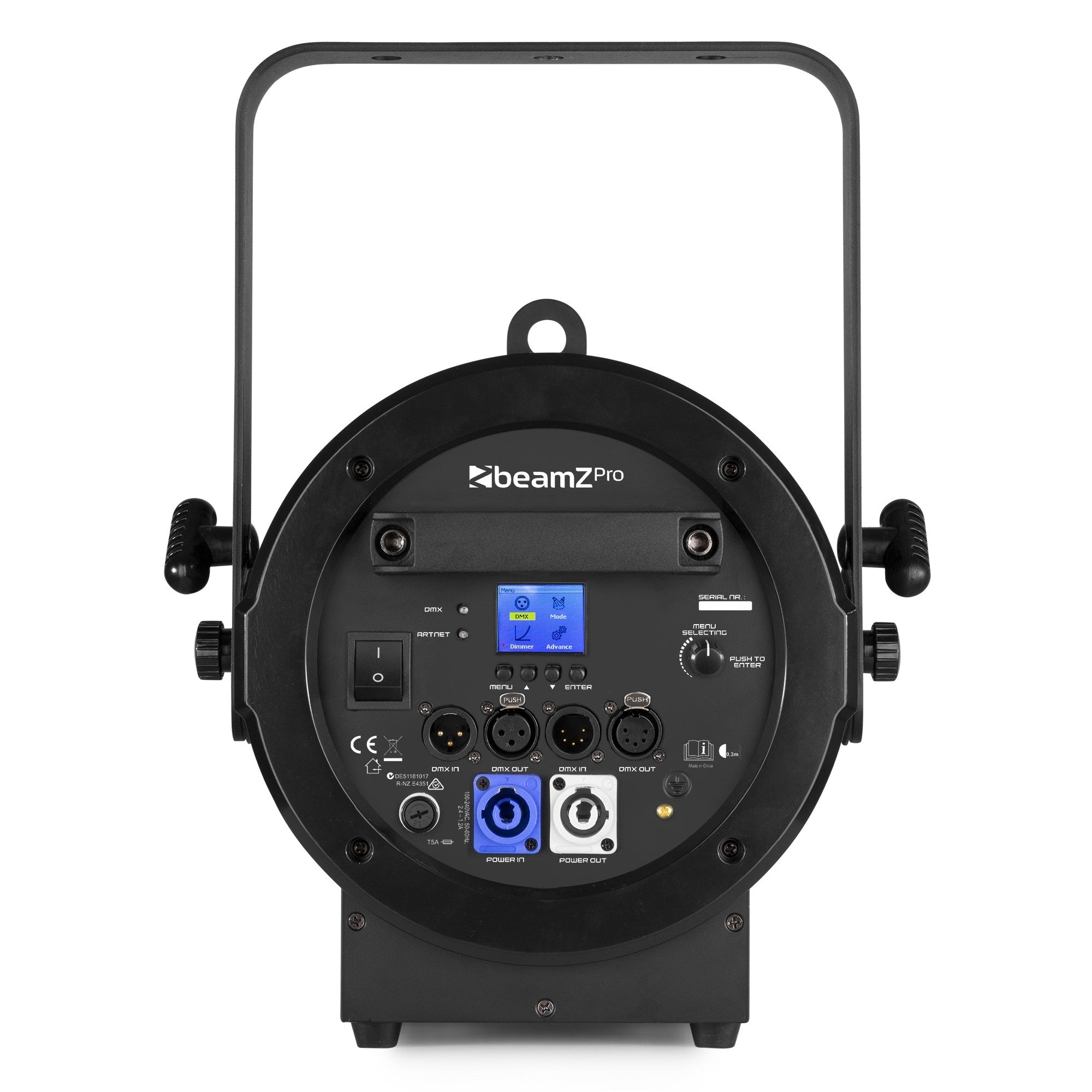

The BTF300Z is more than just a spotlight; it's a versatile lighting tool offering numerous advantages. Its low energy consumption translates into significant savings in operating costs and less heat generation on stage. The versatility of its motorized zoom allows a single unit to perform functions that previously required several separate lights, optimizing inventory and setup. Integration is simple thanks to its Powercon input and output power connectors, which facilitate daisy-chaining multiple units, and its 3-pin and 5-pin XLR DMX connectors, ensuring compatibility with any professional lighting control system.
Use Cases
This Fresnel spotlight is the perfect choice for a wide range of applications:
-
Theatres and Performing Arts: As a front light, backlight or main light, providing soft coverage and impeccable color reproduction.
-
Television and Video Production Studios: Its flicker-free operation and high CRI make it ideal for recordings, guaranteeing the highest image quality.
-
Live and Corporate Events: Perfect for illuminating speakers, stages or products with a defined, high-quality beam of light.
-
Exhibition Halls and Museums: To highlight works of art and exhibits without emitting harmful heat and with faithful color reproduction.
Frequently Asked Questions
- Can this bulb directly replace a 1000W or 2000W tungsten Fresnel?
- Yes, its powerful 300W LED light output is comparable to that of many higher wattage tungsten spotlights, but with up to 80% lower energy consumption, no heat generation, and a much longer lifespan.
- Is fan noise a problem in quiet environments like a theater?
- No. The BTF300Z features an intelligent temperature control system that keeps the fan off or at very low speeds during normal operation, ensuring virtually silent operation.
- Do I need an external dimmer pack to control the intensity?
- No. The dimming is integrated into the spotlight itself and is digitally controlled via DMX or from the device's control panel, offering 16-bit precision.
- What are CRI and TLCI and why are they so high in this model?
- The CRI (Color Rendering Index) and TLCI (Television Lighting Consistency Index) are measures of a light source's ability to accurately reveal the colors of objects. A value of 98 is exceptionally high and indicates that the light quality is nearly perfect, essential for broadcast and theater applications where color fidelity is non-negotiable.
Project description
Fresnel spotlight with a 300W COB LED light source and a color temperature of 3200K (warm white). It offers a Color Rendering Index (CRI) of 98 and a TLCI of up to 98. It features a motorized zoom with a beam angle of 8° to 47° and a field angle of 19° to 60°. Control is via DMX (1, 2, 3, or 4 channels) or manual mode, with 3-pin and 5-pin XLR connectors. It includes 16-bit dimming, selectable PWM, and adjustable dimmer curves. The housing is made of aluminum with thermally controlled fan cooling. Powercon input and output connectors are included. Dimensions: 428 x 266 x 451 mm. Weight: 9.2 kg.
