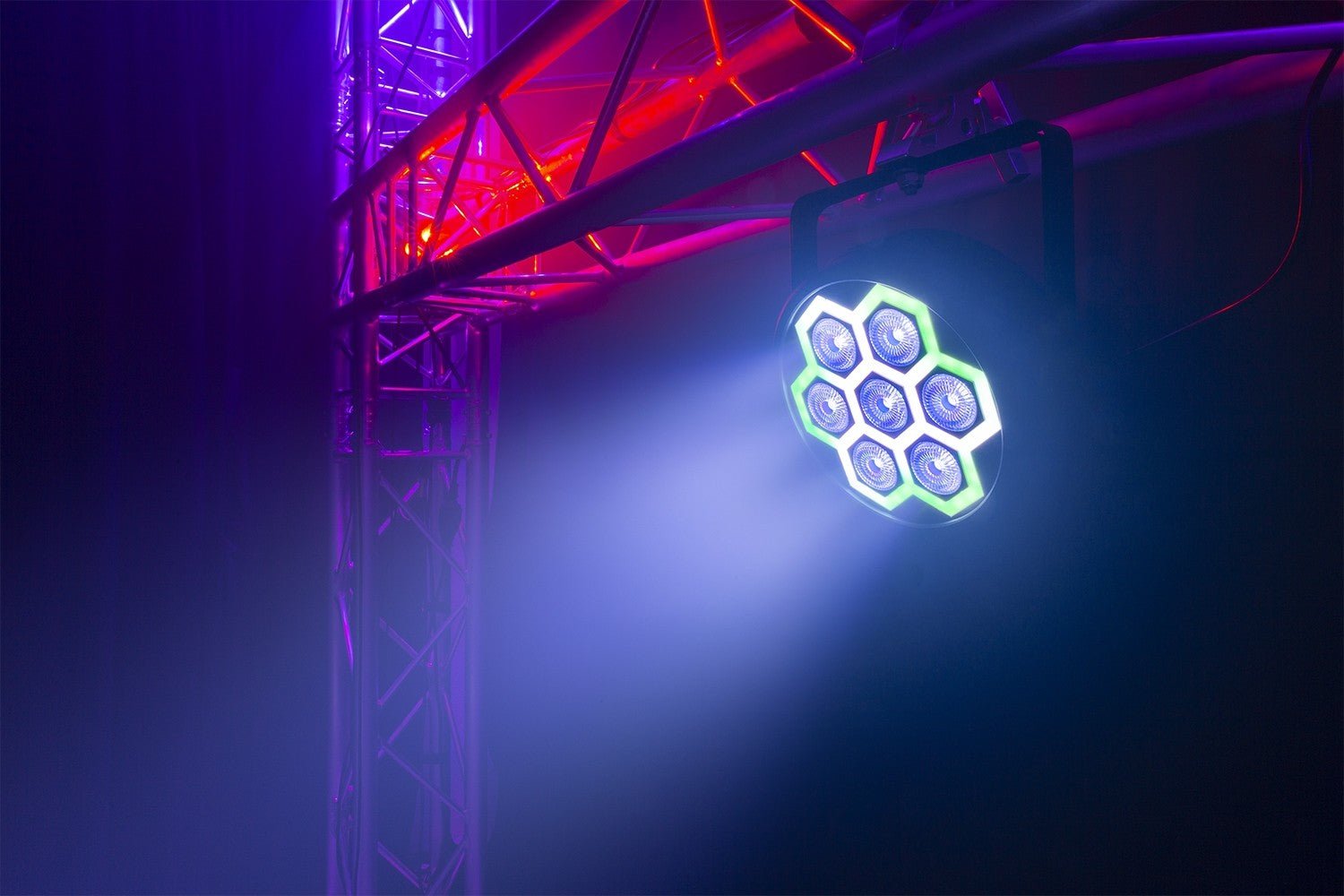

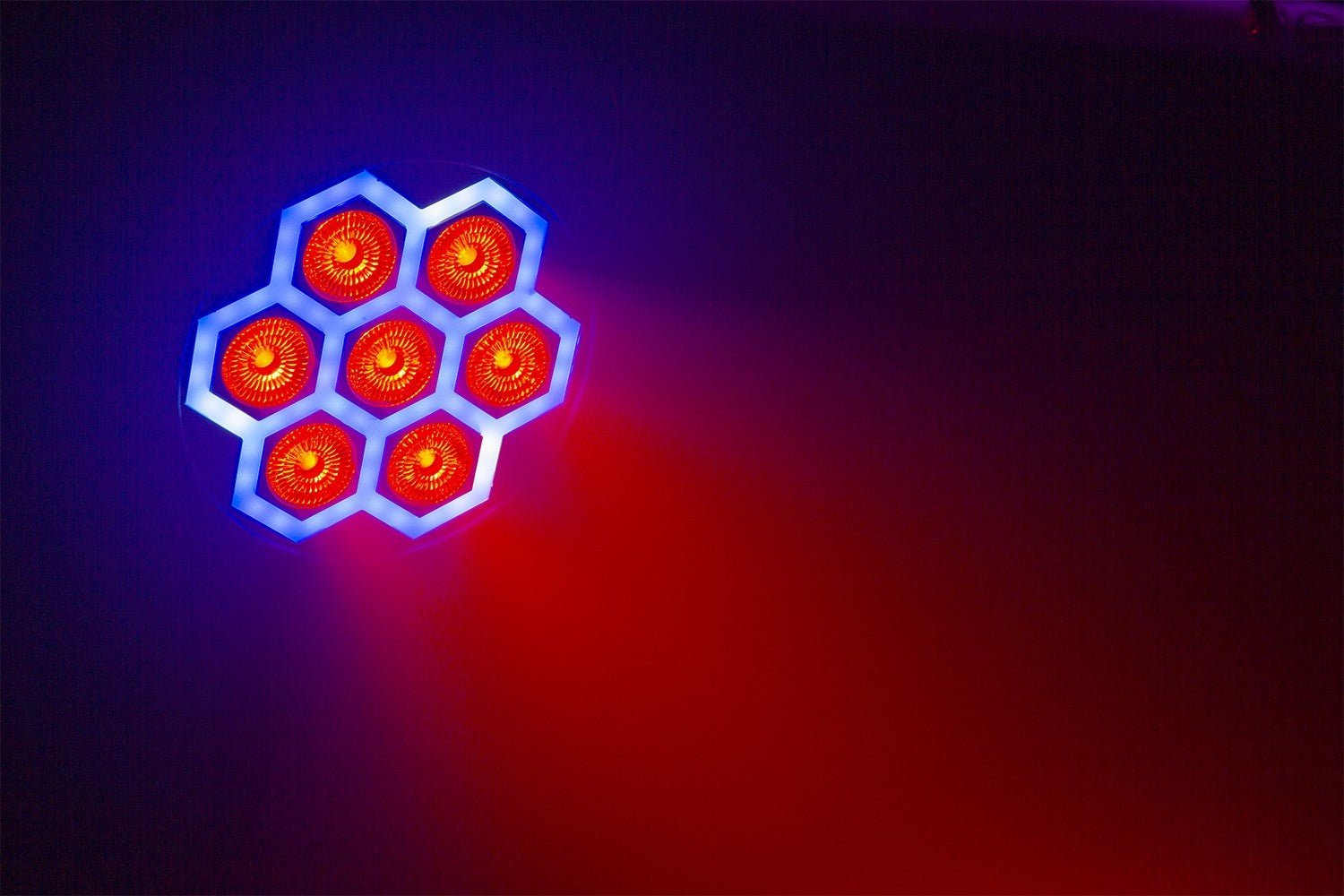

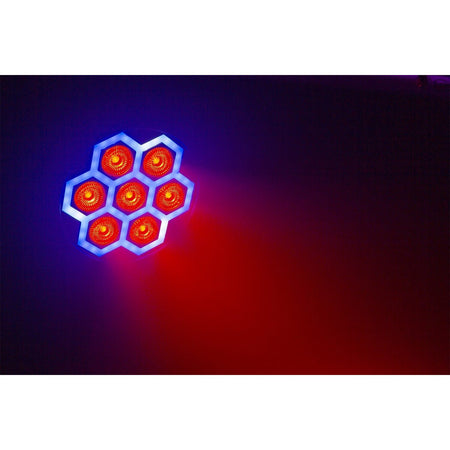

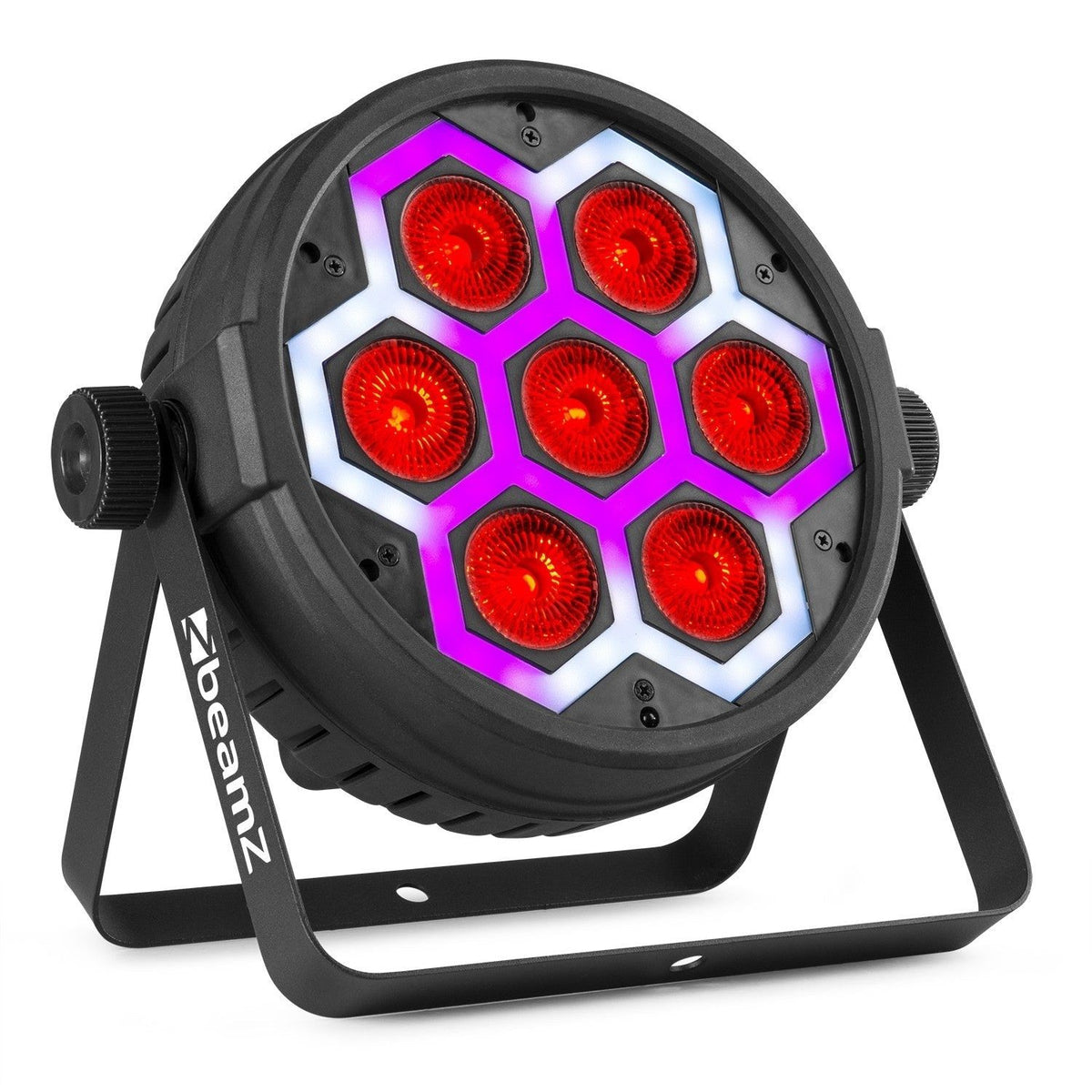

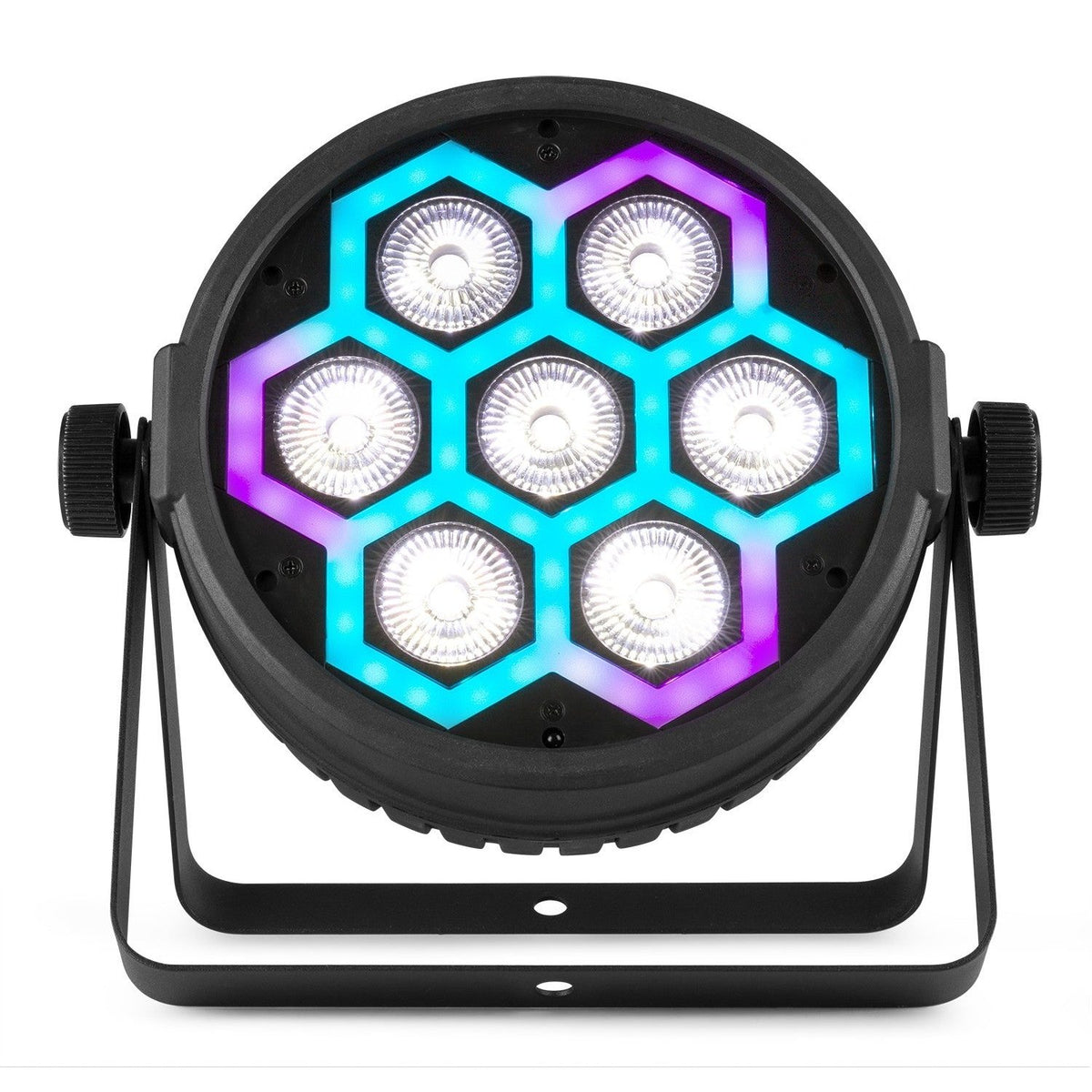

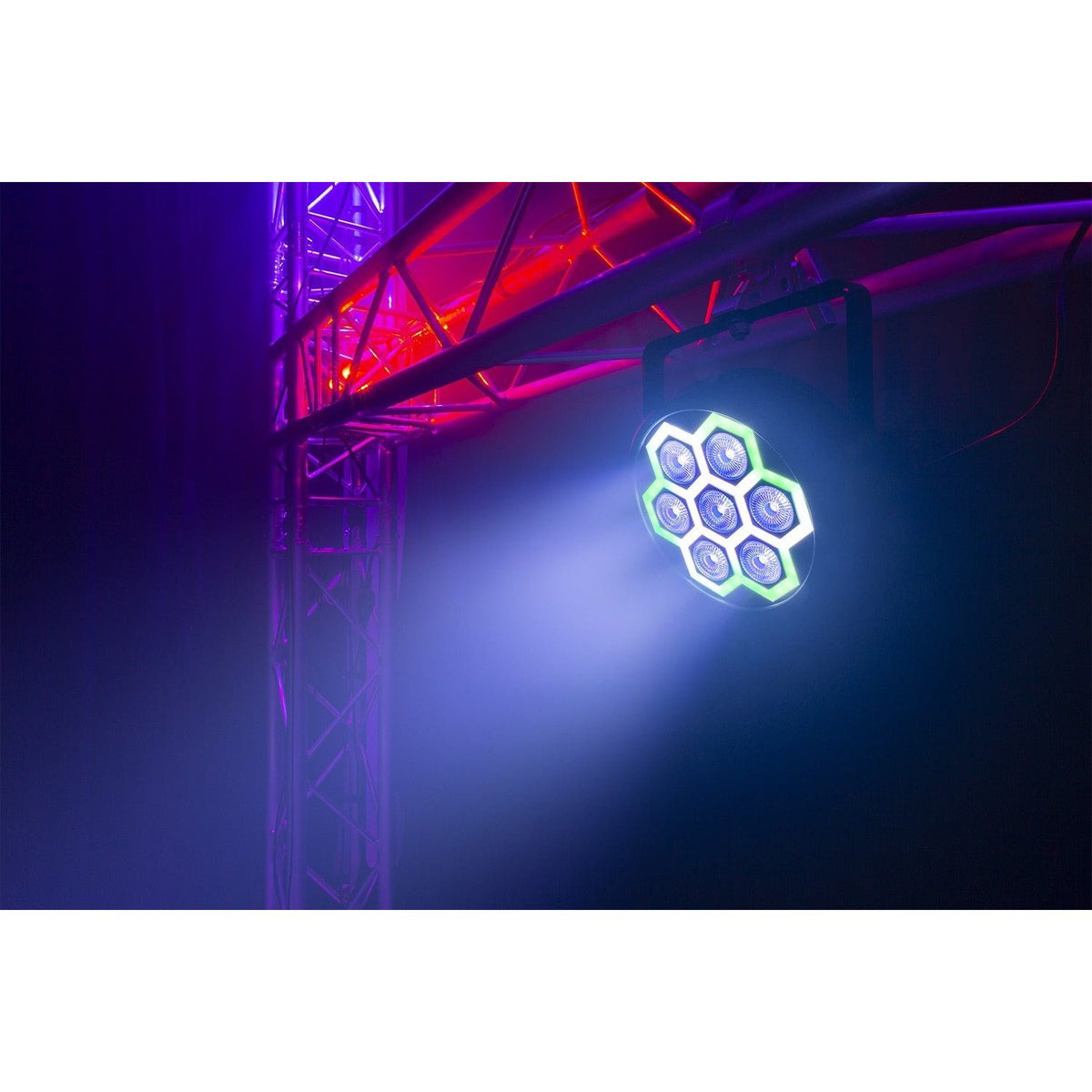

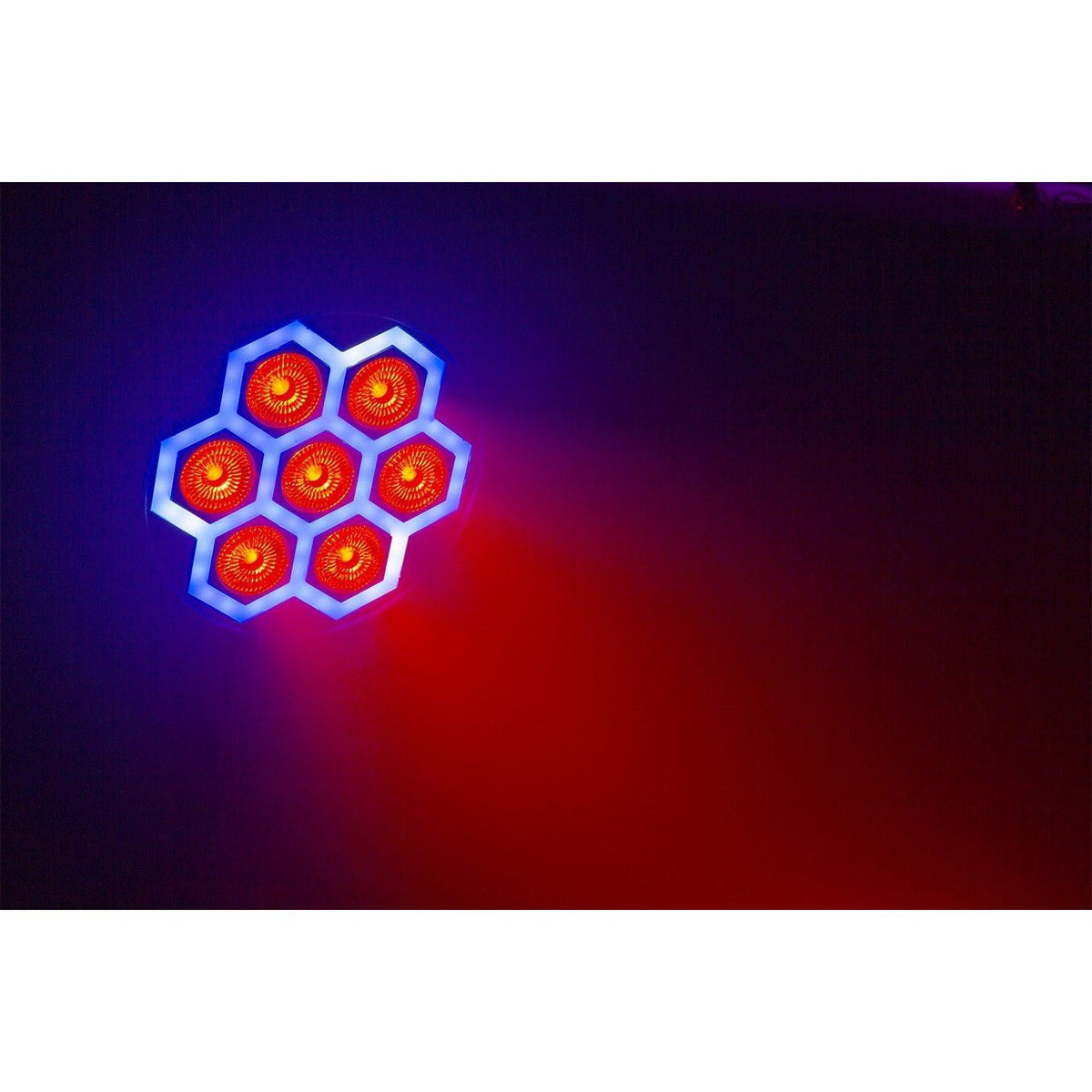

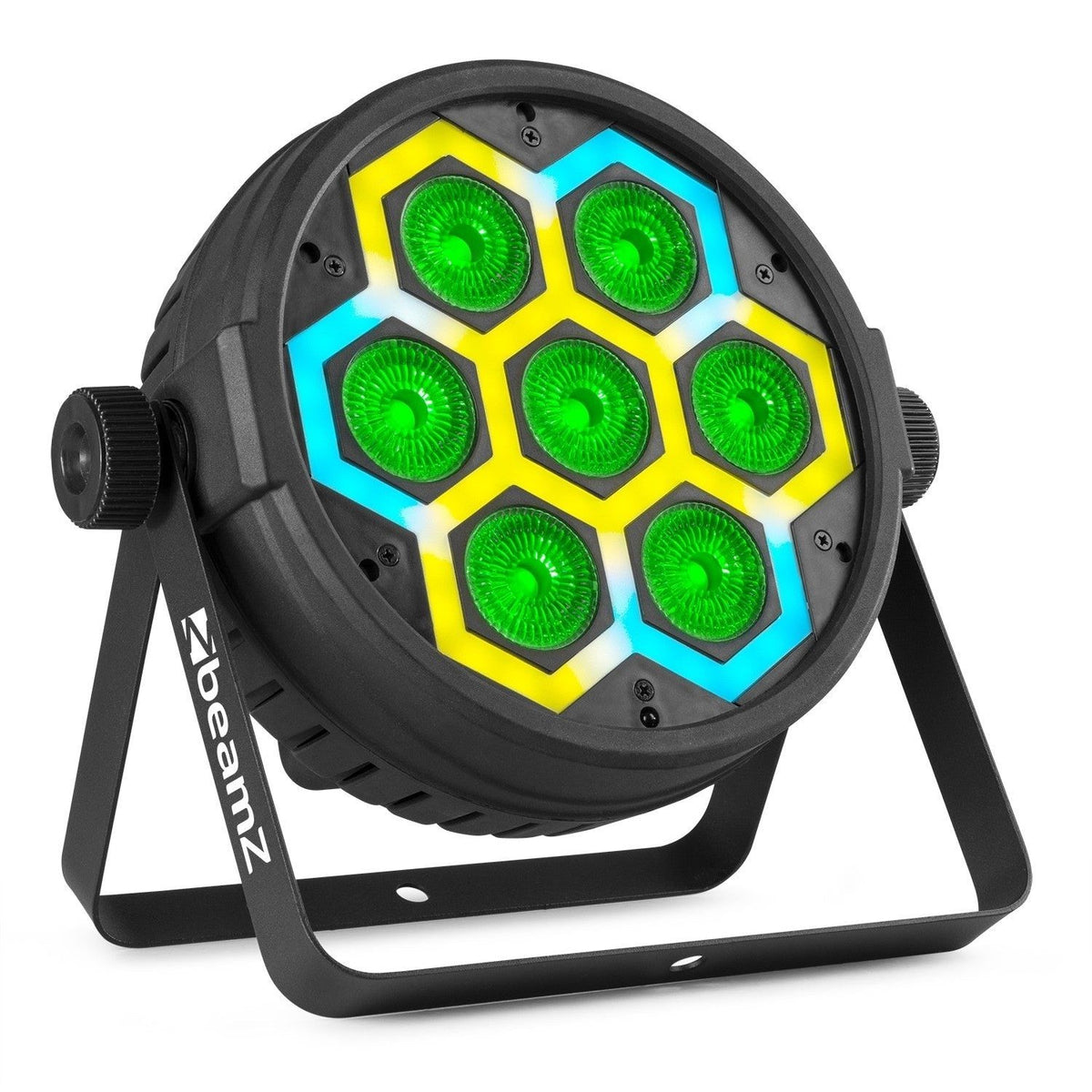

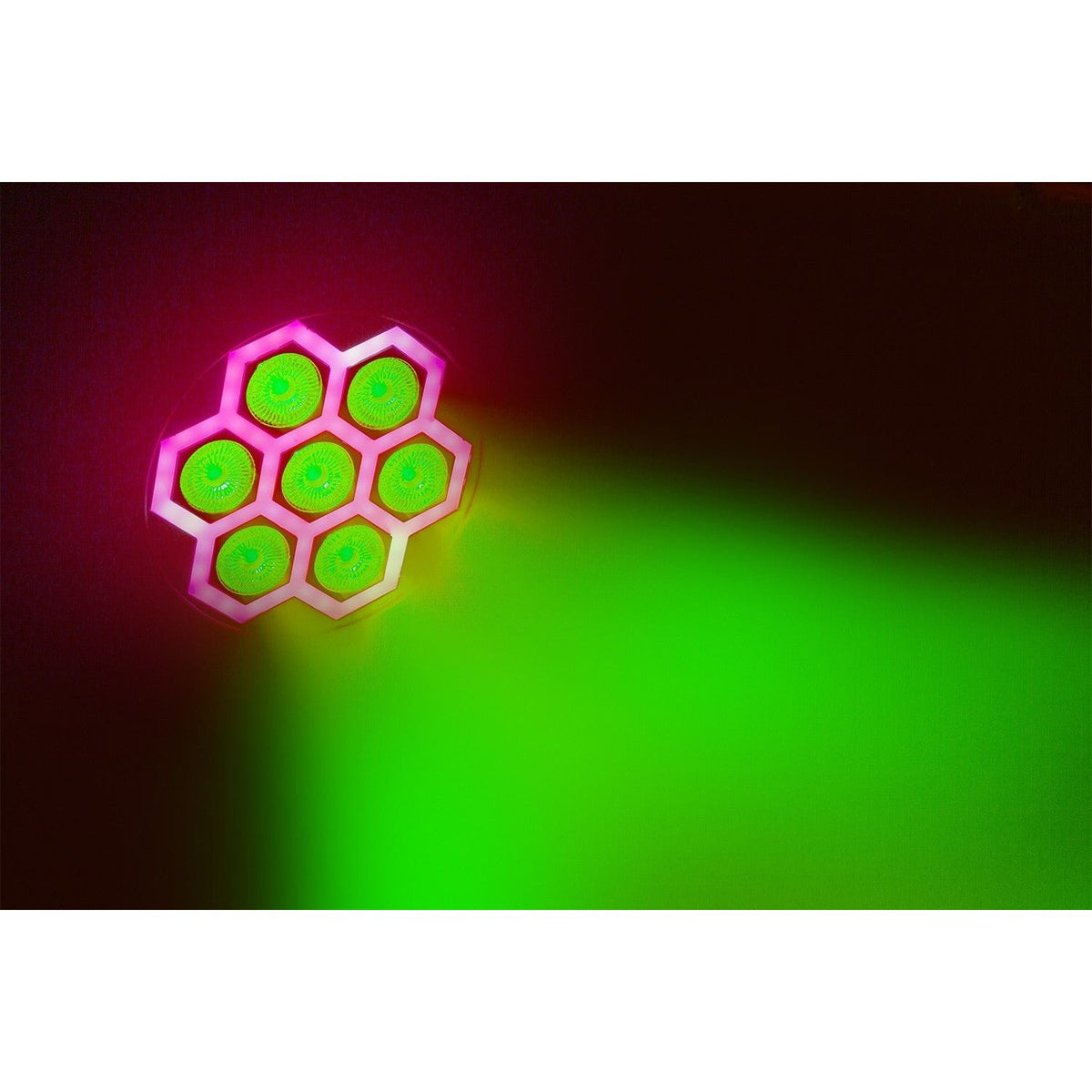

The beamZ BT420 belongs to the BT-4 series , a family of lightweight, ABS-housed spotlights designed to fit in tight spaces (e.g., inside box trusses) and be easily linked together. This model combines seven 10W 4-in-1 LEDs (RGBW) for the main wash with a 60 SMD RGB backlight ring, creating striking array/honeycomb effects. It features 2700–8000K color temperature macros (CTO/CTB), 12 or 17-channel DMX for basic or section control, and internal programs for standalone operation, with an included IR remote . Its electronics offer 0–100% dimming , 0–25 Hz strobing , and a 23°/38° beam/field optic with 8,365 lx @ 1 m for powerful performance in stage, mobile DJ, and rental applications. The dual handle allows it to be hung or used as a floor stand; in addition, the PowerCON in/out and XLR 3-pin DMX in/out connectors simplify daisy-chain wiring.

Main features

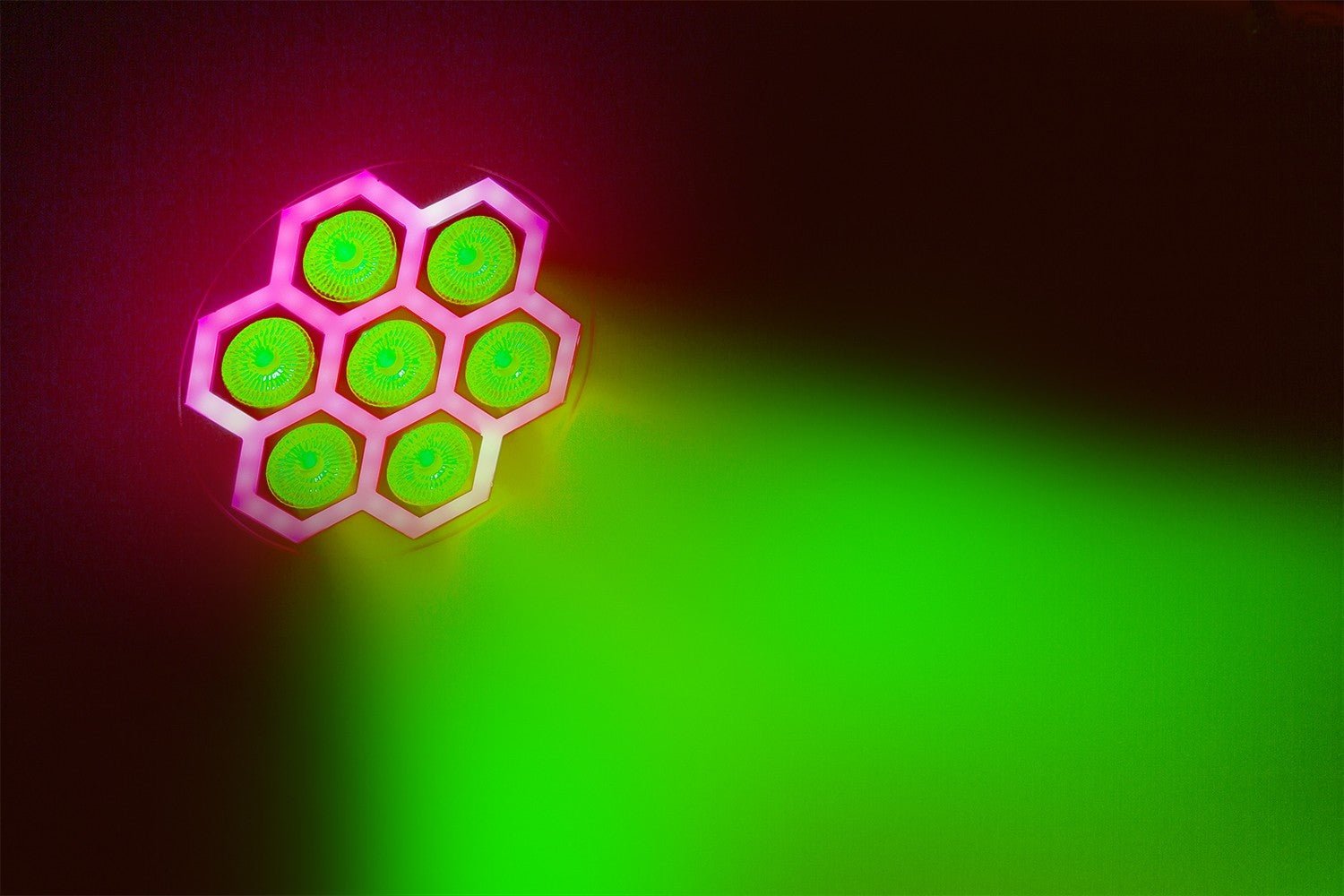

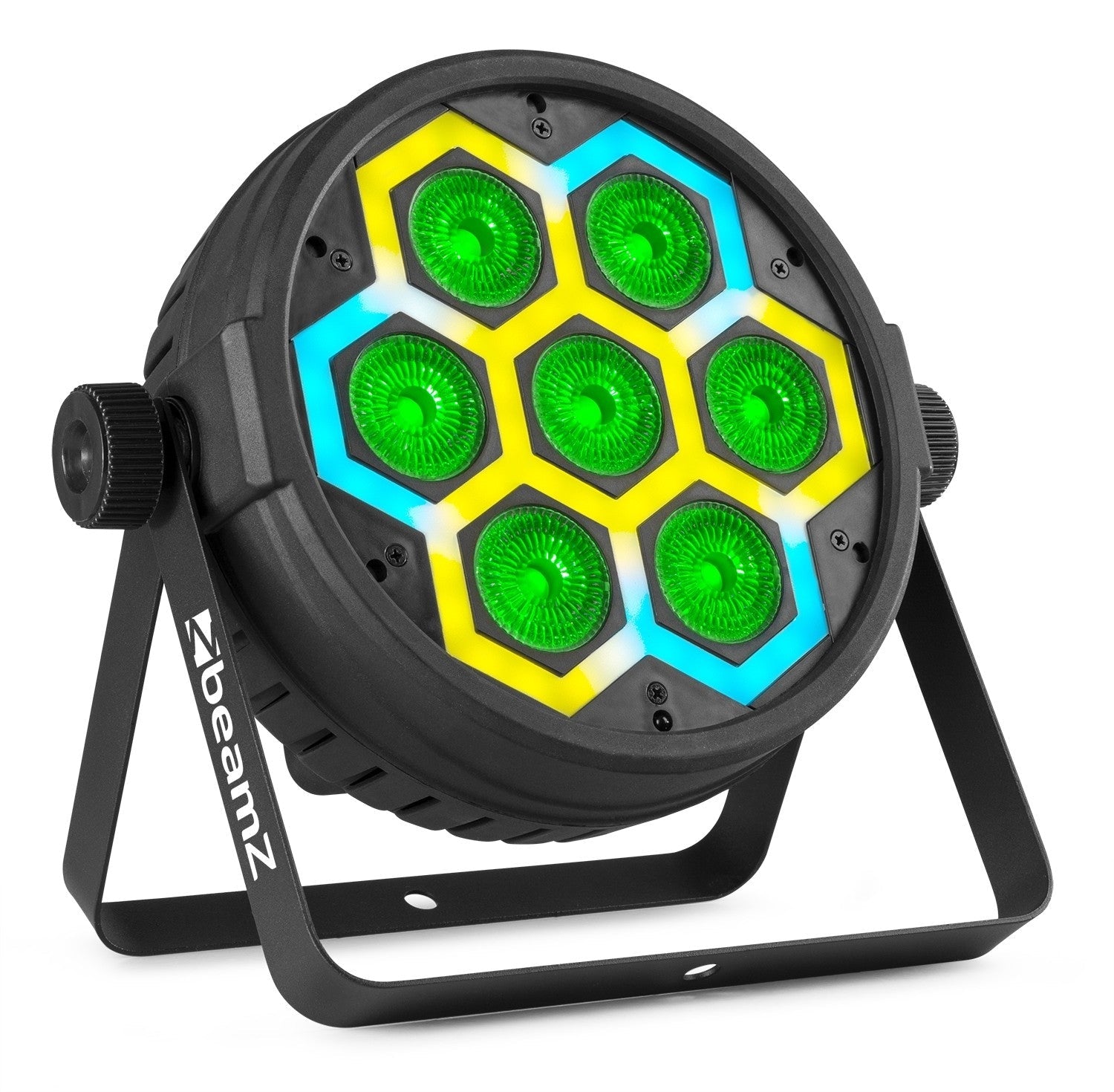

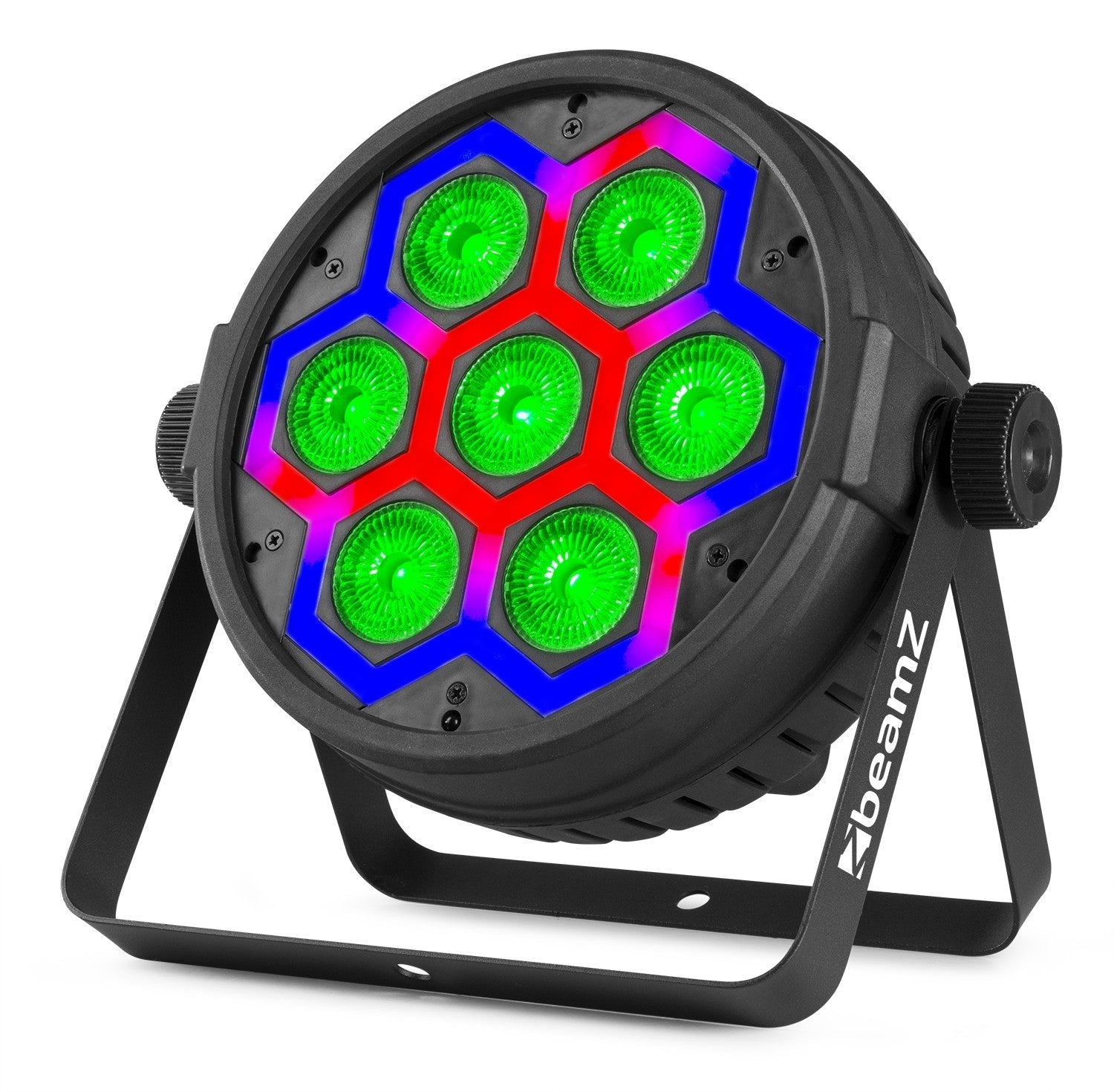

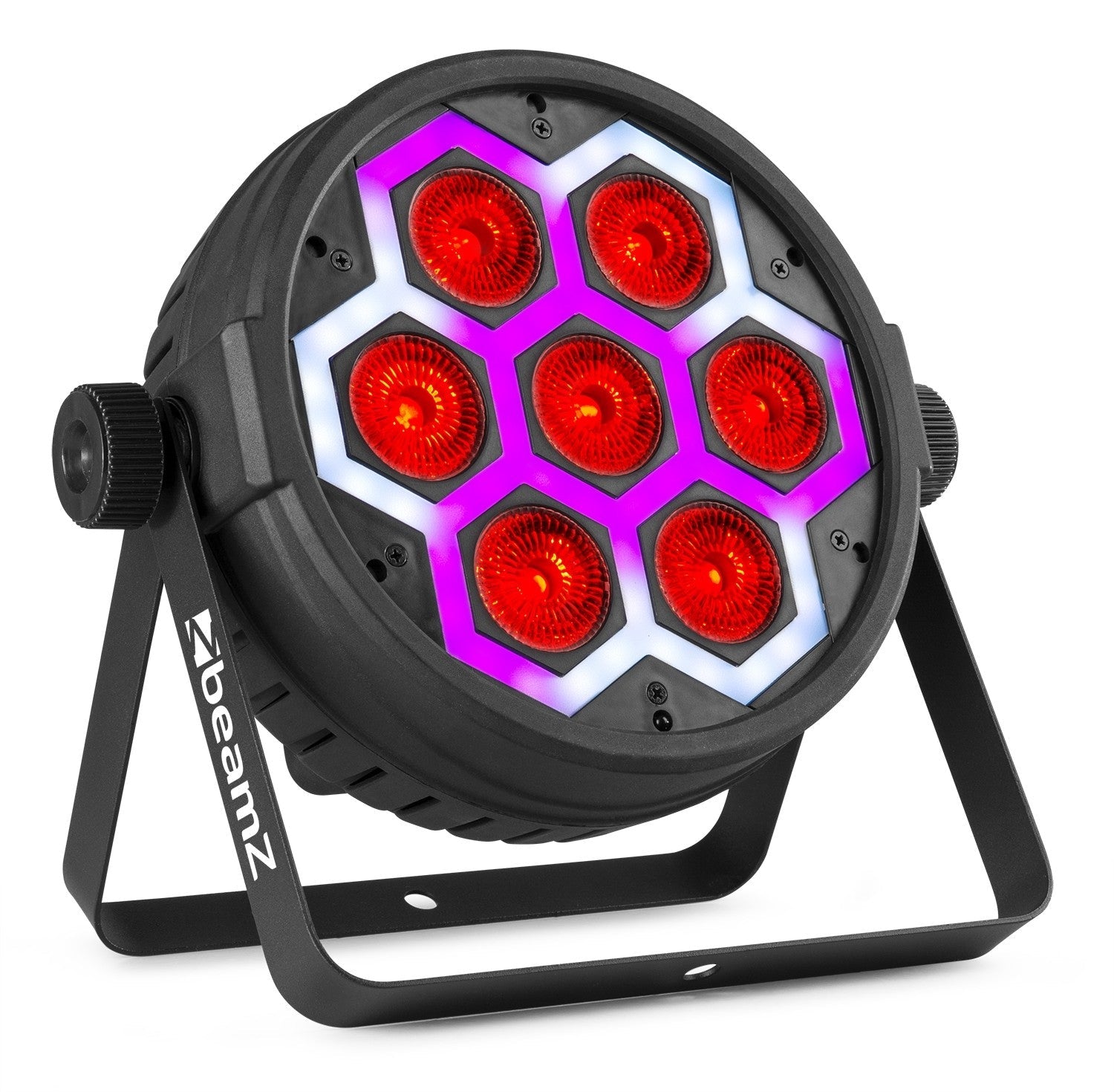

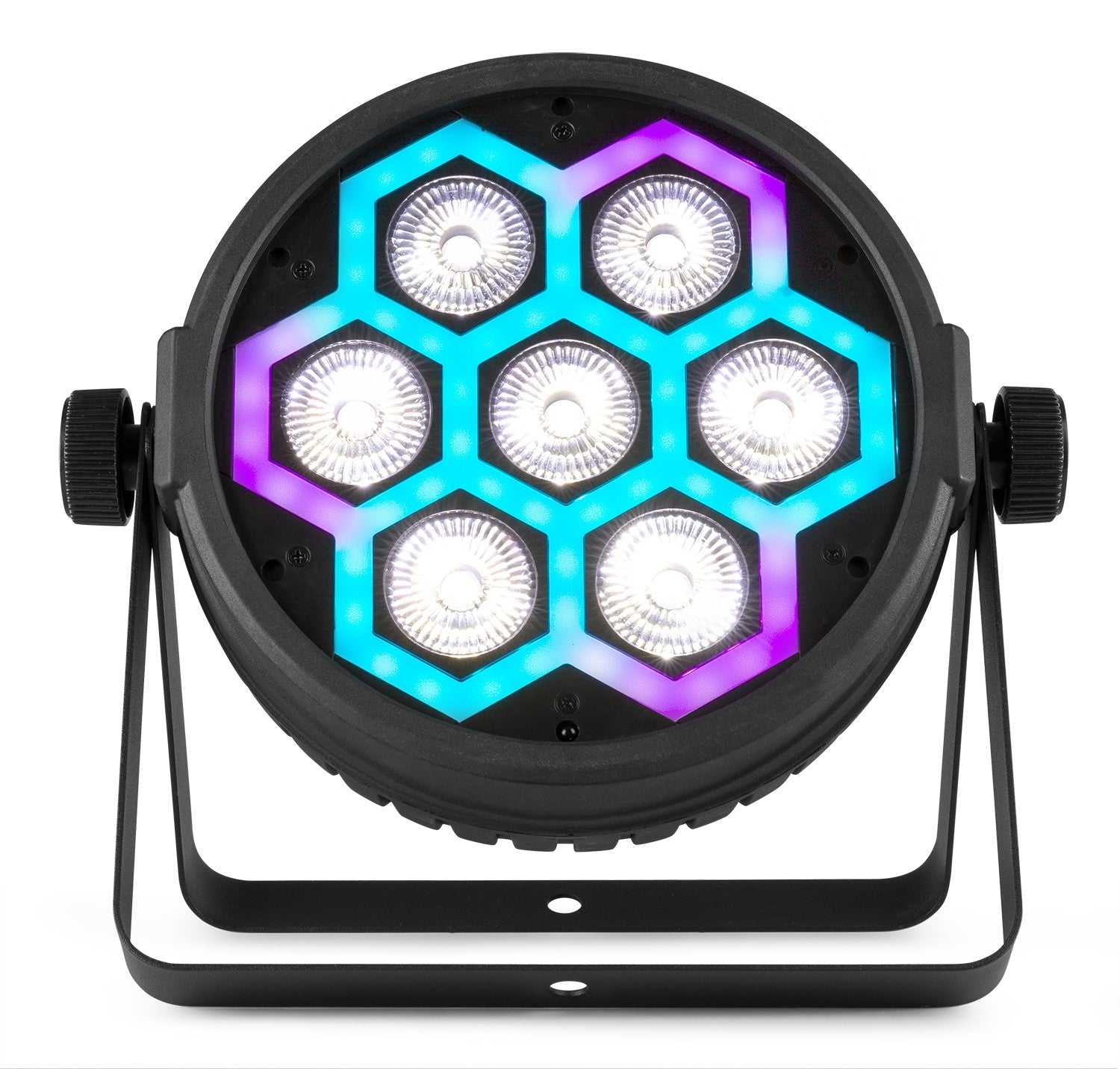

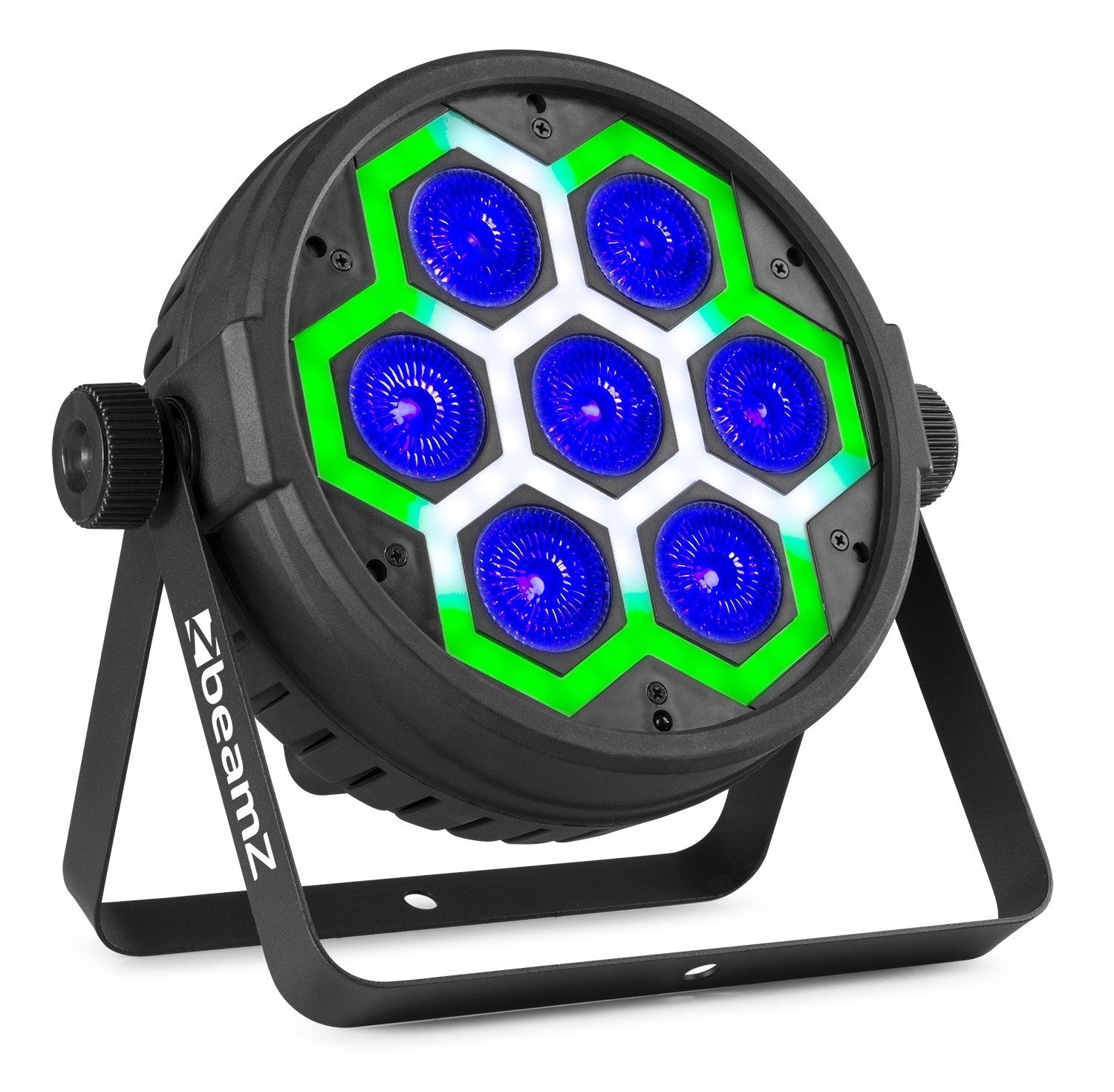

• 2-in-1 Hybrid : 7×10 W RGBW + 60× SMD RGB backlight for honeycomb effects.
• Advanced color : RGBW mixing with saturation control , CTO/CTB and CCT 2700–8000 K.

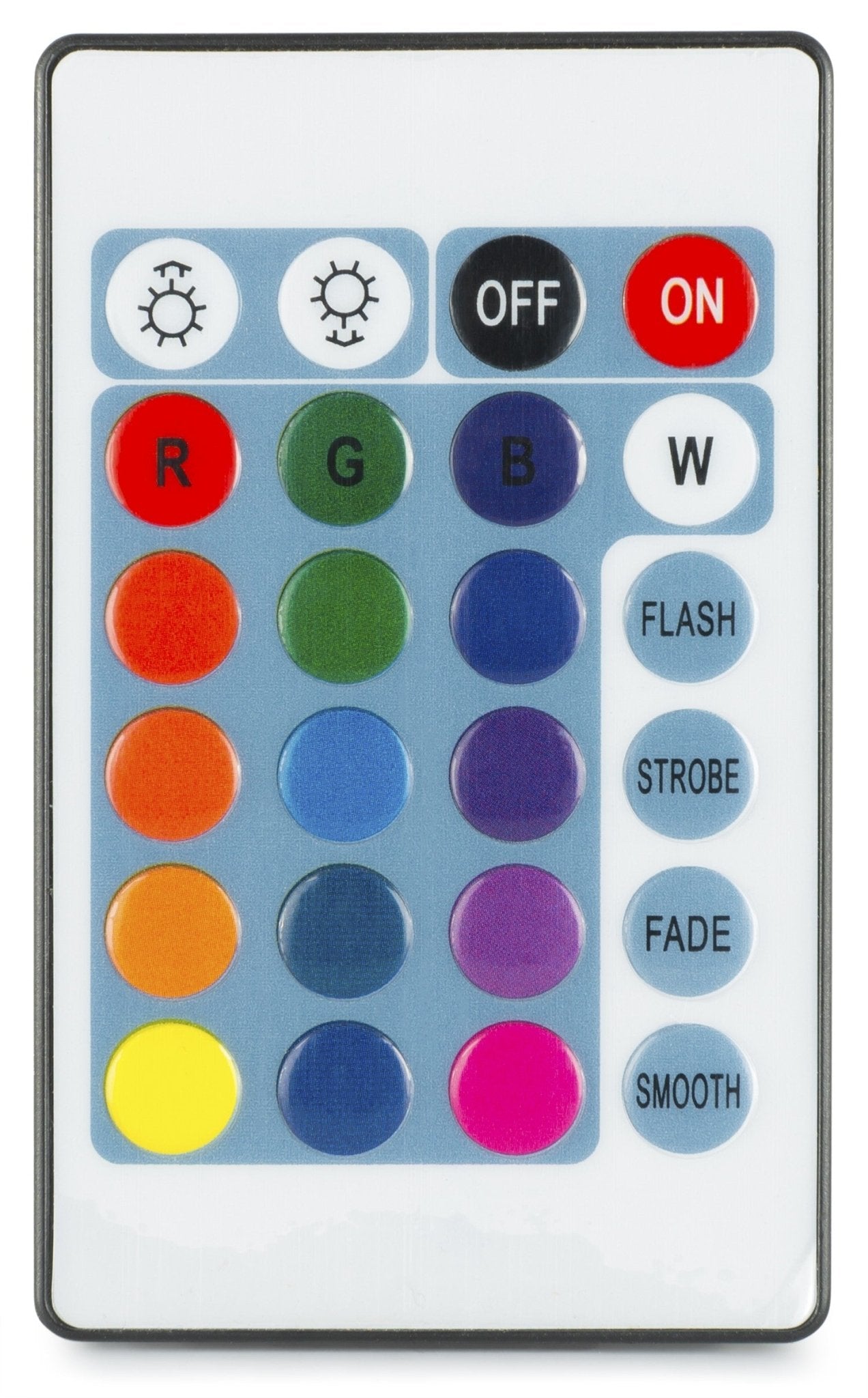

• Flexible control : DMX 12/17 ch , stand-alone , Master/Slave , sound-reactive and IR remote control .
• Optics and output : 23° (beam) / 38° (field); 8,365 lx @ 1 m ; strobe 0–25 Hz ; dimmer 0–100% .

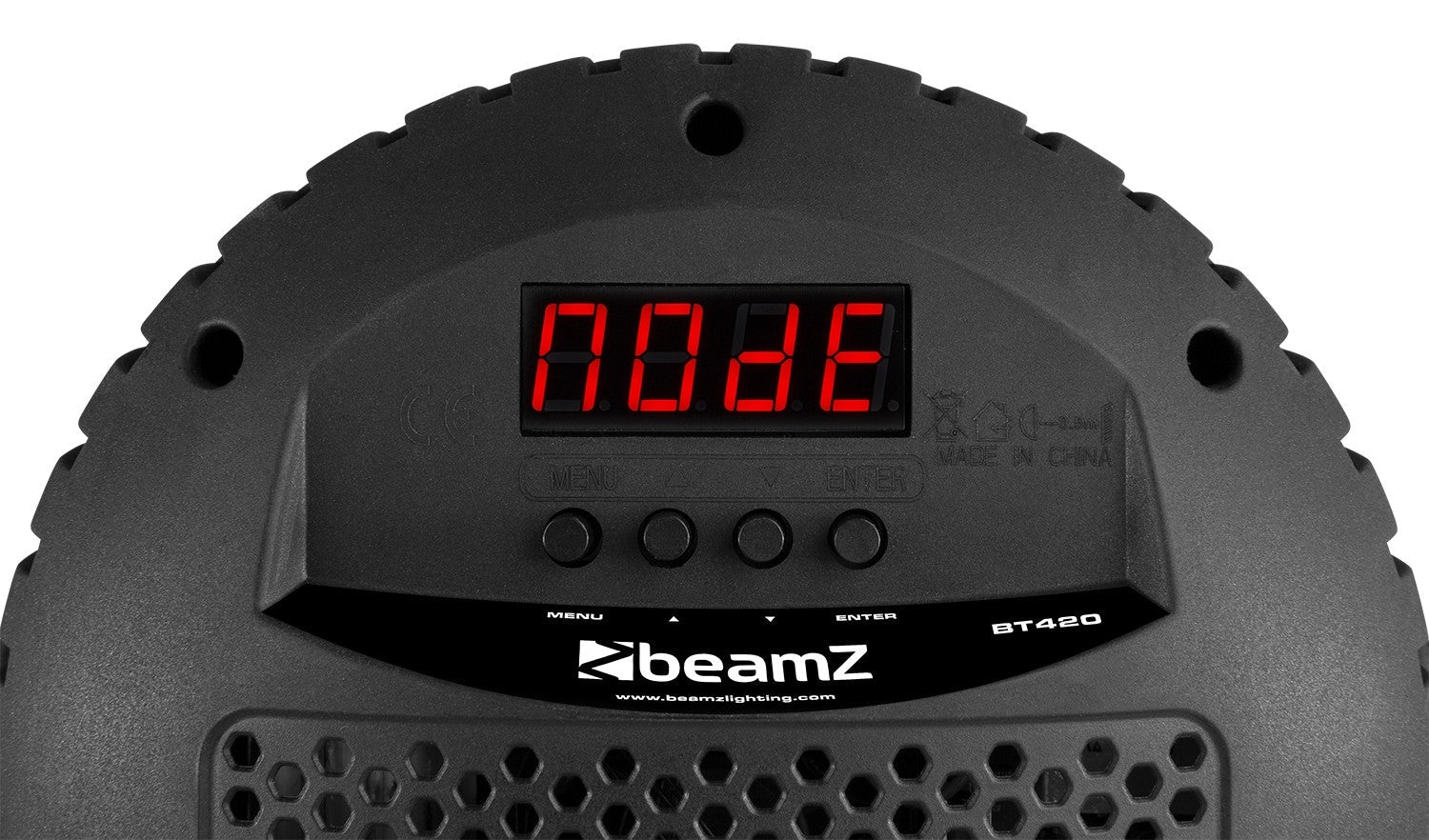

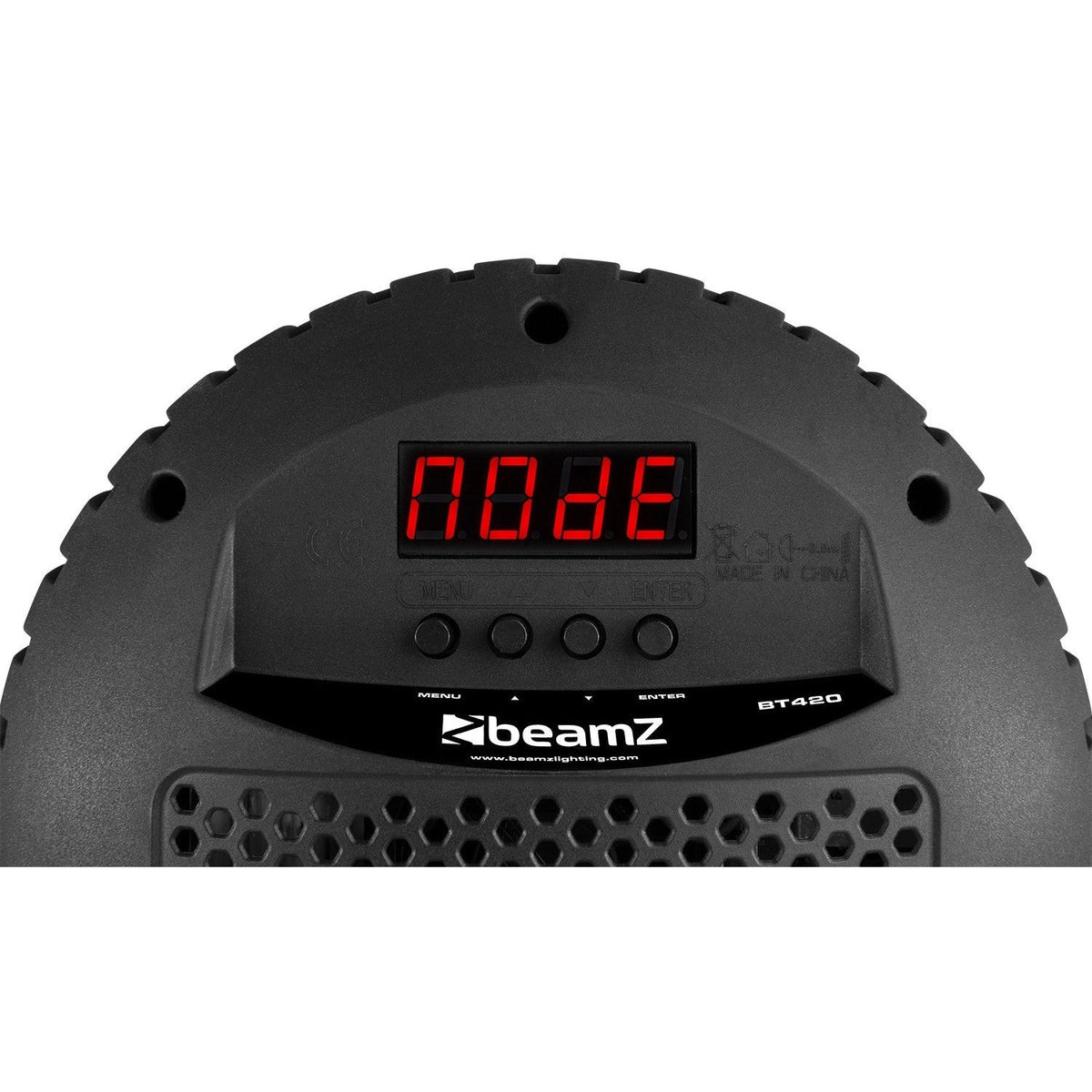

• Touring construction : Lightweight ABS , IP20 , forced ventilation (fan) and LED display .

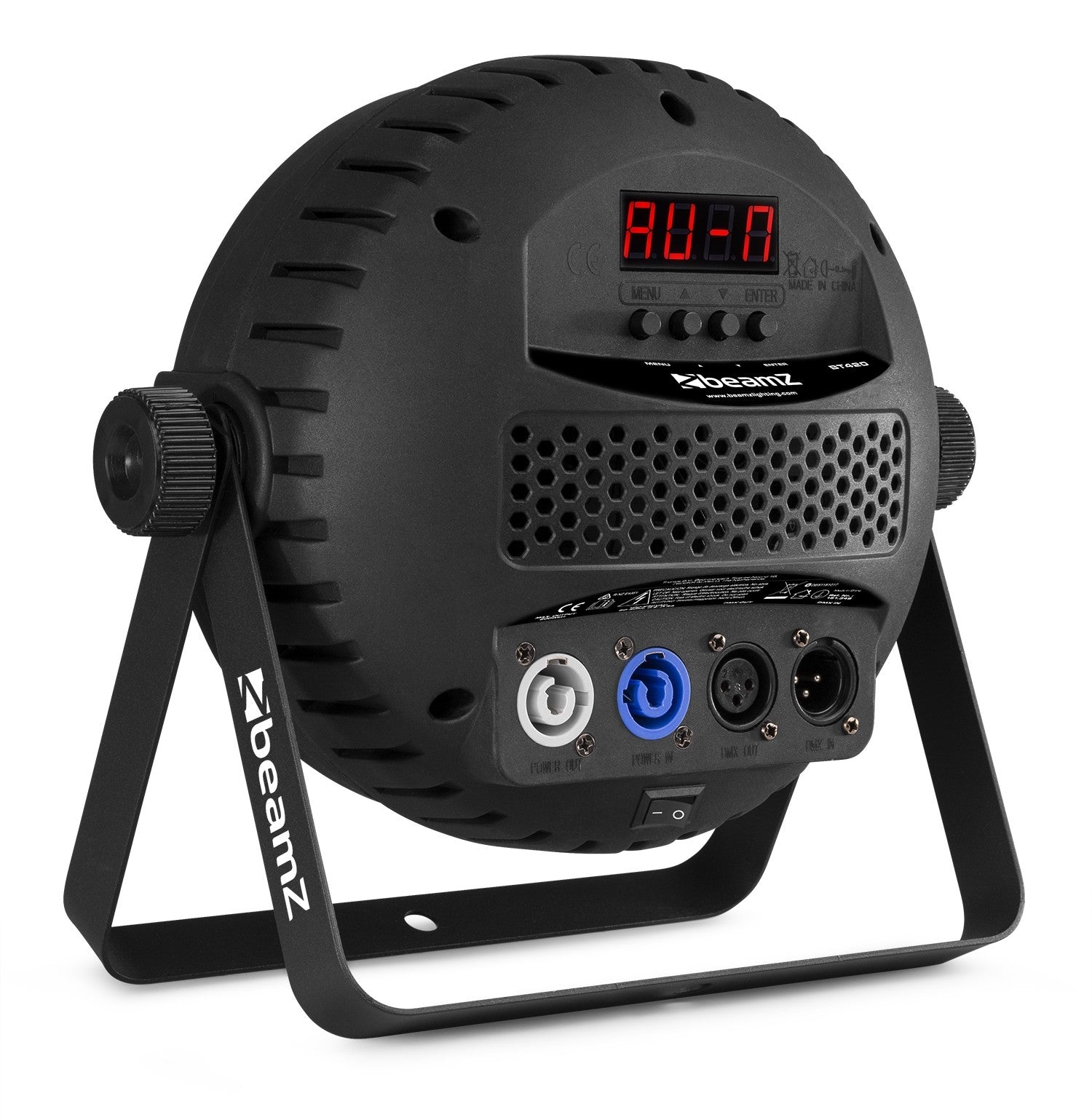

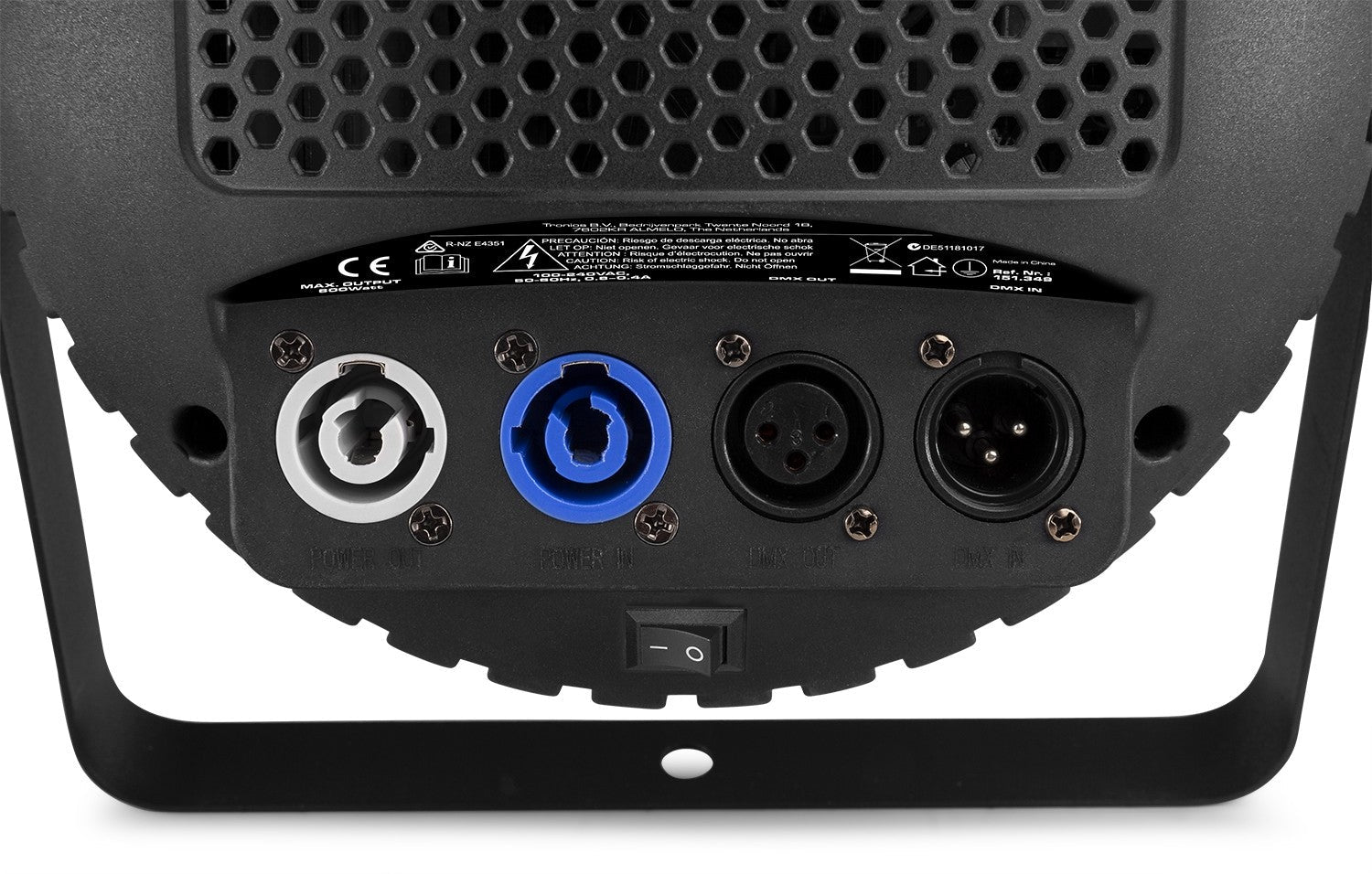

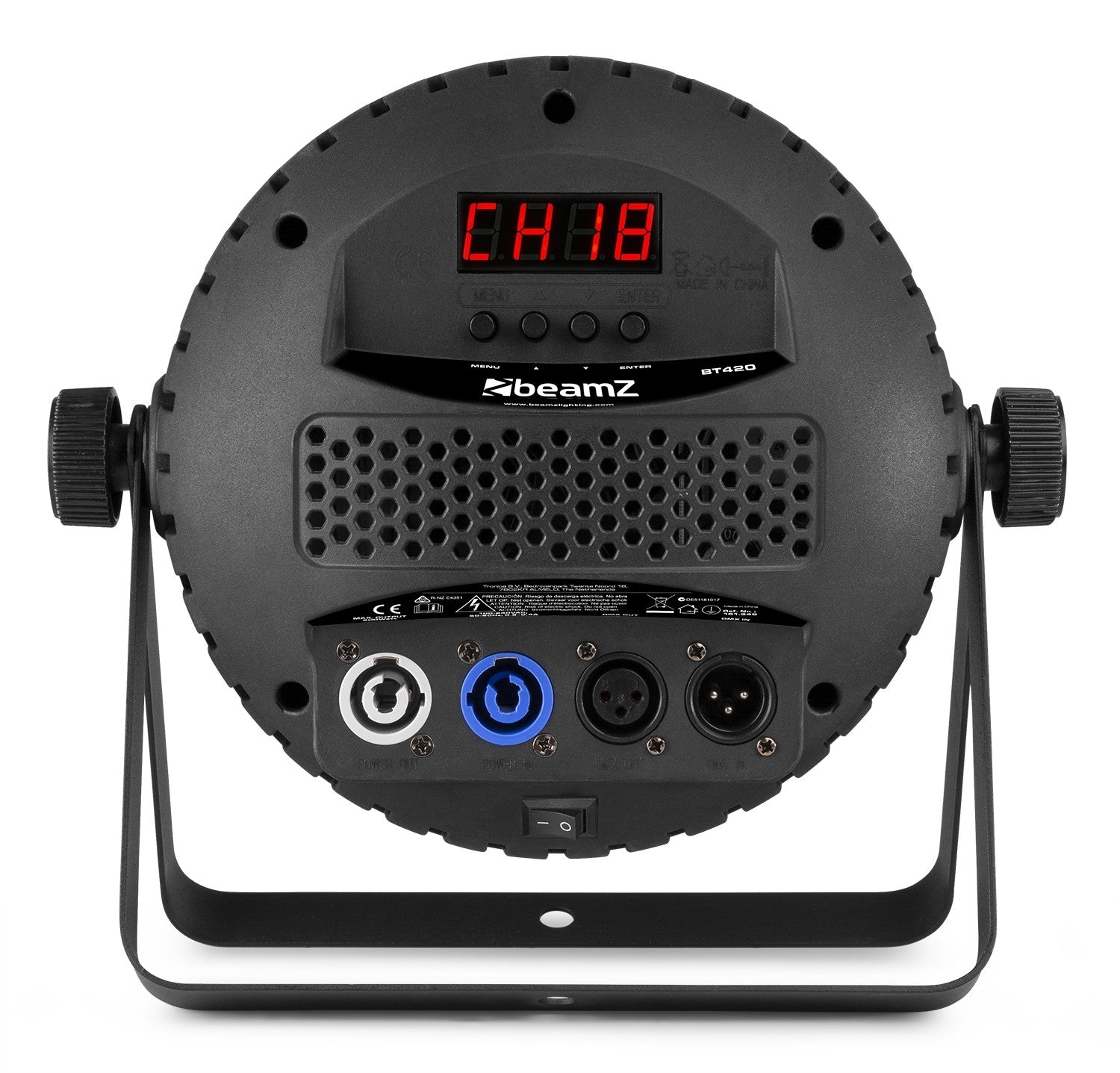

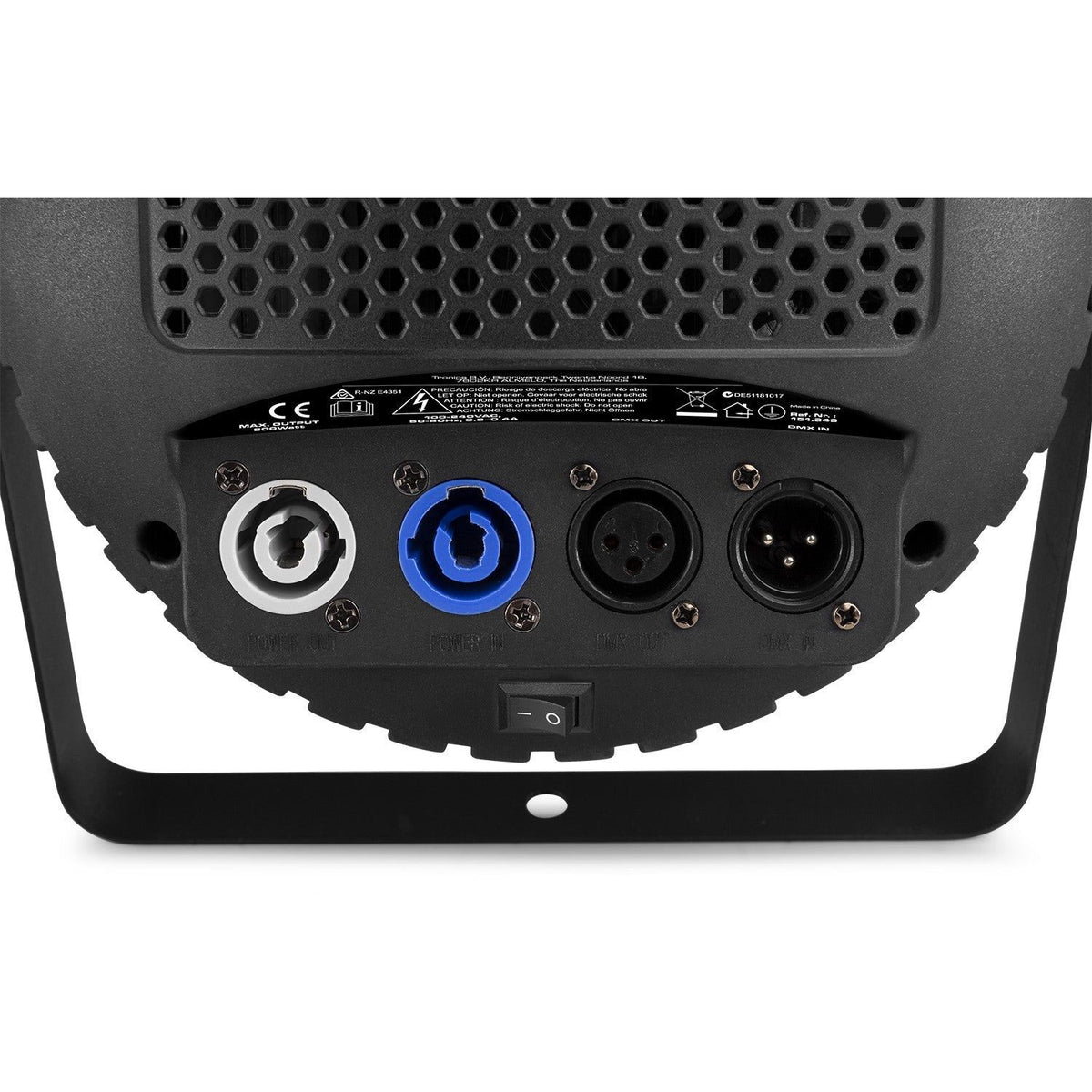

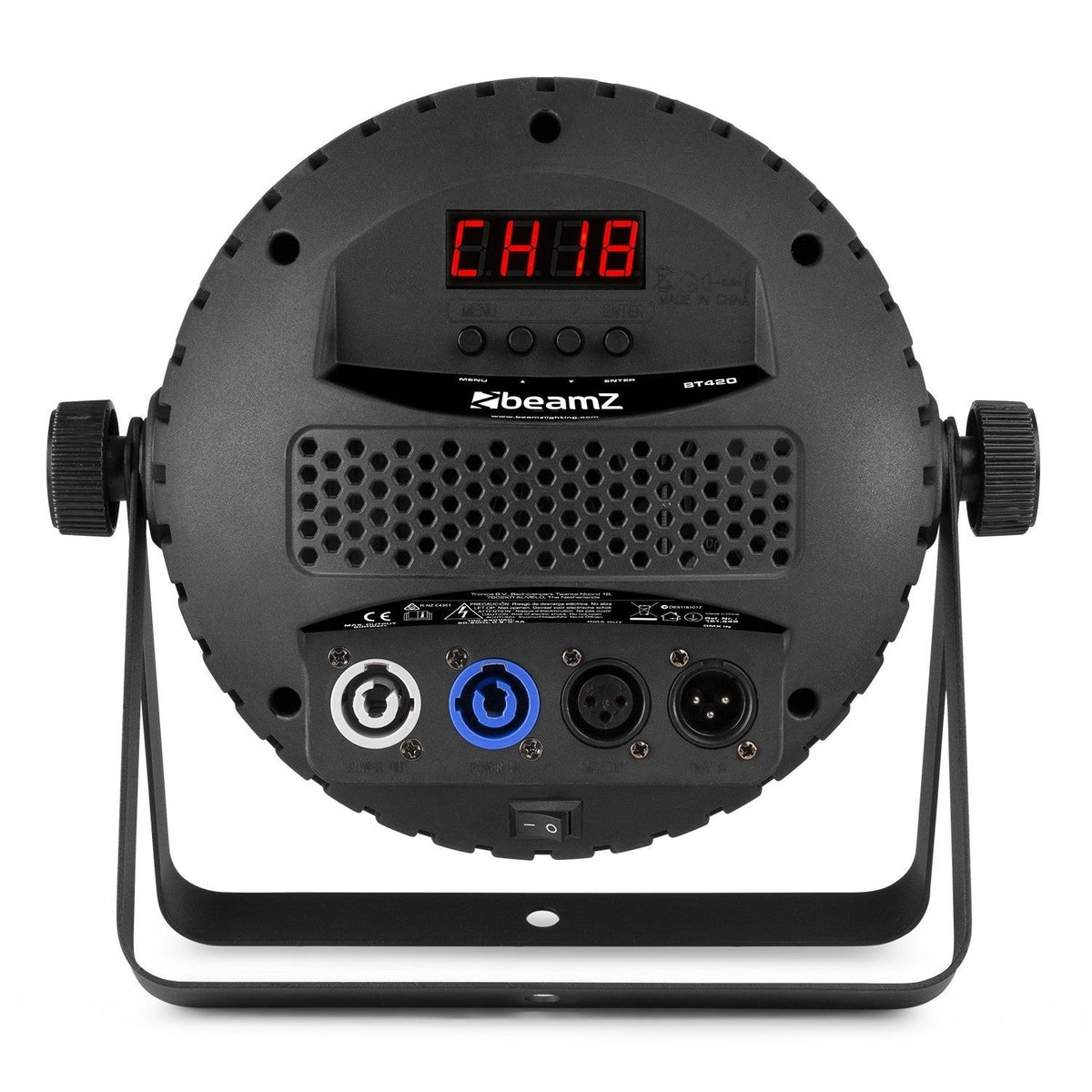

• Connectivity : DMX XLR 3-pin in/out and PowerCON in/out for power daisy-chaining.

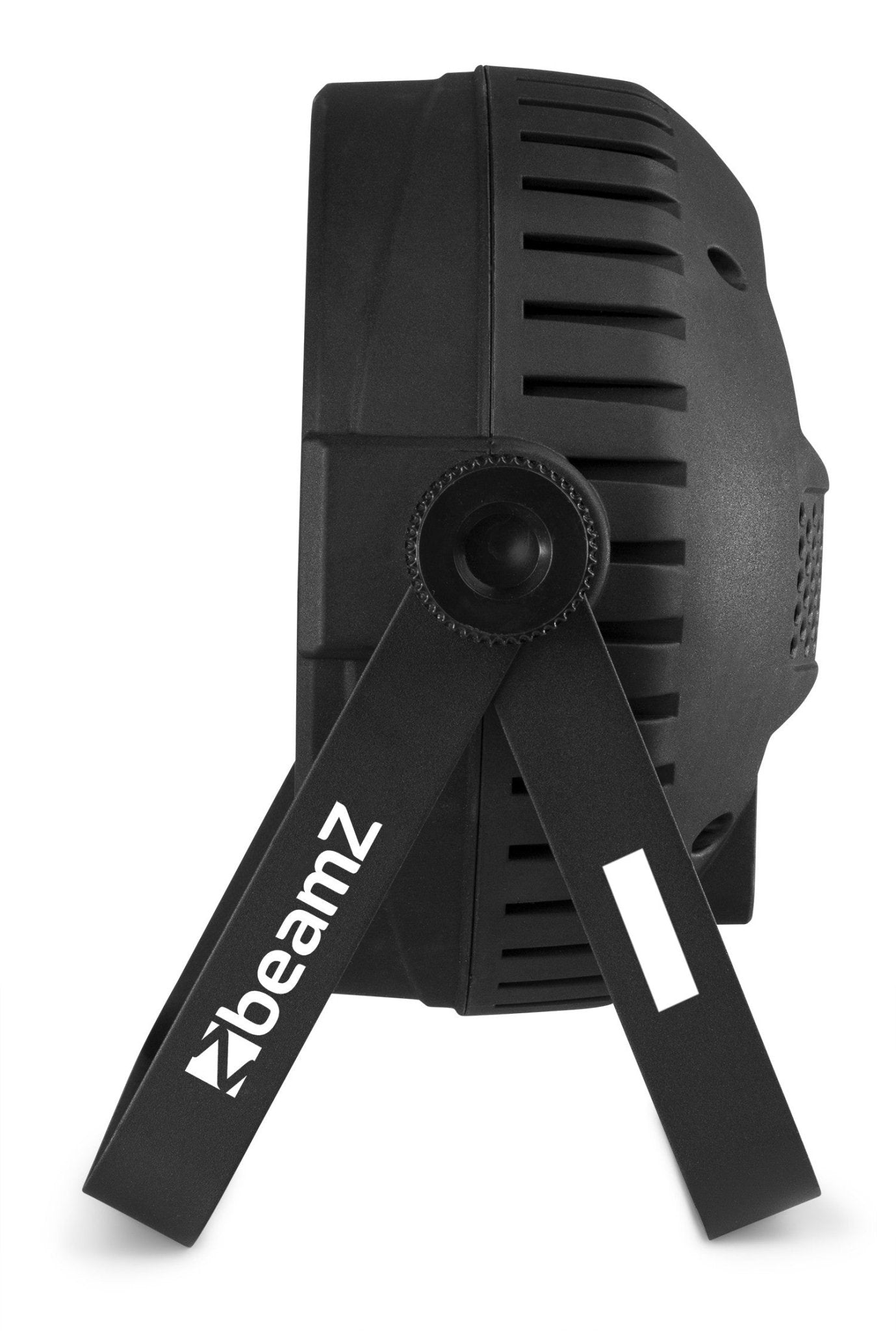

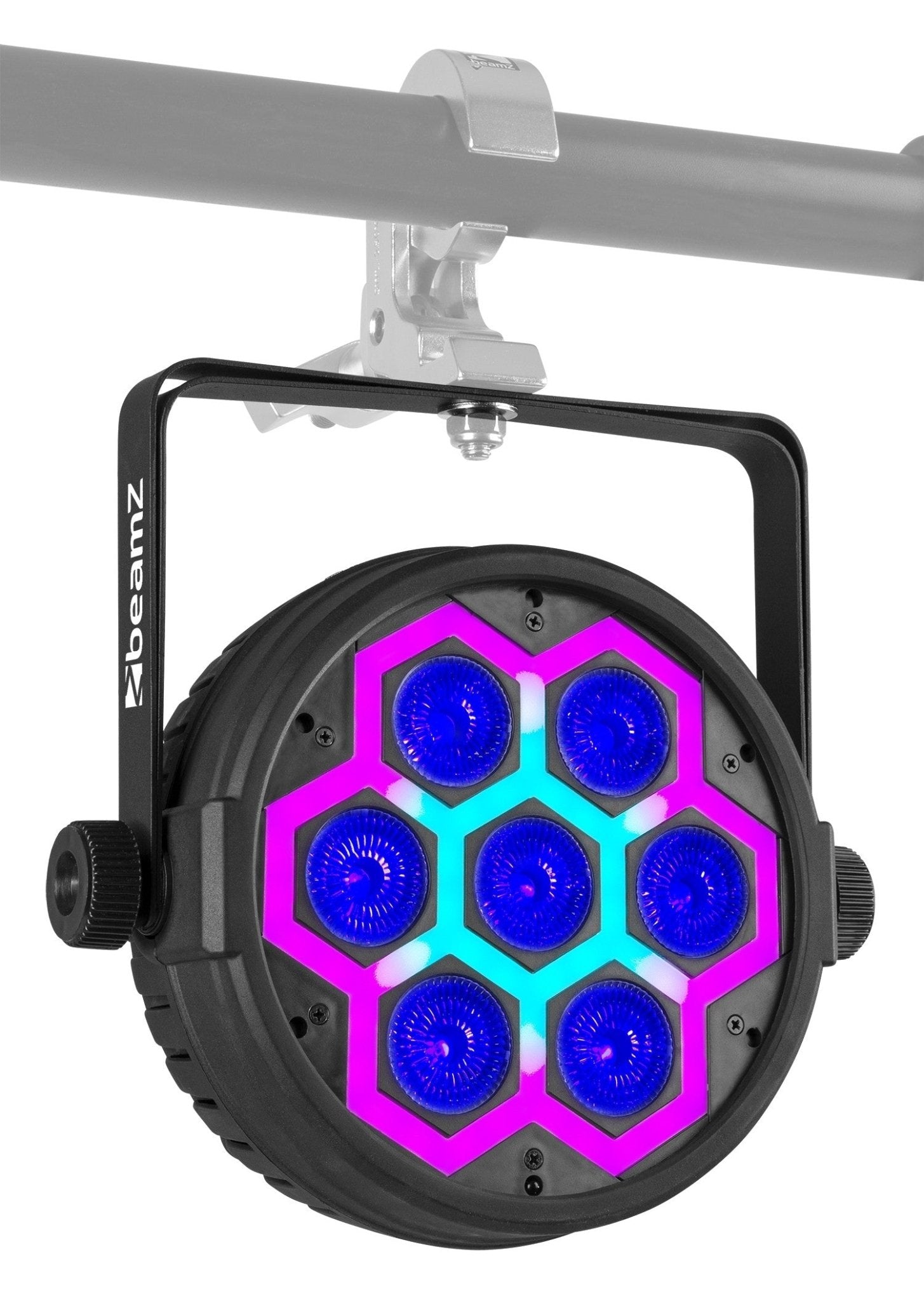

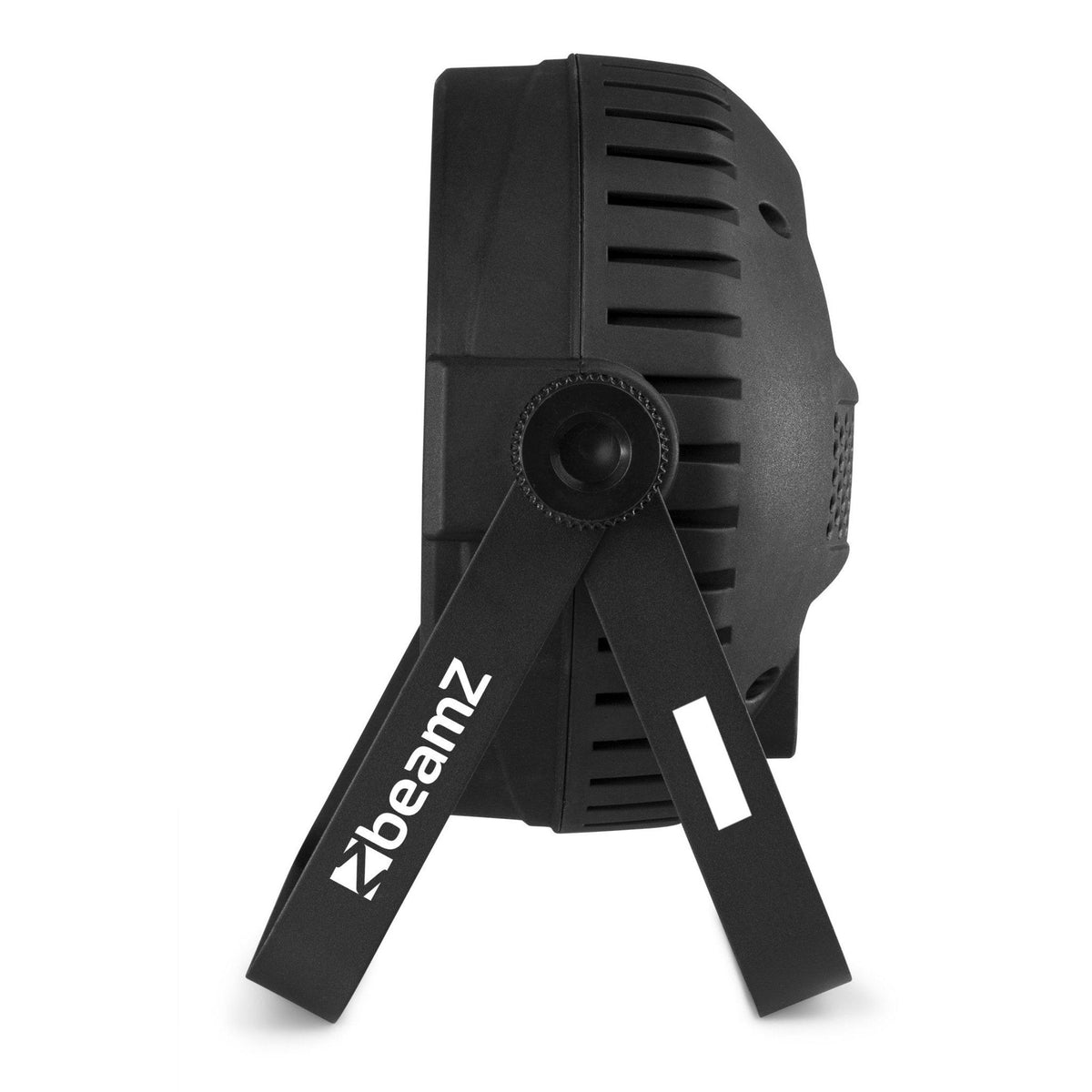

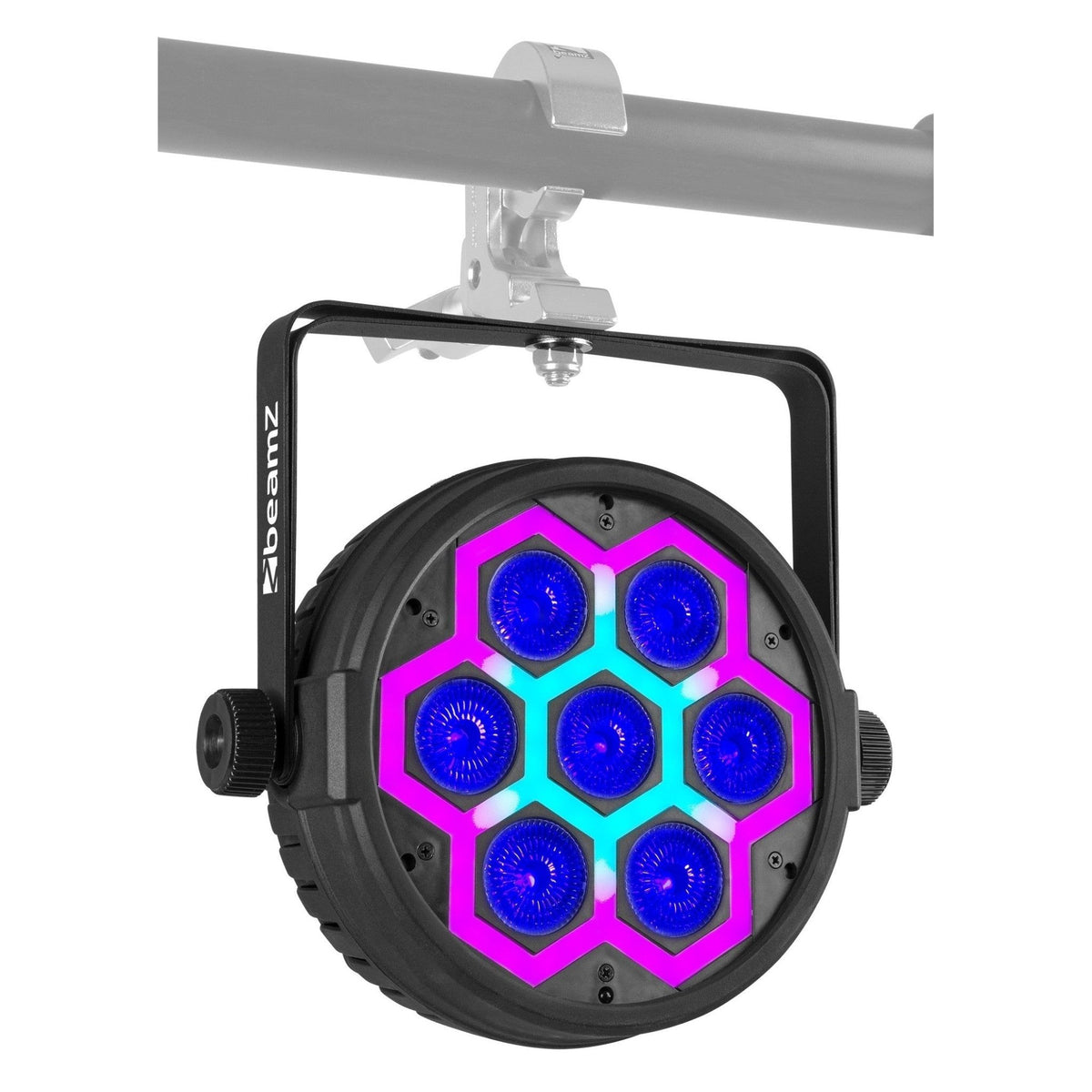

• Versatile installation : double handle that acts as a floor support or for cantilevering.

Product benefits

• More creativity with fewer fixtures : SMD backlighting adds textures and chasers without external processing.
• Agile programming : 12/17 channel DMX profiles, CTO/CTB macros and internal programs ready for show.
• Clean setups : daisy-chain power via PowerCON and DMX signal XLR 3-pin .
• Portability : ABS chassis and 2.2 kg that facilitate transport and rigging.

Use cases

• Mobile DJ and events : main wash with hive effects synchronized to the beat.
• Bands and stages : front color fill and backgrounds with RGB textures from the backlight.
• Rental : versatile fleet with section control and chain connection.

Frequently Asked Questions

• Does it have section control? Yes, via 17-channel DMX mode (granular control of colors and backlight).

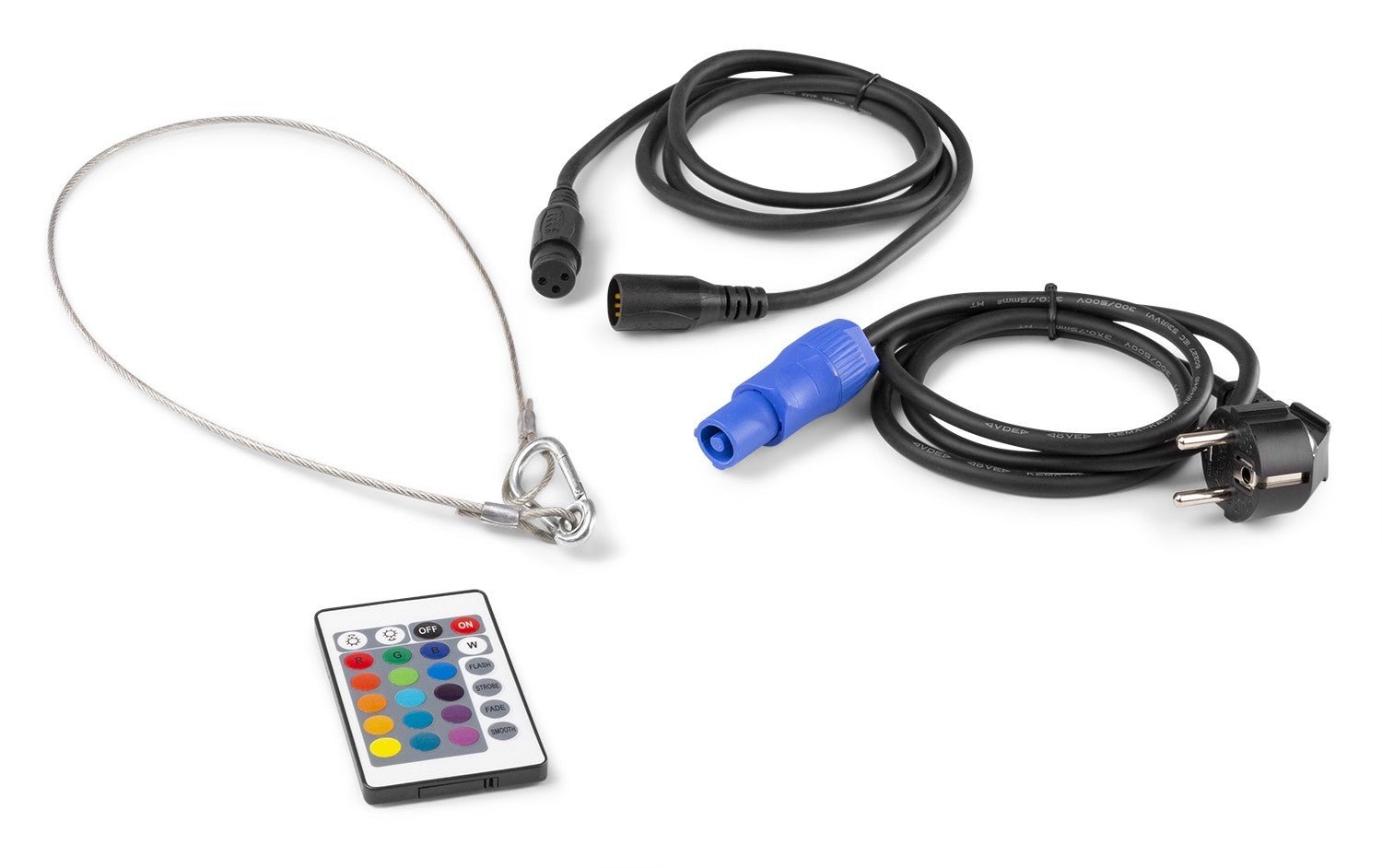

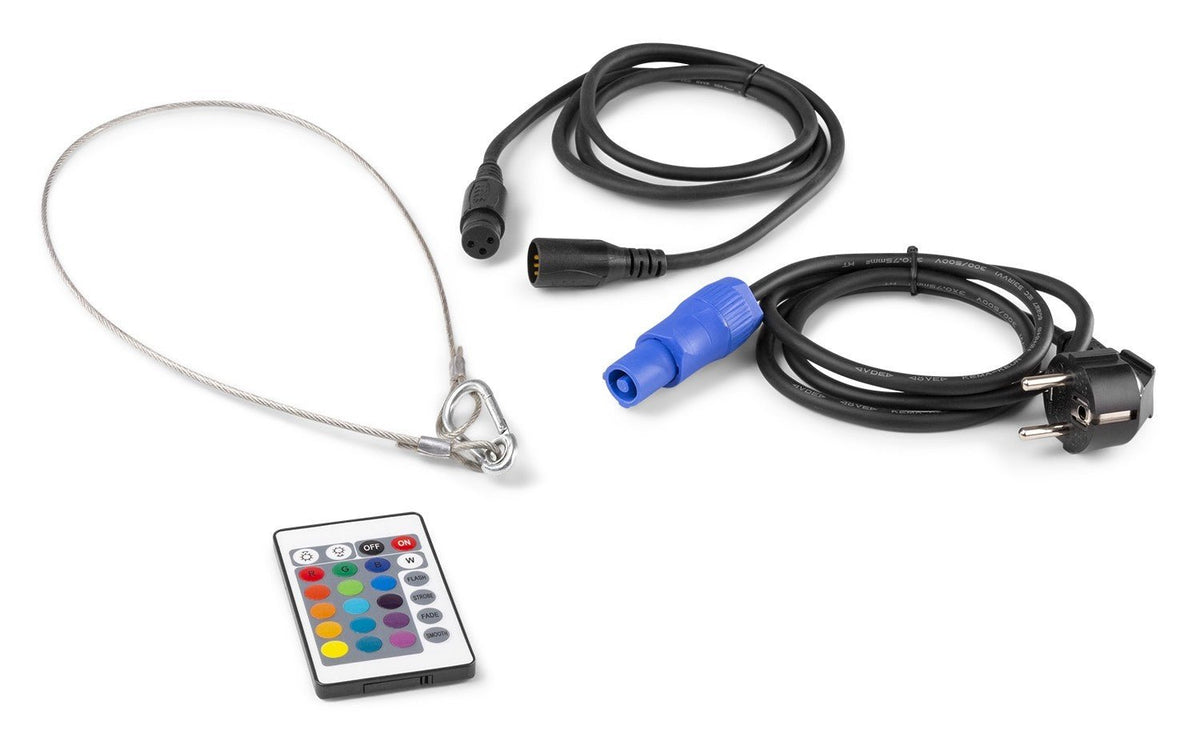

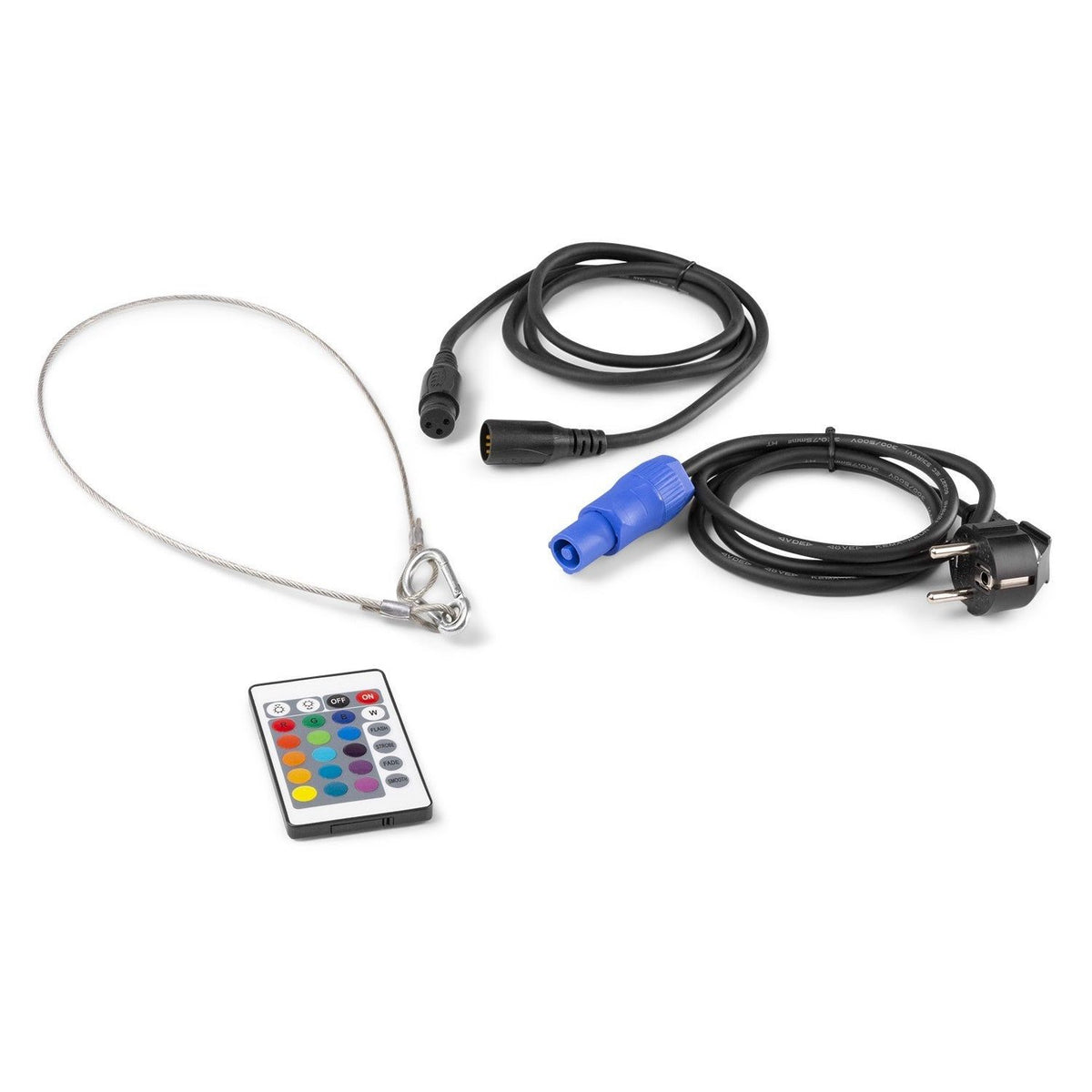

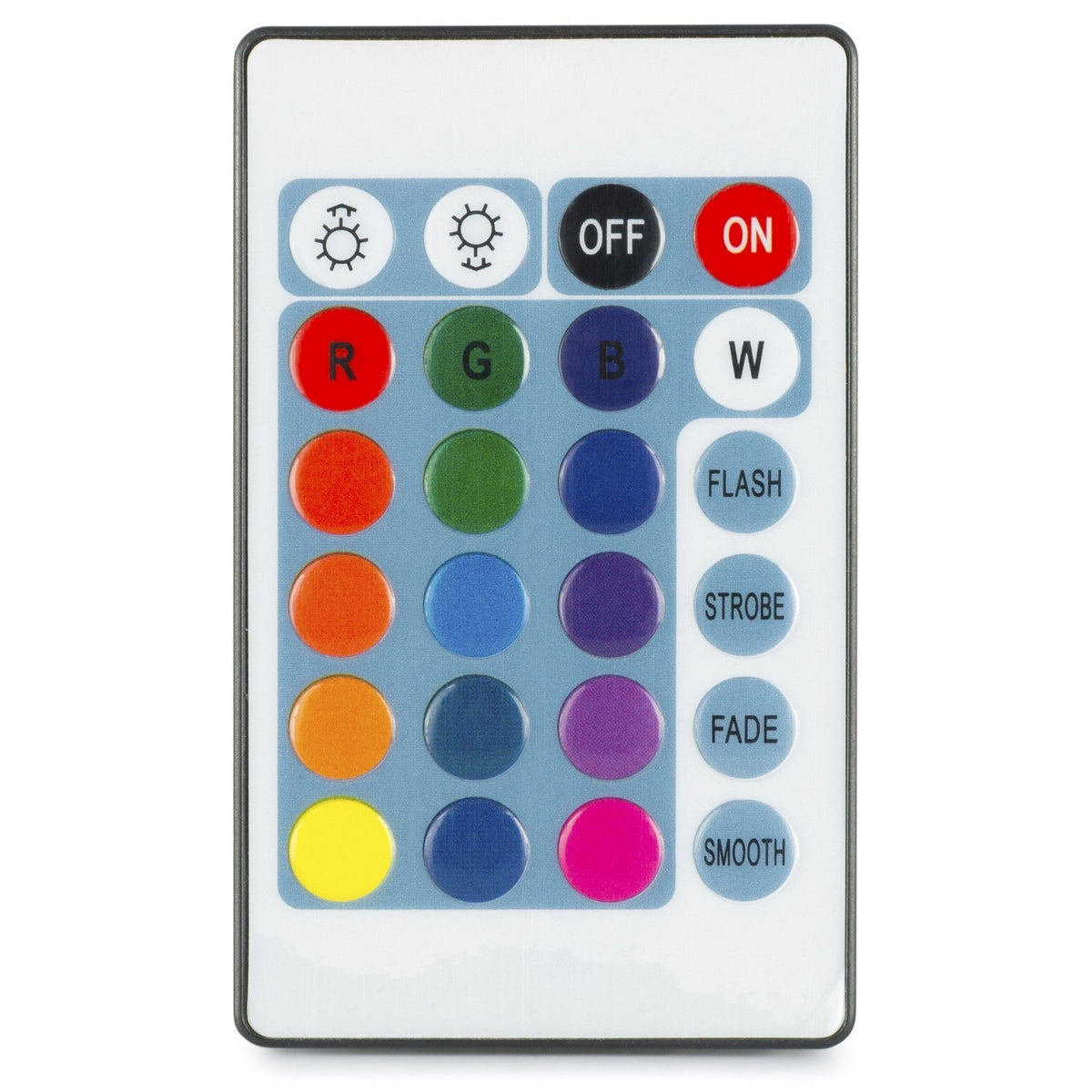

• Does it include accessories? Yes: mounting bracket , power cable , DMX cable , safety rope and IR remote control .
• Can the power supply be daisy-chained? Yes, with PowerCON in/out for daisy-chaining .
• Is it quiet? It uses a fan for cooling; the noise level is manageable for live use.

Project description

Hybrid PAR with 7 x 10 W RGBW + 60 x SMD RGB ; DMX 12/17 channels ; 23° (beam) / 38° (field); 8,365 lx @ 1 m ; CTO/CTB , CCT 2700–8000 K ; strobe 0–25 Hz ; dimmer 0–100% ; auto, DMX and Master/Slave modes ; DMX XLR 3-pin in/out ; PowerCON in/out ; IP20 ; ABS with fan cooling ; 220 x 270 x 115 mm ; 2.2 kg ; power supply 100–240 VAC 50/60 Hz ; consumption 0.86–0.40 A ; LED display .
