BSS

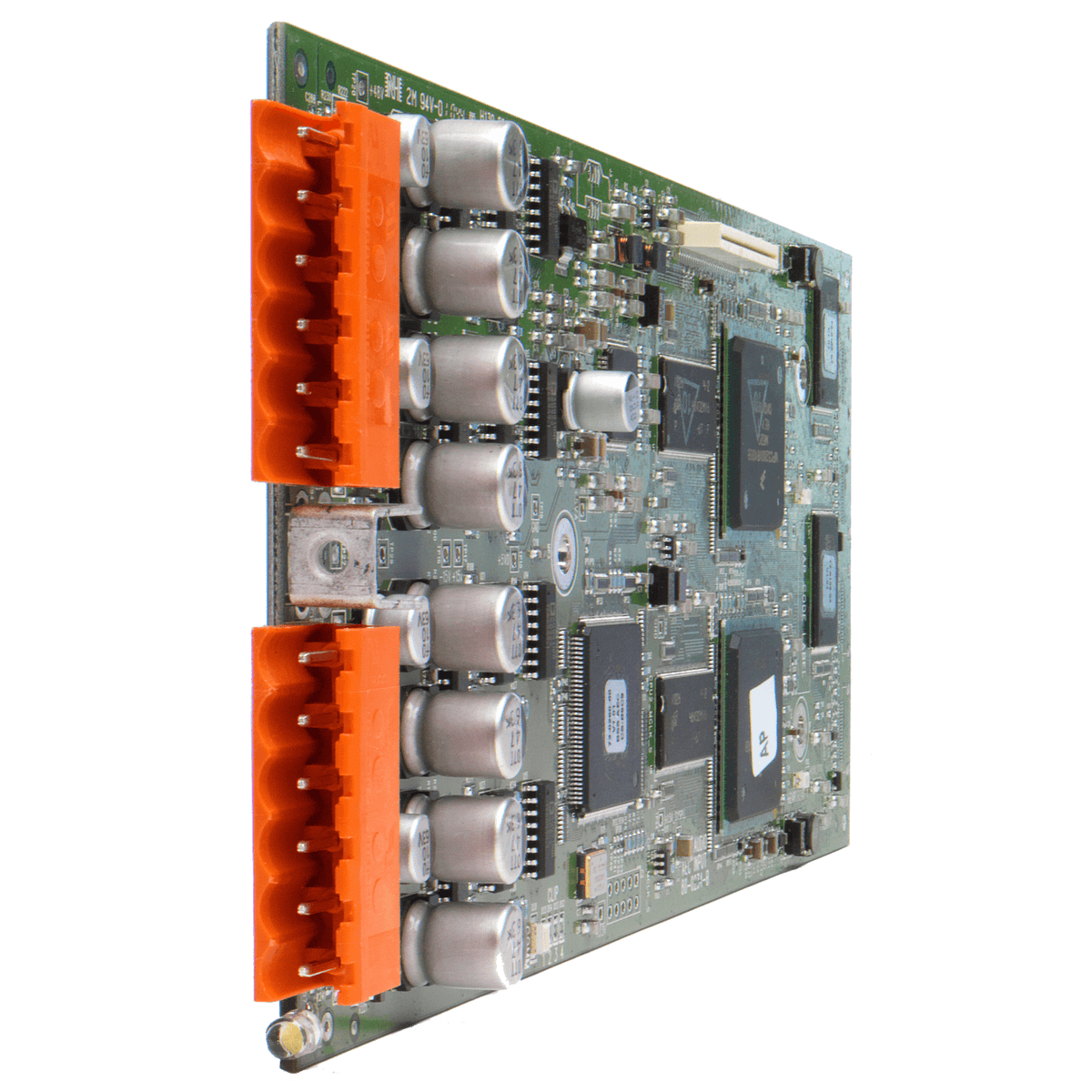

BSS DIGITAL-INPUT-CARD - AES/EBU, S/PDIF inputs

Out of stock
SKU: DIGITAL-INPUT-CARD
(0)
536,64 € inc. VAT

If you have any questions about this product, we can assist you by filling out the contact form

Ask an expert

Chat Email +34 621046470
These digital cards allow Soundweb London devices to receive AES/EBU and S/PDIF audio signals.
  • Brand:BSS Audio
  • Model:DIGITAL-INPUT-CARD (BLUDIGITAL-IN)
  • Guy:Digital entry card for Soundweb London
  • Chassis compatibility:BLU-800/805/806, BLU-320/325/326, BLU-160, BLU-120, BLU-80, BLU-32, BLU-16
  • Number of digital inputs:4 (two stereo pairs)
  • Input formats:AES/EBU and S/PDIF (pair-compatible)
  • Configuration modes:2× AES/EBU; 1× AES/EBU + 1× S/PDIF; 2× S/PDIF
  • Connectors:2× removable Phoenix/Combicon (Connector 1: AES/EBU ch. 1–2 and 3–4; Connector 2: S/PDIF ch. 1–2 and 3–4)
  • Input impedance:110Ω (AES/EBU); 75Ω (S/PDIF)
  • Sampling rate (operation):48 kHz or 96 kHz
  • Sampling Rate Conversion (SRC):8–96 kHz
  • THD+N:< −140 dB
  • Latency (formula):3/Fso + (56,581/Fsi) + (55,658/Fso)
  • Configuration software:HiQnet London Architect / Audio Architect
  • Typical application:Ingesting stereo digital audio from external equipment to the Soundweb London platform
  • Type Audio
  • Vendor BSS
  • SKU DIGITAL-INPUT-CARD

Buy BSS DIGITAL-INPUT-CARD - AES/EBU, S/PDIF inputs
