BSS BLU-6 - Wall Mount Controller

In stock
SKU: BLU-6
(0)
11.007,90 € inc. VAT

If you have any questions about this product, we can assist you by filling out the contact form

Ask an expert

Chat Email +34 621046470

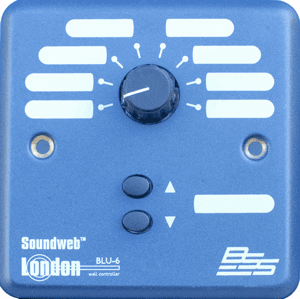

The BLU-6 Wall Panel is a simple controller that allows the designer to provide level control and source selection or preset memory in a single wall panel. These controllers plug into the control ports on the rear of any BLU-16, BLU-32 or BLU-80 device. The BLU-6 offers an eight-way switch and a pair of rotary or up/down buttons, allowing the same level parameter to be mapped to other controllers, avoiding a jump in audio level when adjusting the control. The switches have blank areas for marking the switch functions, either directly on the white area or on self-adhesive labels.
  • Brand:BSS Audio
  • Model:BLU-6
  • Guy:Wall-mount controller for source/preset and level selection
  • Compatibility:Soundweb London BLU processors withControl Inputs
  • Physical controls:Selector of8 positions+ buttonsIncrease/Lower
  • Entry mode: 2-wire analogin theControl Inputs
  • Required control inputs: 3(Select, Move Up, Move Down) +Common

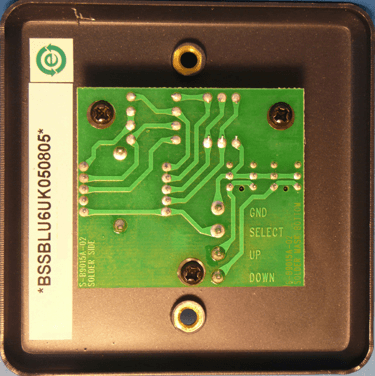

  • Typical wiring: 4 driversto the processor (common + 3 signals)
  • Mounting: Single-gang EU(UK/EU wall box 1 module)
  • Dimensions (H × W): 85 × 85 mm
  • Distance between screws: 60 mm
  • Front labeling:Blank areas for writing/self-adhesive labels
  • Color:Blue (BLU-6); the equivalent US variant isSW9015US(beige)
  • Configuration software:HiQnetLondon Architect(parameter assignment)
  • Type Audio
  • Vendor BSS
  • SKU BLU-6
