BSS

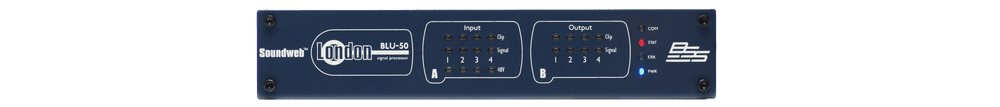

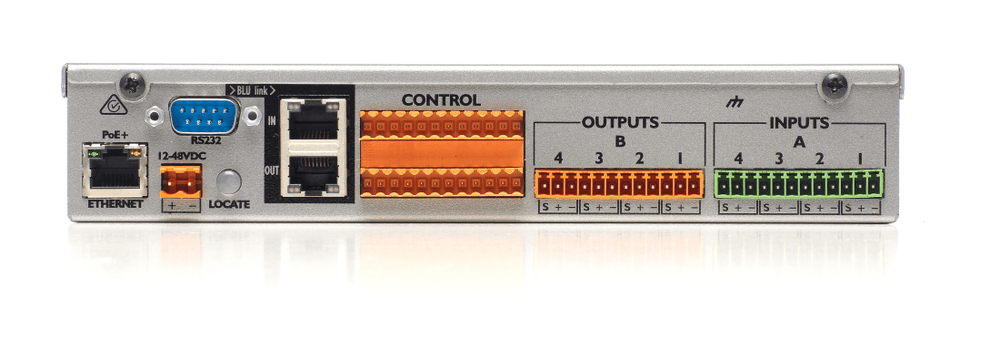

BSS BLU-50 - 4x4 Signal Processor with Blu Link

Only 2 left
SKU: BLU-50 EAN13: 691991007897
(0)
2.094,84 € inc. VAT

If you have any questions about this product, we can assist you by filling out the contact form

Ask an expert

Chat Email +34 621046470
The new version/replacement of this product is: BLU-50v2
  • Brand:BSS Audio
  • Model:BLU-50
  • Guy:4x4 Network Signal Processor with BLU Link
  • Architecture:Open, configurable (HiQnet London Architect/Audio Architect)
  • Analog inputs:4× mic/line, electronically balanced (Phoenix Mini Combicon)
  • Input gain:0 to +48 dB, 6 dB steps (per channel)
  • Phantom power:48V selectable per channel
  • Input impedance:3.5 kΩ
  • Max input level:+20 dBu (gain 0 dB) / +8 dBu (gain +12 dB)
  • EIN (typical):< −128 dBu (150 Ω source)
  • CMRR:> 45 dB @ 1 kHz
  • A/D Latency:0.77 ms (@48 kHz)
  • Analog outputs:4× line, electronically balanced (Phoenix Mini Combicon)
  • Max output level:+20 dBu
  • Frequency response:20 Hz–20 kHz (+0.5/−1 dB)
  • THD (typical):0.005% (@ +4 dBu, 1 kHz, 0 dB gain)
  • Dynamic range:110 dB (A-weighted), > 107 dB (unweighted)
  • Crosstalk:< −100 dB
  • Output impedance:120 Ω
  • D/A Latency:0.60 ms (@48 kHz)
  • BLU link bus:48 channels (represents 1–48 of 256); 2× RJ45; 100 m between devices; up to 60 nodes
  • BLU link latency:0.23 ms per hop (@48 kHz); intermediate step 0.08 ms
  • Control/Communications:12× control inputs (GPI), 6× logic outputs (GPO),RS-232, functionLocate
  • Logical outputs (GPO):0/+5 V (no load); 10 mA source / 60 mA sink; 440 Ω
  • Watchdog/Opto:Exitwatchdogand opto-isolated output (14 mA max; 80 V OFF; 220 Ω in series)
  • Feeding:12–48 V DC via terminal block orPoE+via Ethernet (includes 100–240 V AC → 12 V DC power supply)
  • Power consumption:< 55 VA
  • Control network:RJ45; maximum length 100 m per section

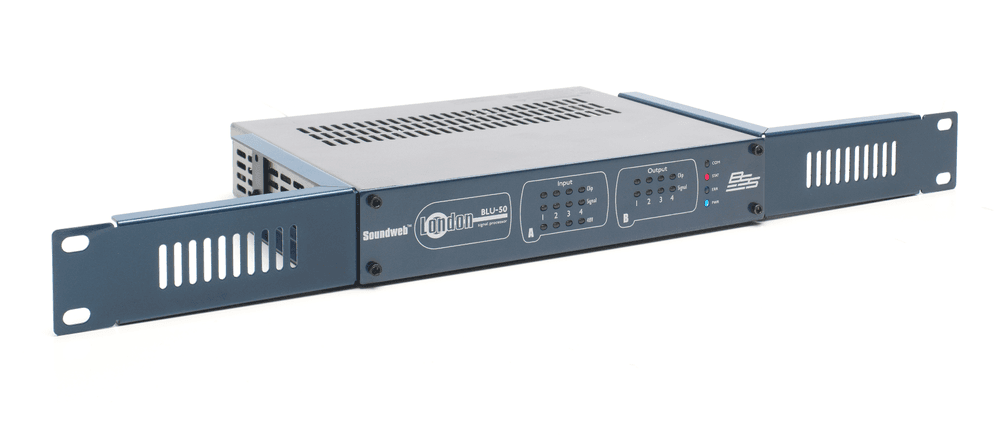

  • Physical format:Half-rack, 1U; rack/surface/under-desk mount (hardware included)
  • Dimensions (H × W × D):41 × 219 × 197 mm
  • Weight:1.28 kg
  • Front indicators:Signal, Clip, 48 V per input; COM/STAT/ERR/PWR
  • BLU link compatibility:BLU-806/805/800, BLU-326/325/320, BLU-160/120, BLU-102/101/100, BLU-BIB, BLU-BOB
  • Updated model:BLU-50v2 (product replacement)
  • Type Audio
  • Vendor BSS
  • SKU BLU-50
  • Bar-code 691991007897

Buy BSS BLU-50 - 4x4 Signal Processor with Blu Link
