Electro-Voice BRKT-POLE-L - Long Pole Speaker Wall Mount (up to 15", 34.1 kg)

Electro-Voice BRKT-POLE-L - Long Pole Speaker Wall Mount (up to 15", 34.1 kg)

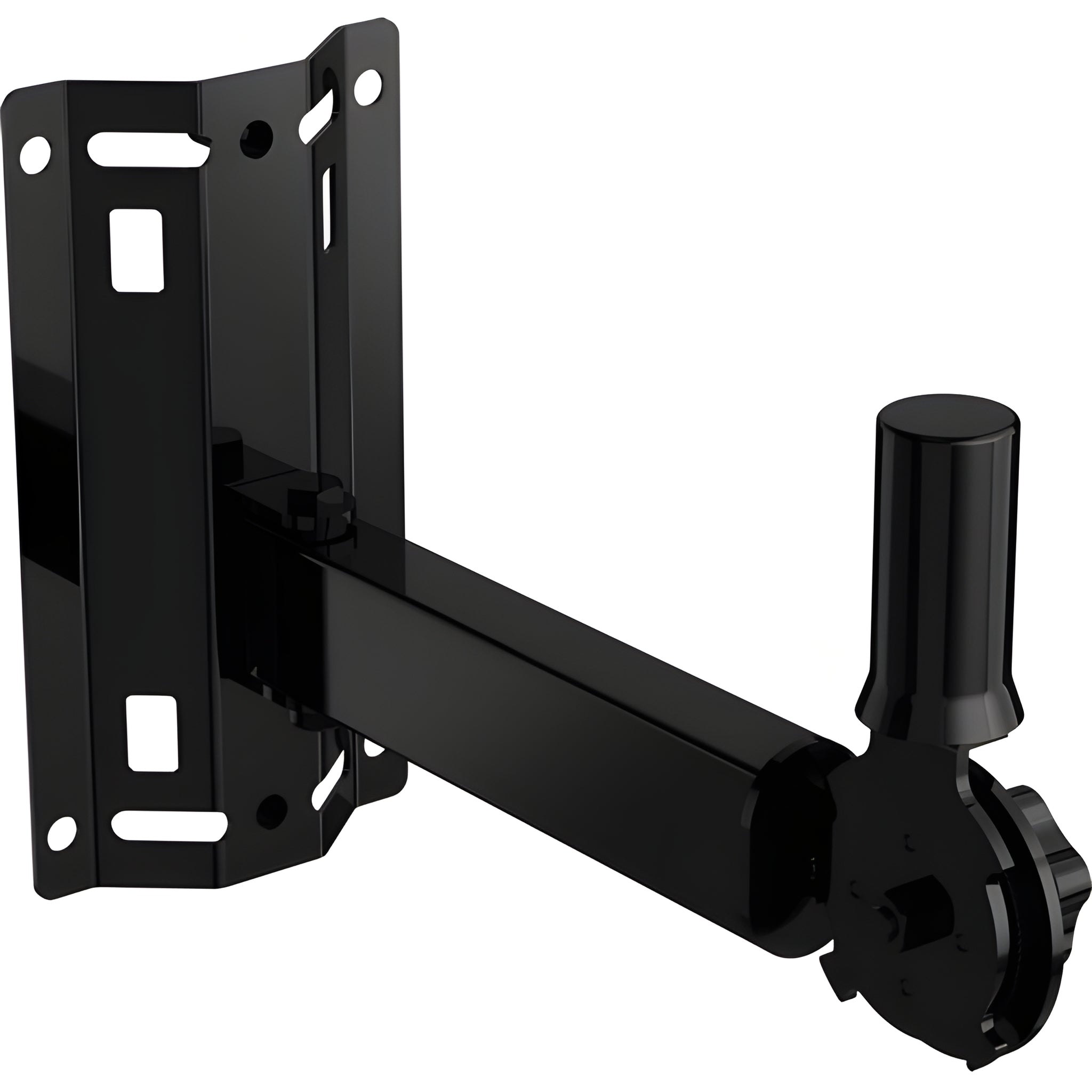

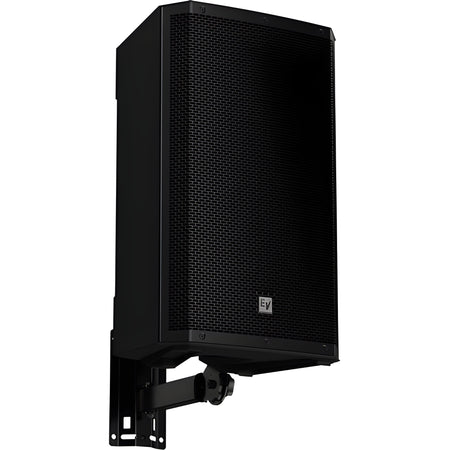

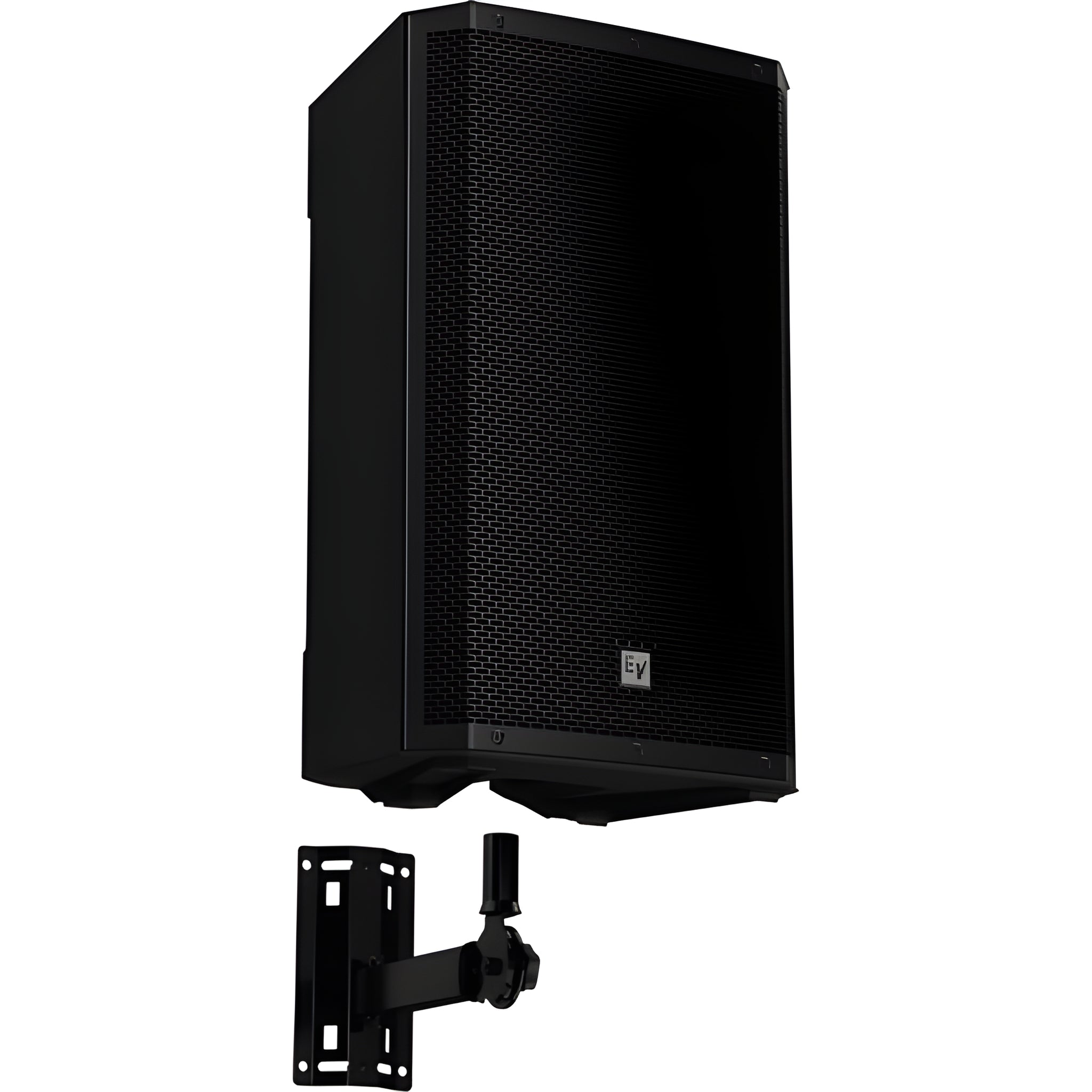

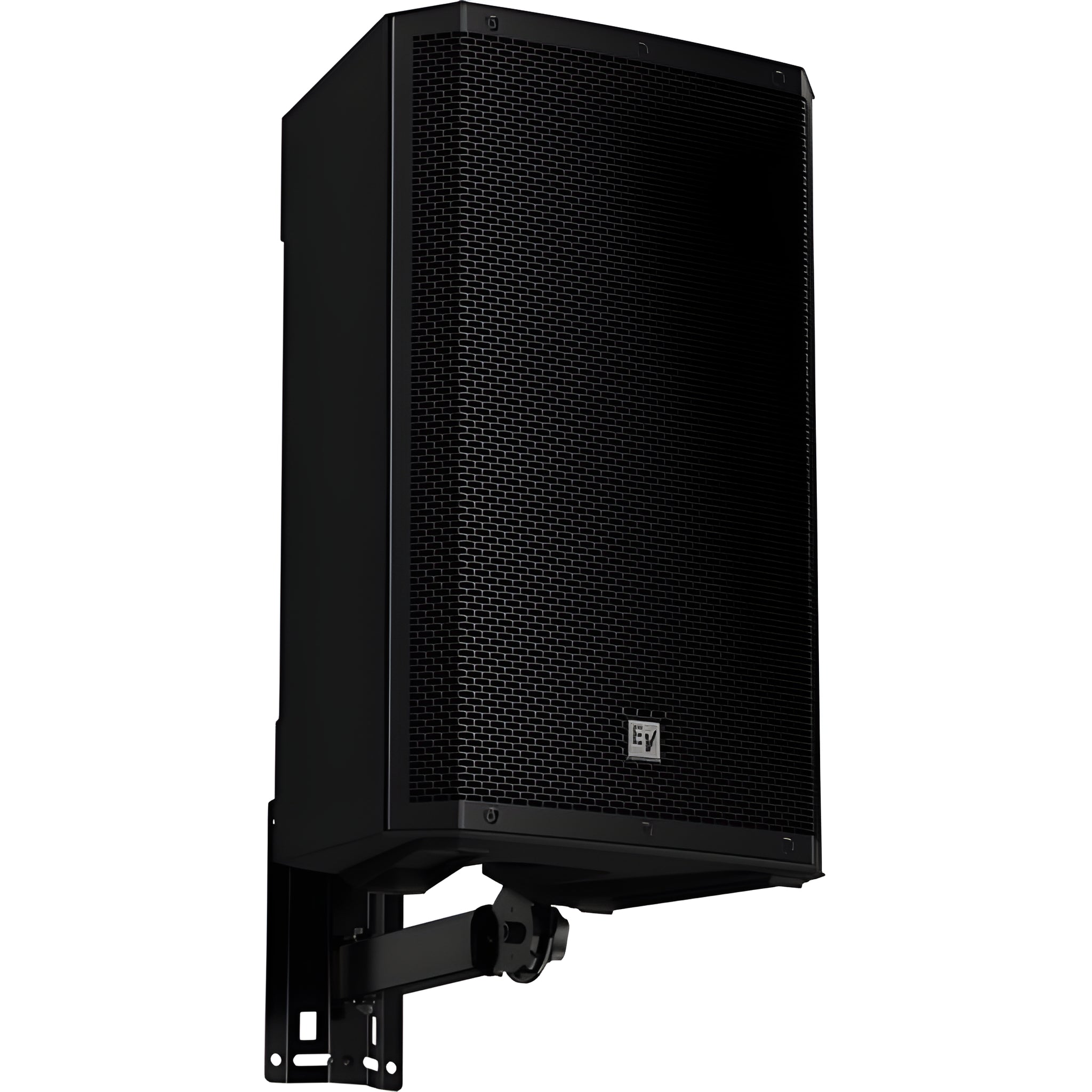

The Electro-Voice BRKT-POLE-L is a heavy-duty wall mount designed to securely mount pole-mounted loudspeakers, offering rotation, swivel and tilt for precise coverage in fixed installations. Constructed from steel with a black finish , it supports a working load of 34.1 kg and is optimized for speakers up to 15" . It allows -30° downward tilt and +5° upward tilt and is intended for mounting on vertical surfaces only . Its dimensions (H × W × D) are 250 × 115.8 × 317.5 mm and its weight is 2.02 kg , facilitating a robust installation without adding unnecessary mass to the wall.

Main features

• Long format (L) for boxes up to 15".
• Full articulation : rotation, lateral swivel and vertical tilt to orient the coverage.
• Tilt range : −30° (down) / +5° (up).
• Working Load : 34.1kg (75lb), suitable for most 12" and 15" laptop cases.
• Construction : Steel, black; designed for vertical wall mounting .
• Stand dimensions (H × W × D): 250 × 115.8 × 317.5 mm; weight : 2.02 kg.

Product benefits

• Precise coverage orientation without moving the mount thanks to its integrated adjustments.
• Secure installation with verified working load for speakers up to 34.1 kg.
• Versatility in sound projects in bars, multipurpose rooms, temples, classrooms, gyms, and leisure spaces.
• Broad compatibility with multiple series of Electro-Voice pole-mount loudspeakers.

Compatibility (supported EV models)

According to the manufacturer, BRKT-POLE-L is compatible with these Electro-Voice series and models (among others): ZLX 8"/12"/15", EKX 12"/15", ELX 12"/15", ELX200 10"/12"/15", ETX-10P/12P/15P, EVERSE 8/12, PX1122M, PX1152M, PXM-12MP, QRx 112/75, QRx 115/75, SX 12", TX1122, TX1152, ZX1/ZXA1, ZX3, ZX4, ZX5 and ZXA5.

Use cases

• Fixed installations in leisure, hospitality and retail venues.
• Educational centers , conference rooms and medium-sized auditoriums.
• Places of worship and community centers that require targeted coverage and discreet aesthetics.

Frequently Asked Questions

• Can it be ceiling-mounted? No, it's designed for vertical surfaces (walls).
• Does it include wall-mounting hardware? Consult the product quick start guide and local regulations to select anchors and hardware appropriate for the wall type and load .
• Does it work for non-EV speakers? It's a pole mount; check that the box has a compatible mount and that its weight doesn't exceed 34.1 kg .

Description for projects

Long pole speaker wall mount; working load 34.1 kg; rotation, swivel and tilt adjustment; vertical tilt range −30° / +5°; vertical wall mounting; material steel, color black; dimensions (H × W × D) 250 × 115.8 × 317.5 mm; weight 2.02 kg; compatible with EV ZLX/EKX/ELX/ELX200/ETX/EVERSE/PX/PXM/QRx/SX/TX/ZX series.
