Power Dynamics BF80TB - 8" Passive Speaker for Indoor/Outdoor Use, Black, 100V/8 Ohms

Power Dynamics BF80TB - 8" Passive Speaker for Indoor/Outdoor Use, Black, 100V/8 Ohms

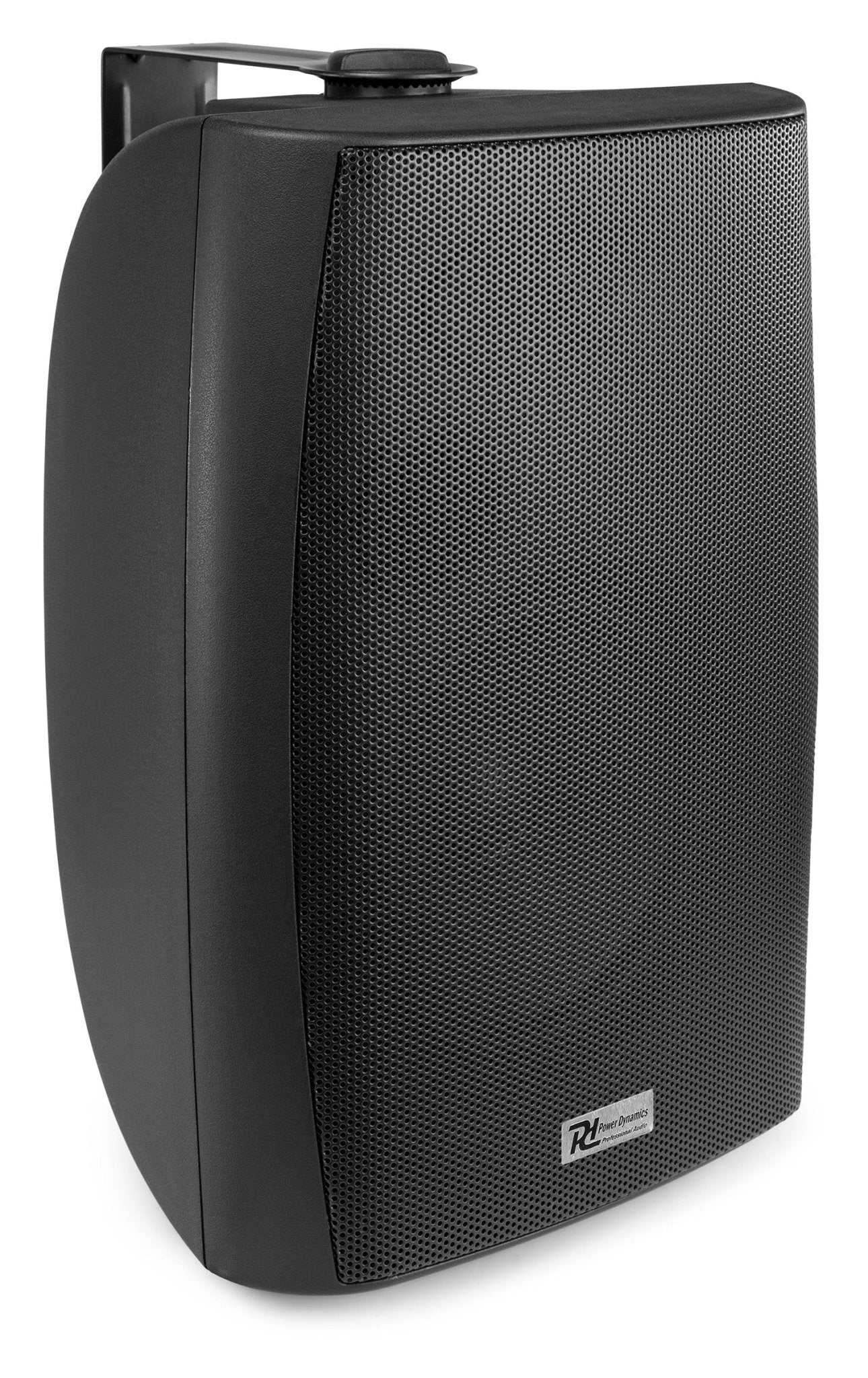

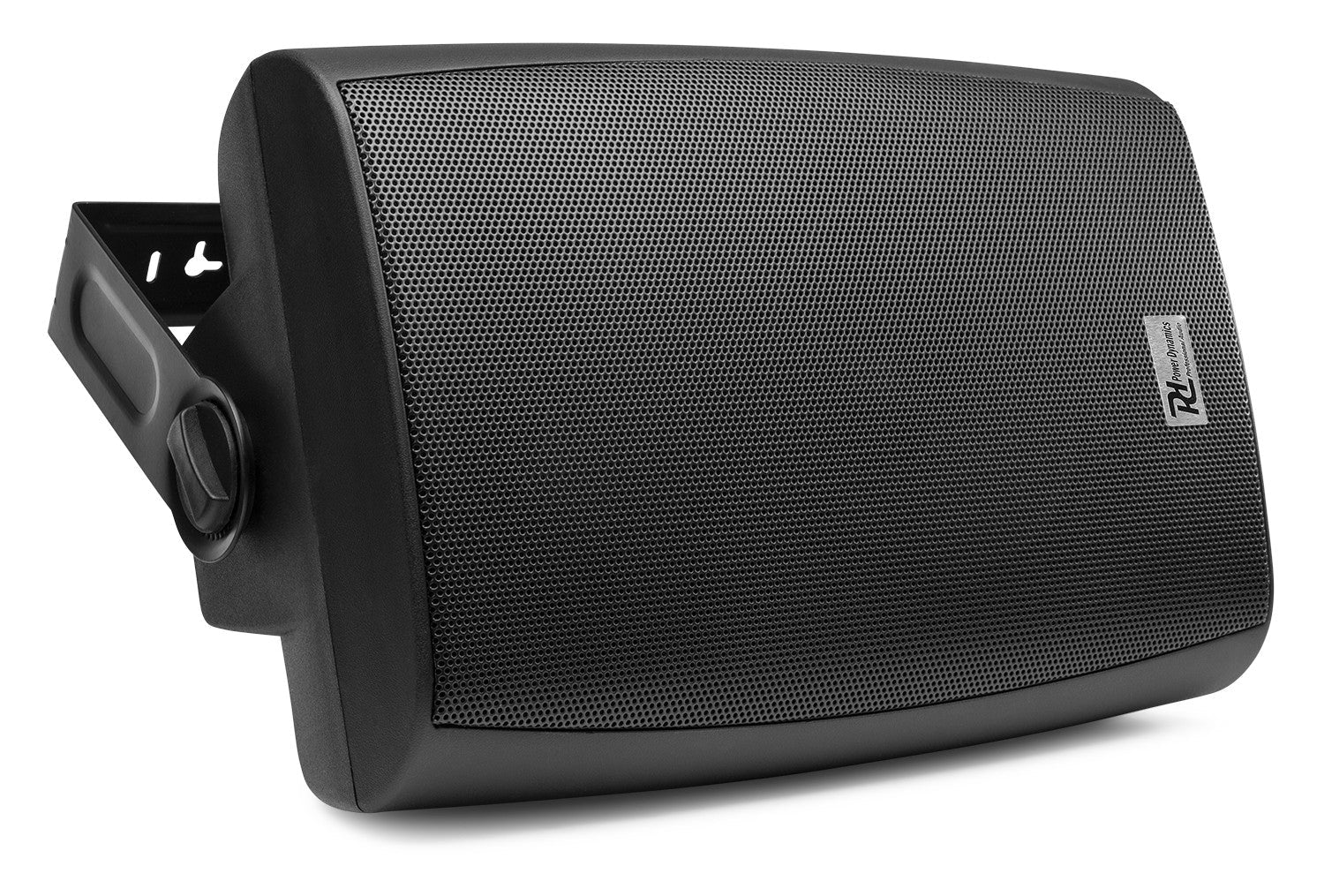

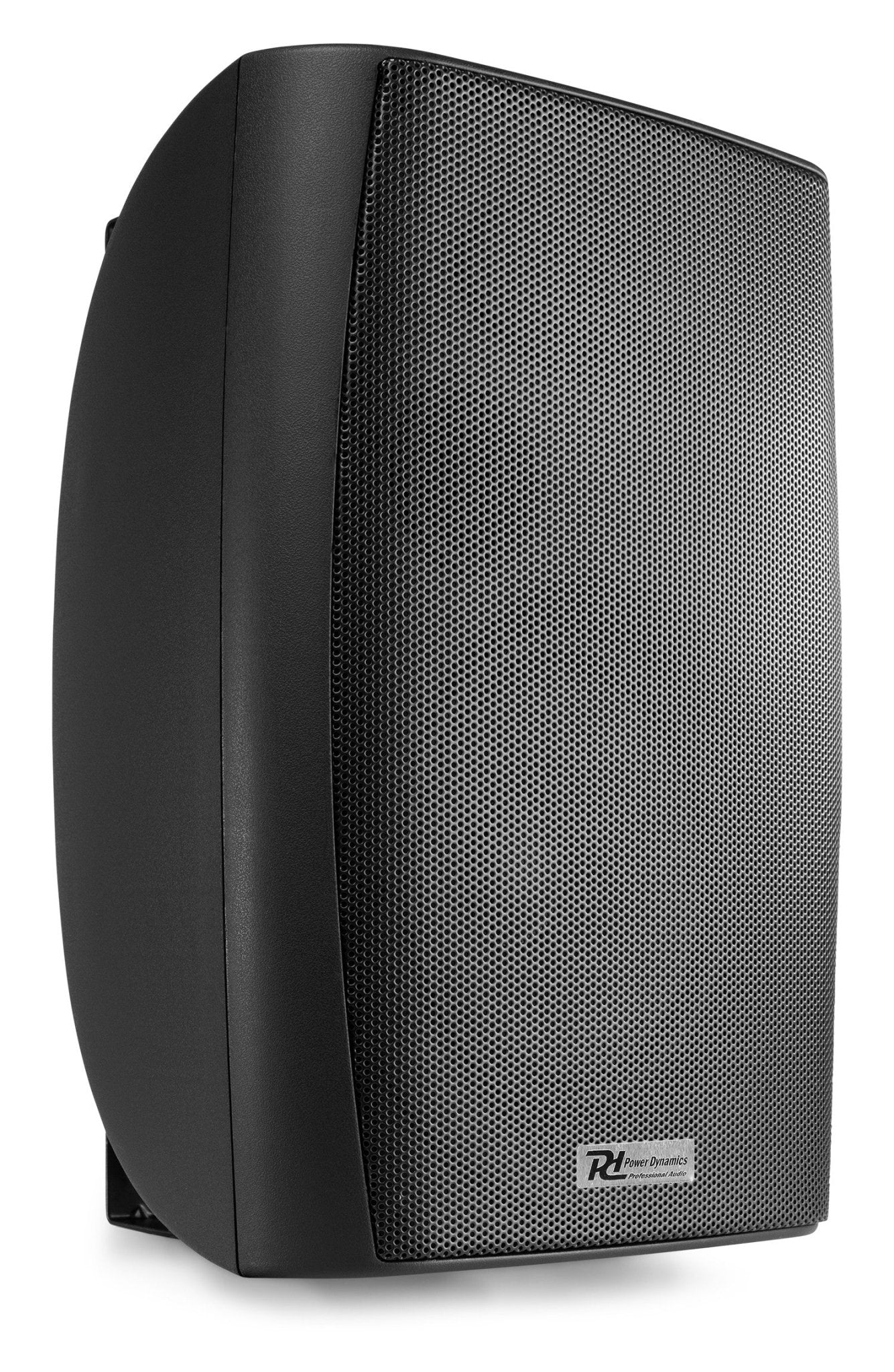

The Power Dynamics BF80TB is a high-performance loudspeaker designed to deliver exceptional sound quality both indoors and outdoors. Part of the renowned BF series, this speaker features a 2-way bass reflex system that ensures rich, full audio reproduction with deep bass and crystal-clear treble. Its rugged construction, rated for weather resistance up to IPX5, makes it the ultimate audio solution for a wide range of environments, from a home patio to large commercial installations. Its sleek black finish and understated design with an aluminum grille allow it to blend seamlessly into any décor.

Versatility is one of the key features of the BF80TB. Thanks to its rotary power selector, it can operate on both 100V lines, ideal for distributed sound installations in large venues, and 8-ohm systems, compatible with most conventional hi-fi amplifiers. This flexibility makes it perfect for installers and sound professionals looking for a reliable and adaptable solution for different projects.

Main Features

Superior 2-Way Sound System
The heart of the BF80TB is its two-way configuration with an integrated crossover. It combines a powerful 8-inch woofer, which delivers robust and well-defined bass, with a 1-inch dome tweeter for clear and detailed highs. The bass reflex system enhances low-frequency response, providing a powerful and balanced sound across the entire spectrum.

Designed to withstand the elements

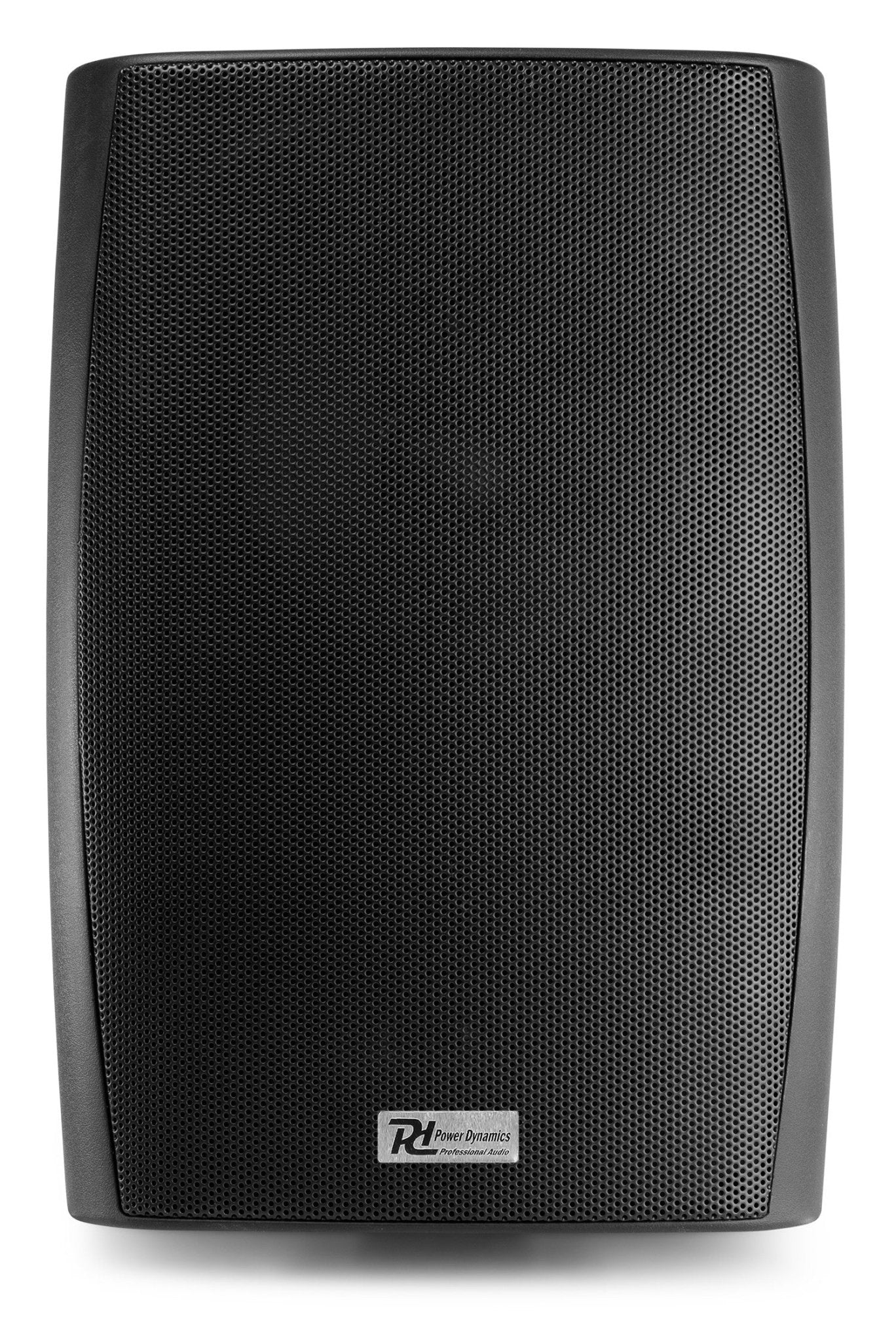

With an official IPX5 rating, this speaker is built to withstand the elements. It's resistant to low-pressure water jets from any direction, ensuring safe operation in the rain, around pools, or in any humid environment. The durable housing and aluminum front grille protect the internal components and ensure a long lifespan.

Total Installation Flexibility

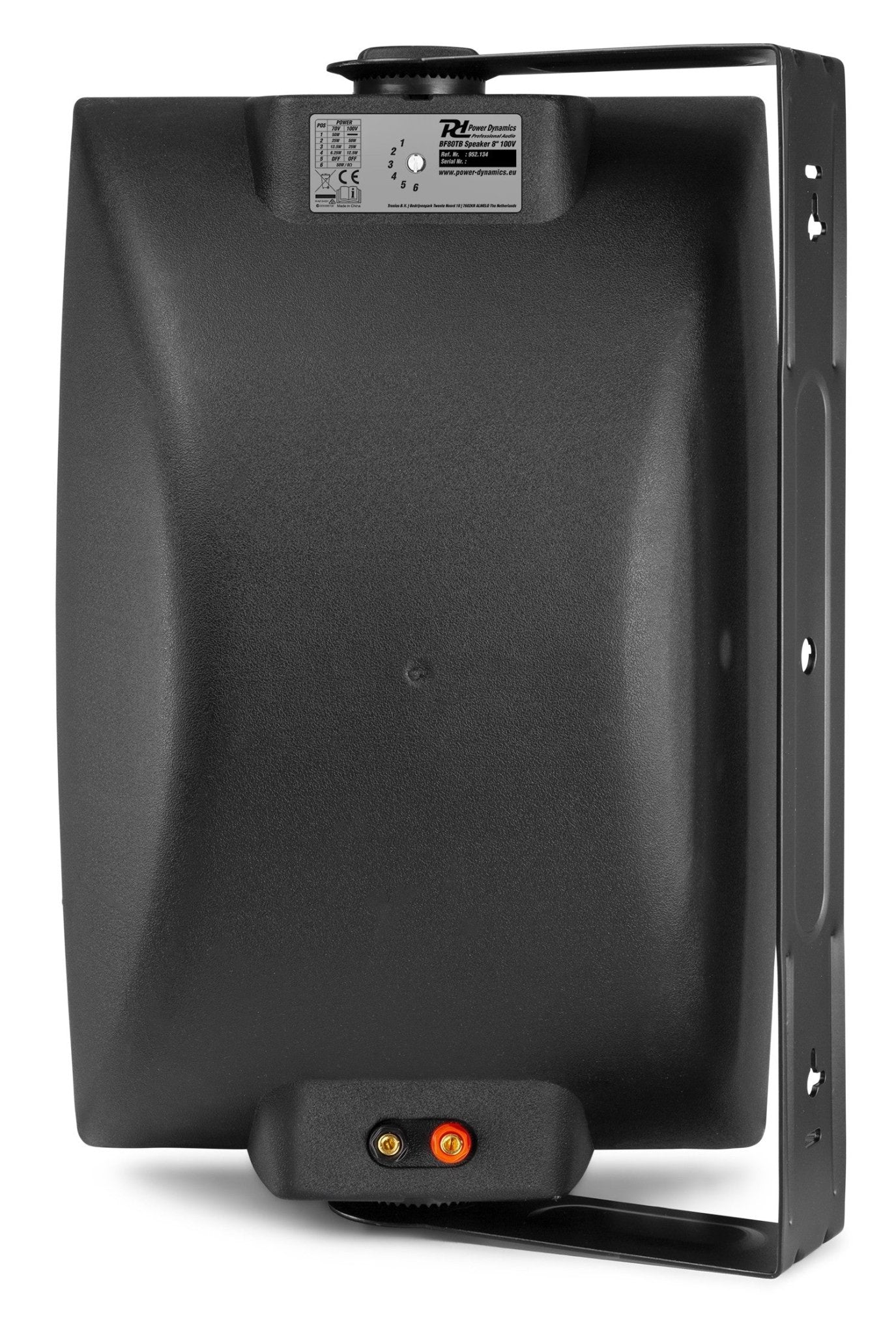

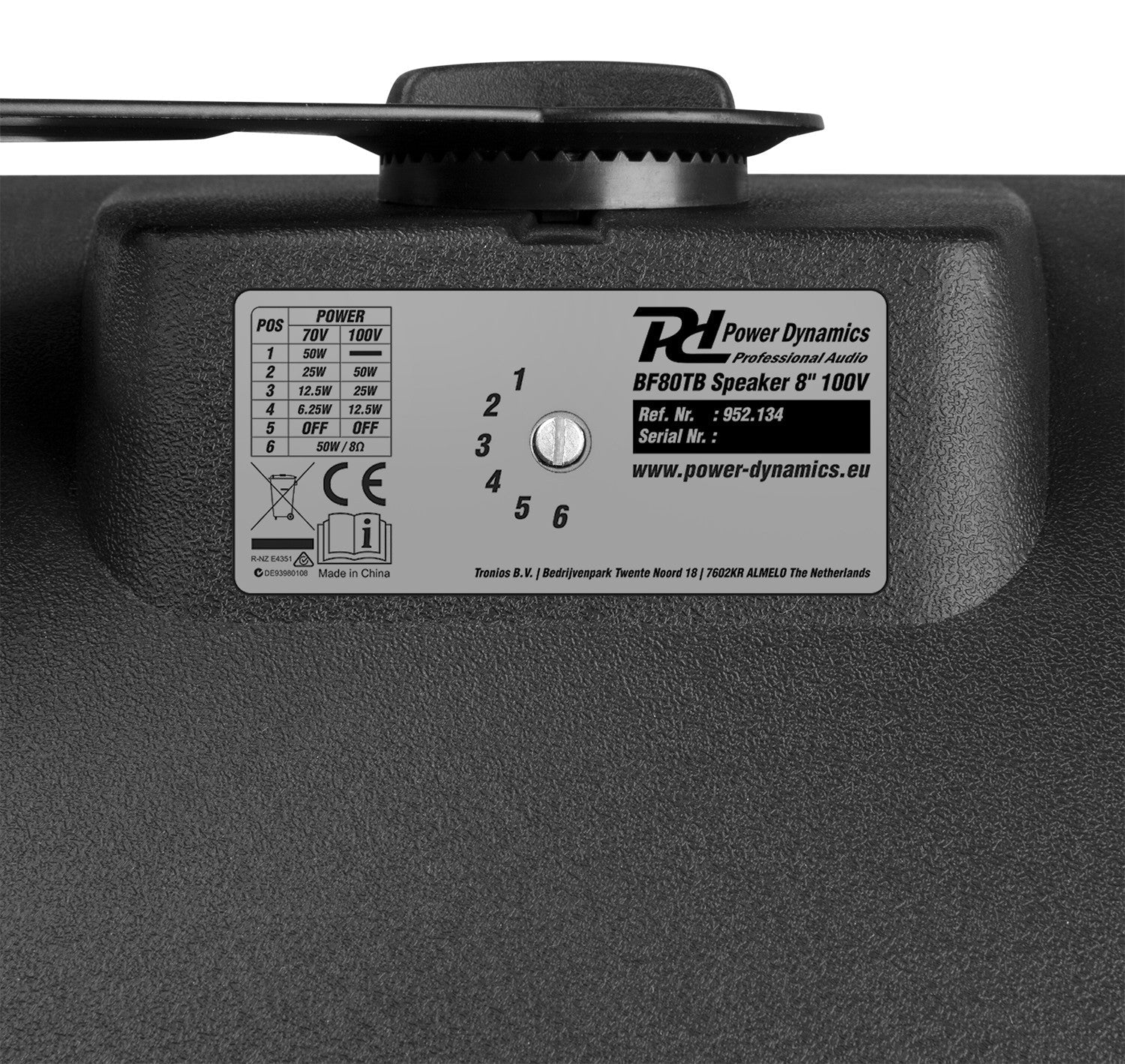

The BF80TB offers dual compatibility to suit any need. The rotary selector allows you to choose between multiple power inputs for 100V lines (12.5W, 25W, 50W) or use it as a conventional 8-ohm speaker. This feature is essential for public address or background music systems where multiple speakers are connected in parallel over long distances.

Power and Clarity
With a 50W RMS output and 93dB sensitivity, the Power Dynamics BF80TB is capable of filling large areas with clear, distortion-free sound, even at high volumes. It's the ideal choice for background music and voice announcements.

Product Benefits

• High Fidelity Sound Anywhere: Enjoy an immersive sound experience in your garden, patio or business, without worrying about the weather conditions.
• Adaptability to Multiple Projects: Its dual impedance makes it suitable for both simple home installations and complex professional distributed audio systems.
• Durable Construction: Made with high-quality materials, it is a long-term investment that guarantees consistent and reliable performance for years.

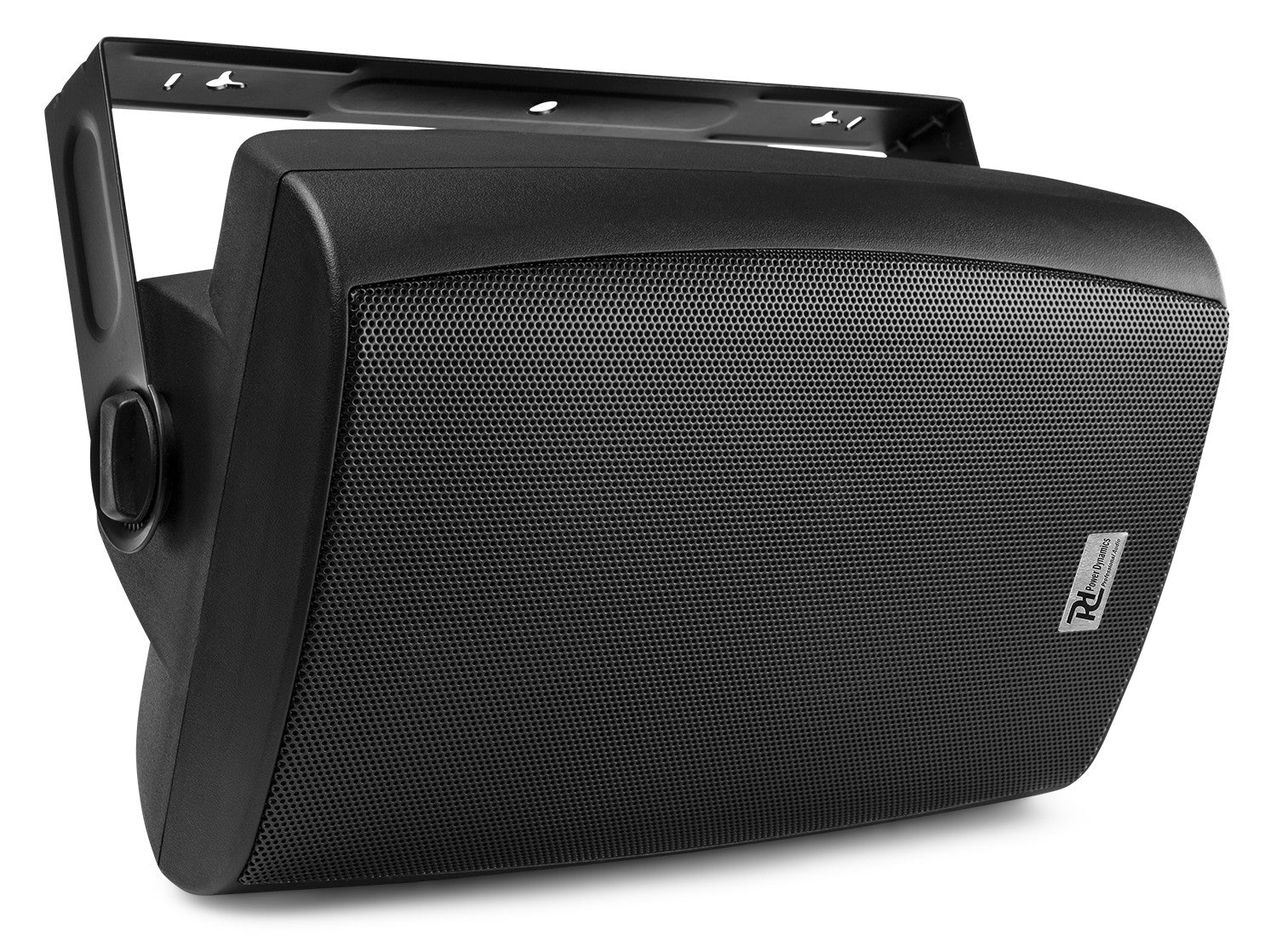

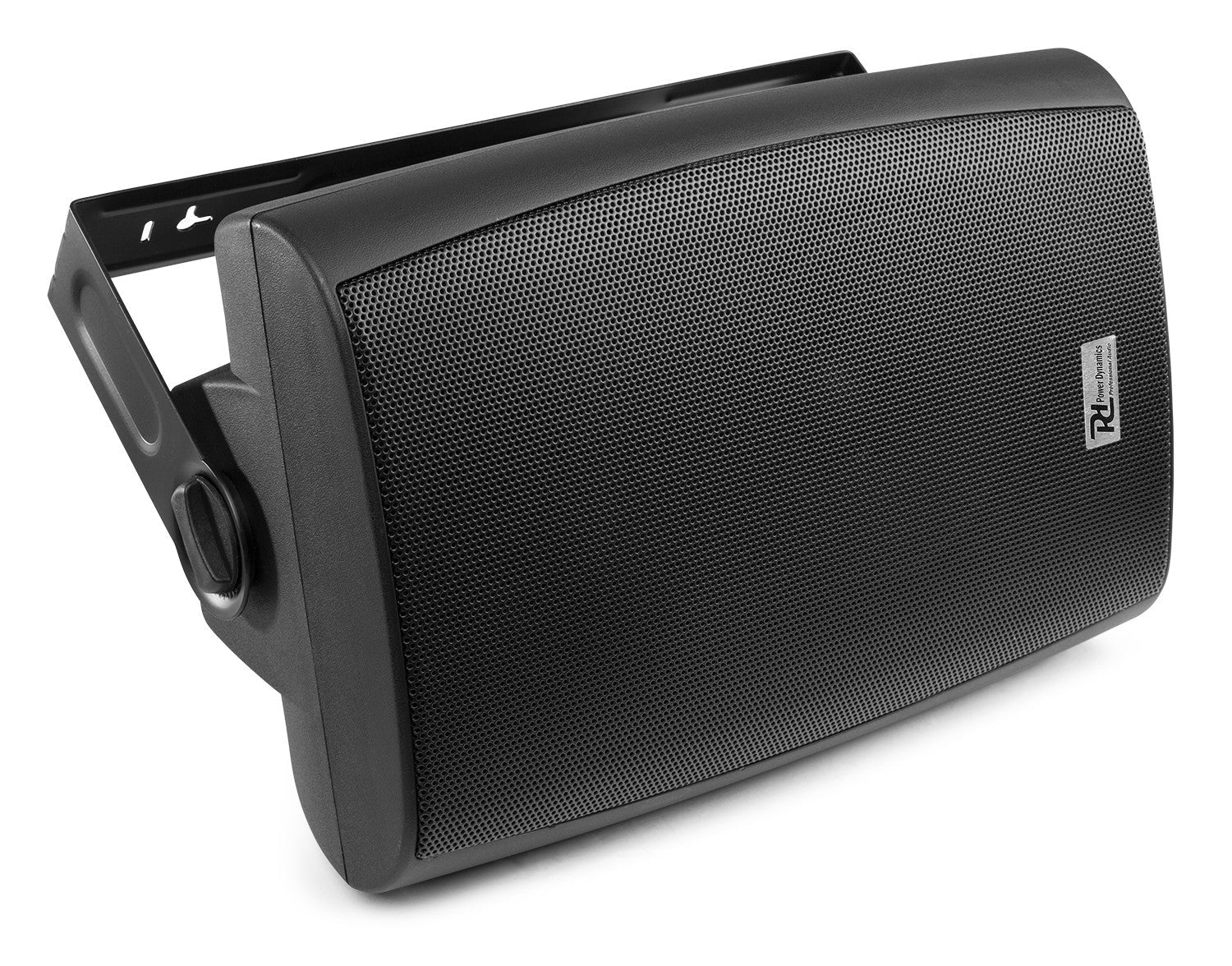

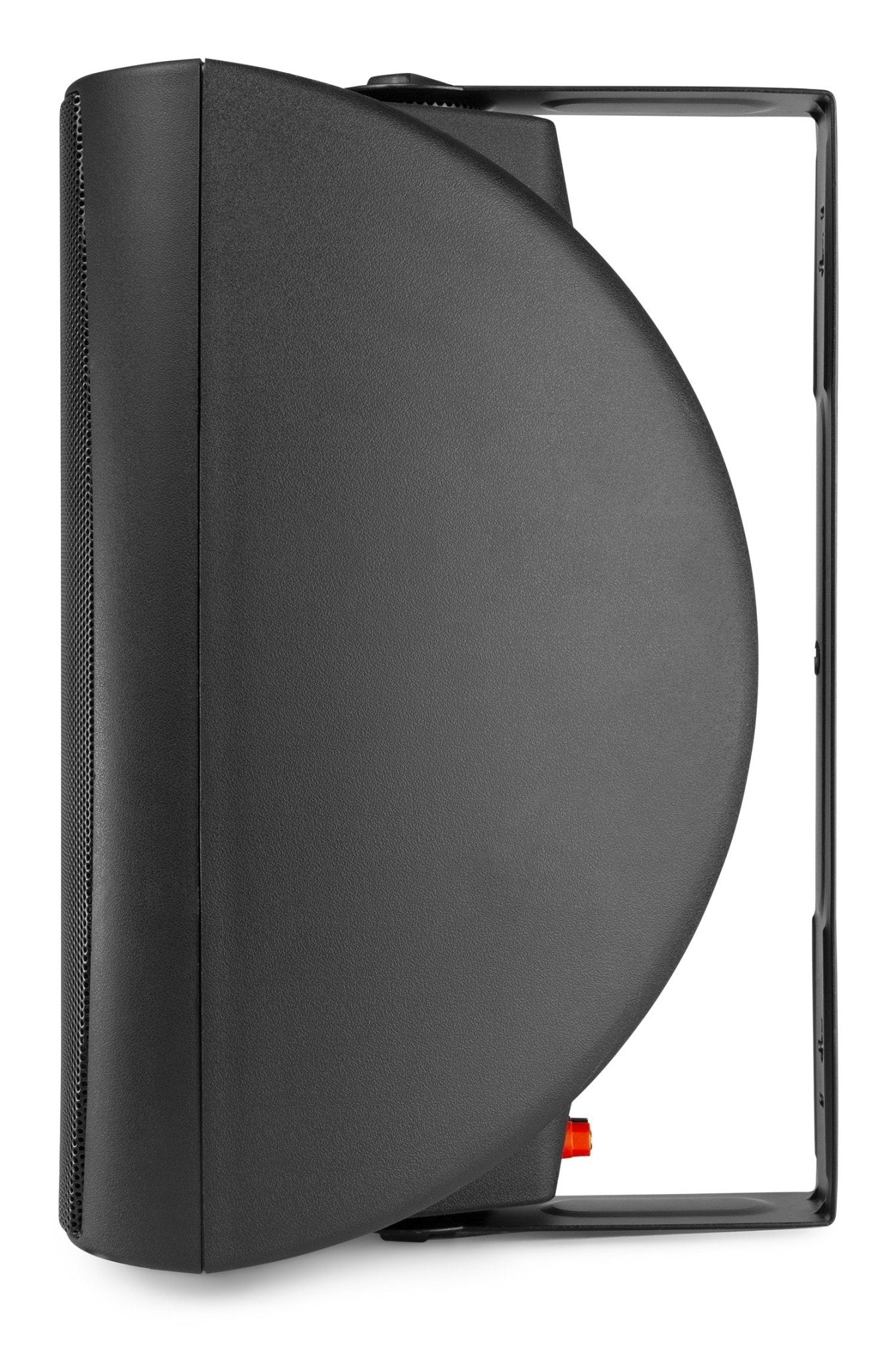

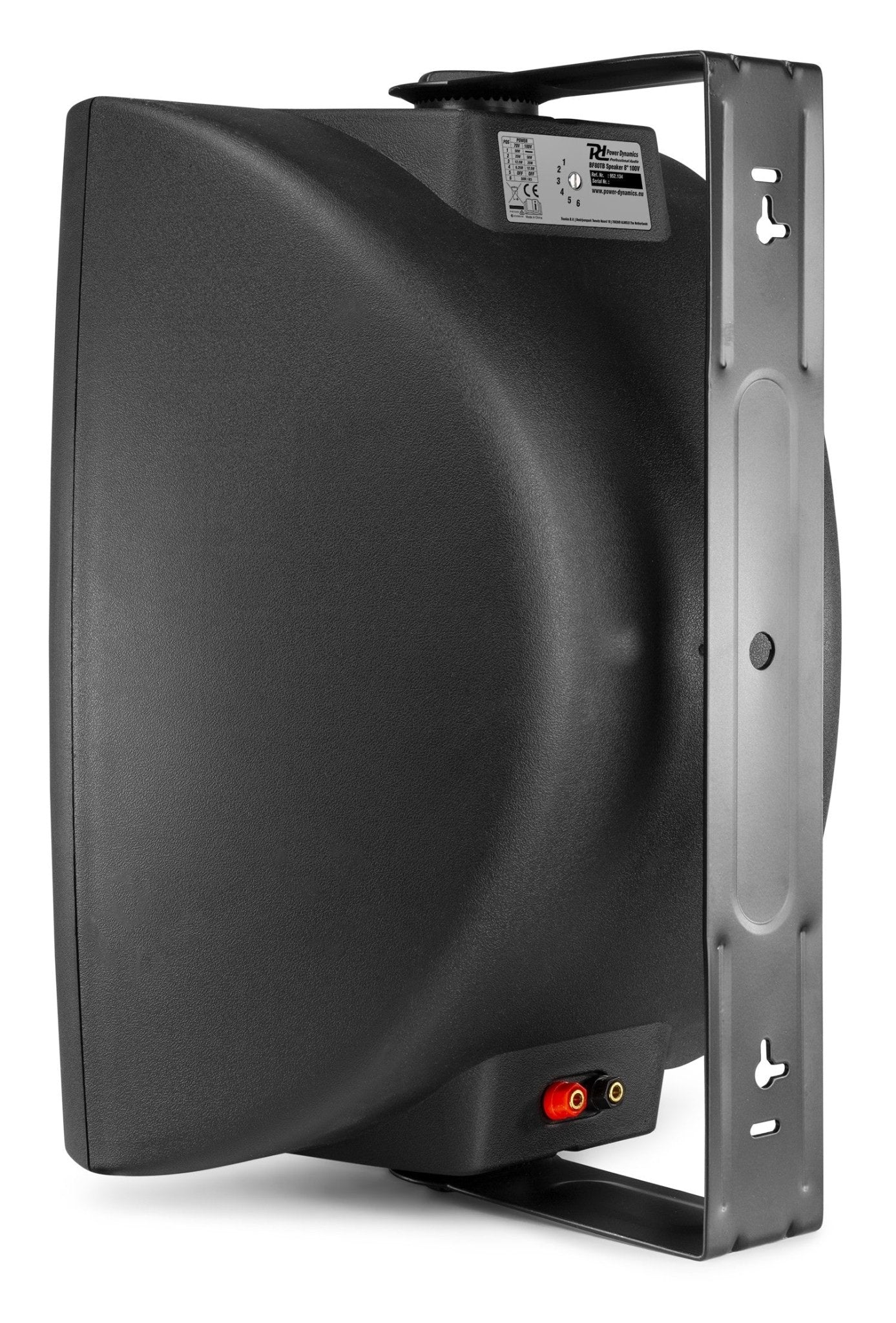

• Easy Installation: Supplied with a sturdy mounting bracket that allows for quick and secure installation on walls or ceilings, with the possibility of adjusting its orientation to optimally direct the sound.

Use Cases

Thanks to its versatility and robustness, the BF80TB speaker is ideal for a wide variety of applications, including:

• Residential terraces, patios and gardens.
• Pool areas, spas and outdoor recreational areas.
• Restaurants, bars and cafes with outdoor spaces.
• Shops and shopping centers for background music and public address systems.
• Conference rooms, auditoriums and educational centers.
• Sports facilities and outdoor events.

Frequently Asked Questions

Is this speaker active or does it need an amplifier?
The Power Dynamics BF80TB is a passive speaker, which means it requires an external amplifier to operate.

What does the IPX5 rating really mean?
The IPX5 rating ensures the speaker is protected against low-pressure water jets from any angle. It's perfectly capable of withstanding rain and splashes, but it's not designed to be submerged.

Can I connect multiple of these speakers to a single amplifier?
Yes. Using the 100V line configuration, you can connect multiple BF80TB speakers in parallel to a single compatible amplifier, which is ideal for covering large areas evenly.

Does the included mounting bracket allow you to adjust the speaker's position?
Yes, the supplied mounting bracket allows you to adjust the speaker's orientation both vertically and horizontally, making it easy to direct the sound towards the desired listening area.

Project description

Passive 2-way loudspeaker with bass reflex system and crossover. Equipped with an 8-inch woofer and a 1-inch dome tweeter. Compatible with 100V line and low-impedance 8-ohm installations, selectable via a rotary switch. It delivers 50W RMS power, with 100V power inputs of 12.5W, 25W, and 50W. Its frequency response ranges from 60 Hz to 20,000 Hz, with a sensitivity of 93 dB. The enclosure has an IPX5 weather resistance rating and a protective aluminum grille. Dimensions: 250 x 280 x 415 mm. Weight: 6.6 kg. An adjustable mounting bracket is included.
