beamZ Pro LCBP450 - Hybrid RGBW LED Panel with 25x10W and 200xRGB SMD Backlighting

beamZ Pro LCBP450 - Hybrid RGBW LED Panel with 25x10W and 200xRGB SMD Backlighting

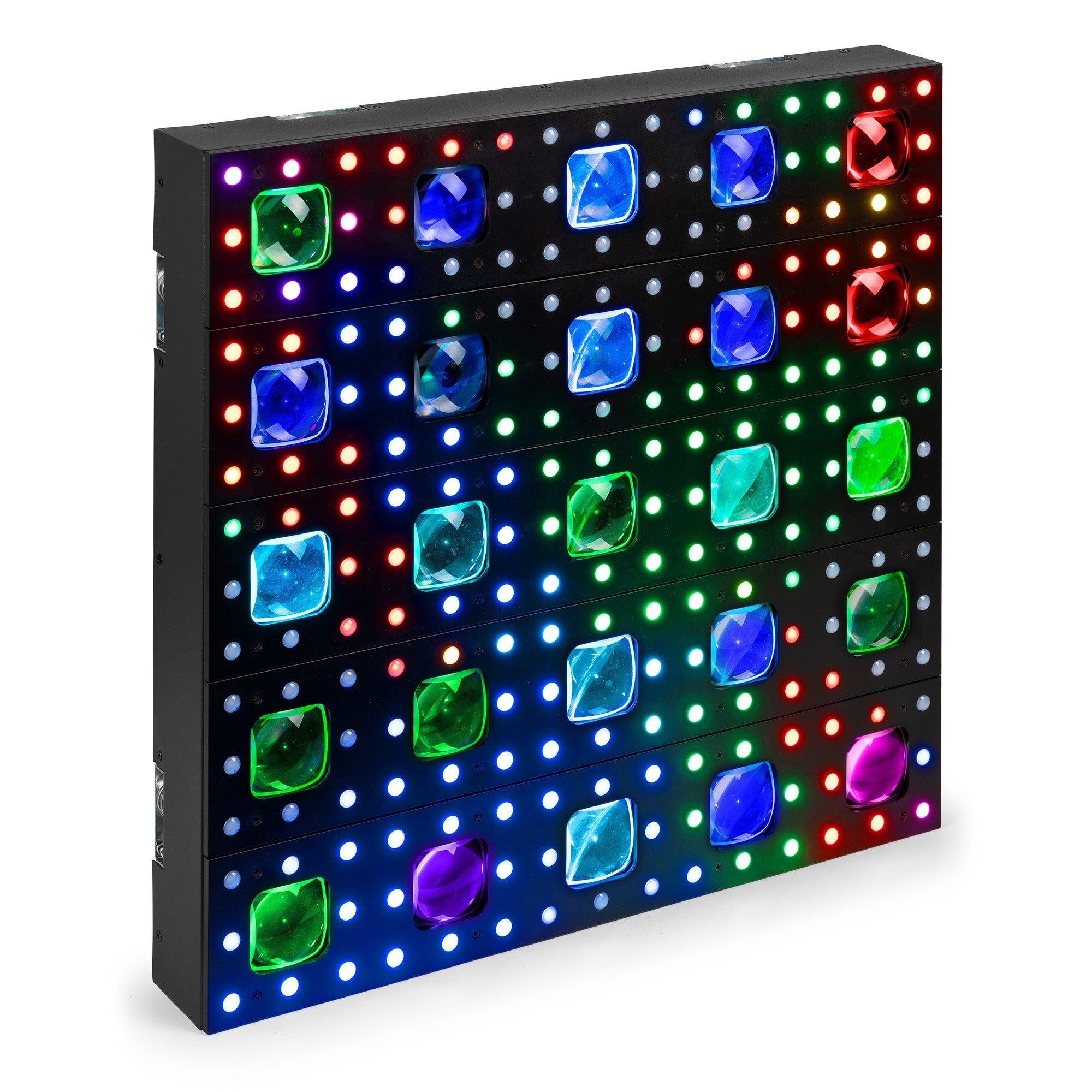

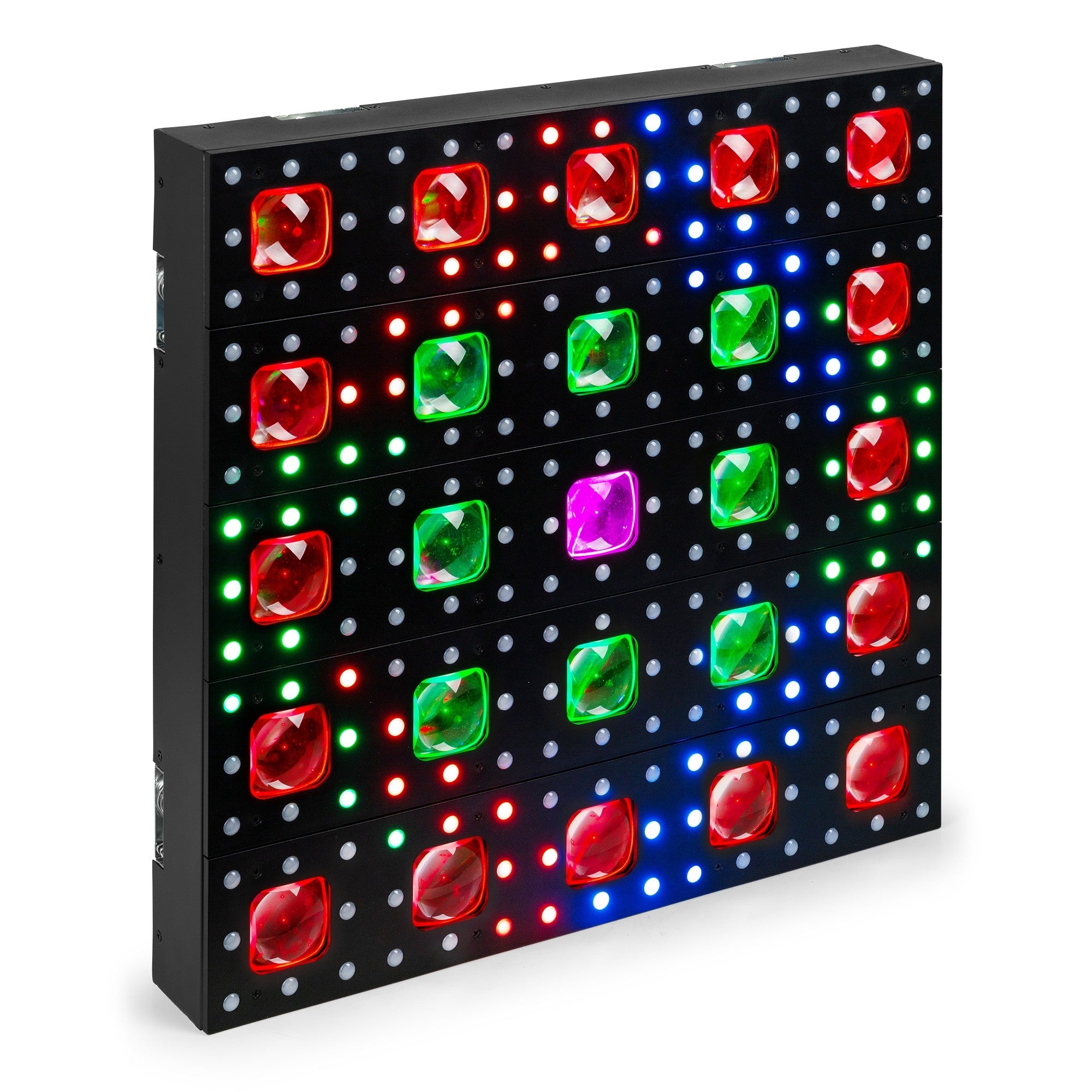

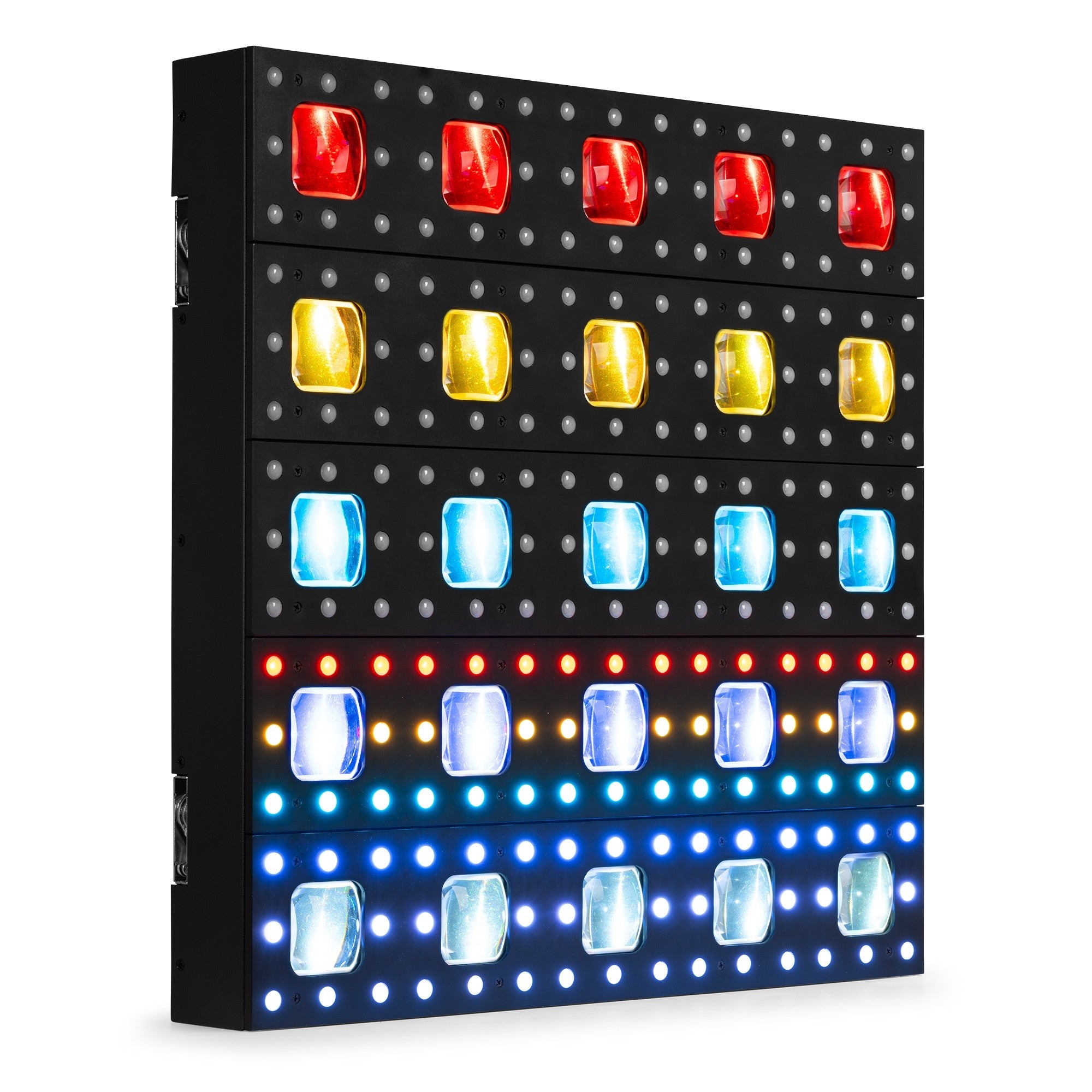

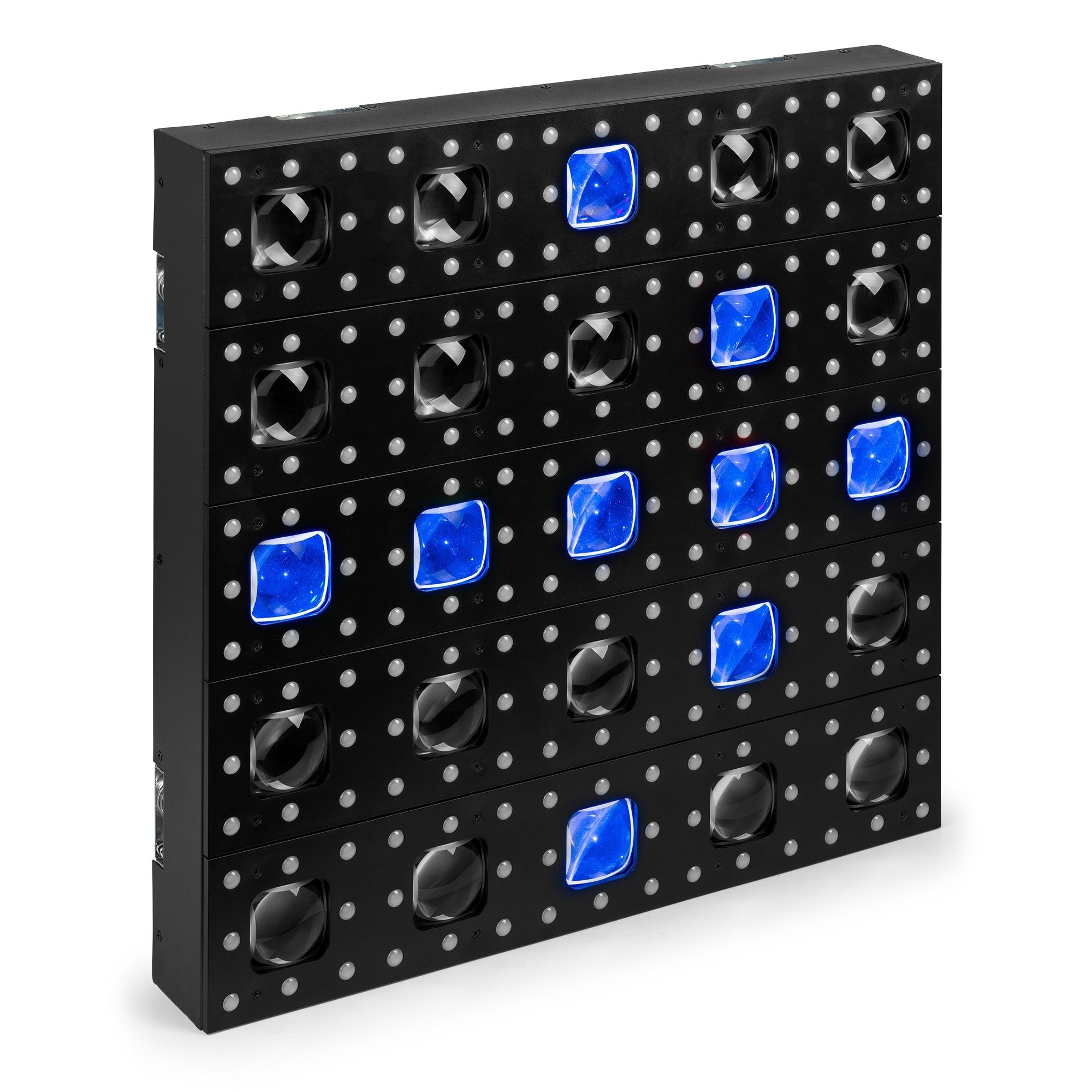

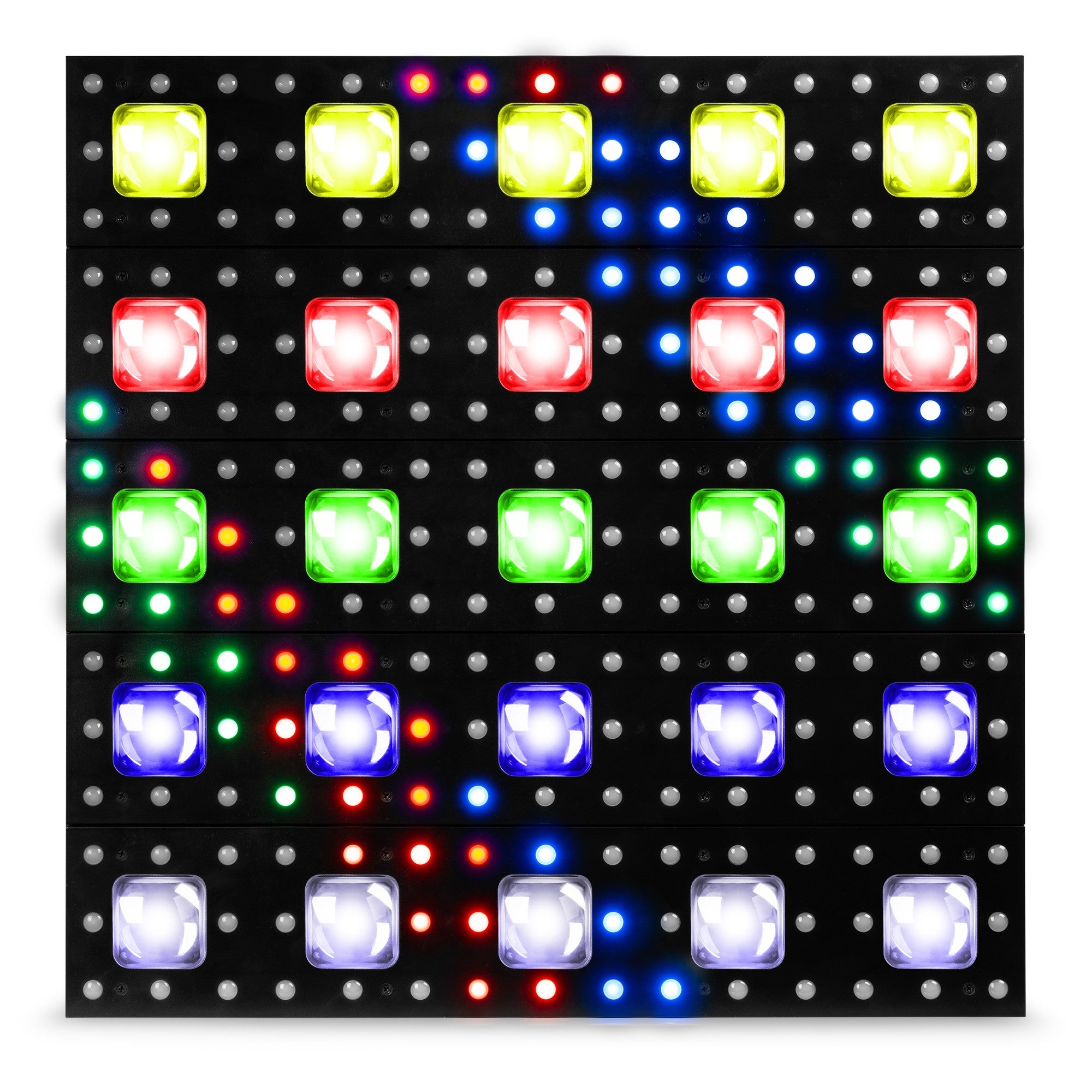

The beamZ Pro LCBP450 is a professional hybrid LED panel designed to create stunning visual displays on stages, at live events, in clubs, on sound stages, and in any space where lighting is key. It combines 25 powerful 10W RGBW LEDs positioned behind precision lenses with 200 dedicated RGB SMD LEDs for backlighting, allowing for the generation of distinct light layers, pixel-like effects, and perfectly coordinated dynamic backgrounds.

Thanks to its RGB + WW color mixing , the LCBP450 offers everything from vibrant, saturated colors to warm, versatile white tones to enhance sets, structures, or performers. Its electronics integrate 30 automatic programs and 30 sound-activated programs with adjustable speed, which can be run in standalone mode or in combination with other equipment using master/slave modes. For advanced configurations, it is compatible with DMX512 control , including 27- and 175-channel modes that facilitate the creation of complex sequences synchronized with the rest of the lighting system.

Operation can be performed via the integrated LCD screen , a DMX console, or compatible software, providing flexibility for both experienced lighting technicians and operators seeking quick and easy programming solutions. Its metal housing with a temperature-controlled fan ensures efficient cooling, maintaining stable performance even during extended use.

For modular installations, the LCBP450 incorporates P-Con input and output power connectors that allow multiple panels to be daisy-chained, reducing cabling and simplifying assembly. The quick-lock system facilitates the physical connection between units, creating continuous and homogeneous light surfaces. With a robust design, black finish, and dimensions of 200 x 500 x 500 mm, this hybrid LED panel integrates easily into truss structures, stages, and mobile setups, offering a complete solution for professional creative lighting.

Main features

• Multifunctional hybrid LED panel that combines powerful front lighting and RGB backlighting.
• 25 x 10W RGBW LEDs with precision lenses , ideal for beam effects, chases and long-distance visible patterns.
• 200 RGB SMD LEDs dedicated to backlighting, perfect for creating backgrounds, color fills and ambient effects.
• RGB + WW color mixing to obtain from intense colors to warm whites, suitable for scenic and decorative environments.
• DMX512 with 27 and 175 channel modes for detailed control of LEDs and internal effects.
• Versatile operating modes : automatic programs, sound activation, master/slave and software control.
• 30 automatic programs with adjustable speed for quick solutions without complex programming.
• 30 sound programs with adjustable speed, reacting to music and sound environment.
• Adjustable effect speed to adapt the light dynamics to the type of event.
• Robust metal casing cooled by a temperature-controlled fan , designed for intensive professional use.
• Several selectable dimming curves to achieve smooth fades and dimmer behavior tailored to the lighting style.

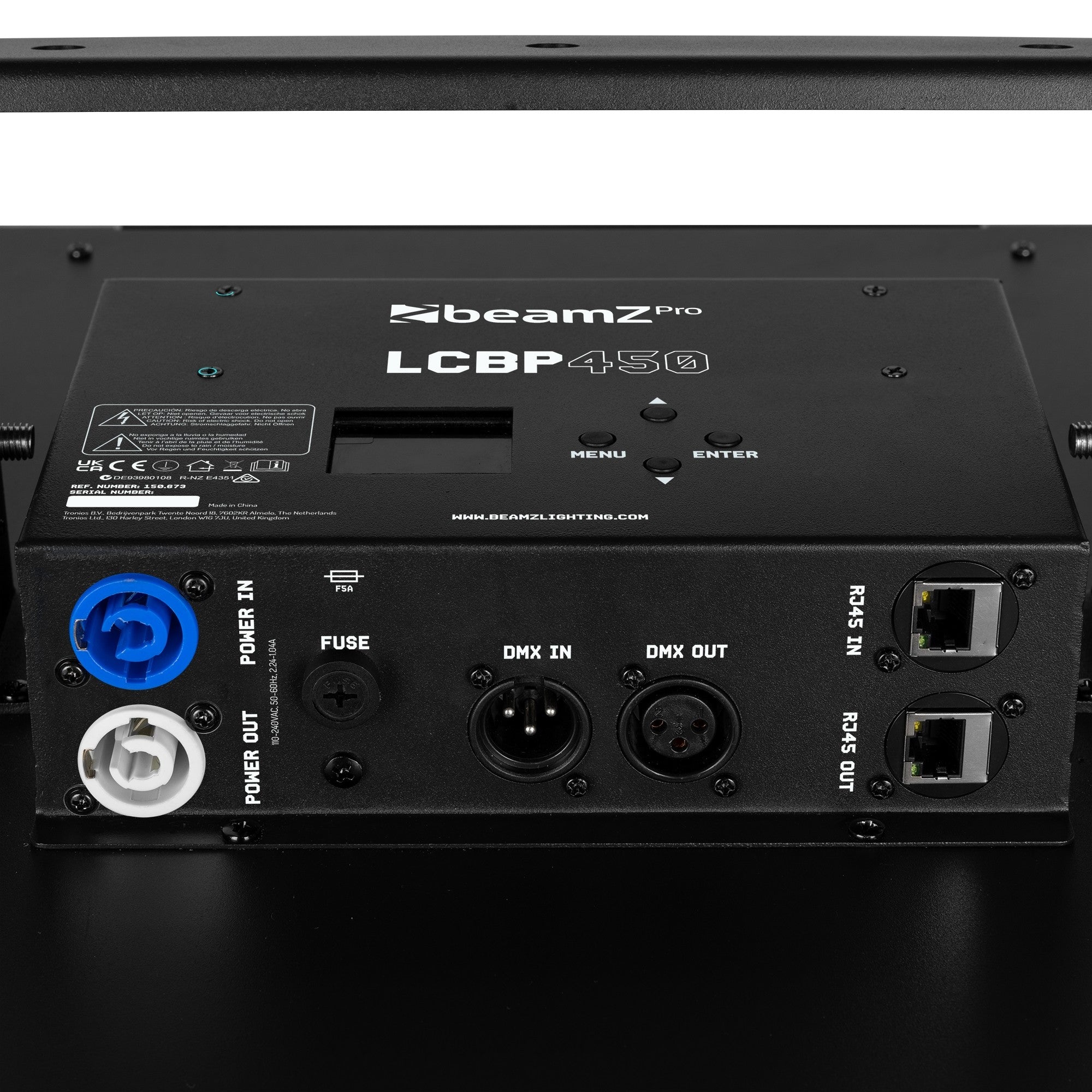

• P-Con input and output power connectors for daisy-chaining multiple panels with clean wiring.
• Easy locking system for mechanically connecting multiple devices and forming light arrays or walls.
• DMX connection via 3-pin XLR , standard in professional lighting installations.

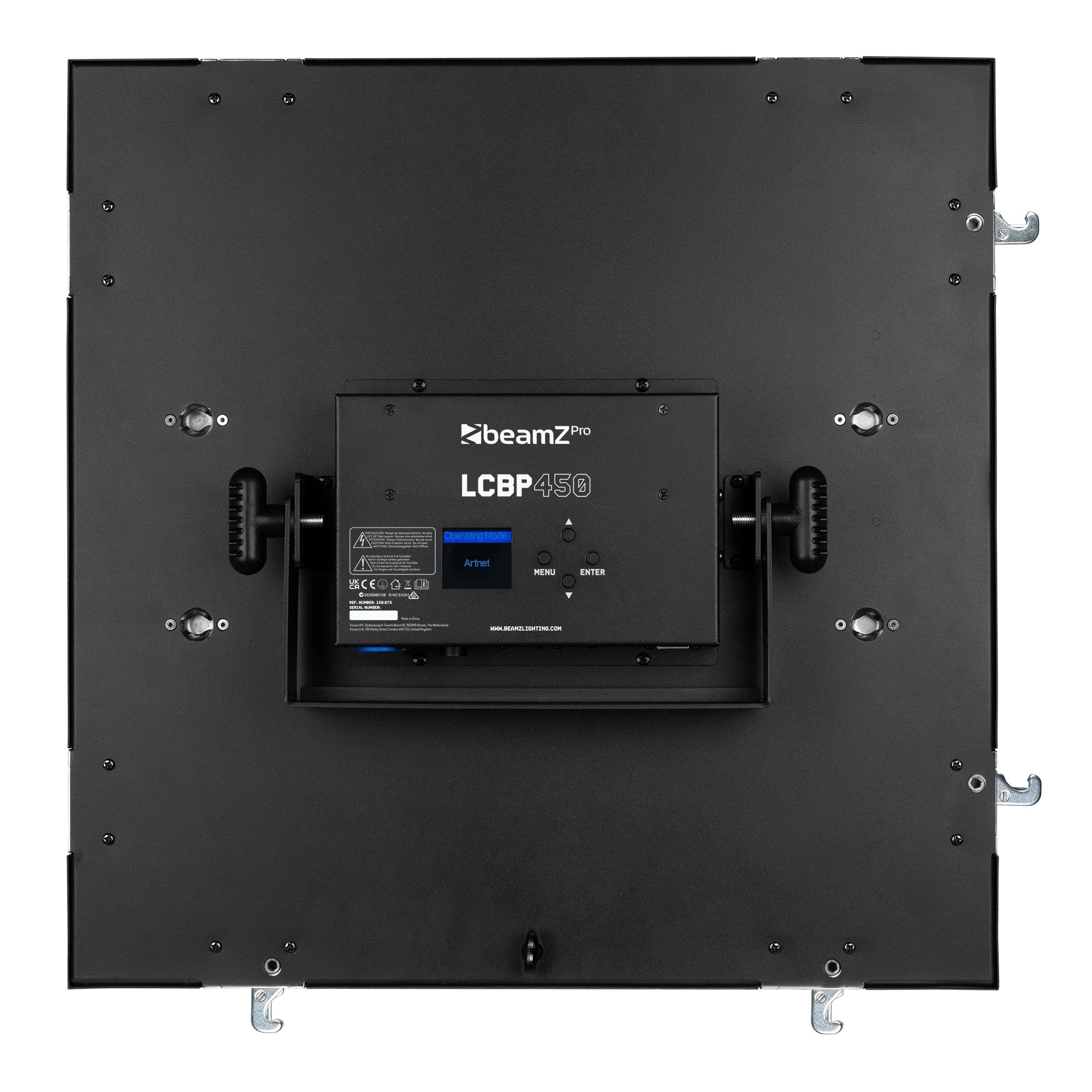

• LCD screen for convenient access to the menu, mode selection and basic settings without the need for an external controller.
• IP20 protection rating , suitable for indoor installations.
• Compact dimensions : 200 x 500 x 500 mm, optimized for truss, stages and mobile setups.
• Weighing 8.55 kg , it is manageable for mounting on structures and lighting supports.

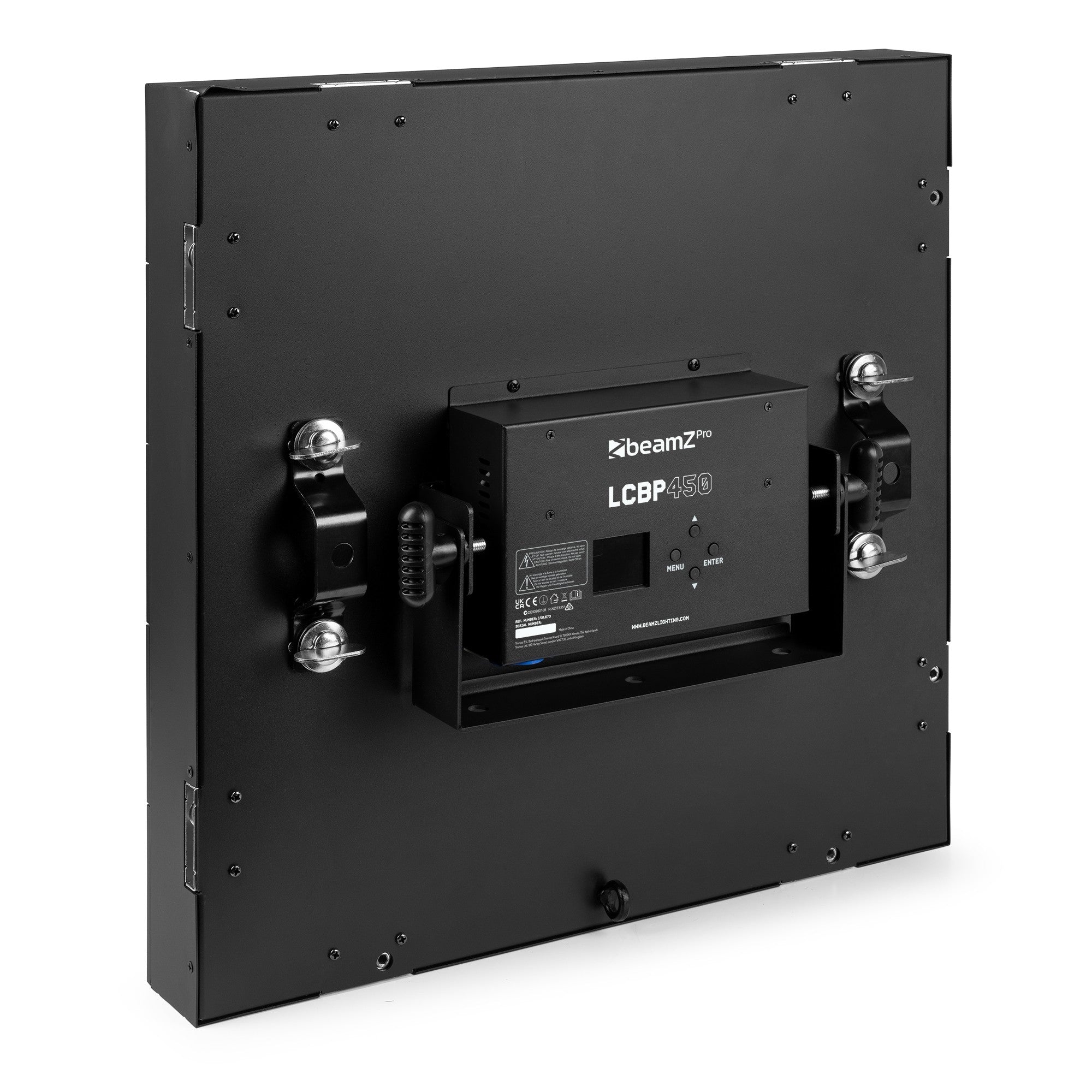

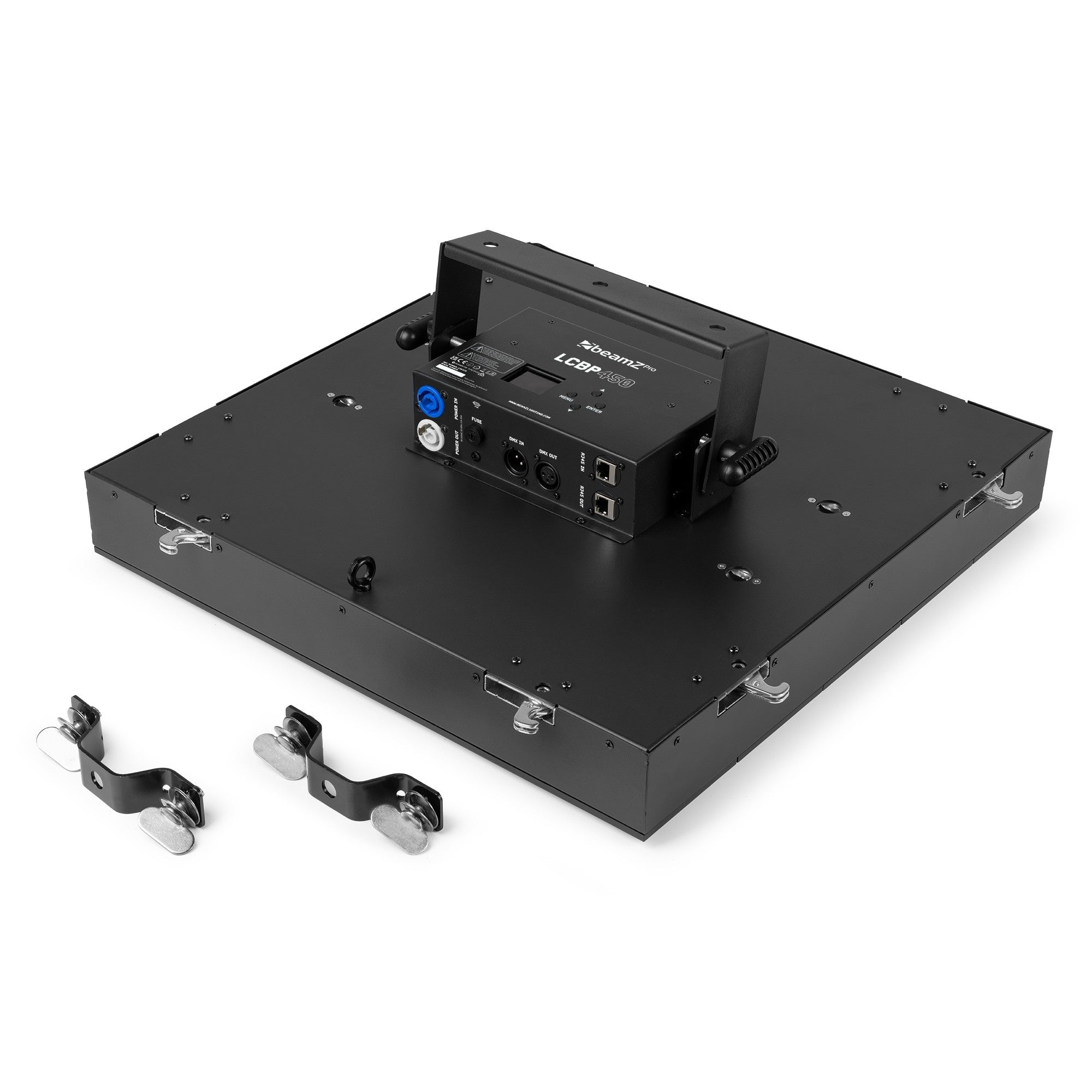

• Included accessories : mounting bracket and power cable for immediate installation.

Product benefits

• Maximum creative versatility : the combination of front RGBW LEDs and RGB SMD backlighting allows you to design both impactful effects and subtle backgrounds in a single device, reducing the need for multiple different spotlights.
• Time savings in assembly and programming : automatic and sound-activated programs, with adjustable speeds, allow you to achieve professional results even when there is no time to program detailed scenes.
• Scalable professional control : 27 and 175 channel DMX modes make it easy to integrate the panel into complex lighting systems, with the ability to control each section precisely.
• Clean integration into installations : P-Con input and output connections and the quick-locking system simplify wiring, power distribution, and the creation of walls or panel arrays.
• Reliability in intensive use : The metal housing and temperature-controlled fan cooling help maintain a stable working temperature, extending the lifespan of the LEDs.
• Consistent visual experience : Configurable dimming curves allow you to adapt the dimmer's behavior to achieve smooth transitions, ideal for theater, television, or corporate events.
• Ease of use for different profiles : both a lighting technician and a mobile DJ or a fixed installer can take advantage of the equipment thanks to the combination of autonomous modes and control by software or DMX console.

Use cases

• Stages and concerts : creation of dynamic backgrounds behind the artist, beam effects synchronized with the music, and panel arrays that provide visual depth.
• Clubs, halls and discos : installation on walls, DJ booths or truss structures to generate pixel effects, chases and color changes to the rhythm of the ambient sound.
• Corporate events and presentations : lighting of stage backdrops, stand structures, logos or decorative elements, with corporate colors and smooth transitions.
• Theater and indoor shows : reinforcement of dramatic atmospheres, special color effects and creation of luminous backgrounds that adapt to the scene.
• Rental companies : compact and robust solution to offer hybrid LED panels that adapt to multiple types of events with the same equipment.
• Video and streaming studio : use as a dynamic background or as a visual element behind the presenter, with precise color control for cameras.

Frequently Asked Questions

Can I use the LCBP450 without a DMX console?
Yes. The panel has standalone modes with automatic and sound-activated programs, all accessible from the front LCD screen. This allows it to be used without an external controller, selecting the desired program and speed directly on the unit.

What control modes does it offer?
The LCBP450 can operate in automatic mode , sound-activated mode , master/slave mode, and DMX mode (with 27 or 175 channels). Furthermore, control is also possible via compatible software through a suitable DMX interface.

Is it possible to connect multiple panels to the same power line?
Yes. It incorporates P-Con power input and output connectors , allowing you to power several panels in series (within the limits recommended by the manufacturer) to simplify installation and reduce the number of cables to the electrical grid.

Does it include mounting hardware?
The panel comes with a mounting bracket and power cable , so it can be installed on compatible trusses, structures, or supports immediately.

Is it suitable for outdoor use?
The LCBP450 has an IP20 rating, so it is designed for indoor use . For outdoor applications, it would need to be properly protected or equipped with a higher protection rating.

Does the ventilation system make noise?
Cooling is provided by a temperature-controlled fan . As with other professional lighting equipment with fans, the noise level is low and suitable for most live applications, although in extremely quiet environments (such as some theatrical or recording setups) it is recommended to position the equipment so that the noise is minimal relative to the microphone pickups.

Project description

beamZ Pro LCBP450 professional hybrid LED panel with 25 x 10W RGBW LEDs behind precision lenses and 200 RGB SMD LEDs for backlighting, RGB + RGBW color mixing, operating modes (automatic, sound-activated, master/slave, and DMX512, 27/175 channels), 3-pin XLR DMX connection, metal housing with temperature-controlled fan, selectable dimming curves, P-Con power input and output connectors, quick-lock system for joining multiple panels, LCD display, IP20 rating, black housing, dimensions 200 x 500 x 500 mm, and weight 8.55 kg. Includes mounting bracket and power cable.
