beamZ Galaxy5 - 5×40W RGBW Moving Head Light Bar with Pixel Ring and RDM
The beamZ Galaxy5 is a compact moving head bar with five independently controllable heads , each powered by a 40W 4-in-1 RGBW LED. Surrounding the unit is a pixel ring with 120 RGB LEDs for high-impact visual effects. Designed for quick setups in tight spaces, it offers DMX with 11 and 60-channel modes, RDM , standalone operation, sound triggering, and master/slave sync. The chassis includes P-Con input/output for power daisy-chaining, a 3-pin XLR for DMX, and two Quick Lock mounts for fast truss mounting; it also features an integrated pole mount for easy installation on lighting stands. With 540° pan , 200° tilt , and 1–20 Hz strobing , the Galaxy5 combines power and precision for DJs, bands, clubs, and bars where timing and space matter.
Main features
-

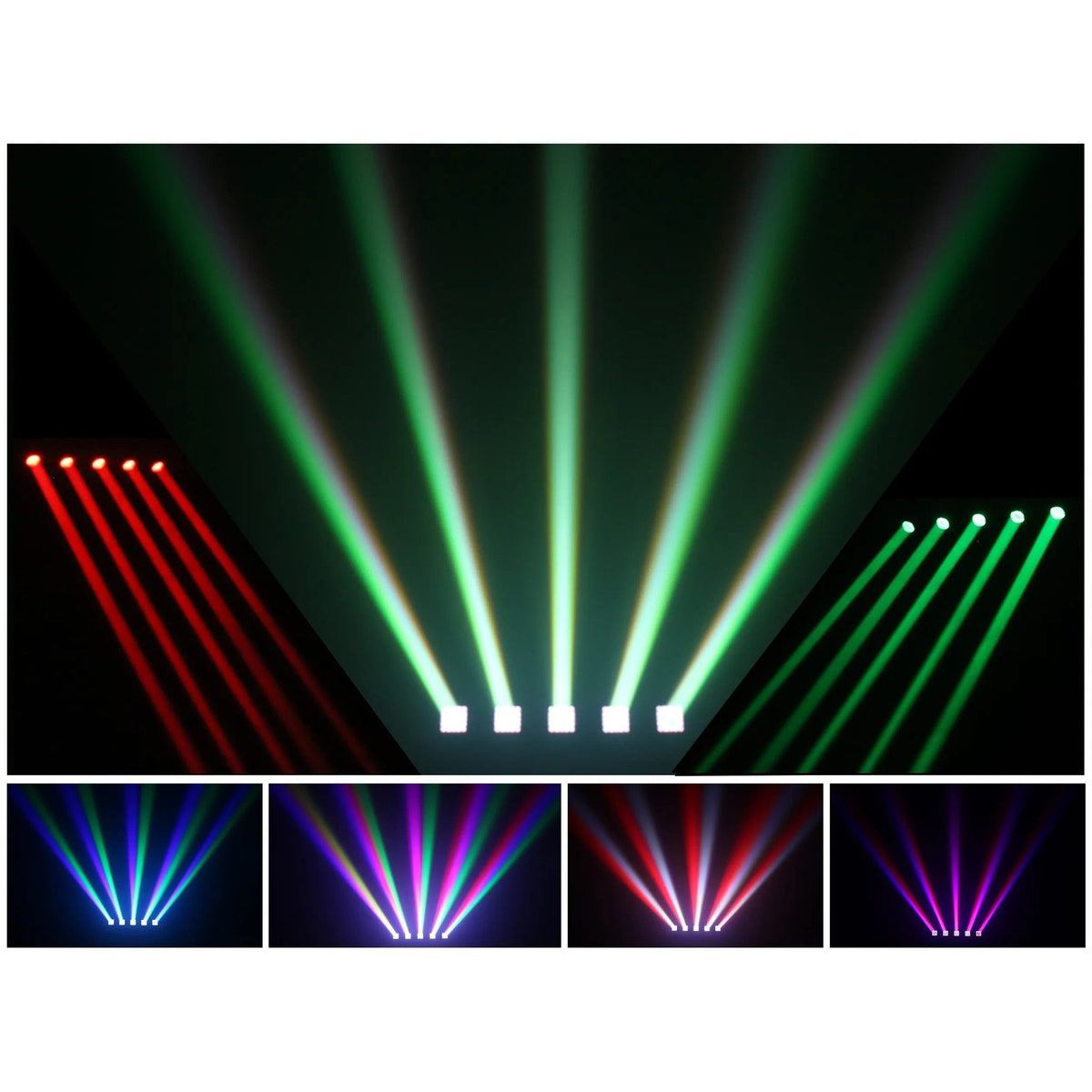

5 independent moving heads with 40W 4-in-1 RGBW LEDs each.
-

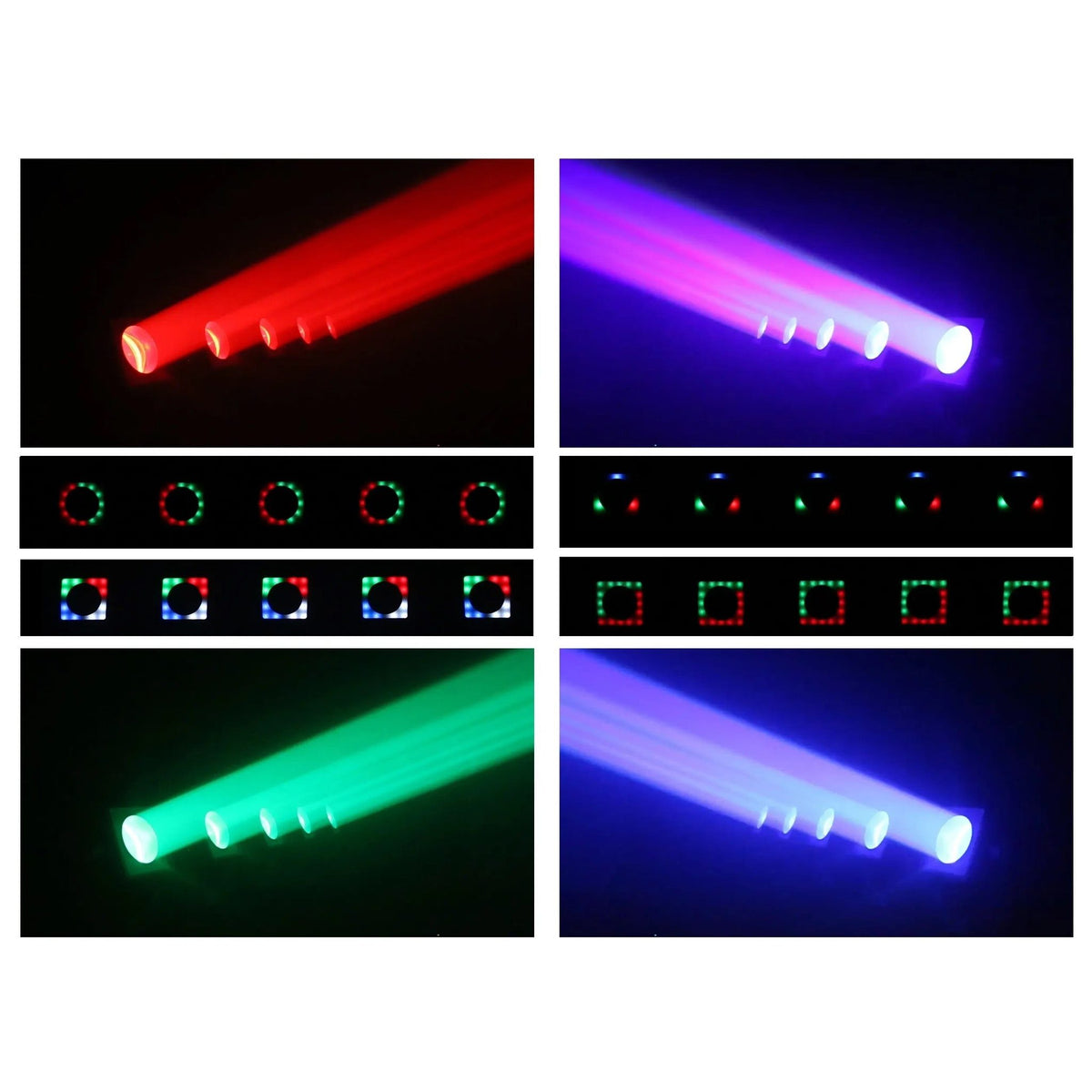

Pixel ring with 120 RGB LEDs for creative effects and chasers.
-
Professional control: DMX (11/60 channels) and RDM ; standalone , sound and master/slave modes.
-
16 automatic programs and audio sensitivity control from the menu.
-
Optics and movement: Pan 540° , Tilt 200° ; stroboscope 1–20 Hz .
-
Flexible mounting: 2 Quick Lock brackets included, integrated pole mount and truss options.
-
Connectivity: P-Con input/output (power linking) and 3-pin XLR DMX .
-
Silent operation: convection cooling (no fans).
-
LCD screen for quick adjustments; IP20 for indoor use.
-
Dimensions and weight: 1003 × 89 × 255 mm; 12.15 kg.
Product benefits
-
Maximum impact in a small space: five moving beams plus a pixel ring on a single bar reduce the number of devices required.
-
Faster workflows: P-Con power chaining and Quick Lock speed up installation and takedown.
-
Advanced creativity with simple control: the 60-channel mode enables section-by-section effects, while the 11 channels simplify quick shows.
-
Quiet for venues and events thanks to convection cooling, suitable for clubs, bars and events with close audience.
-
Versatile in any setup: standalone, sound-controlled, or fully integrated into DMX controllers with RDM support.
Use cases
-
DJ booths and compact stages: dynamic aerial effects and accent washes without saturating the truss.
-
Live bands and performances: chasers, stabs and DMX-programmed scenes.
-
Clubs, bars and traveling events: quick setup, visual cleanliness and a powerful show with just one bar.
Frequently Asked Questions
How many DMX channels does it use?
It has two DMX modes: 11 and 60 channels , selectable from the menu.
What accessories are included?
Includes 2 Quick Lock brackets and a power cable . The chassis integrates a pole mount and 3-pin XLR connectivity for DMX.
Can it be monitored/adjusted via RDM?
Yes, the luminaire is compatible with RDM for parameter reading and remote configuration.
Project description
Moving head light bar with 5 x 40W RGBW 4-in-1 LEDs; 120 x RGB LED (3-in-1) pixel ring; 11/60 channel DMX modes with RDM; 540° pan, 200° tilt; 1–20 Hz strobe; LCD display; IP20; convection cooling; 3-pin XLR DMX input/output; P-Con input/output; 100–240 VAC 50/60 Hz power supply; 1.919–0.926 A current consumption; dimensions 1003 x 89 x 255 mm; weight 12.15 kg; black color.
