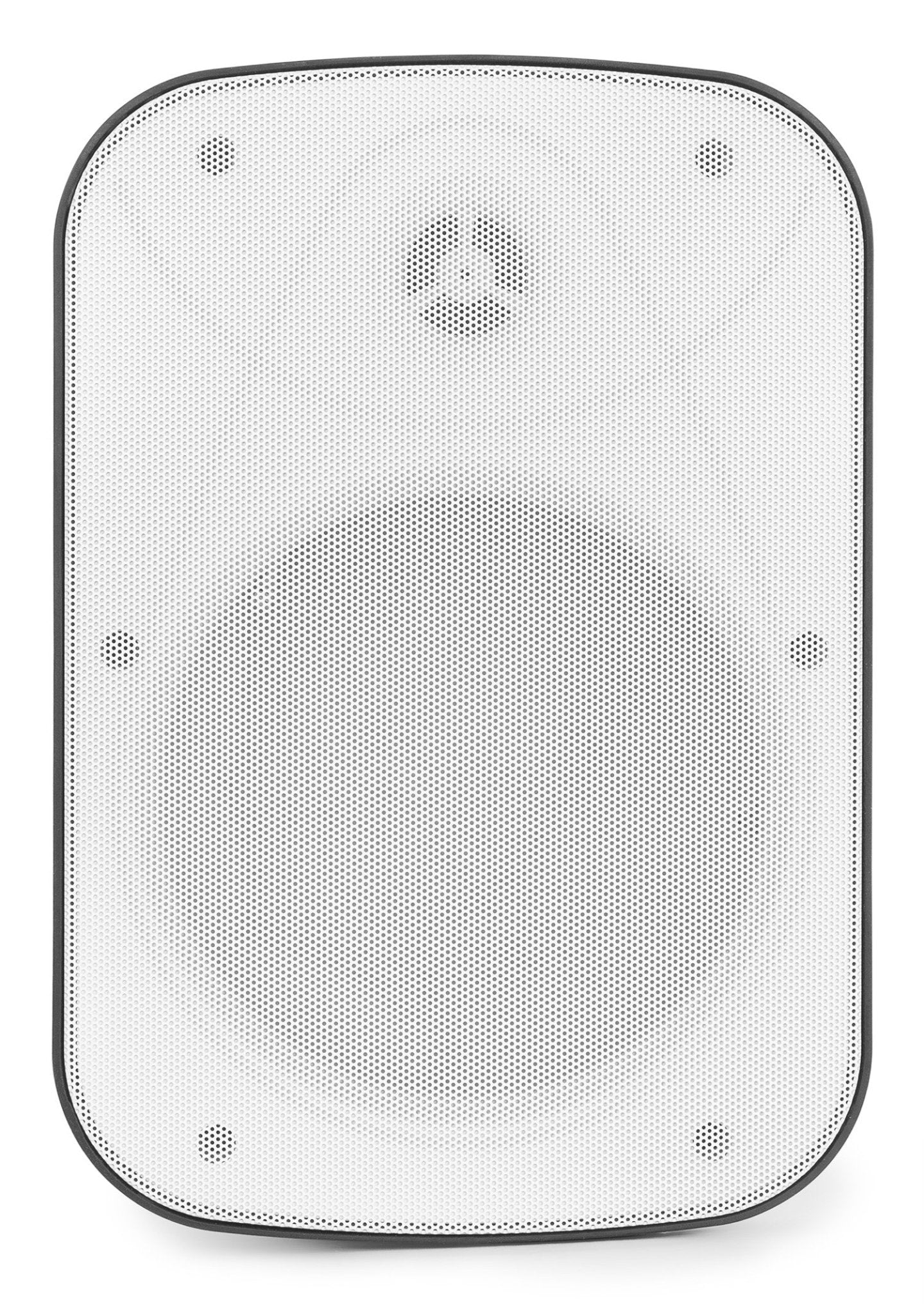

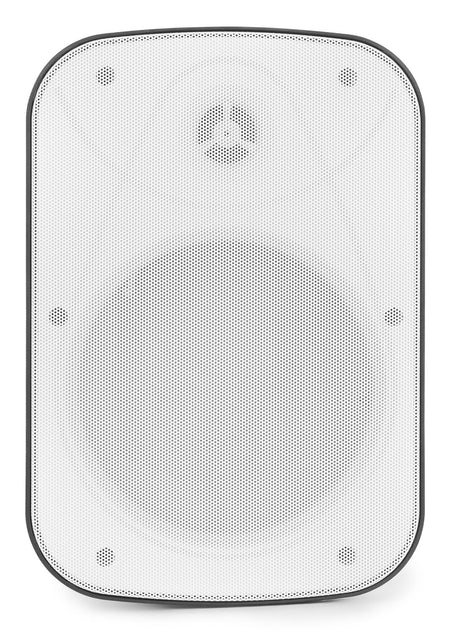

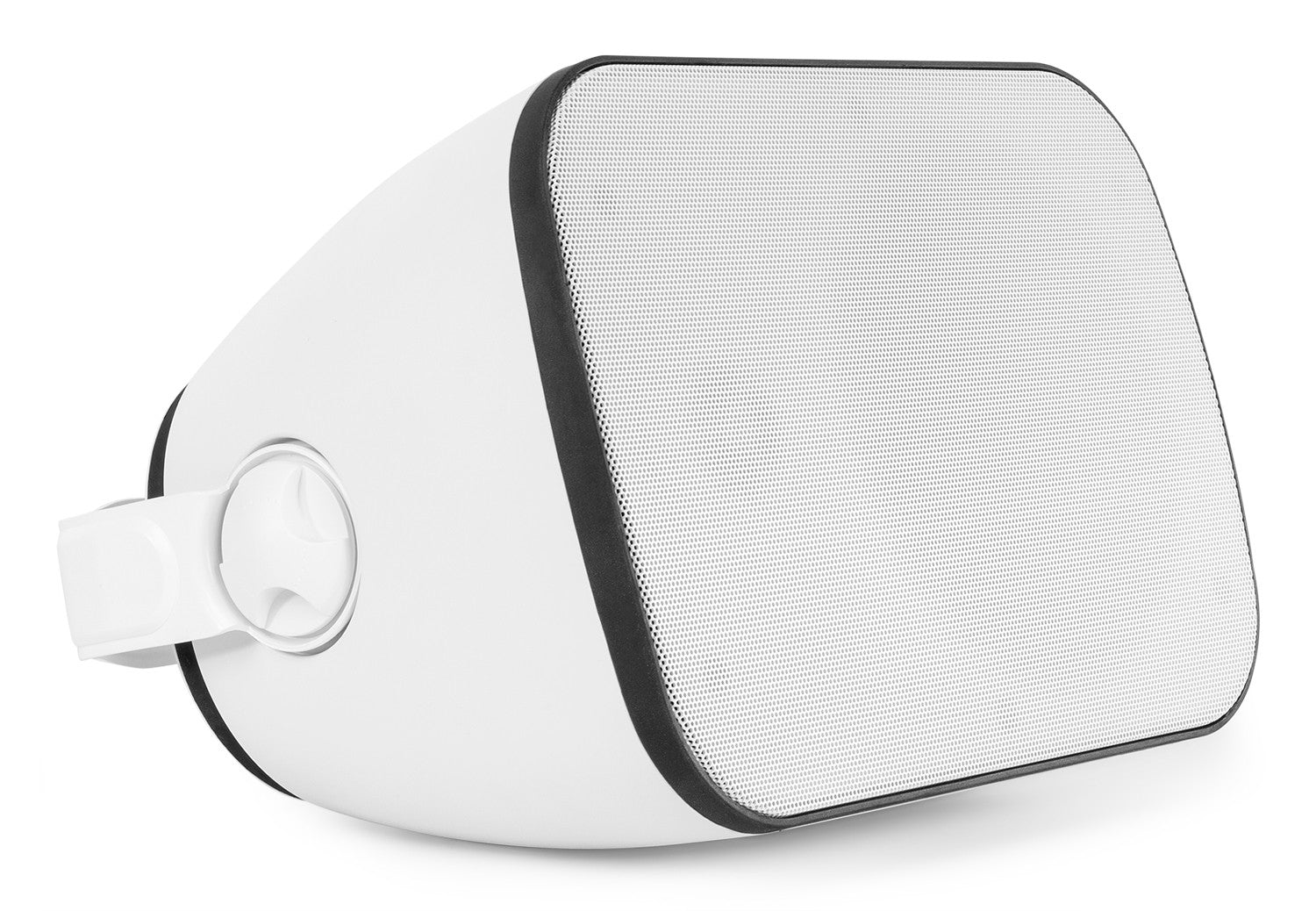

Power Dynamics BD50TW - IPX5 Indoor/Outdoor Wall Speaker with 100V/70V Transformer

Power Dynamics BD50TW - IPX5 Indoor/Outdoor Wall Speaker with 100V/70V Transformer

The Power Dynamics BD50TW is a wall-mounted loudspeaker designed to deliver exceptional sound performance both indoors and in the most demanding outdoor environments. Part of the robust BD series, this loudspeaker combines durable, weather-resistant construction with high-fidelity audio quality, making it the perfect solution for a wide range of background music and ambient sound installations.

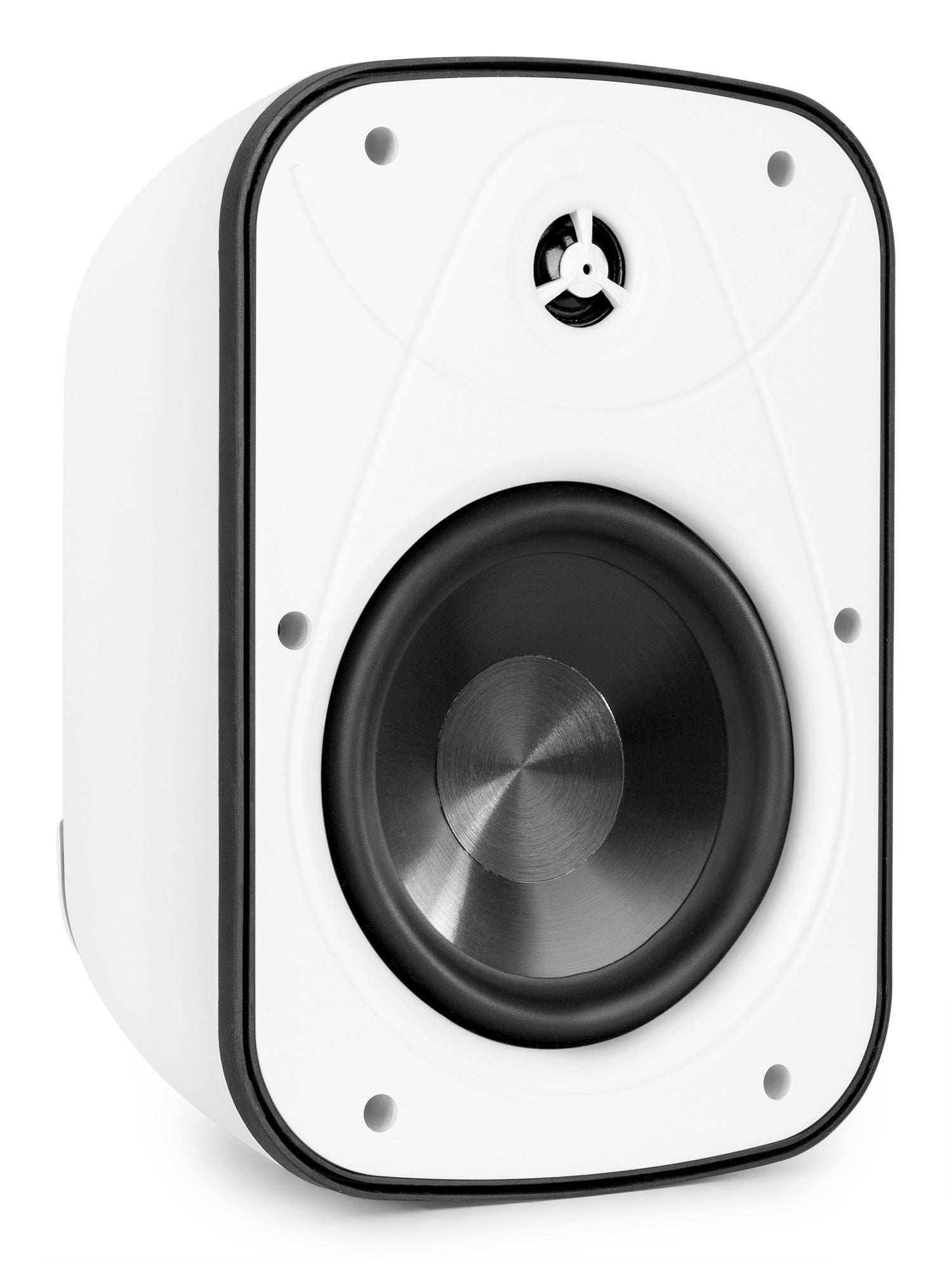

Its two-way design features a 5-inch polypropylene woofer , ensuring crisp and accurate mid and low-frequency reproduction, and a 1-inch silk dome tweeter for smooth, detailed highs. To enhance the low-frequency response without compromising the compact size of the enclosure, the BD50TW incorporates an innovative passive bass radiator on its rear panel. The result is a rich, powerful, and balanced sound that fills the room with impressive clarity.

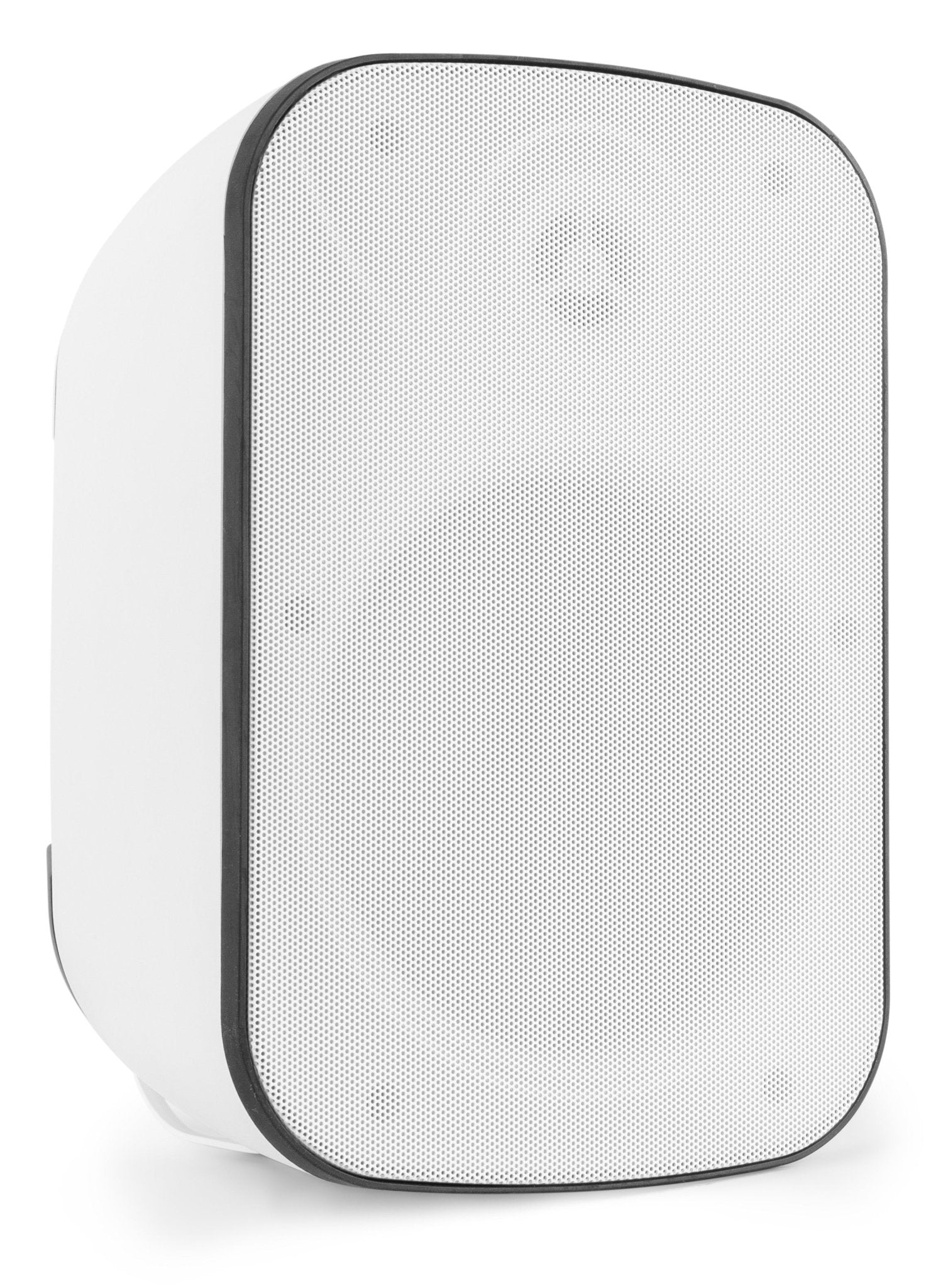

Built to last, it features a UV-protected ABS housing and an aluminum grille, materials that guarantee its resistance to rain, sun, and corrosion. Its IPX5 rating ensures protection against water jets from any direction, making it ideal for installation in gardens, patios, swimming pools, and even marine environments.

Main Features

• Rugged All-Weather Construction: ABS housing with UV protection and aluminum grille that withstand moisture, direct sunlight and extreme temperatures.
• Superior Sound Quality: Two-way system with 5" polypropylene woofer and 1" silk dome tweeter for clear and well-defined audio.
• Enhanced Bass: Incorporates a passive bass radiator at the rear to enhance low frequencies and deliver a fuller sound.
• Installation Flexibility (100V/70V/8 Ohm): Equipped with a multi-stage transformer and a rotary selector that allows its use in 70V/100V line installations or with conventional 8 ohm amplifiers.

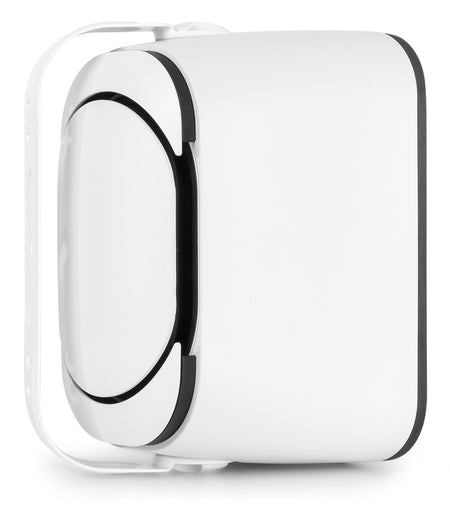

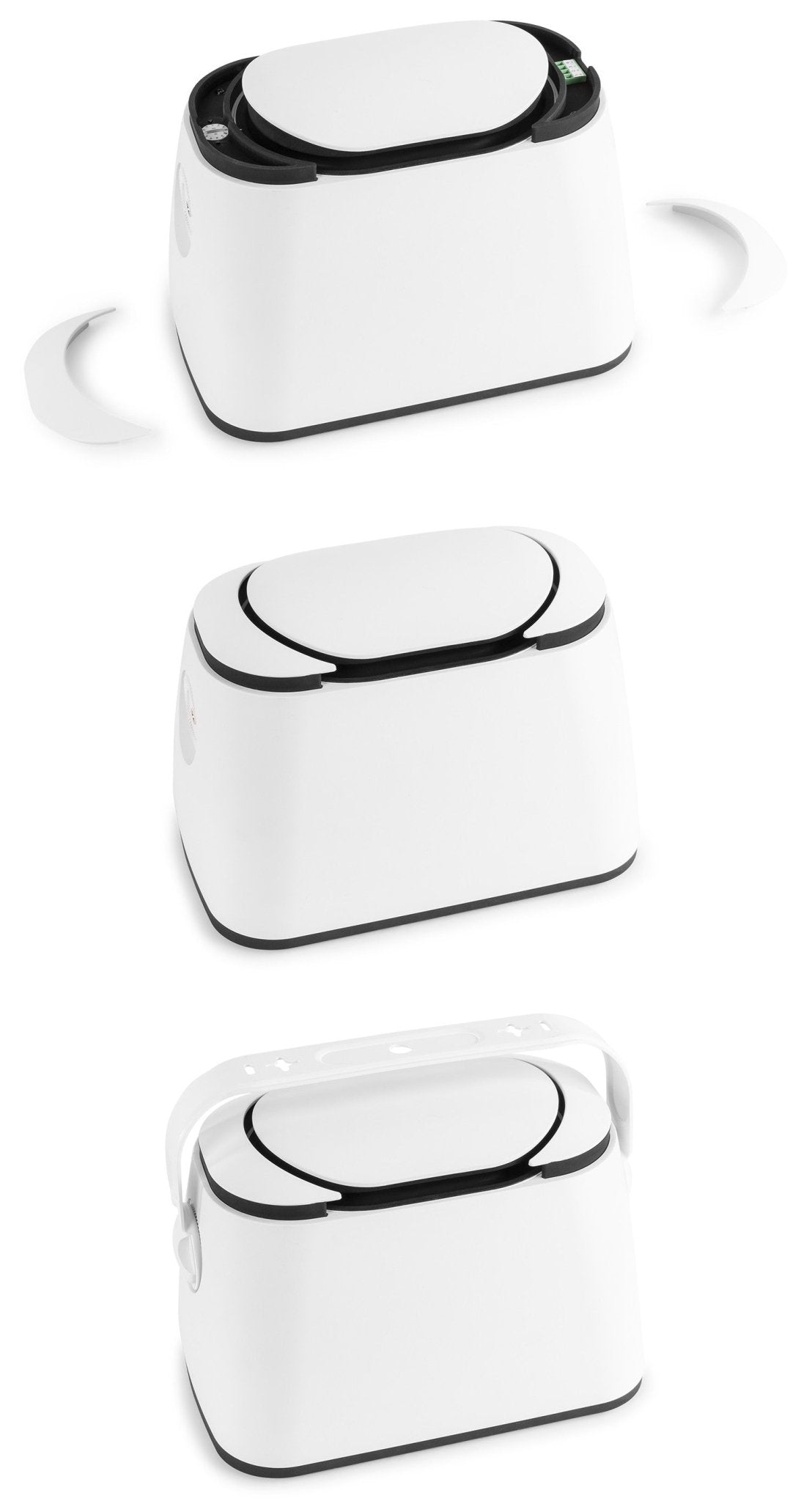

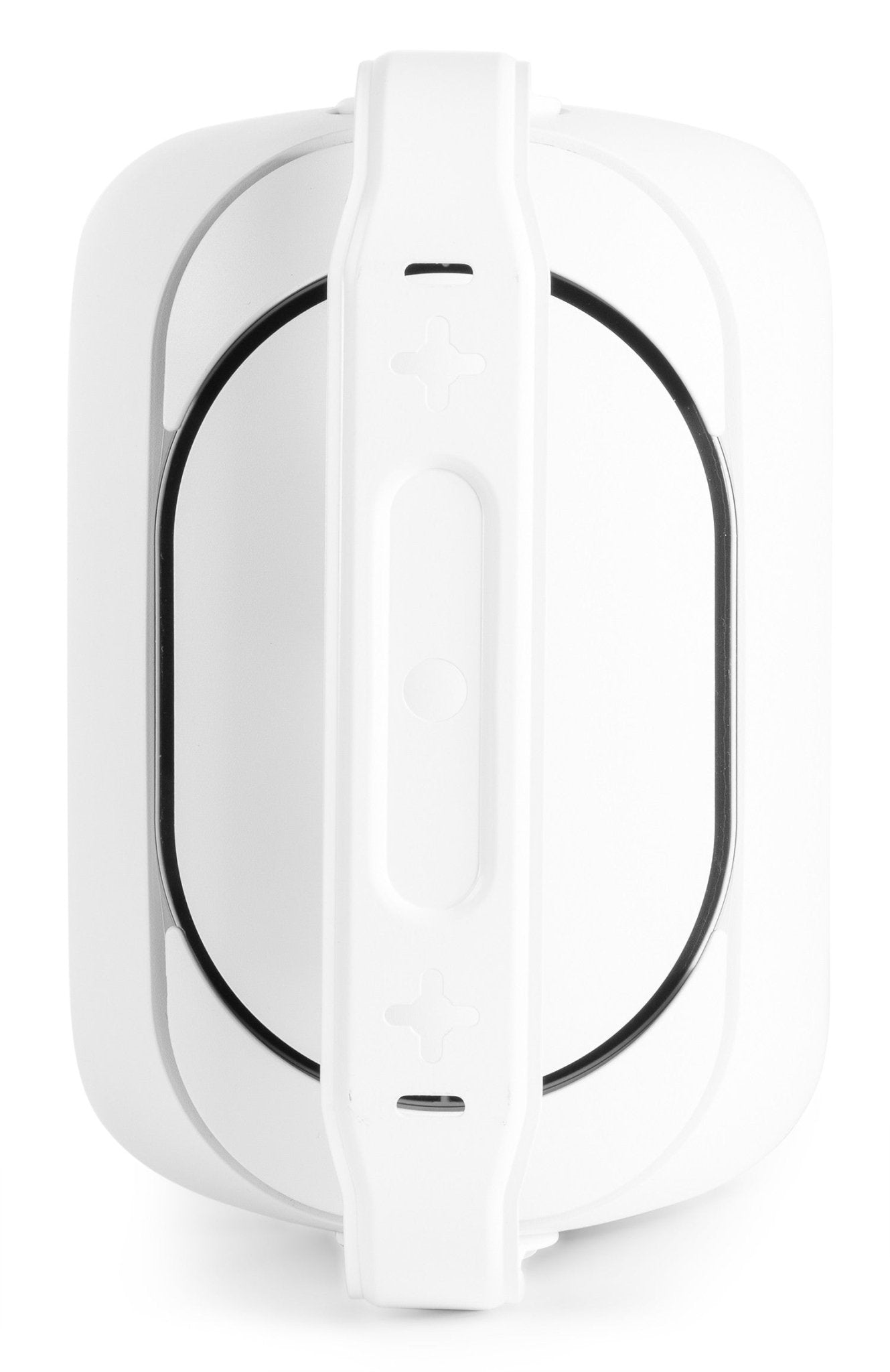

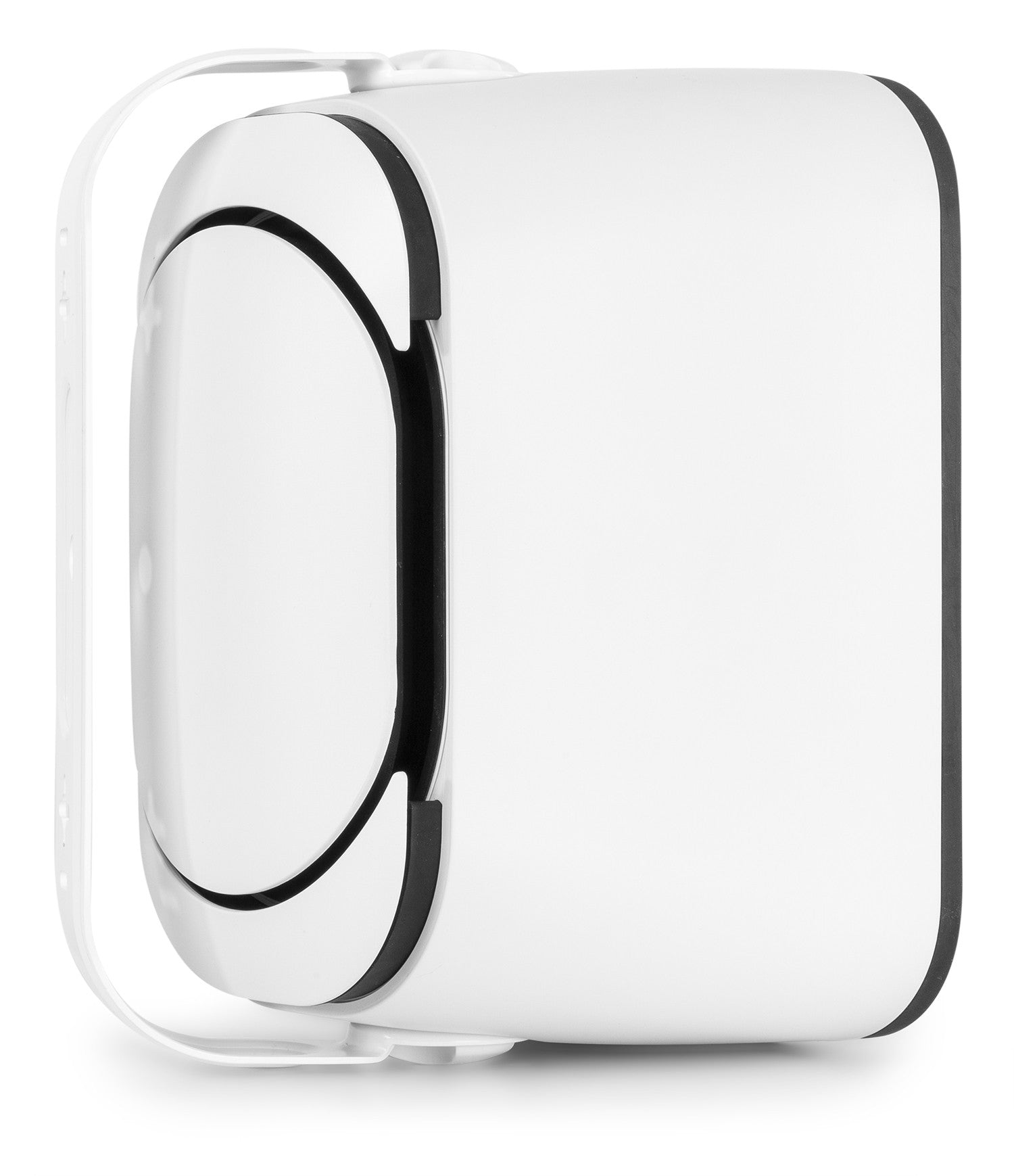

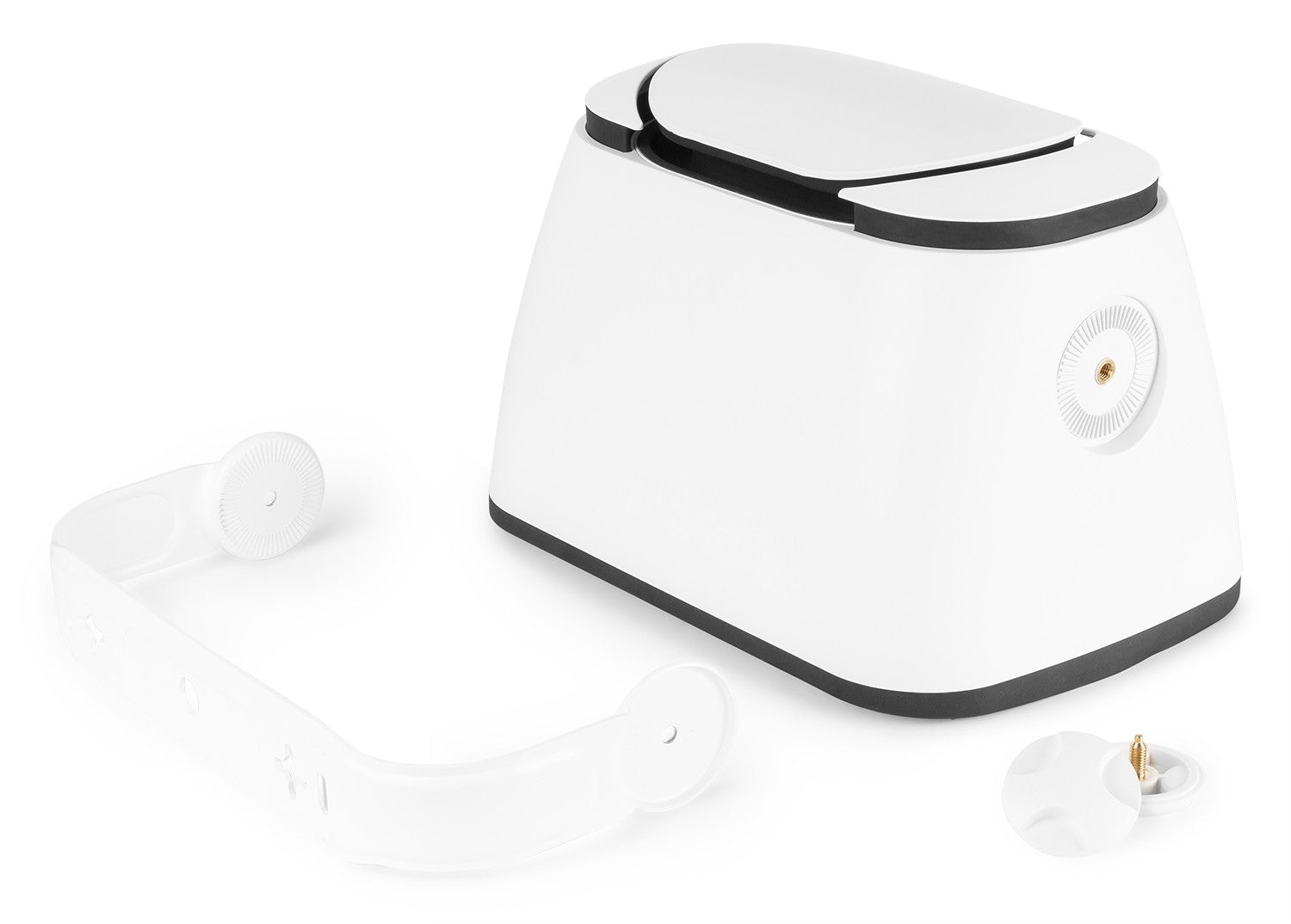

• Versatile Mounting: Includes an aluminum mounting bracket that allows for safe and easy installation in both horizontal and vertical positions.
• IPX5 Certification: Guarantees protection against high-pressure water jets, ideal for outdoor areas without a roof.

Product Benefits

With the Power Dynamics BD50TW loudspeaker, you get a versatile and reliable audio solution. Its main benefit is the ability to deliver high-quality sound to spaces where conventional speakers wouldn't survive. Enjoy your favorite music with exceptional clarity in your garden, by the pool, or on your business's patio, without worrying about the weather. The transformer's flexibility makes it a smart investment for large-scale sound projects, allowing you to connect multiple speakers over long cable runs without any loss of quality, optimizing costs and simplifying installation.

Use Cases

Thanks to its design and specifications, the BD50TW is perfect for a multitude of applications, both commercial and residential:

• Hospitality and Catering: Ideal for sound reinforcement in bar terraces, restaurants, hotel gardens and outdoor common areas.
• Shops and Sports Centers: Provides clear and pleasant background music in shops, open shopping centers, gyms and padel courts.
• Residential Use: The perfect choice for enjoying music on patios, porches, gardens and pool areas.
• Marine Environments: Its aluminum grid makes it suitable for boats and port areas where corrosion is a factor to consider.

Frequently Asked Questions

What does the IPX5 rating mean?

The IPX5 rating indicates that the speaker is protected against low-pressure water jets from any direction. This means it can withstand heavy rain or hose down, but it is not designed to be submerged in water.

Do I need a specific amplifier for this speaker?

Yes, being a passive speaker, it requires an external amplifier. It can be connected to a high-impedance amplifier (100V or 70V line) or a standard stereo amplifier (8 ohms), depending on the speaker's selector switch position.

Can the speaker angle be adjusted once installed?

Yes, the included mounting bracket allows you to rotate and tilt the speaker to optimally direct the sound towards the listening area.

Is the product sold individually or in pairs?

This product is supplied individually, allowing you to purchase the exact amount needed for your installation project.

How do I select between the 8 Ohm, 70V and 100V modes?

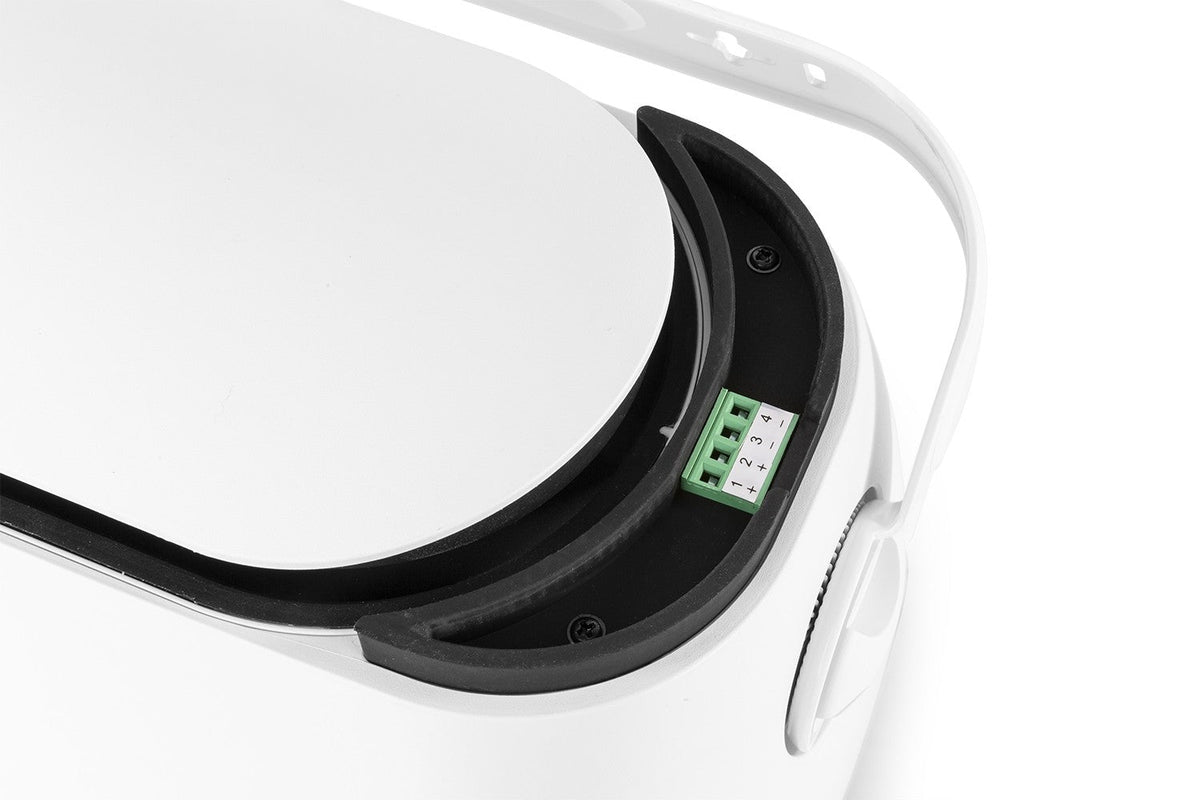

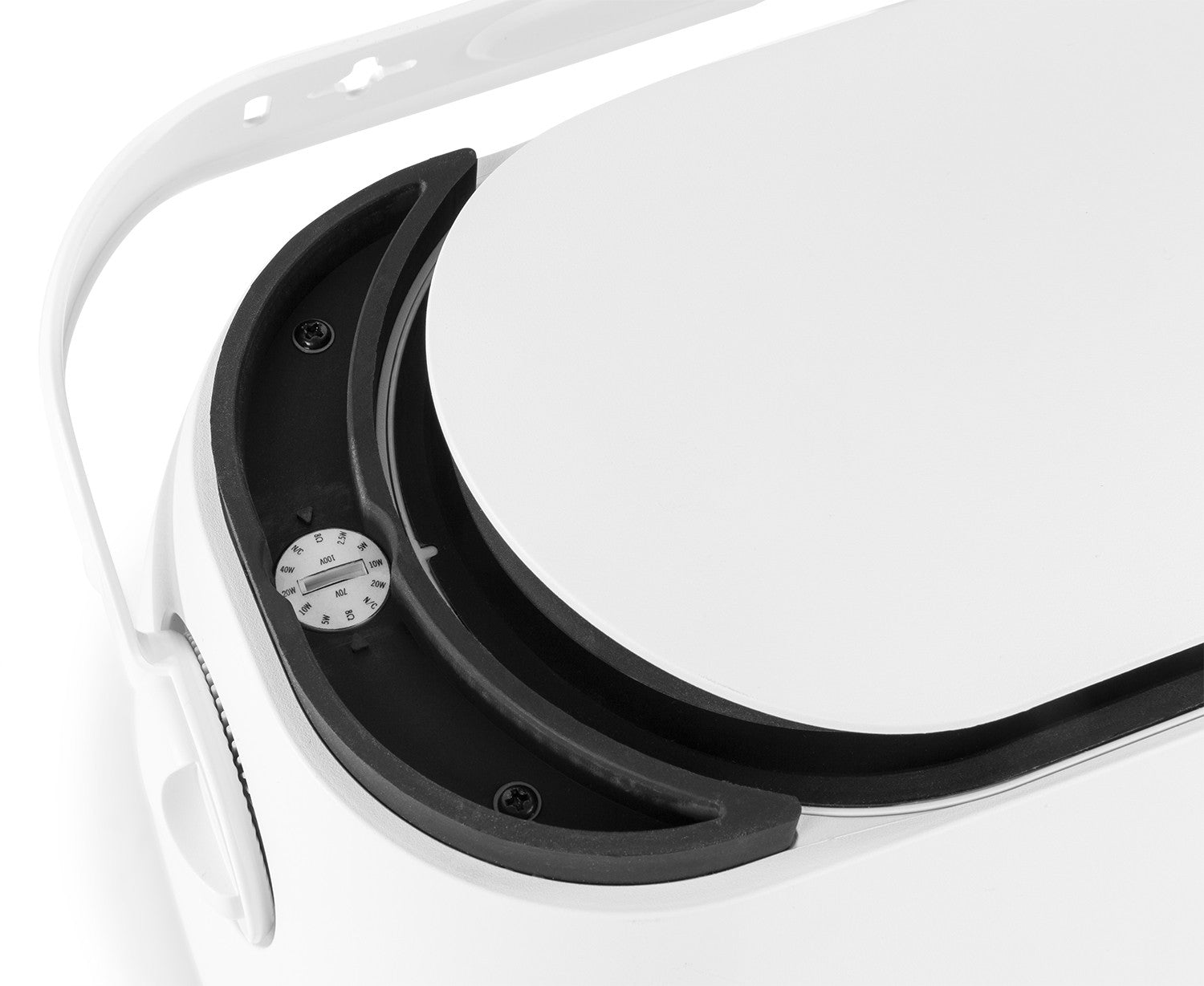

The speaker features a rotary control on the back, protected by a cover, which allows easy selection of the desired power input for 70V/100V lines or 8 ohm mode.

Project description

This passive two-way wall-mount speaker is suitable for indoor and outdoor use and is IPX5 rated. It features a 5-inch polypropylene woofer and a 1-inch silk dome tweeter, complemented by a rear passive bass radiator. It delivers 30W RMS power. A selector switch allows operation in 8-ohm systems or with 70V and 100V high-impedance lines. Power outputs for 100V are 3.75W, 7.5W, 15W, and 30W; for 70V, they are 1.87W, 3.75W, 7.5W, and 15W. Its frequency response is 100Hz to 20,000Hz, with a sensitivity of 86dB SPL @ 1W/1m. The enclosure is made of UV-protected ABS, and the grille is aluminum. An aluminum mounting bracket is included. Dimensions (L x W x H): 160 x 170 x 260 mm. Weight: 3.2 kg.
