Power Dynamics BD50TB - Passive Wall Speaker for Indoor and Outdoor Use IPX5 100V

Power Dynamics BD50TB - Passive Wall Speaker for Indoor and Outdoor Use IPX5 100V

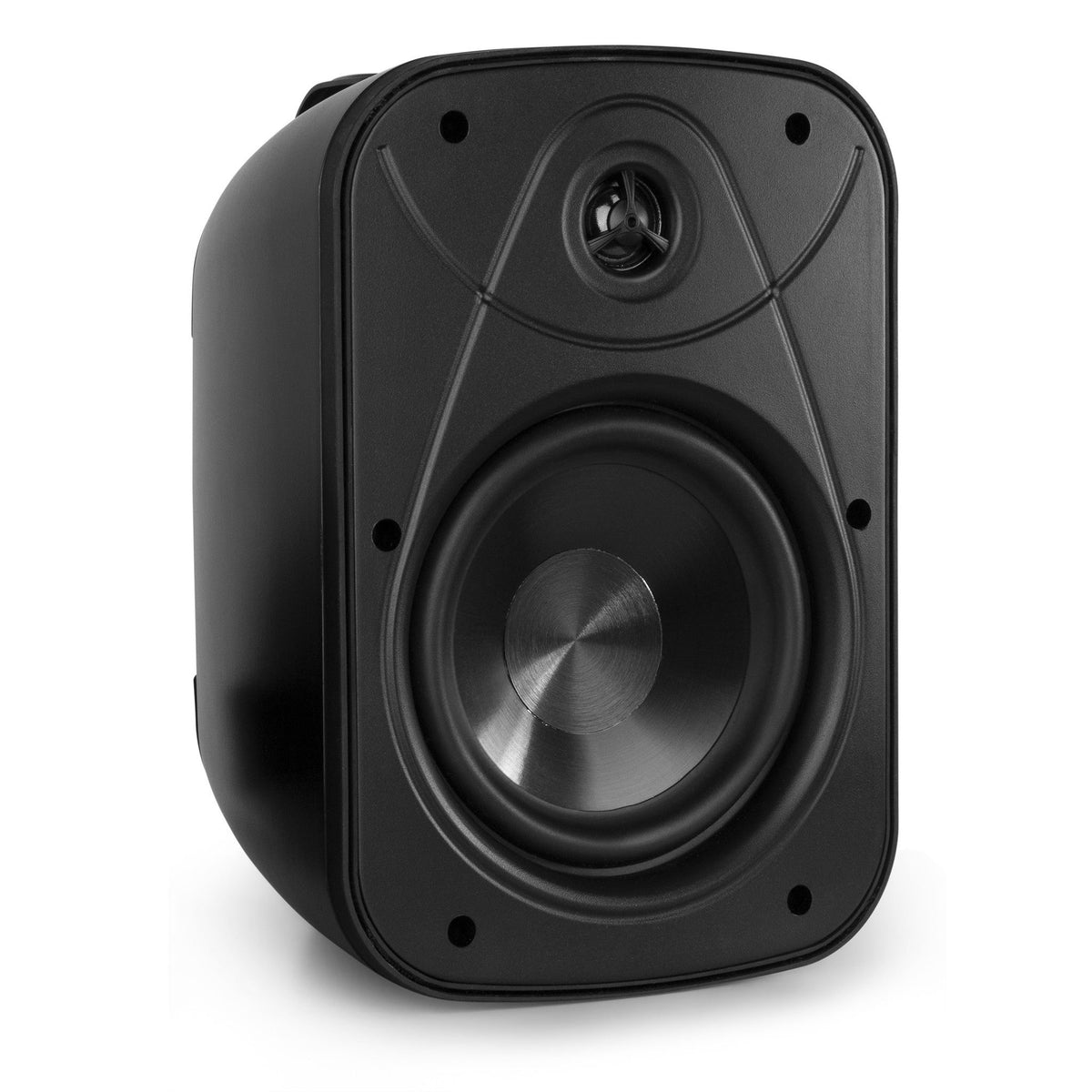

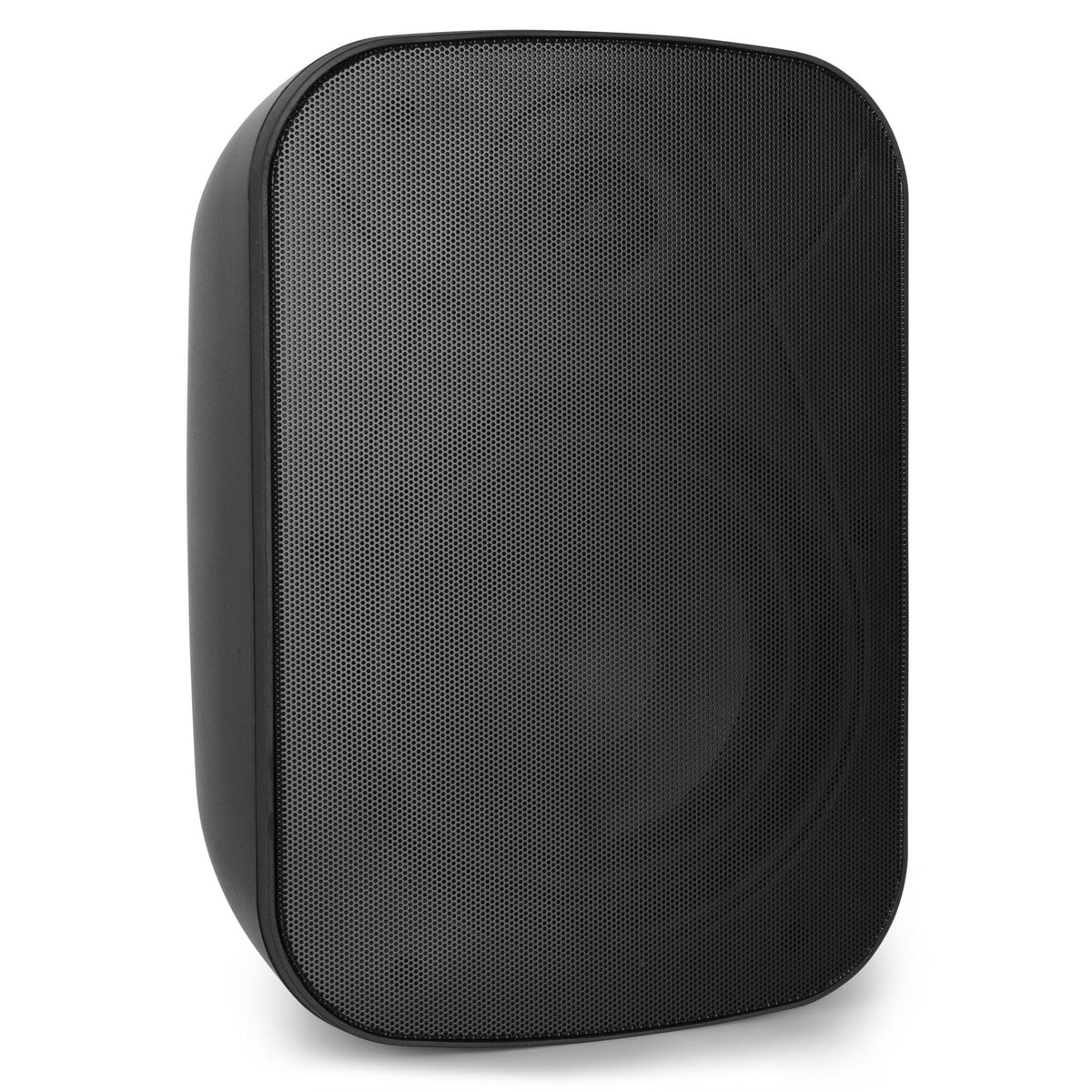

The Power Dynamics BD50TB is a wall-mounted loudspeaker designed to deliver exceptional acoustic performance both indoors and outdoors. Part of the BD series, this speaker combines a robust, weatherproof construction with high-fidelity sound quality. Its two-way design features a 1-inch silk dome tweeter for crisp, detailed highs and a 5-inch polypropylene woofer that reproduces mid and low frequencies with impressive clarity. To enhance the low frequencies, it incorporates a passive bass radiator on the rear, enriching the sound and providing surprising depth for its size. Its versatility makes it ideal for a wide range of applications, from background music systems in gardens and pools to professional audio installations on restaurant patios and in common areas.

Main Features

High Quality and Full Range Sound

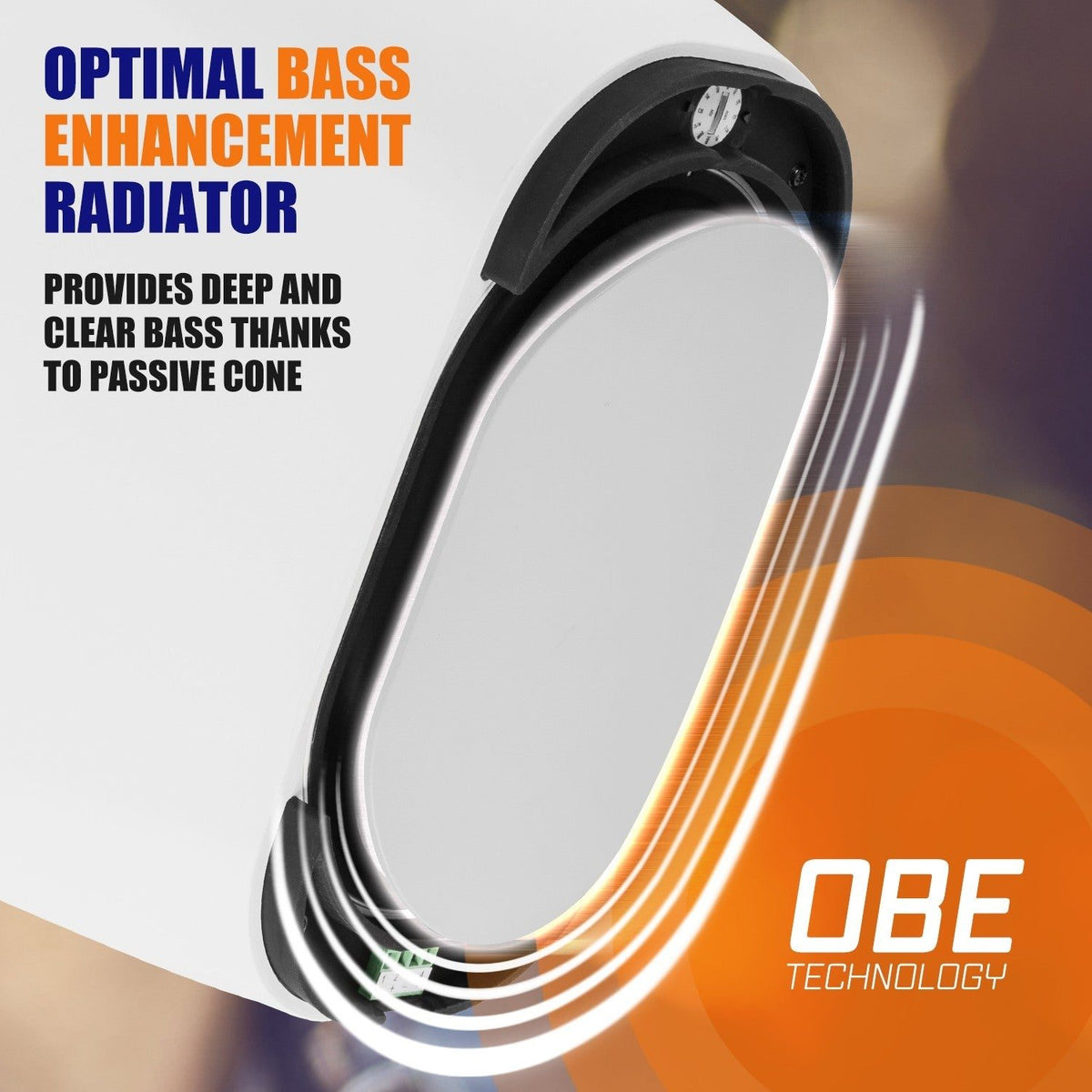

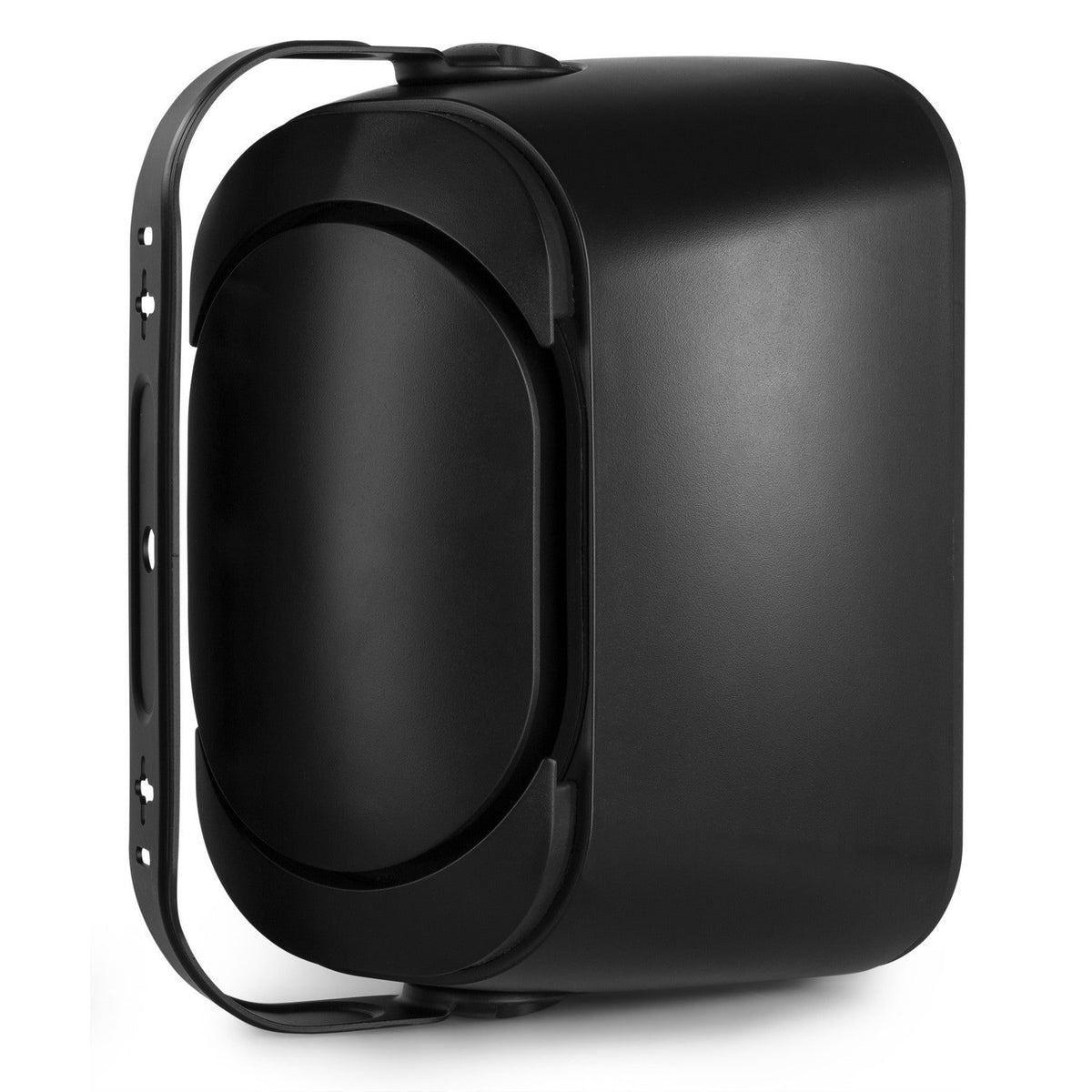

The BD50TB's two-way system ensures balanced and detailed audio reproduction. The silk dome tweeter delivers smooth, crystal-clear highs, while the polypropylene woofer handles the mids and lows with precision. The inclusion of a passive bass radiator is key to enhancing low frequencies, providing a richer, deeper sound without the need for an additional subwoofer.

Rugged All-Weather Construction

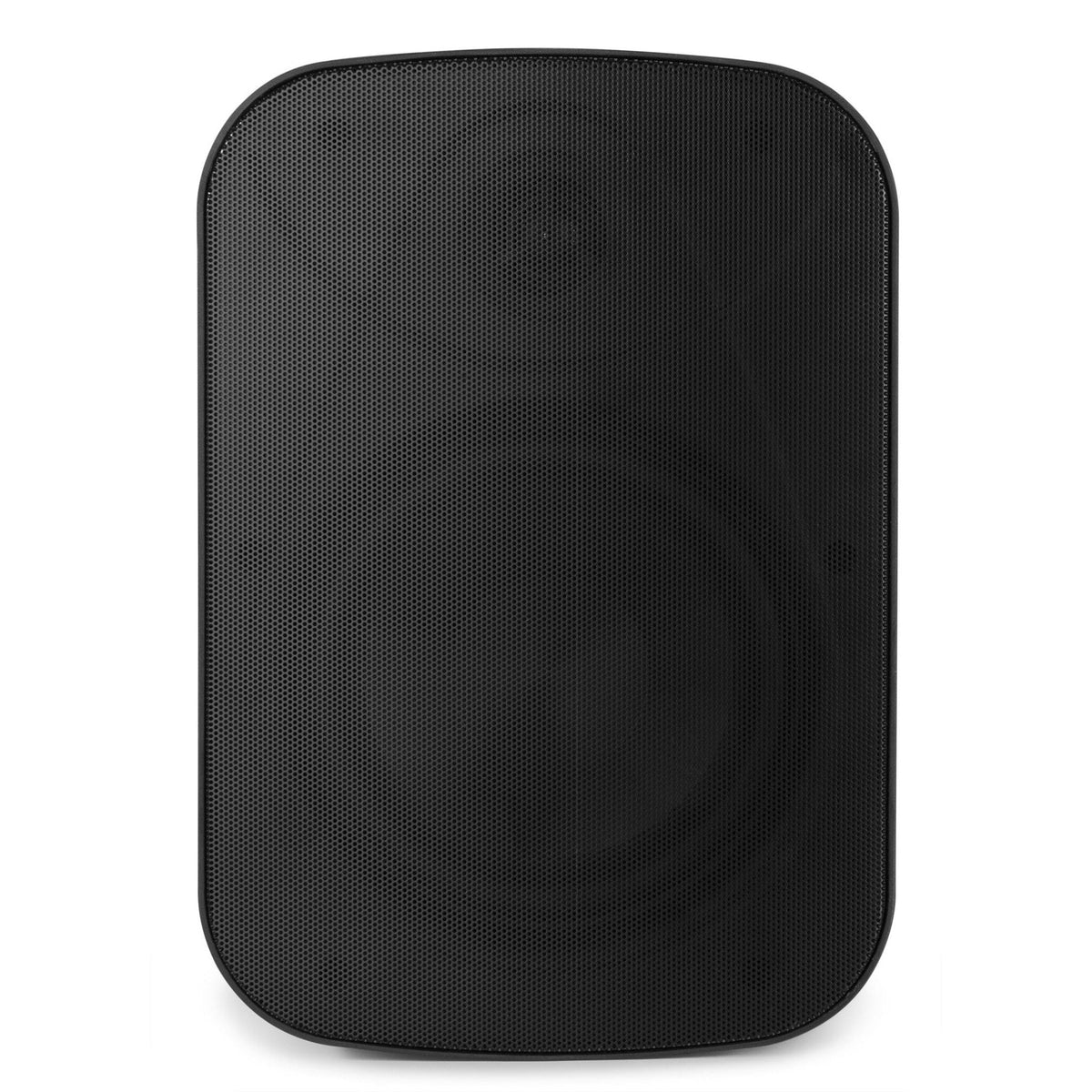

Built to last, the BD50TB features a UV-protected ABS housing and a corrosion-resistant aluminum grille. Its IPX5 weatherproof rating certifies that it is protected against low-pressure water jets from any direction, making it perfect for withstanding rain, splashes, and humidity. It can operate in a temperature range of -20°C to 60°C, ensuring reliable performance year-round.

Flexible and Professional Installation

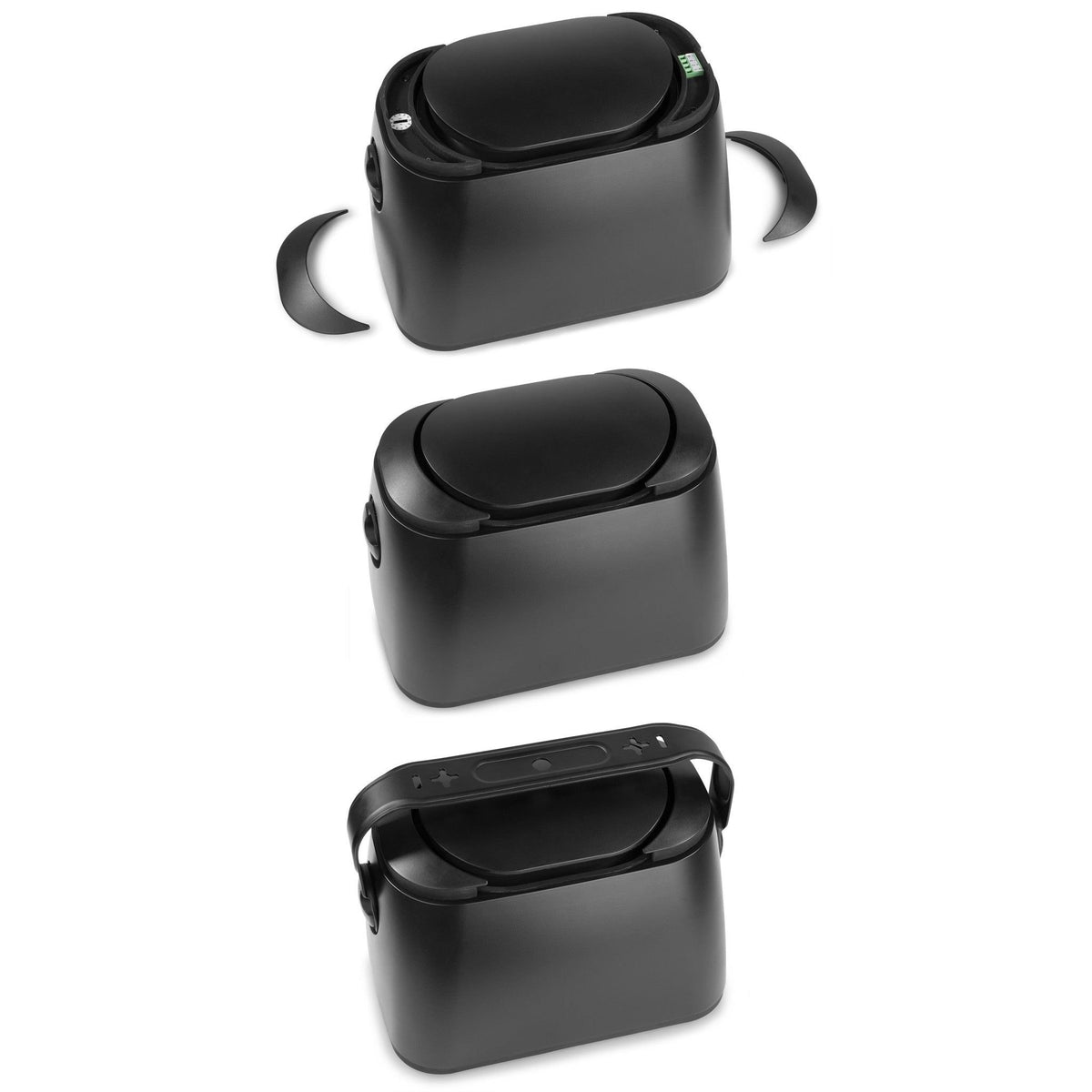

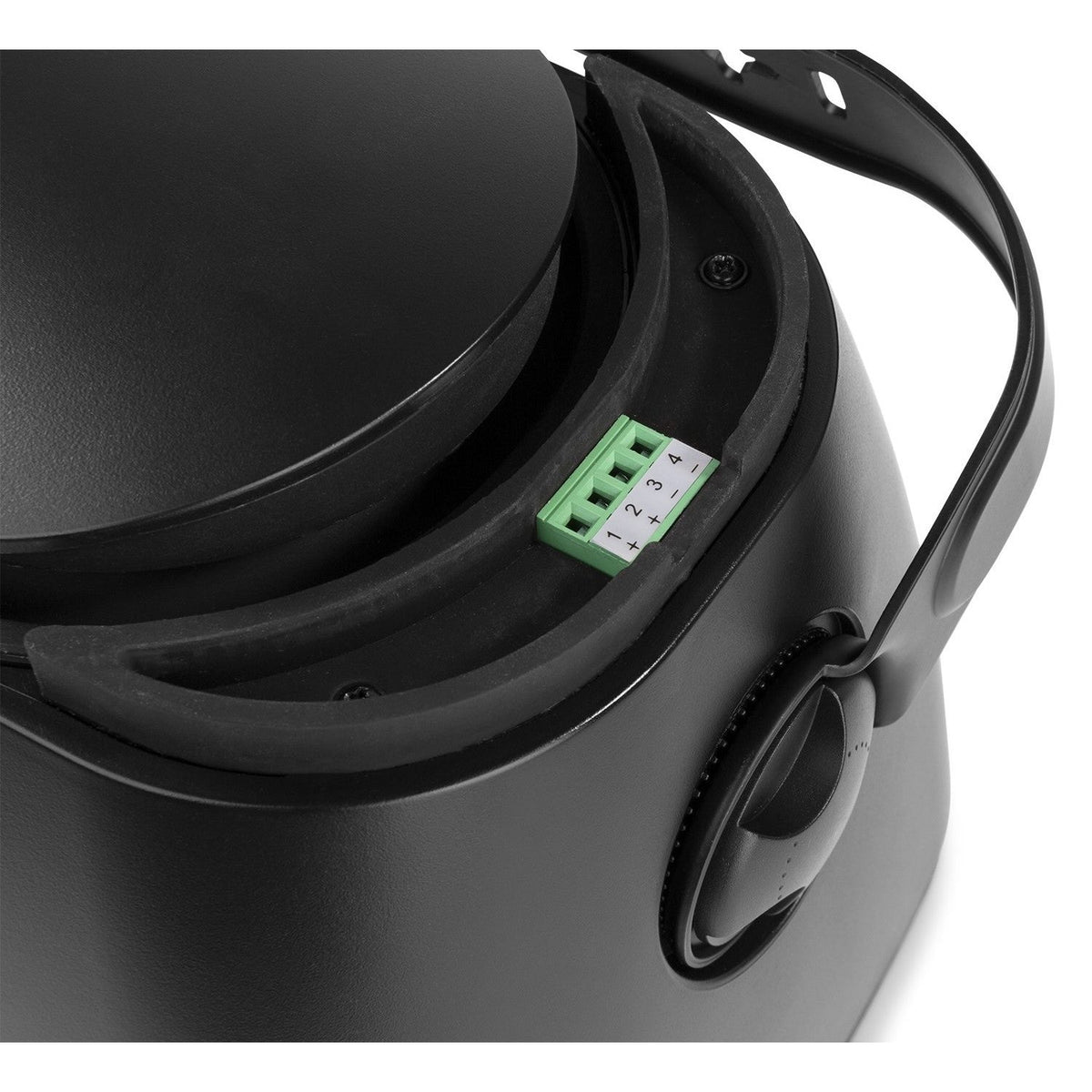

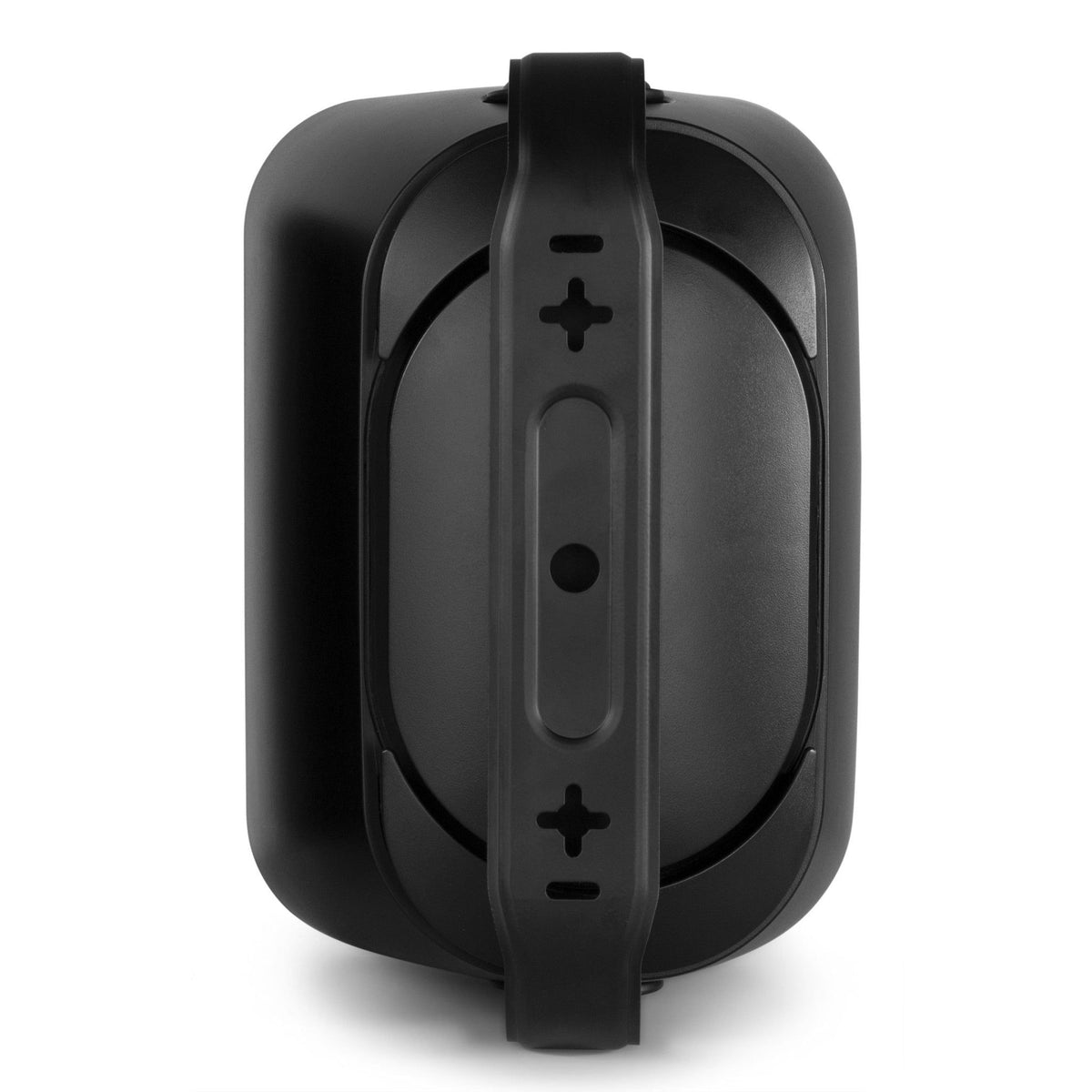

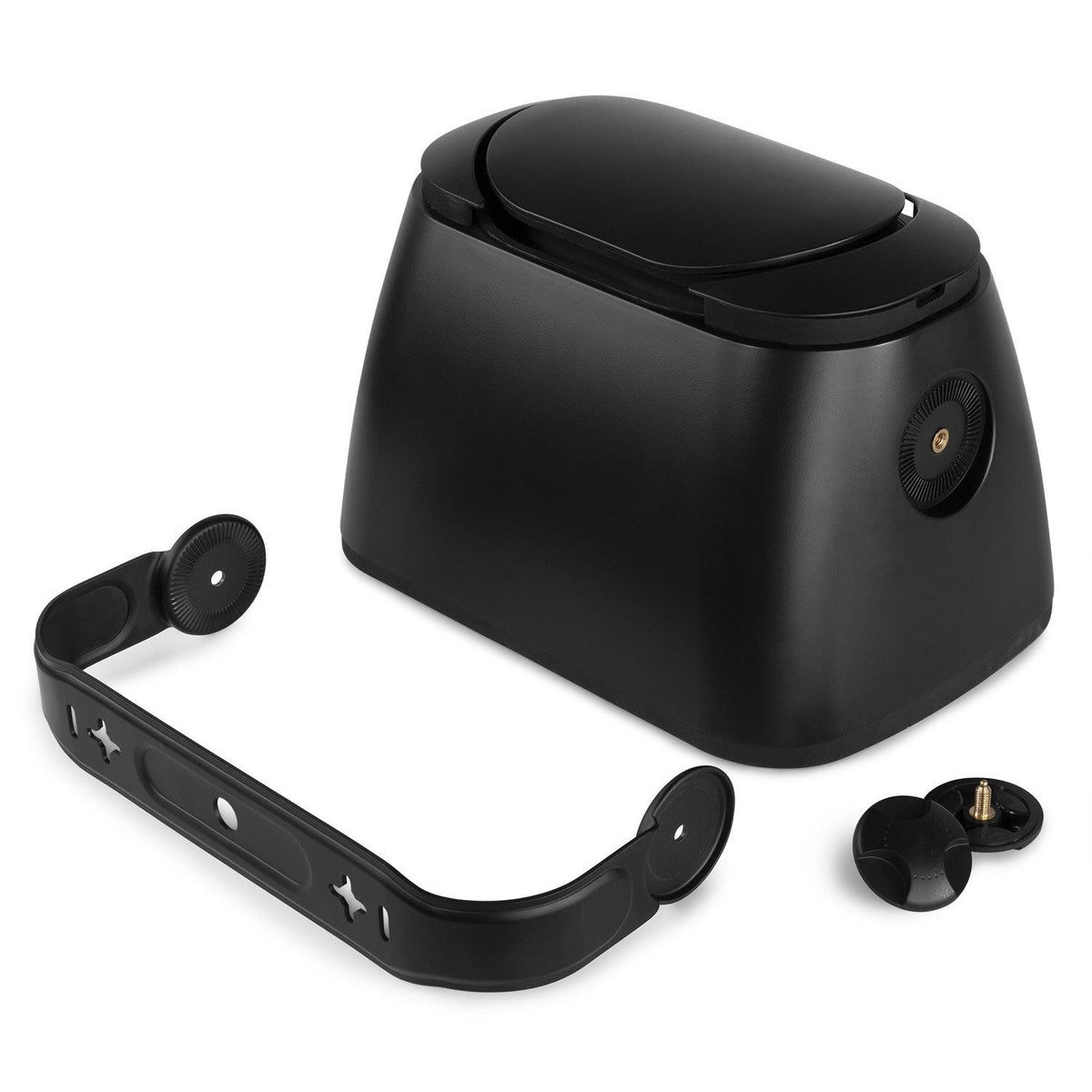

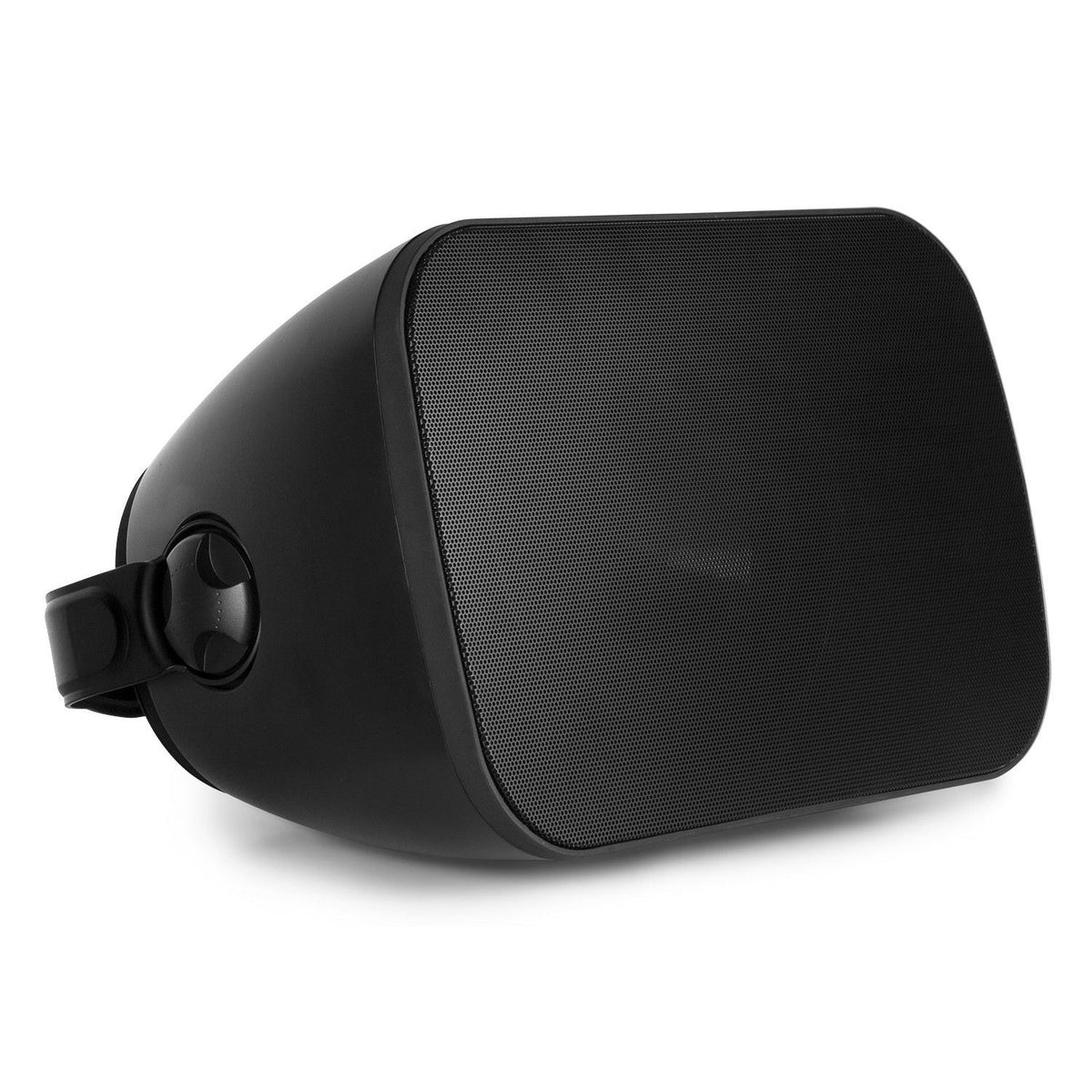

This speaker offers unparalleled installation versatility. Thanks to its rotary selector, it can operate on 8-ohm audio systems or 70V and 100V lines, with multiple power taps to suit any configuration. This feature is essential for commercial installations where multiple speakers are connected over long distances. Furthermore, the included aluminum mounting bracket allows for secure installation in both horizontal and vertical positions.

Product Benefits

Guaranteed Durability and Reliability
Thanks to its high-quality materials, such as the ABS housing and aluminum grille, the Power Dynamics BD50TB is designed to withstand the most demanding outdoor conditions, from direct sunlight to rain, ensuring a long lifespan and consistent performance.

Adaptable to Any Sound System
Its ability to switch between 8 Ohms and 70V/100V lines makes it a universal solution. It's equally suitable for a home stereo system or a complex distributed sound network in a hotel, shopping mall, or theme park.

Superior Acoustic Performance
Enjoy clear, powerful sound in any space. The advanced acoustic design with a passive bass radiator ensures that music and announcements are heard with exceptional quality and depth, enhancing the listening experience in any environment.

Use Cases

• Residential Installations: Perfect for providing sound in terraces, gardens, patios and pool areas, delivering a high-quality outdoor musical environment.
• Commercial Environments: Ideal for background music and announcements on terraces of bars and restaurants, shops, hotels, theme parks and other public spaces.
• Marine Applications: Its resistance to weathering and corrosion makes it an excellent choice for installation on ships, yachts and marinas.

Frequently Asked Questions

Is the product sold individually or in pairs?
The Power Dynamics BD50TB loudspeaker is supplied individually.

What does the IPX5 weatherproof rating mean?
The IPX5 rating means the speaker is protected against low-pressure water jets from any angle. This ensures safe operation in the rain or during hose-down, but it is not submersible.

Do I need an amplifier to use this speaker?
Yes, the BD50TB is a passive speaker and requires connection to an external amplifier. The amplifier must be compatible with the selected impedance (8 ohms) or with 70V or 100V line systems.

Can the speaker casing be painted?
Although the casing is made of ABS, a generally paintable material, it is recommended to consult with the manufacturer or perform a test on an inconspicuous area to ensure paint and finish compatibility.

What type of cable is recommended for installation?
Standard speaker wire is recommended. For outdoor installations, it is advisable to use wire specifically designed to withstand moisture and UV exposure to ensure maximum system durability.

Project description

This passive two-way wall-mount speaker is suitable for indoor and outdoor use and is IPX5 rated. It features a 5-inch polypropylene woofer, a 1-inch silk dome tweeter, and a rear passive bass radiator. It delivers 30W RMS power and offers selectable operation on 70V, 100V, or 8 Ohms lines via a switch. Power taps for 100V are 3.75W, 7.5W, 15W, and 30W. Its frequency response is 100Hz to 20,000Hz, with a sensitivity of 86dB (1W/1m). The housing is made of UV-protected ABS, and the grille is aluminum. An aluminum mounting bracket for horizontal or vertical positioning is included. Its dimensions are 160 x 170 x 260 mm, and it weighs 3.2 kg.
