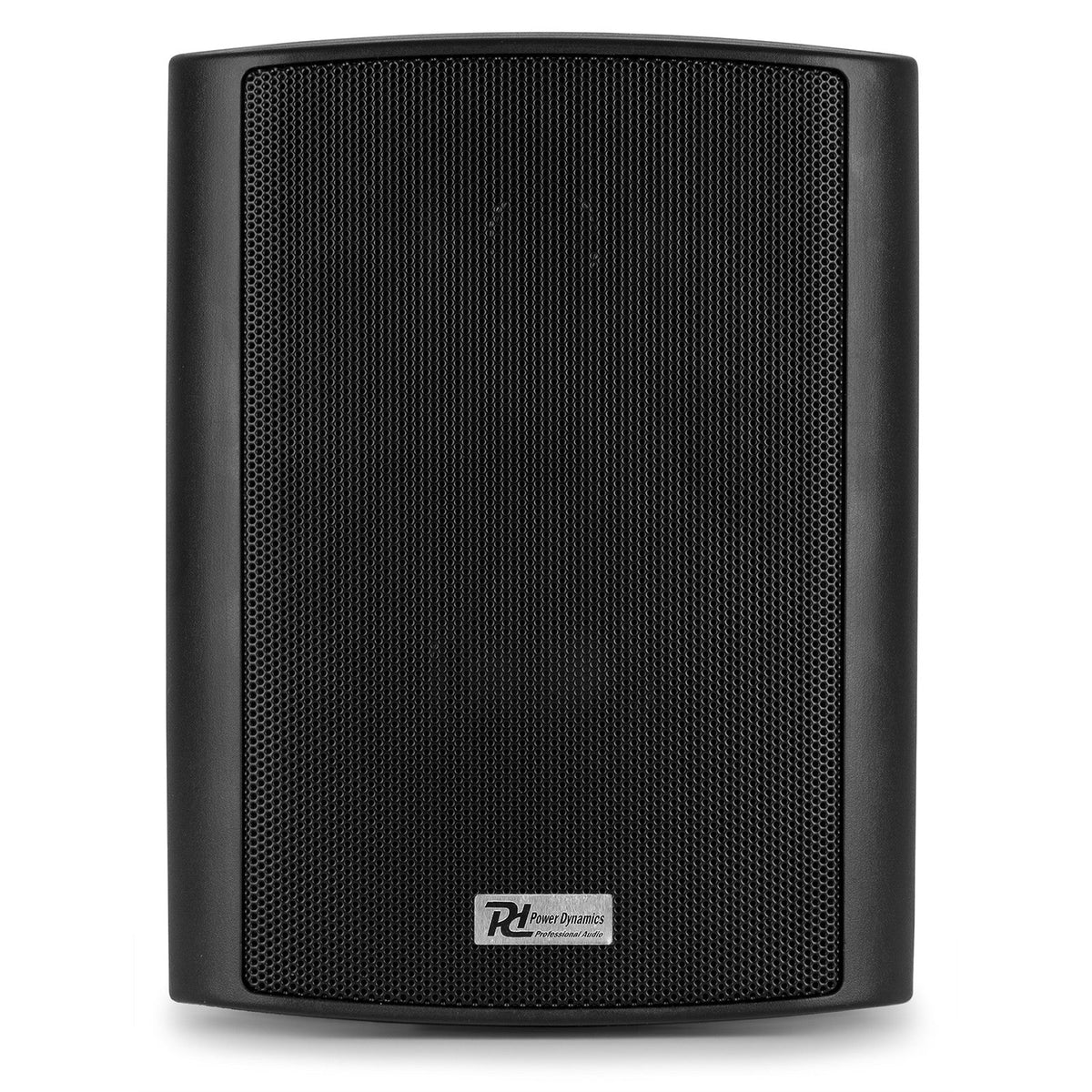

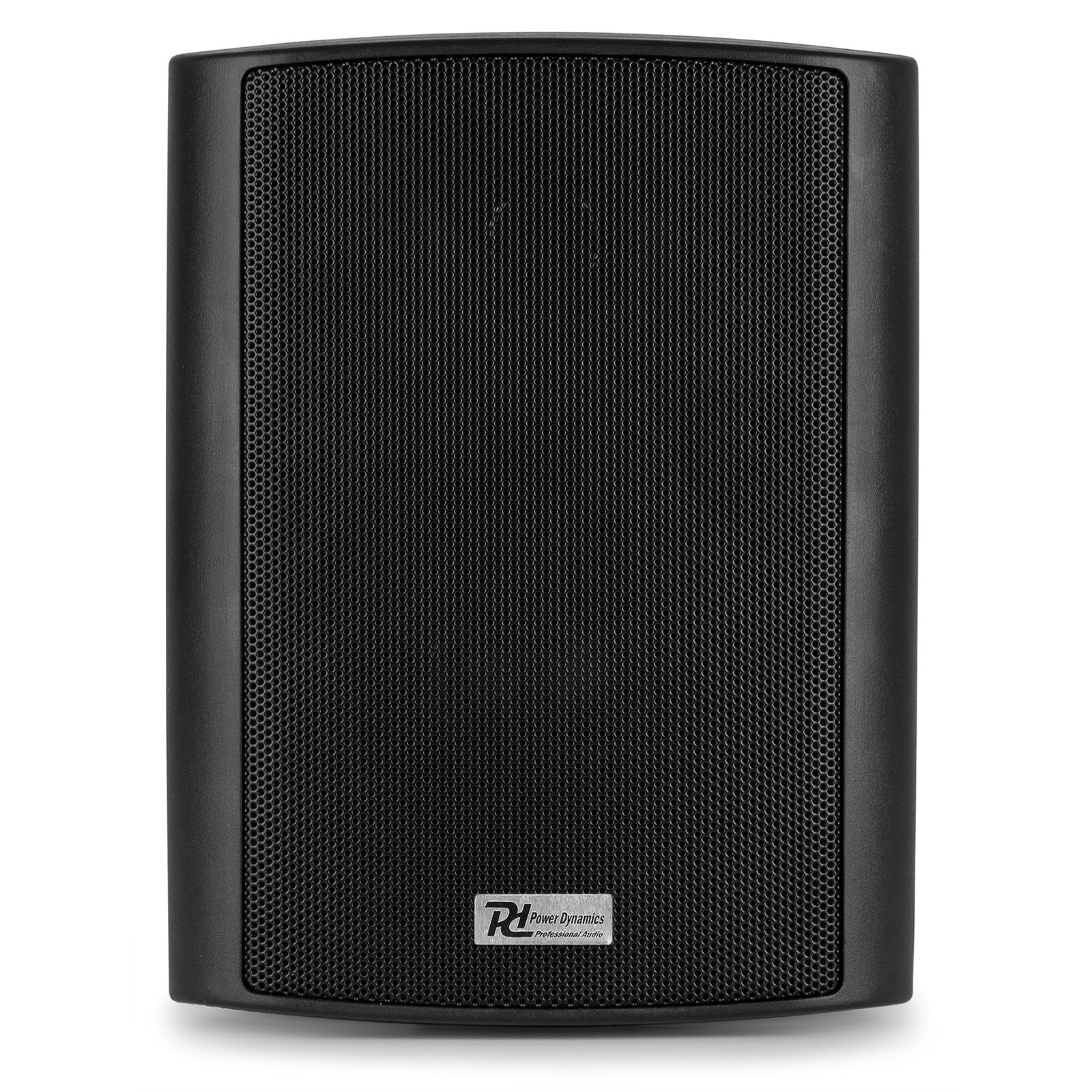

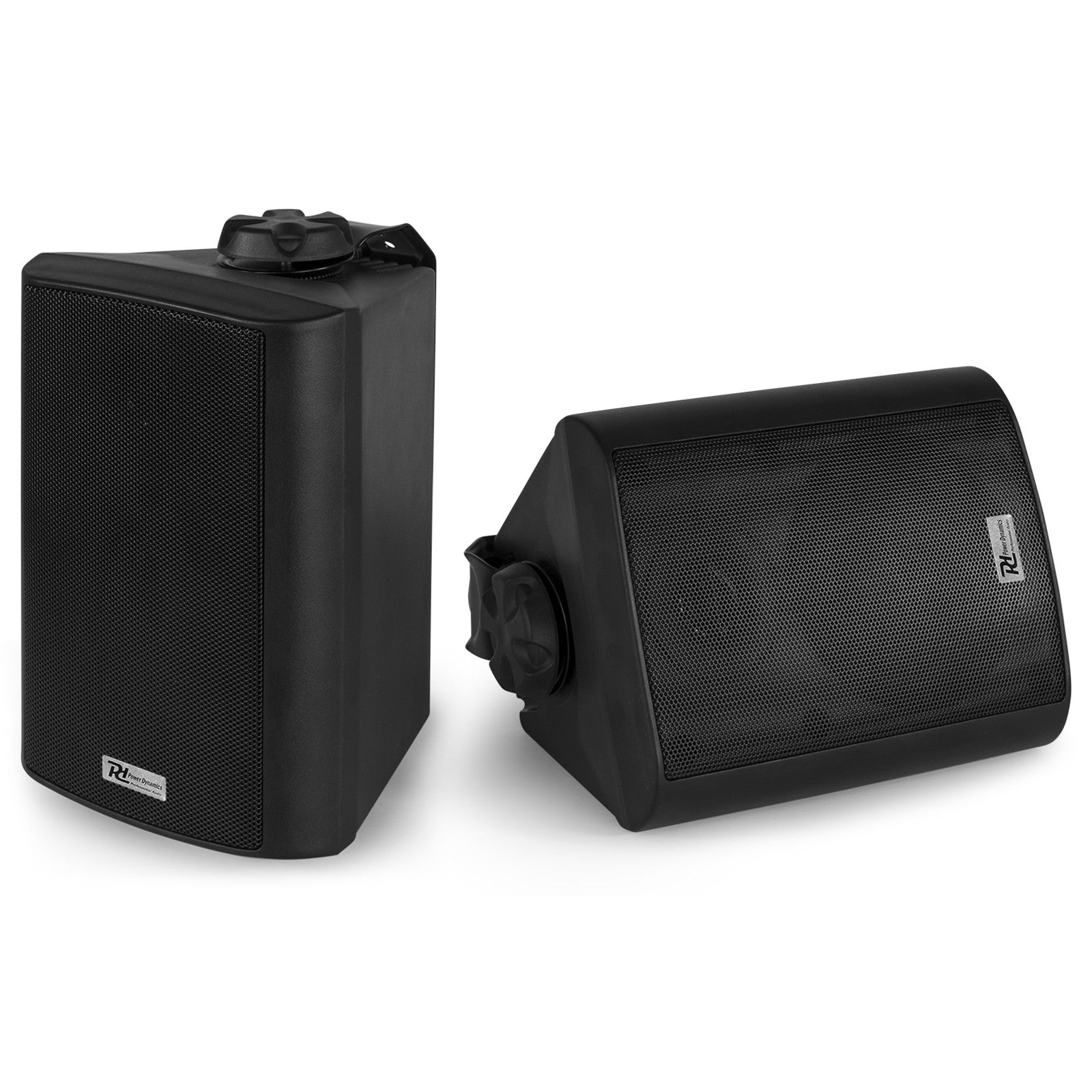

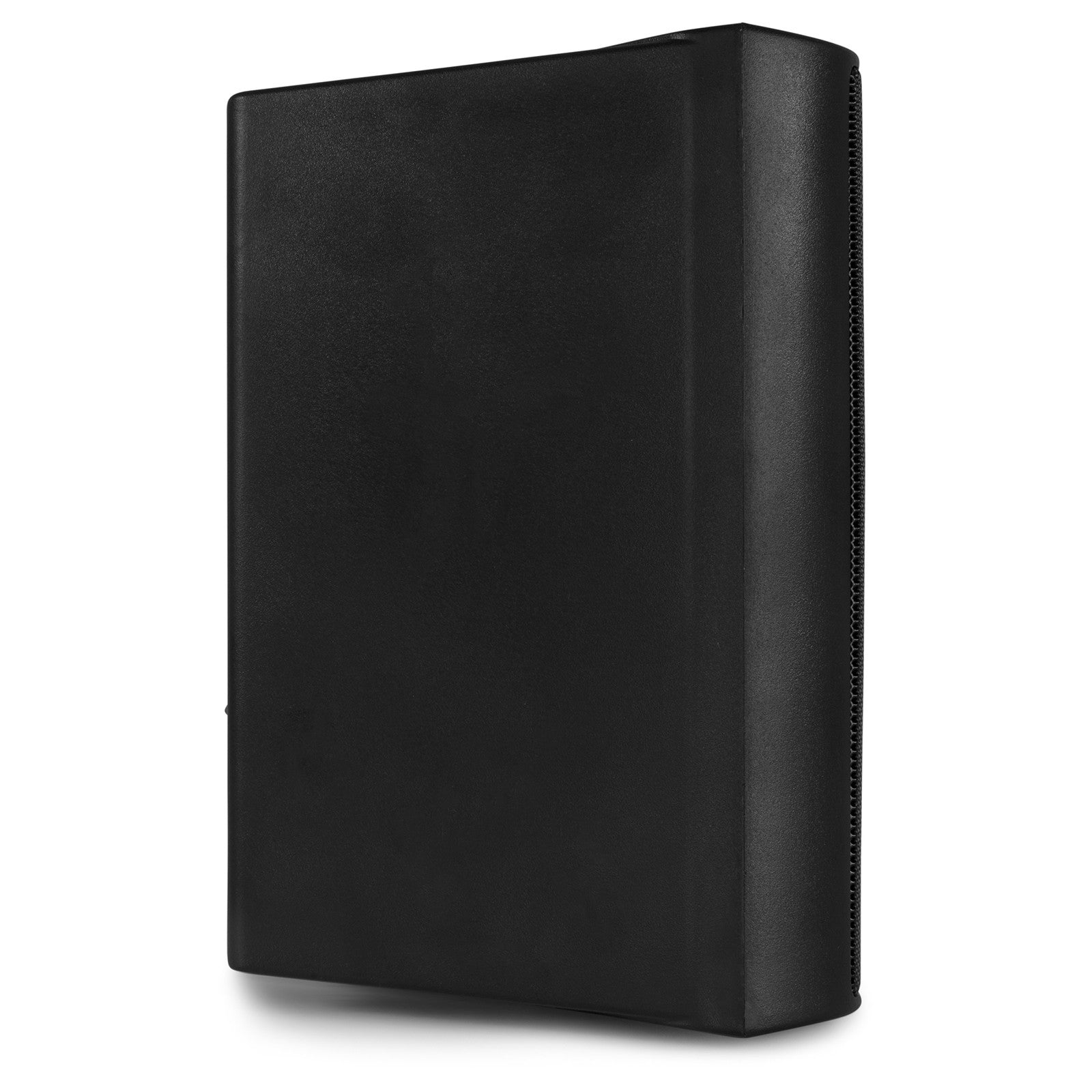

Power Dynamics BC40V - Pair of Passive Speakers for Indoor and Outdoor Use 100V/8 Ohm
The pair of Power Dynamics BC40V loudspeakers in black represents a professional, versatile, and highly durable audio solution, designed to deliver clear and powerful sound in both indoor and demanding outdoor environments. Thanks to their robust construction and 2-way design, these loudspeakers are the perfect choice for a wide range of applications, from commercial public address systems to outdoor sound reinforcement for residential spaces.

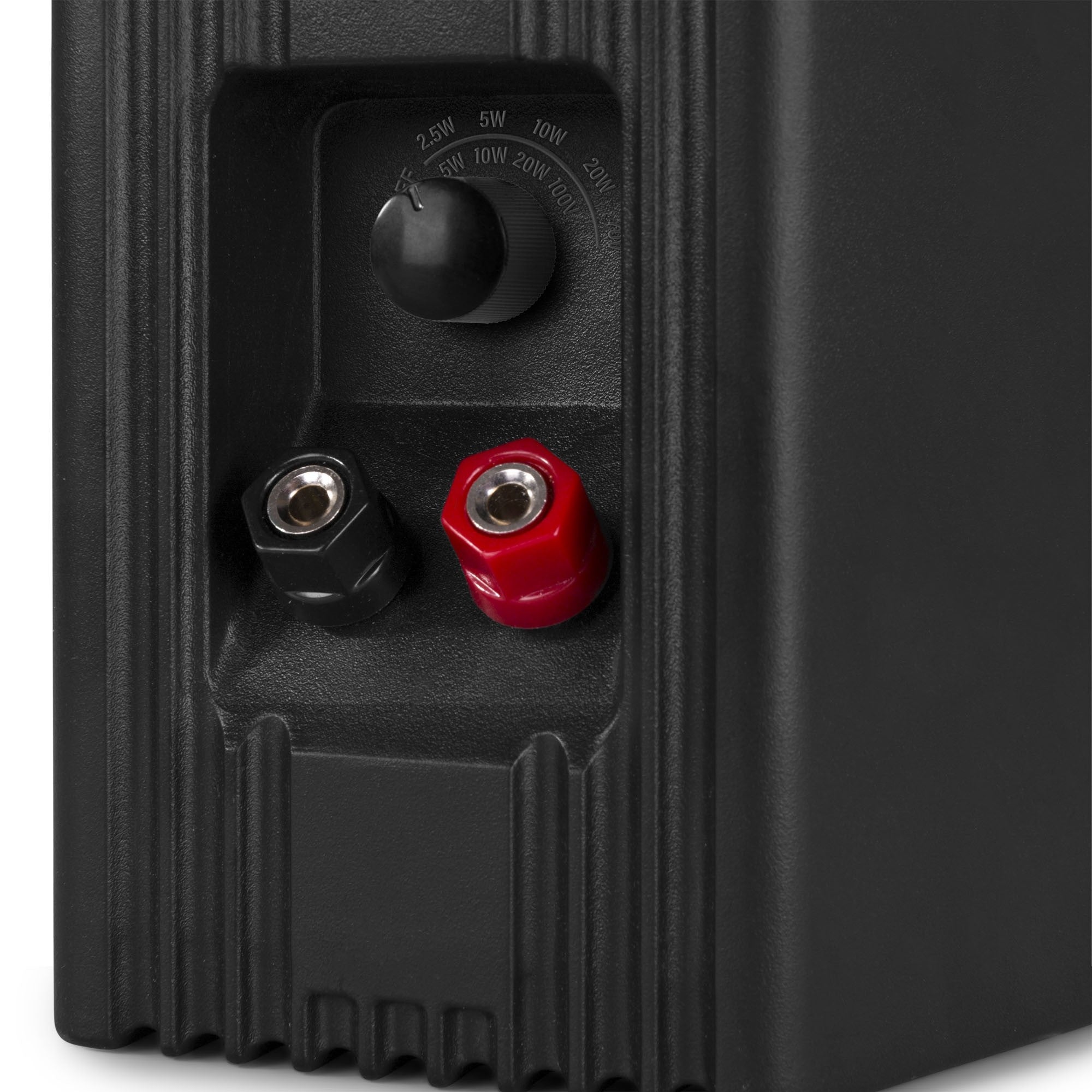

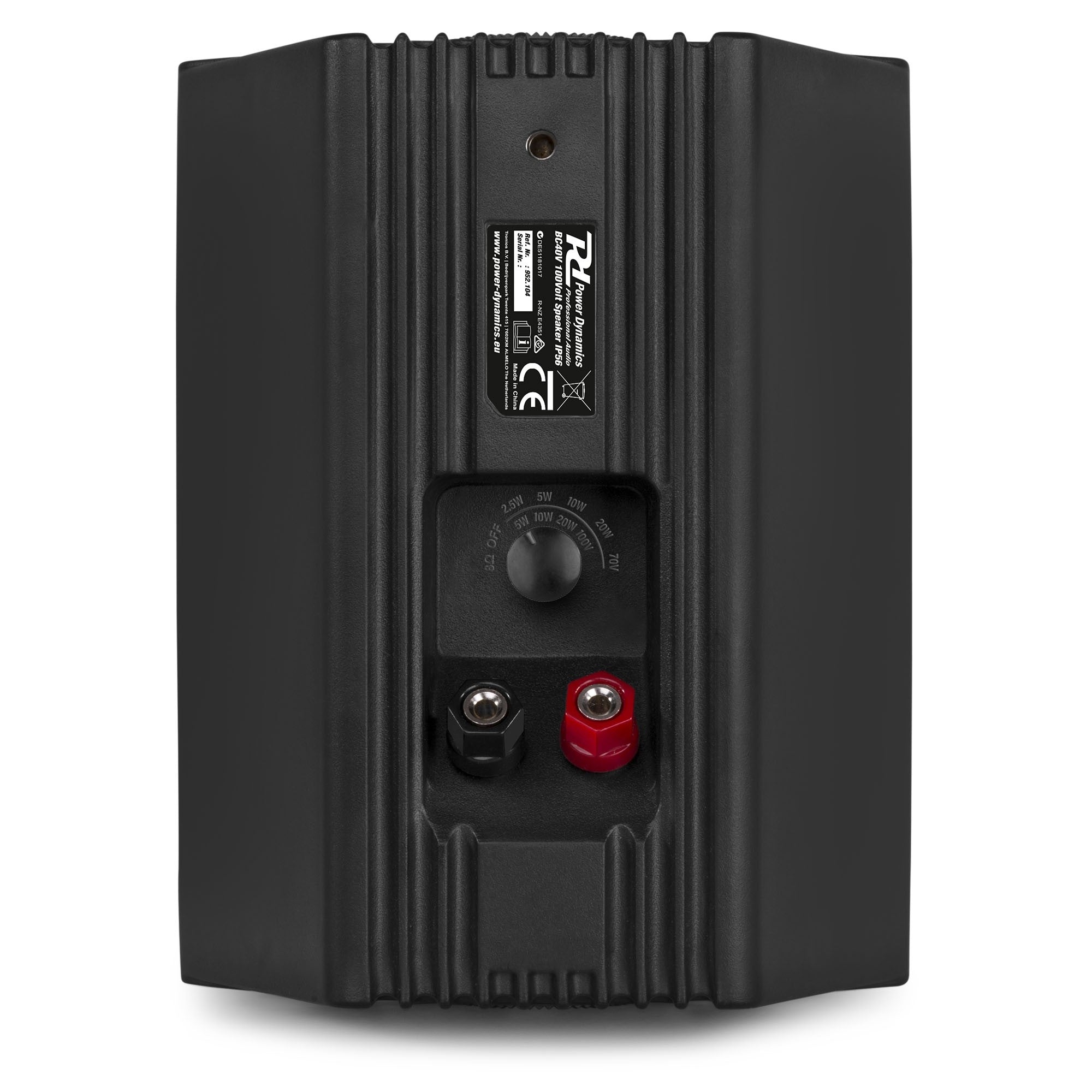

One of the BC series' greatest strengths is its dual impedance system. A simple rotary selector on the back allows you to choose between a low-impedance 8-ohm setting, ideal for connecting to conventional stereo amplifiers, or a 100V line mode for large-scale distributed audio systems. In 100V mode, the speakers offer different power outputs (5W, 10W, 20W), enabling the installer to perfectly balance the volume in different areas of the same system.
Built to withstand the elements, the BC40V speakers boast an IPX5 protection rating , guaranteeing their resistance to low-pressure water jets from any direction. This makes them perfectly suited for use on patios, around pools, in gardens, and even on boats or coastal installations, where humidity and salinity are factors to consider. To maximize their lifespan, the grille and mounting bracket are constructed from marine-grade aluminum with a durable powder-coat finish, preventing corrosion and deterioration from environmental exposure.
Main features
-
Dual audio system: Selectable operation between 100V line and low 8 ohm impedance for maximum compatibility and installation flexibility.
-
Weather resistance: With an IPX5 rating, they are designed to withstand rain and splashes, ensuring reliable outdoor performance.
-
Superior sound quality: 2-way architecture with an integrated crossover that separates frequencies, sending bass and mids to a 4-inch woofer and treble to a 3/4-inch dome tweeter for crisp, balanced audio.
-
High durability construction: The grate and supports are made of marine-grade aluminum, giving them excellent corrosion resistance in humid or saline environments.
-
Power and performance: They support a maximum power of 100W and 30W RMS, offering a powerful and clear sound, suitable for background music and announcements.
-

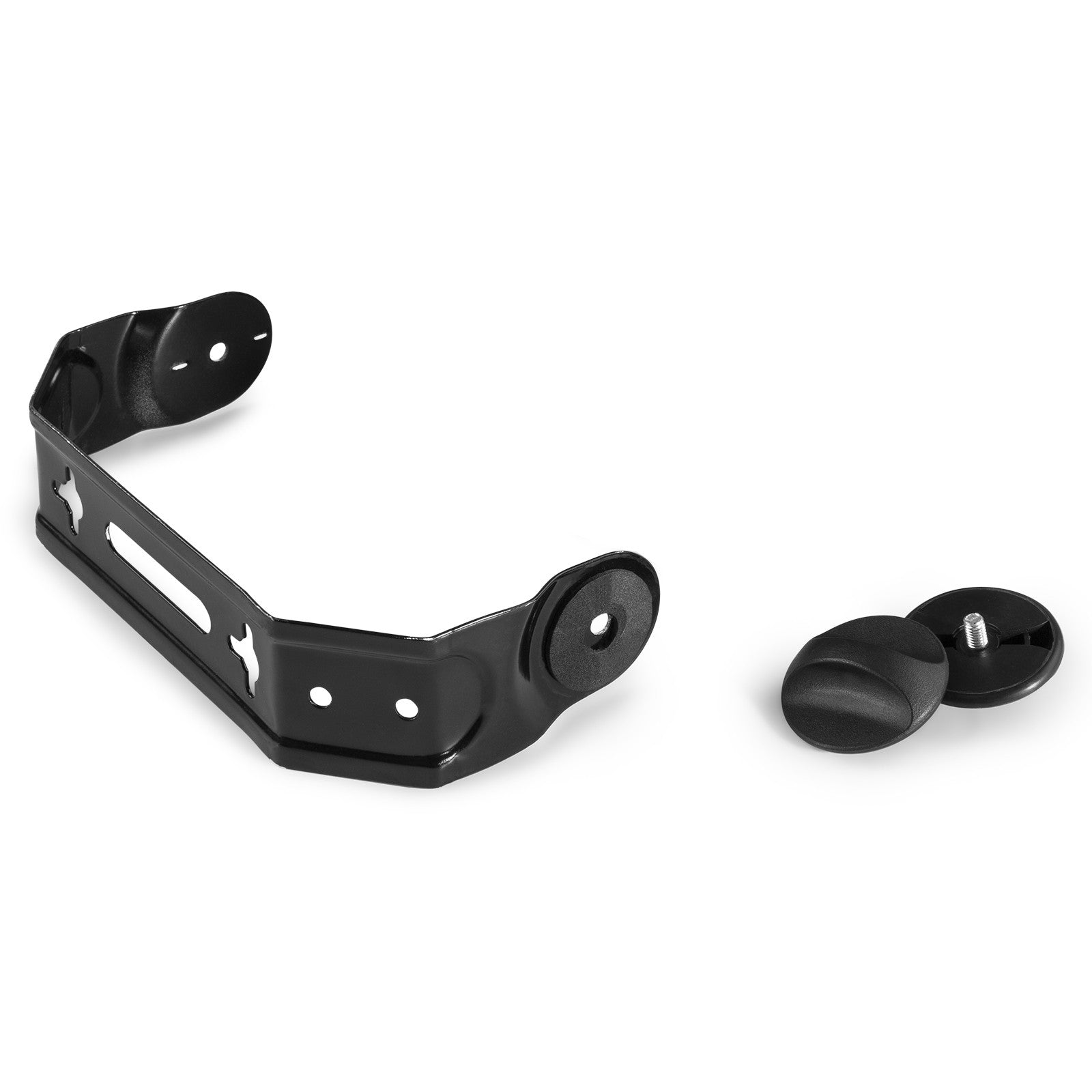

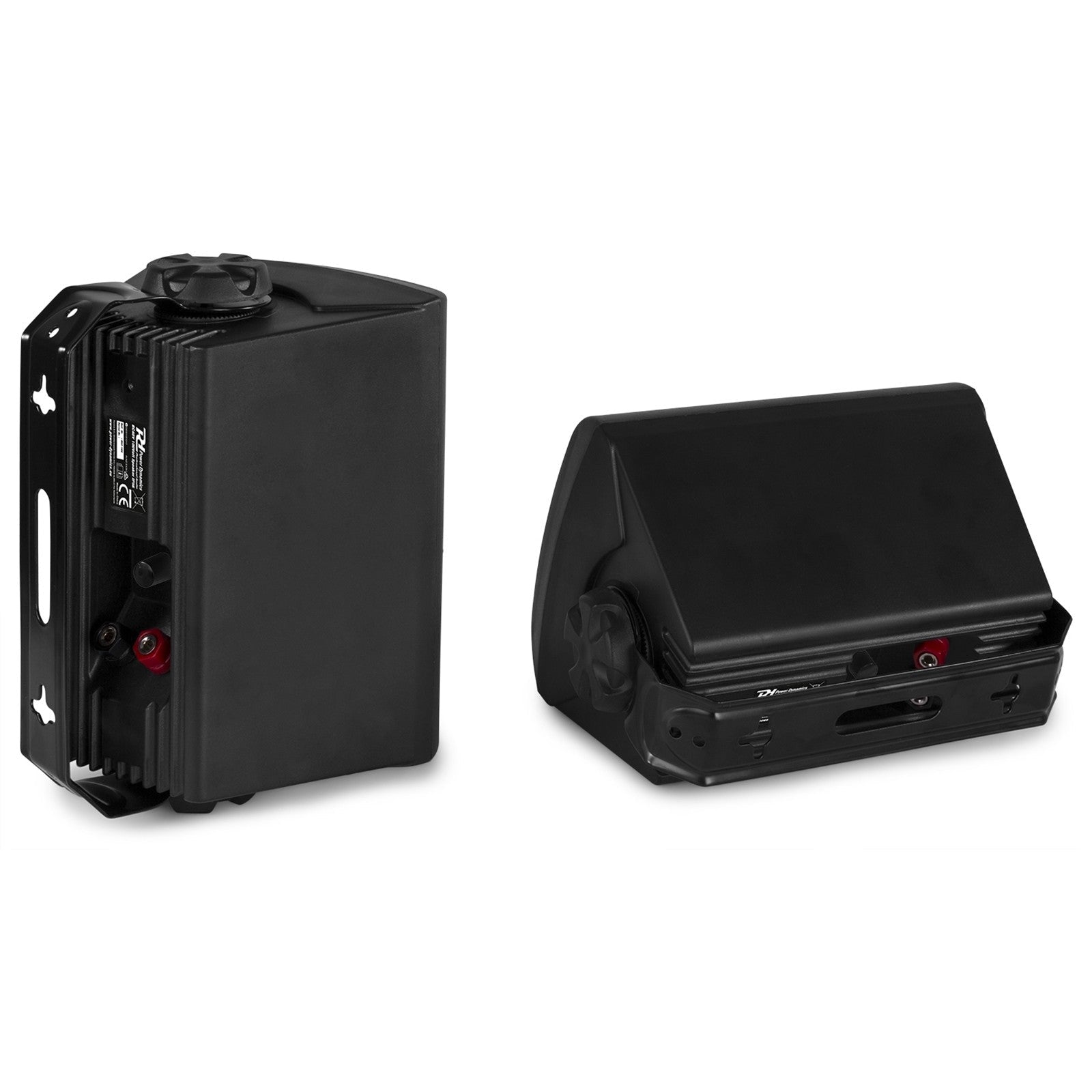

Easy installation: Supplied in pairs and include adjustable mounting brackets for easy placement on walls or ceilings.
Benefits for the installer and the user
The BC40V series has been designed with both ease of installation and the end-user experience in mind. For the installer, the impedance selector and power jacks simplify integration into any audio system, whether new or existing. The included brackets allow for quick and secure mounting, optimally directing the sound.
For the user, these speakers guarantee high-fidelity, worry-free audio reproduction in any weather condition. Their sleek, understated black design blends seamlessly into any décor, providing a pleasant sound environment in spaces where conventional speakers wouldn't survive.
Use cases
The versatility of the Power Dynamics BC40V loudspeakers makes them ideal for a wide variety of applications:
-
Commercial installations: Perfect for background music on restaurant terraces, bars, hotels, shopping centers and theme parks.
-
Residential spaces: Ideal for soundproofing gardens, patios, barbecue areas and around swimming pools.
-
Sports and recreational facilities: Suitable for sports clubs, outdoor gyms and common areas.
-
Marine applications: Their corrosion-resistant construction makes them an excellent choice for ships, yachts, and port facilities.
Frequently Asked Questions
What does the IPX5 rating mean?
The IPX5 rating indicates that the speaker is protected against low-pressure water jets from any angle. This means it can withstand rain or hose down without damage.
Do I need an amplifier for these speakers?
Yes, the BC40V speakers are passive and require an external amplifier. Depending on the setup, you'll need either a standard amplifier (for 8 ohms) or a 100V line amplifier.
What is the difference between 8 ohm mode and 100V mode?
The 8-ohm mode is the standard for home and hi-fi sound systems, ideal for connecting one or two pairs of speakers to an amplifier. The 100V mode is used in distributed (commercial) audio systems, where multiple speakers are connected on a single line over long distances with minimal signal loss.
Does the package include the connection cables?
The package includes the pair of speakers and their corresponding mounting brackets. Speaker wiring must be purchased separately; select the appropriate gauge based on the installation length and power requirements.
Project description
Pair of passive 2-way speakers, designed for indoor and outdoor use. Each unit features a 4-inch woofer and a 3/4-inch dome tweeter, with an integrated crossover. They have a selector switch for low impedance (8 Ohms) or 100V line operation, with selectable power inputs of 5W, 10W, and 20W. The output power is 30W RMS and 100W peak per speaker. Frequency response ranges from 100Hz to 20,000Hz, with a sensitivity of 88dB (1W/1m). They feature an IPX5-rated enclosure, grille, and mounting bracket made of marine-grade aluminum. Dimensions per unit: 198 x 145 x 127 mm. Weight per unit: 1.7 kg.
