beamZ BC35-75 - Slimline Compact Aluminum Clamp (32–35 mm, M10, 75 kg) for Tubes and Truss

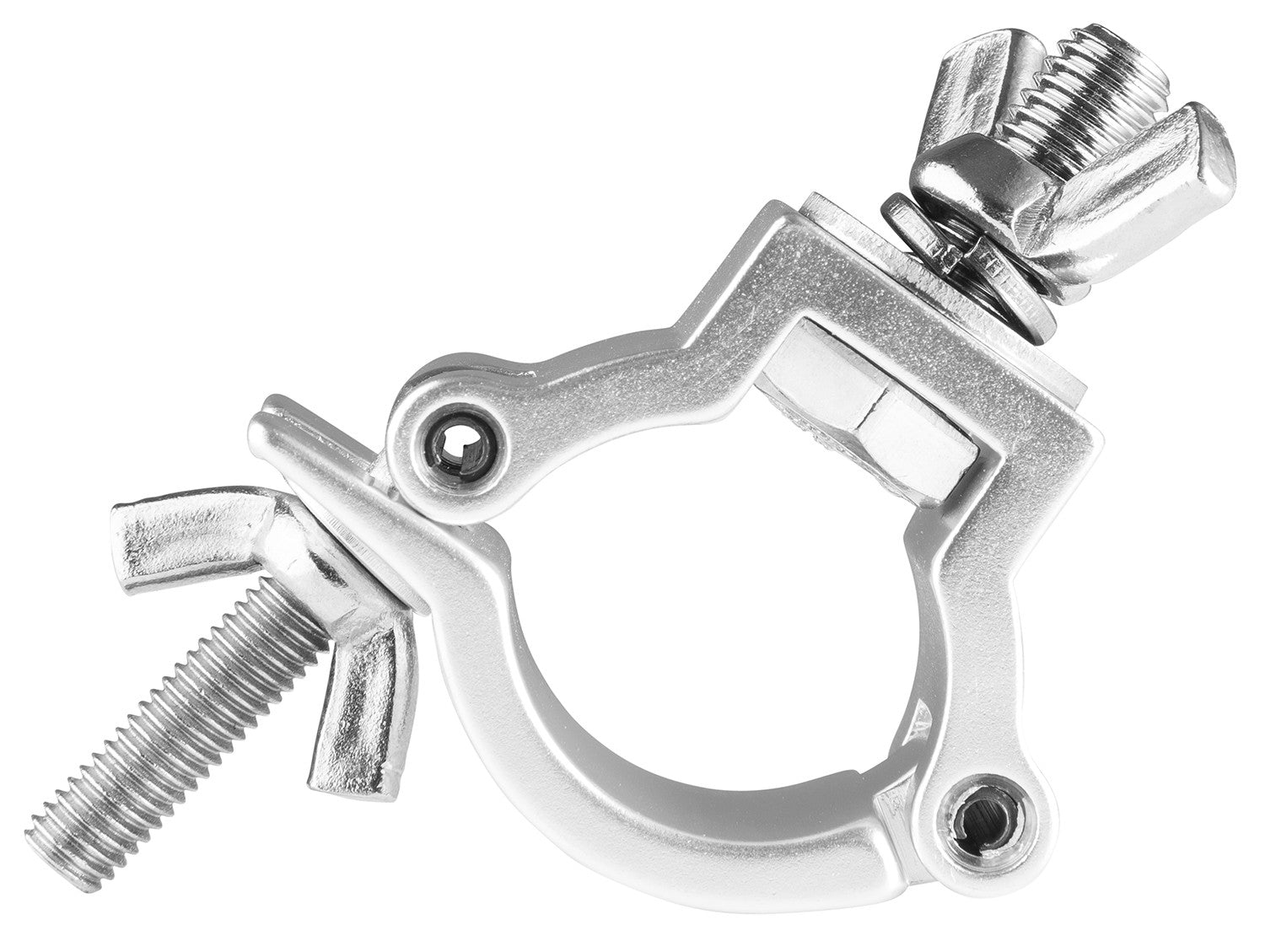

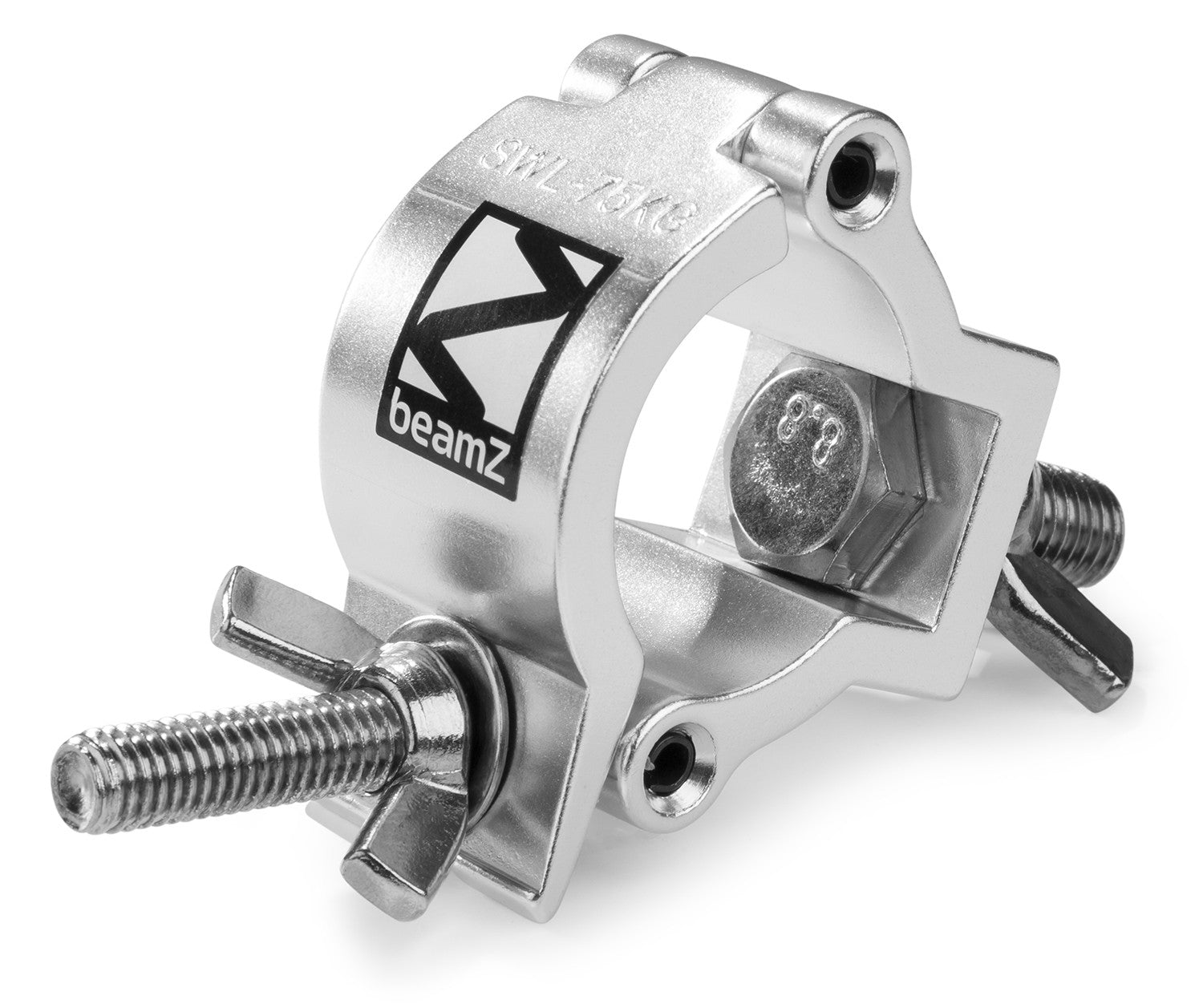

The beamZ BC35-75 is a universal half-coupler clamp made of high-strength aluminum , designed for securely mounting lighting equipment, LED bars, and accessories on tubes and truss structures with a diameter of 32 to 35 mm . Its slimline design facilitates mounting in confined spaces, while the wing nut and screw fastening system speeds up installation without complex tools. It features an M10 threaded bolt, supports a maximum payload of 75 kg , and offers lightweight handling thanks to its weight of only 0.135 kg . A professional, reliable, and discreet solution for rigging in events, rentals, and theaters.
Main features
-
Tube/truss compatibility: Ø 32–35 mm (slimline half coupler claw).
-
Material: High-strength aluminum.
-
Quick fastening: wing nut and nut with M10 threaded bolt .
-
Maximum payload (WLL): 75 kg per piece.
-
Compact profile: claw width 30 mm (slimline) for mounting in tight spaces.
-
Weight: 0.135 kg ; lightweight construction for transporting several units without overloading.
Product benefits
-
Quick and safe installation: wing nut tightening and slimline geometry that reduces obstructions on the rig.
-
Professional versatility: suitable for PAR spotlights, compact heads, LED bars and accessories within the WLL.
-
Aesthetic integration: black finish that goes unnoticed on visible structures.
-
Durability: High-strength aluminum body prepared for intensive use in touring and rental.
Use cases
-

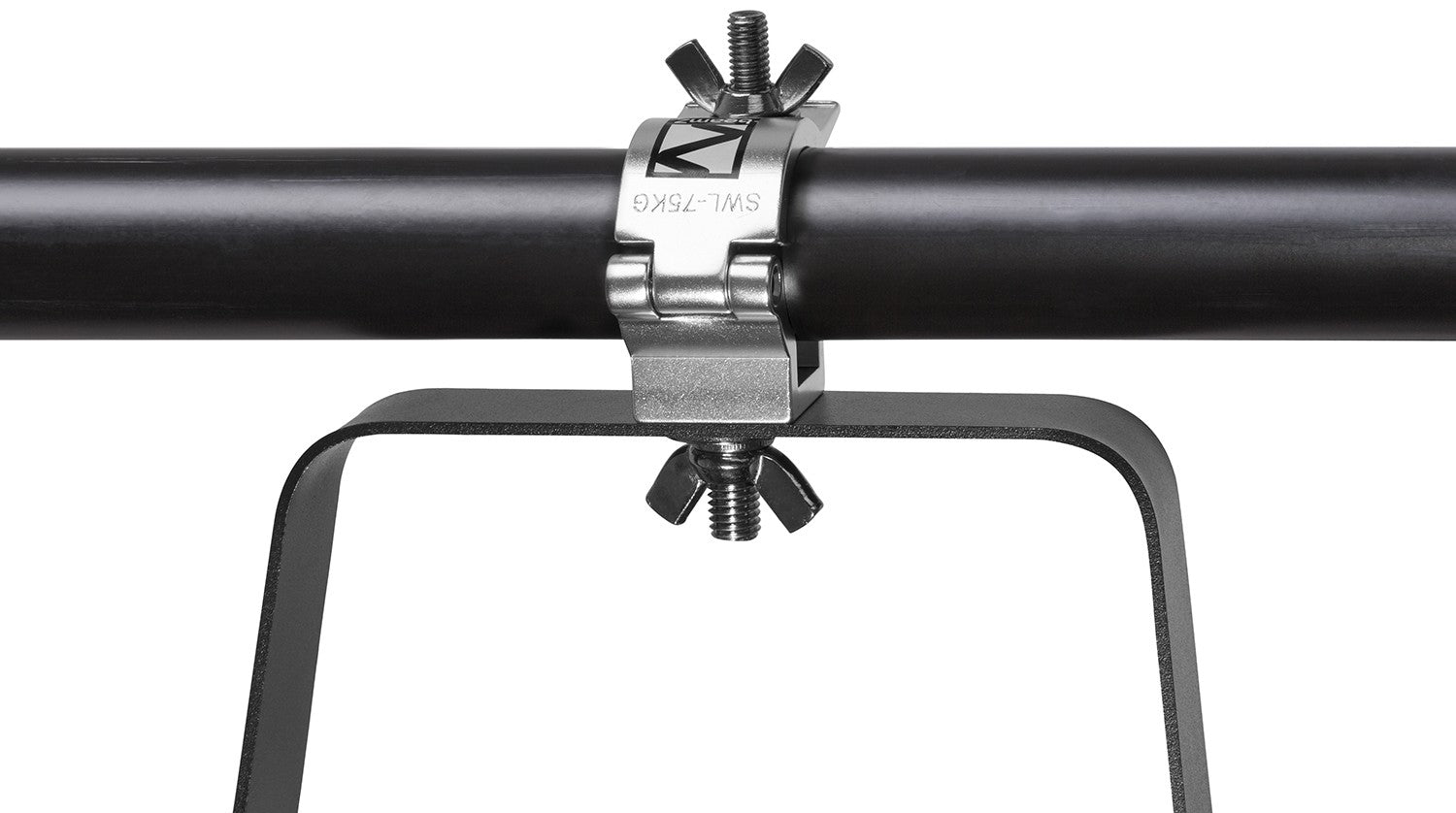

Mobile DJ and rental: quick fixing of luminaires on T-bars and light truss (32–35 mm).
-
Theaters and corporate events: discreet anchoring for spotlights and accessories on catwalks and structures.
-
Temporary installations: frequent assembly and disassembly with less volume and weight per piece.
Frequently Asked Questions
-
Is it suitable for 50 mm tubes? No; this model is designed for 32–35 mm tubes . For 48–51/50 mm tubes, there are other models in the beamZ range.
-
What type of screws does it accept? It uses an M10 threaded bolt with wing nut tightening.
-
What is the maximum load? 75 kg per claw (WLL). Do not exceed this limit and distribute the load according to rigging standards.
-
Does it include a safety cable? No. A safety cable appropriate for the weight of the light fixture must be used.
Safety recommendations
- Do not exceed the payload of 75 kg and always respect the specified tube diameter (32–35 mm).
- Use a safety point and certified cable on each light fixture.
- Periodically inspect the claw: threads, wing nut, nut and any marks or deformations.
- Avoid sharp edges and overtightening that could damage the truss or tube.
Project description

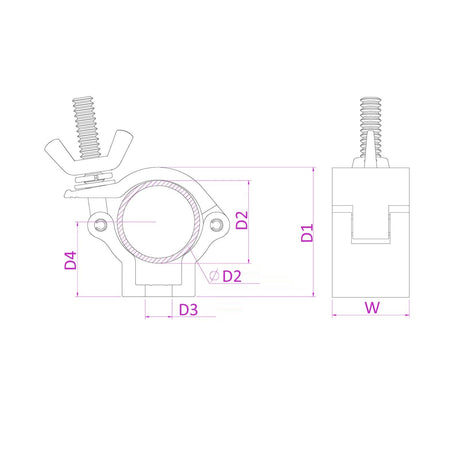

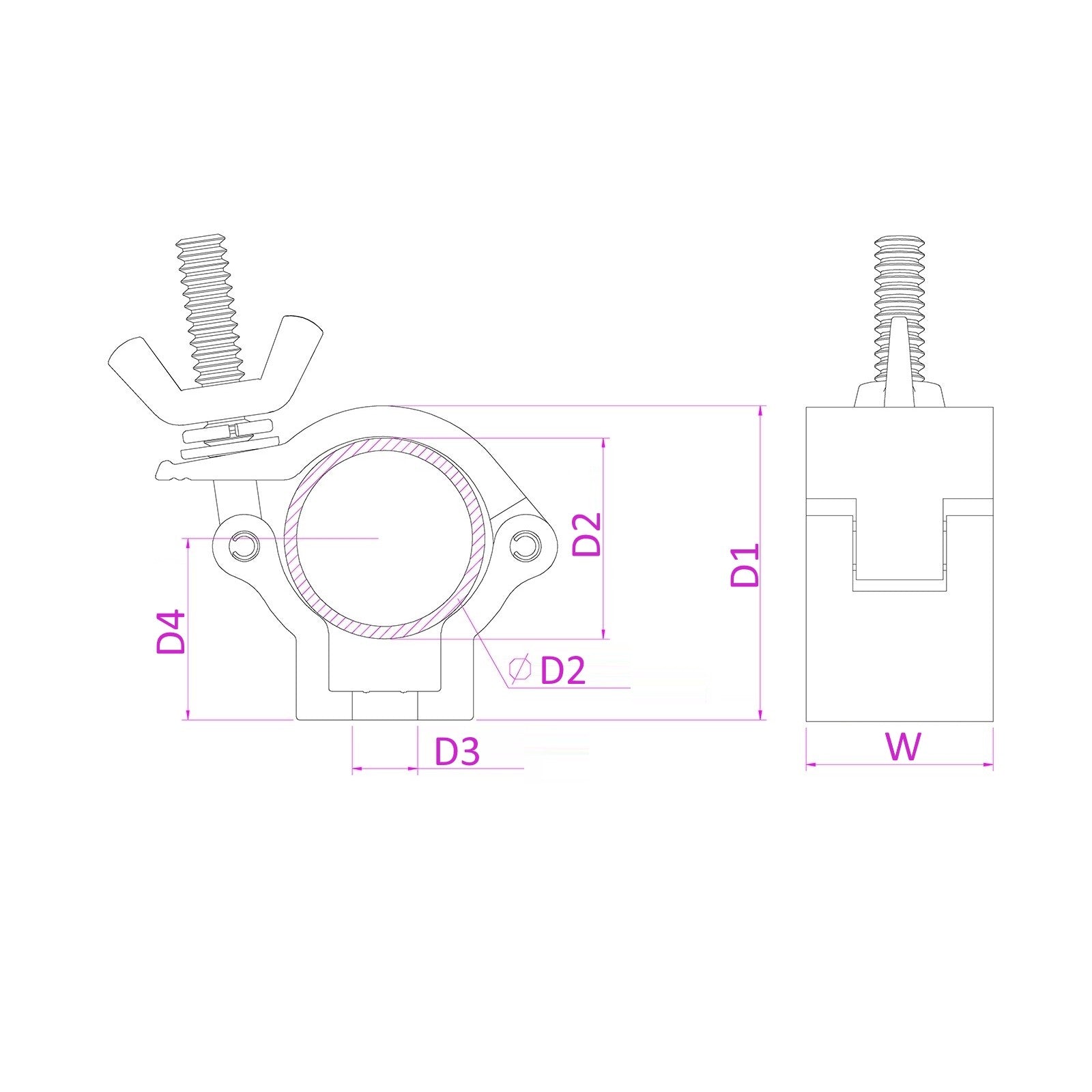

beamZ BC35-75 slimline half coupler clamp in aluminum , for 32–35 mm diameter tubes/trusses, M10 bolt , WLL 75 kg . Technical dimensions: D1 52 mm , D2 32–35 mm , D3 10 mm , D4 31 mm , W 30 mm . Weight 0.135 kg . Fixing by wing nut and bolt .
