beamZ Pro BAC500 - Professional 7-in-1 Aluminum LED Par Spotlight

beamZ Pro BAC500 - Professional 7-in-1 Aluminum LED Par Spotlight

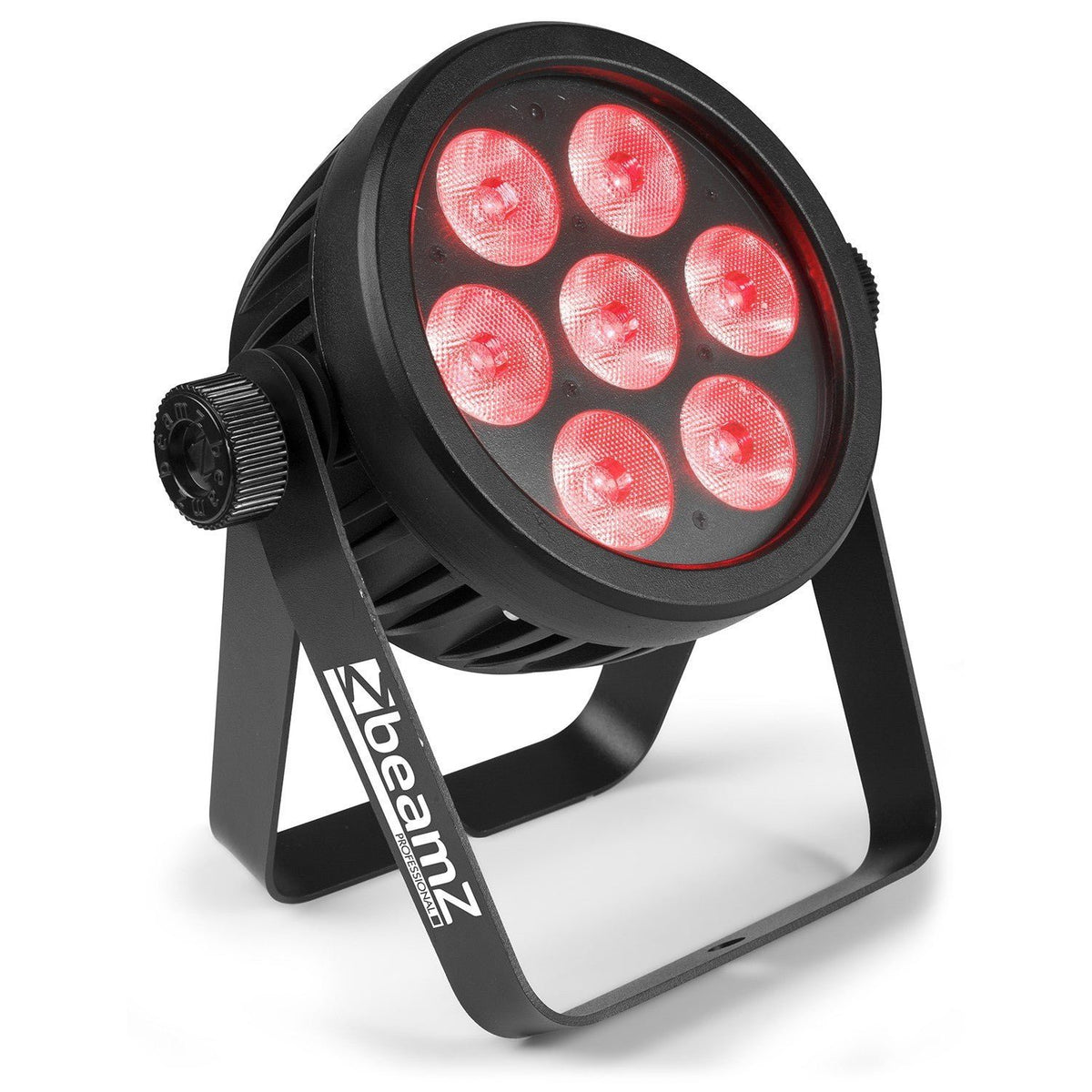

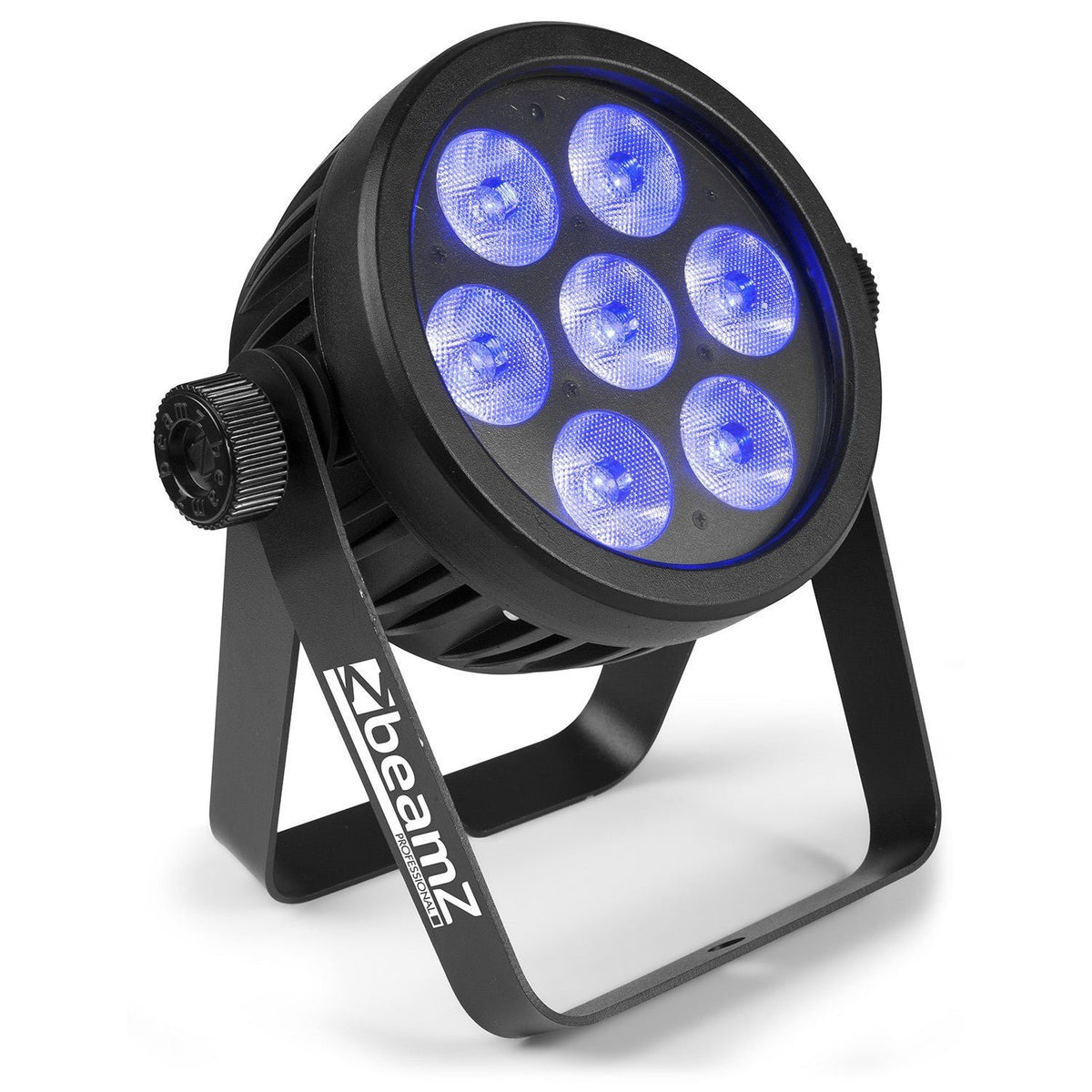

The beamZ Pro BAC500 is a high-performance PAR spotlight designed for professional lighting applications. Constructed with a robust and elegant aluminum housing, this spotlight not only ensures exceptional durability but also functions as a highly efficient convection heat sink. This design feature eliminates the need for internal fans, resulting in 100% silent operation , making it the perfect choice for environments where silence is crucial, such as theaters, recording studios, churches, and corporate events.

At its core, the BAC500 is equipped with seven powerful 14-watt LEDs , incorporating advanced 7-in-1 technology. Each LED can individually produce red, green, blue, amber, cool white, warm white, and ultraviolet (UV), offering a virtually unlimited color palette. From intense, saturated hues to soft pastels, crisp whites of varying temperatures, and a genuine UV black light effect, this spotlight provides unparalleled color versatility for any lighting design.

Flexibility is key to the BAC500's design. It offers multiple control modes to suit any experience level and event type. It can be controlled via DMX with 3, 5, 7, or 12 channels for precise integration into complex lighting systems. Furthermore, it can operate independently using its pre-configured programs, be triggered by the music thanks to its integrated microphone with adjustable sensitivity, or be configured in master/slave mode to effortlessly synchronize multiple units. For quick and easy control, an infrared remote control is included. Connectivity is simplified with 3-pin DMX inputs and outputs and, especially, with PowerCON input and output connectors, which allow for secure and professional power linking of multiple units, reducing cable clutter.

Main Features

• Advanced Light Source: Equipped with 7 LEDs of 14W each and 7-in-1 technology for superior color mixing.
• Full Color Spectrum: Ability to generate Red, Green, Blue, Amber, Cool White, Warm White and Ultraviolet colors (RGBA-UV-CW/WW).
• Premium Construction: Lightweight and durable aluminum casing that provides excellent heat dissipation.
• Silent Operation: The passive convection cooling design eliminates the need for fans, ensuring absolute silence.
• Total Control: Multiple operating modes, including DMX (3, 5, 7 or 12 channels), standalone, sound-activated, and master/slave.
• Dynamic Effects: Includes a 0-100% electronic dimmer for smooth attenuation and a variable speed strobe effect.

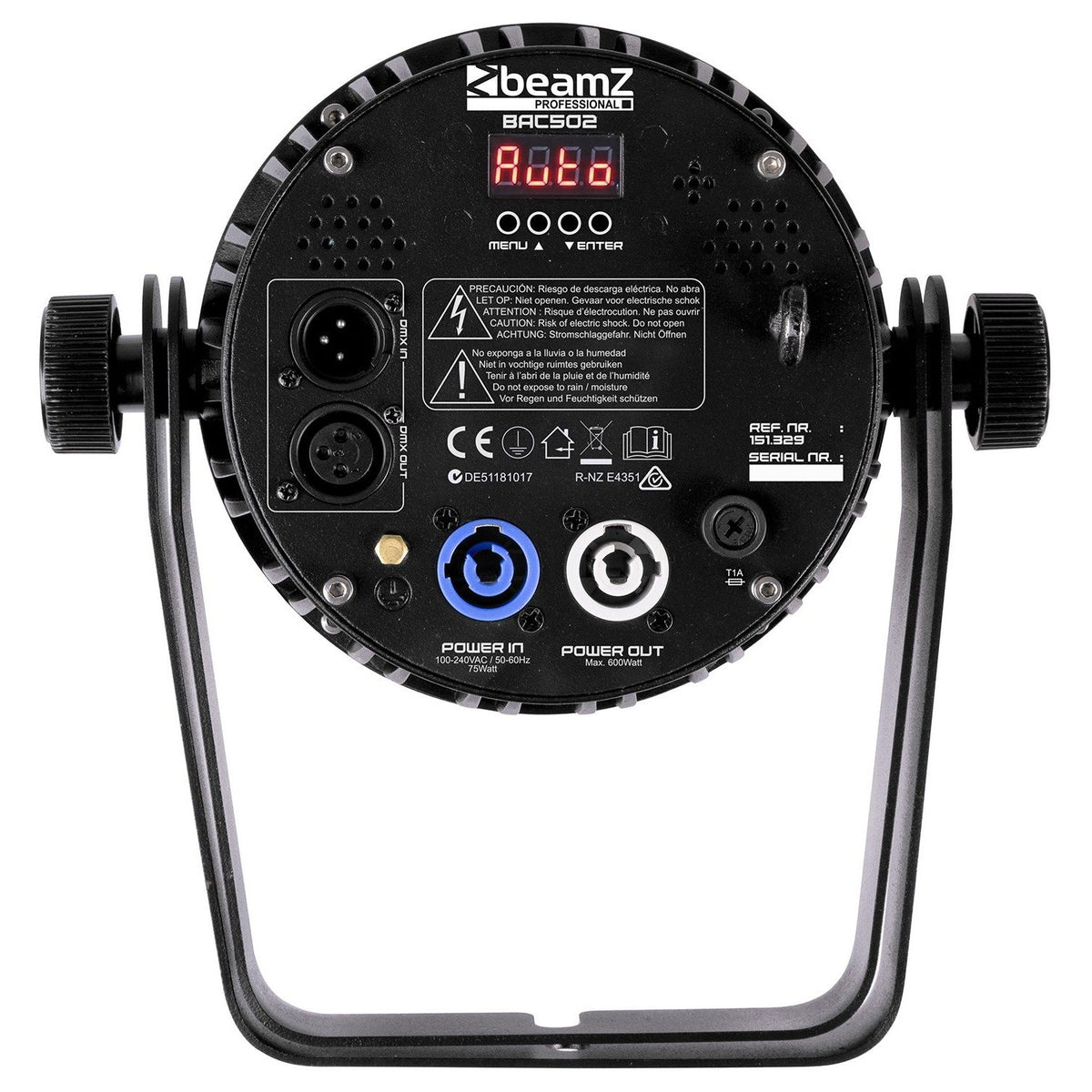

• Easy Chain Connection: Incorporates PowerCON input and output connectors to efficiently link the power supply of multiple lights.

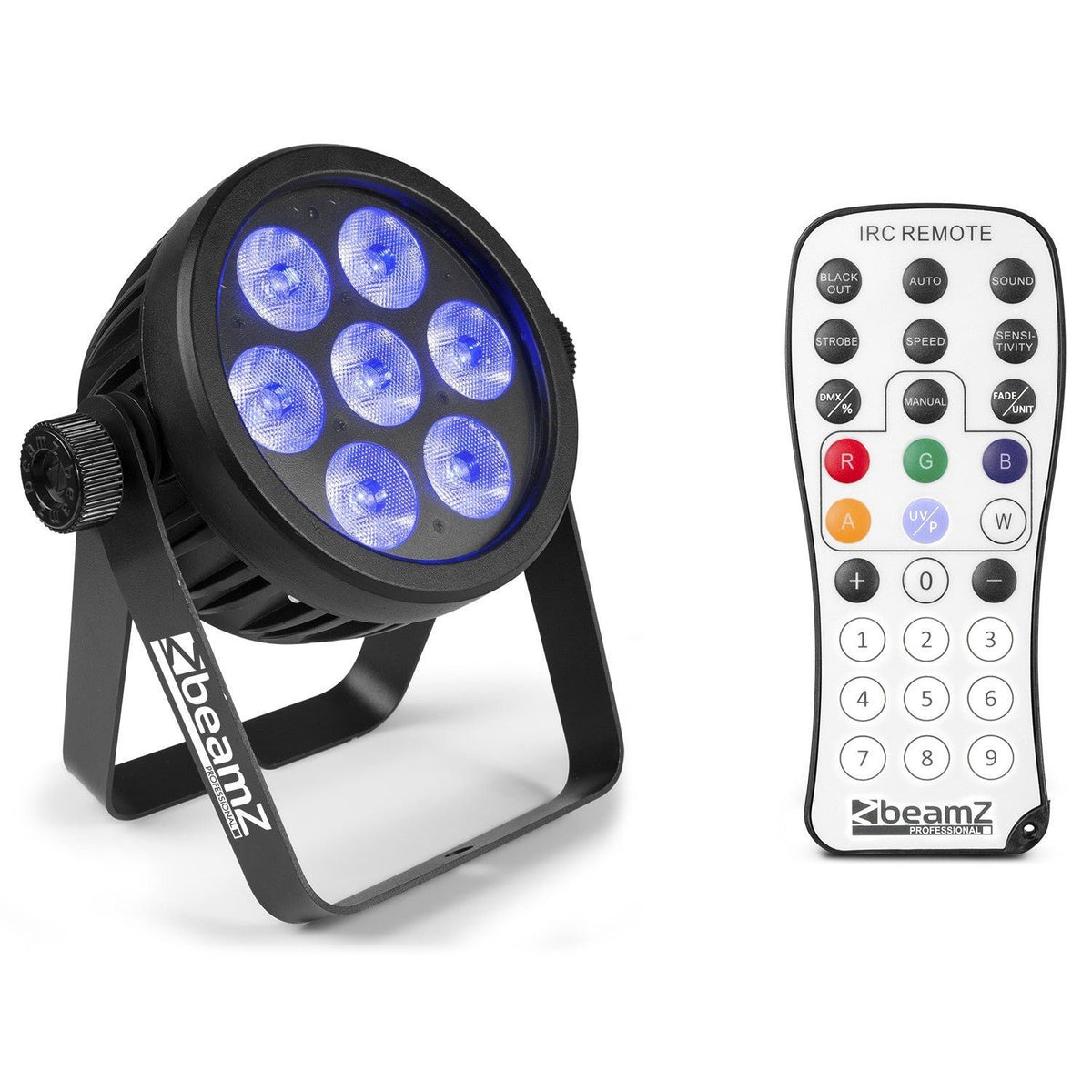

• Remote Control: Supplied with an infrared remote control for convenient and intuitive operation.

Product benefits

• Superior Chromatic Versatility: The 7-in-1 LED technology opens up a world of creative possibilities, allowing you to create any atmosphere, from warm ambient light to vibrant disco effects, including real black light for "glow" effects.
• Ideal for Noise-Sensitive Environments: Its completely silent operation makes it indispensable in theatrical productions, conferences, live broadcasts and studios where background noise is unacceptable.
• Professional Reliability and Durability: The aluminum housing not only protects the internal components, but also ensures a long product life by keeping the LEDs at an optimal operating temperature.
• Quick and Clean Installation: Save time and effort during assembly thanks to the ability to link power and DMX signal between units, minimizing the amount of cabling required.
• Adaptable to Any User: From a professional lighting designer who needs precise DMX control to a user looking for a "plug-and-play" solution with automatic programs, the BAC500 adapts to all needs.

Use cases

• Stage Lighting: Perfect as a front light, backlight or for creating striking color washes in concerts, theaters and live events.
• Corporate Events and Exhibitions: Adds a professional and sophisticated touch to the lighting of stands, conference rooms and product launches.
• Architectural Lighting: Ideal for the "uplighting" technique on walls, columns and other architectural elements in event halls, hotels and restaurants.
• Video and Photography Production: Its quiet operation and ability to generate high-quality whites make it very valuable in recording studios and photography sets.
• Nightclubs and Bars: The powerful light output, vibrant colors and integrated UV effect are perfect for creating dynamic and energetic environments.

Frequently Asked Questions

Does this spotlight require a DMX controller to operate?

No, the BAC500 is very versatile. It can operate in standalone mode with pre-programmed settings, sync to the music, or in a master/slave configuration without the need for an external controller. However, for complete control over color and effects, the use of a DMX controller is recommended.

What does it mean that the cooling is by convection?

This means that the heat generated by the LEDs is dissipated naturally through the aluminum housing design, without the need for mechanical fans. This results in completely silent operation and reduces maintenance since there are no moving parts.

Can I connect multiple units together?

Yes, thanks to the PowerCON input/output and 3-pin XLR connectors, you can easily, safely, and professionally link both the power supply and DMX signal of multiple BAC500 units.

What advantage does 7-in-1 LED technology offer?

The 7-in-1 technology integrates seven different colors (Red, Green, Blue, Amber, Cool White, Warm White, and Ultraviolet) into a single LED chip. This allows for a much smoother and more homogeneous color mix, a wider color gamut, and the ability to create high-quality whites and UV effects without the need for multiple lights.

Project description

Professional PAR spotlight with an aluminum housing and passive convection cooling. The light source consists of seven 14W LEDs with 7-in-1 technology (RGBA-UV-CW/WW). It offers a 20-degree beam angle and a 37-degree field of view, with an illuminance of 7,200 lx at 1 meter. It is DMX-operated (3, 5, 7, 12 channels), standalone, master/slave, and sound-activated. It features an electronic dimmer (0-100%) and a strobe effect (0-20Hz). Connectivity is via a 3-pin XLR for DMX and PowerCON connectors for power (input/output). Multi-voltage power supply: 100-240VAC 50/60Hz. Dimensions: 175 x 235 x 90 mm. Weight: 2.4 kg.
