PROEL AVCAT5PRO50 - Cat 5e S-FTP Ethernet Cable Reel with Neutrik EtherCON Connectors (50 Meters)

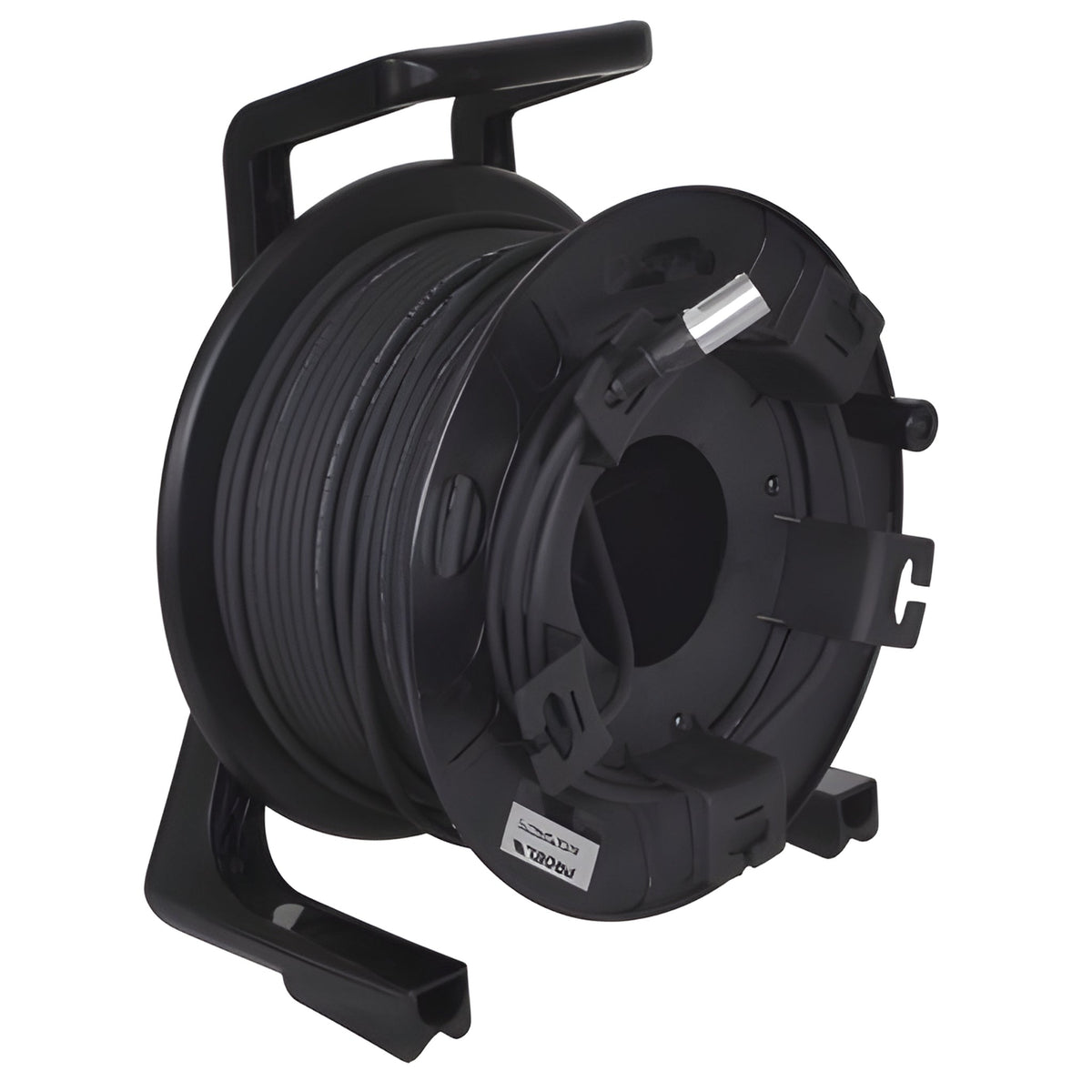

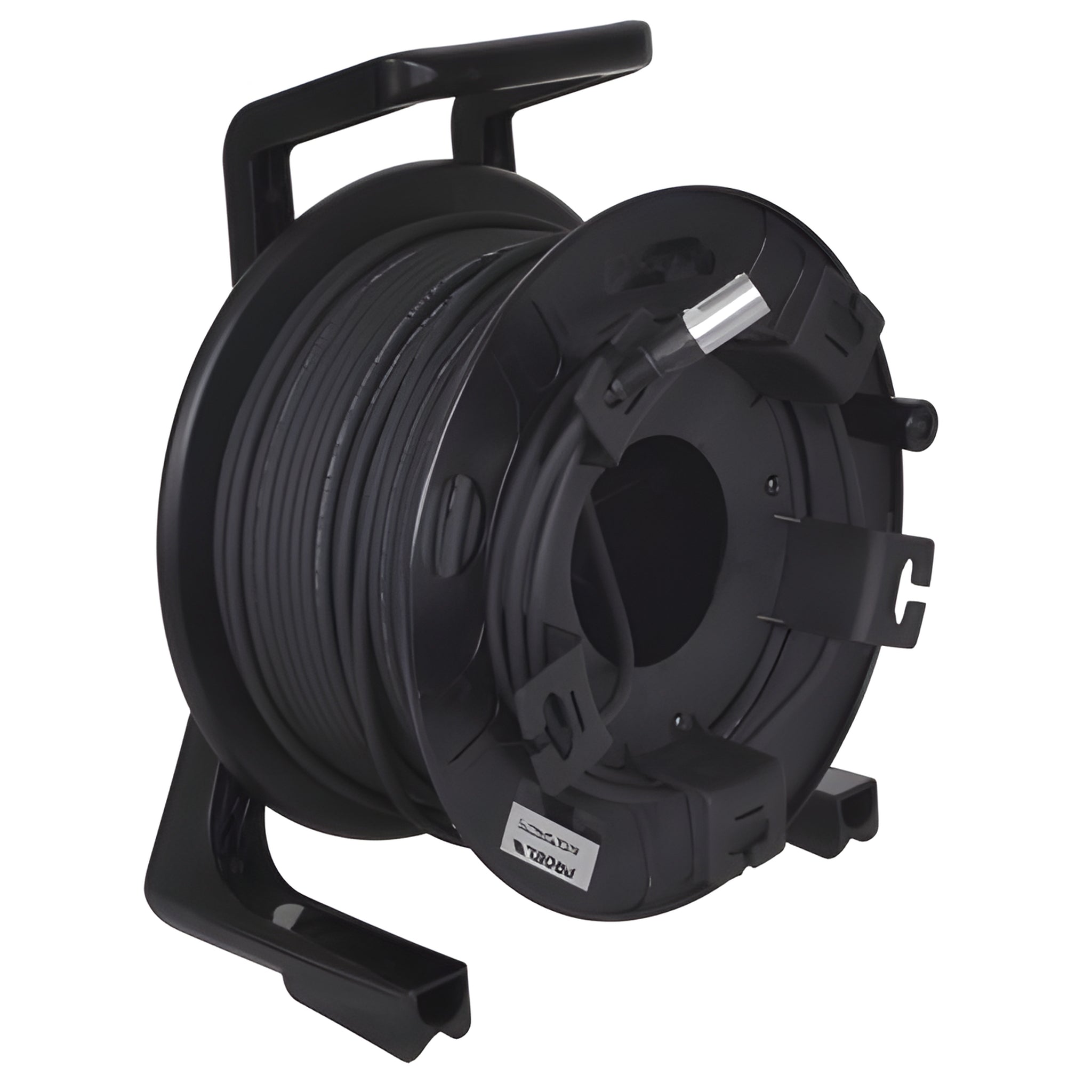

In the demanding world of professional audio and stage lighting, reliable data transmission is just as critical as sound quality itself. The PROEL AVCAT5PRO50 is a high-end connectivity solution designed specifically for touring, live events, and broadcast. This system consists of a 50-meter LAN5S network cable reel mounted on a robust professional reel, guaranteeing not only flawless signal transmission but also extreme durability in harsh environments.
The heart of this system is its Cat 5e S-FTP (Screened Foiled Twisted Pair) cable. Unlike standard office network cables, this model features double top shielding: a 100% aluminum/polyester screen and an 80% tinned copper braid. This configuration creates an impenetrable barrier against electromagnetic interference (EMI) and radio frequency interference (RFI), common in environments filled with lights, power regulators, and LED displays. Its outer jacket, made of polyurethane (PUR) compound, offers exceptional flexibility even at low temperatures and significantly greater mechanical resistance than traditional PVC against cuts, footsteps, and abrasion.
To ensure a secure connection and prevent accidental disconnection, the cable is terminated with the legendary Neutrik NE8MC1 connectors. These carriers encapsulate the RJ45 plug in a die-cast metal XLR-type housing, providing robust strain relief and a secure locking system that has become the industry standard for critical digital connections.
Main features
-
Professional Length: 50 meters of continuous cable mounted on an ergonomic reel with brake and carrying handle.
-
Advanced S-FTP Shielding: Double protection with foil and braided mesh for total noise immunity over long distances.
-
Neutrik Connectivity: Equipped with Neutrik NE8MC1 housings (EtherCON format) that protect the internal RJ45 connectors against bumps and pulls.
-
PUR (Polyurethane) Cover: Military-grade material that withstands constant dragging, foot traffic, and adverse weather conditions without losing flexibility.
-
Cat 5e Standard: Certified for Gigabit speeds (1000BASE-T) and bandwidth up to 100 MHz, ideal for digital audio protocols.
Benefits for the professional
The PROEL AVCAT5PRO50 eliminates uncertainty in your digital connections. Thanks to its shielded construction, you can run digital audio lines (such as Dante, AES50, or MADI over twisted pair) alongside power lines without fear of unwanted noise or sync dropouts. Using the professional reel not only protects the cable during transport but also dramatically reduces setup and teardown times in mobile productions, keeping the cable tangle-free and ready for action in seconds.
Use cases
-
Live Scenarios: Connection between digital mixing consoles and stage boxes (AES50, Dante, EtherSound, CobraNet protocols).
-
Lighting and Video: Data transmission for lighting control (ArtNet, sACN) and LED screens.
-
Mobile Broadcast: Reliable links for mobile television units and outdoor broadcasting.
-
Temporary Networks: Rapid deployment of LAN networks at trade shows, conferences and corporate events where Wi-Fi is unreliable.
Frequently Asked Questions
Are the connectors compatible with standard RJ45 computer ports?
The Neutrik NE8MC1 connector is a protective housing that surrounds the RJ45 connector. It is designed to fit into Neutrik EtherCON chassis. If you need to connect it to a standard router or PC without an EtherCON port, the metal housing may interfere with the device's plastic casing; in such cases, EtherCON-to-standard RJ45 adapter cables or short "tails" are typically used.
Does the cable support PoE (Power over Ethernet)?
Yes, being a high-quality Cat 5e cable with suitable copper conductors (26 AWG), it supports the PoE power standards commonly used in audio and network devices, always within the regulatory distances.
What advantage does PUR cover have over PVC cover?
Polyurethane (PUR) is much more resistant to abrasion, cuts, and chemicals. Furthermore, it has zero "memory," meaning the cable returns to its straight shape more easily and coils better without creating loops or permanent deformations—vital for cables that are collected daily.
Project description
Professional mobile structured cabling system consisting of a reel with 50 meters of Proel LAN5S flexible network cable. Cable specifications: Category 5e (Cat 5e), S-FTP (Shielded Foiled Twisted Pair) structure with double shielding (100% aluminum foil and 80% tinned copper braid), 26 AWG conductors, and a 7mm diameter high-strength polyurethane (PUR) outer jacket. Terminated at both ends with Neutrik NE8MC1 nickel-plated metal connectors (EtherCON format) with a locking and strain relief system. Designed for Gigabit data transmission and multichannel digital audio in stage environments.
