Audibax Pro Manhattan 18S - 18″ active subwoofer, 1800 W RMS, 142 dB peak with DSP and XLR output

Audibax Pro Manhattan 18S - 18″ active subwoofer, 1800 W RMS, 142 dB peak with DSP and XLR output

The Audibax Pro Manhattan 18S is a high-performance professional active subwoofer with an 18″ woofer and 4″ voice coil , designed to provide deep, controlled bass in modern PA systems. Its Class D power amplifier delivers 1800 W RMS (up to 3600 W peak ), with a frequency response of 35 Hz to 150 Hz , sensitivity of 97 dB (1 W/1 m) and maximum SPL of up to 142 dB (peak) . It integrates DSP with CAN BUS network for adjustment and monitoring, including tools such as a low-pass filter and a 6-band parametric equalizer to adapt the system to the room. Connectivity is direct: XLR/Jack combo input and XLR line output to chain speakers or send the signal to other amplifiers. It incorporates a masthead socket (stand) and a multi-layer laminated wood enclosure that maximizes rigidity and minimizes resonances.

The 18S is part of the Manhattan series , alongside the 10″, 12″ and 15″ active models, designed for DJs, musicians and sound companies that require robust solutions ready for touring or permanent installation.

Main features

• 18″ active subwoofer with 4″ voice coil for high excursion capacity and low distortion.
• 1800 W RMS / 3600 W peak with Class D amplification and integrated DSP .
• 35 Hz – 150 Hz response, 97 dB sensitivity and up to 142 dB SPL (peak) ( ≈131 dB continuous ).
• DSP processing : low-pass filter, 6-band parametric EQ and CAN BUS/RS485 communication for network control.

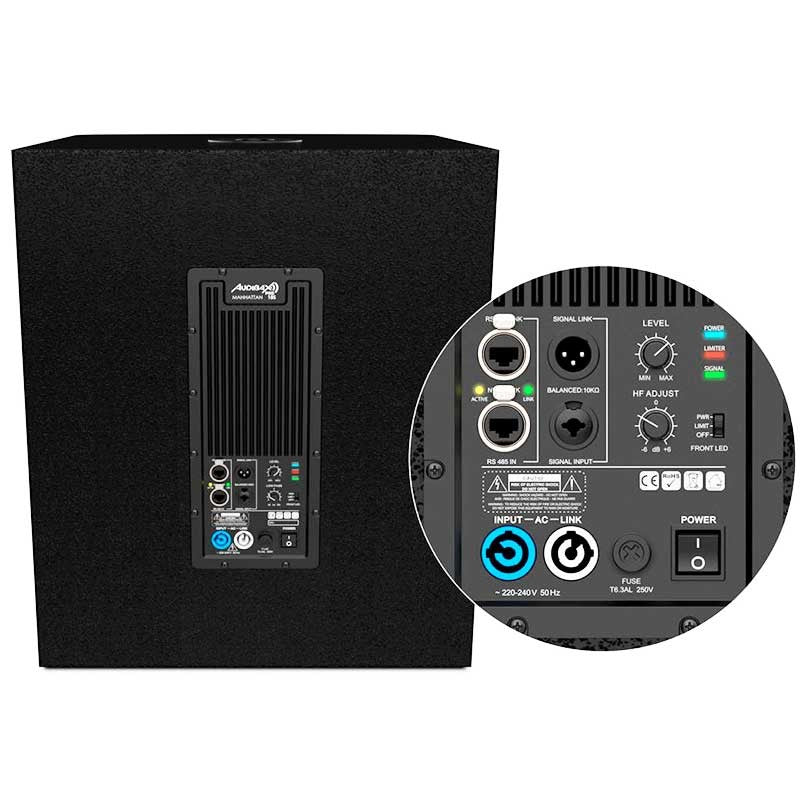

• Connectivity : 1 × Mic/Line combo XLR/Jack input and 1 × XLR line output .
• Mounting : cup for stand (mast) for upper satellite.
• Enclosure : high-strength multi-layer laminated wood .
• Power supply : AC 220–240 V, 50 Hz .

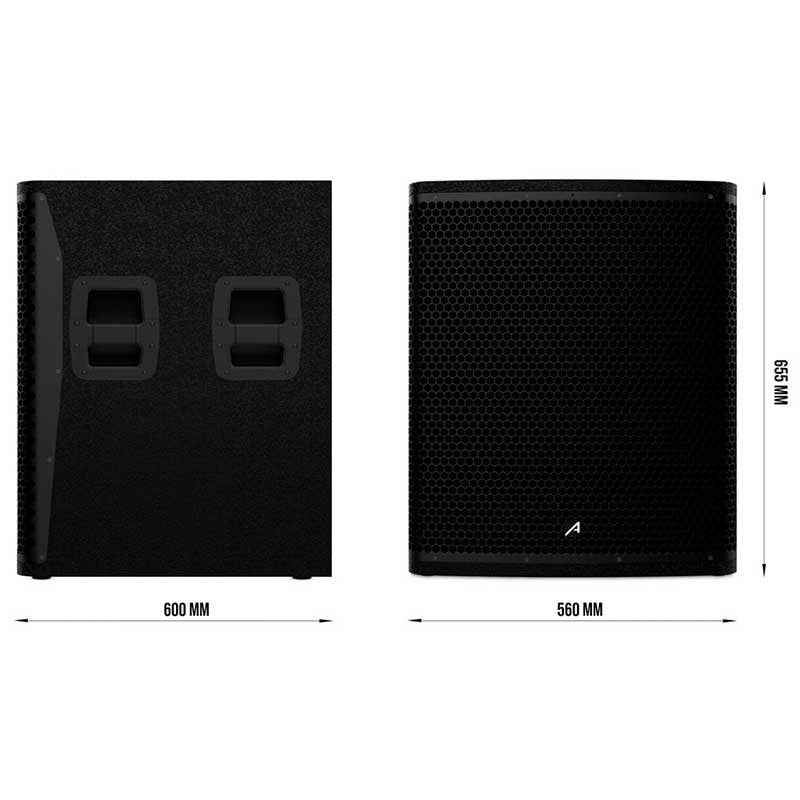

• Dimensions and weight : 560 × 600 × 655 mm ; 40 kg .

Product benefits

• Powerful and controlled bass thanks to the 18″ of 4″ coil and the available power.
• Fine-tune in minutes : DSP with EQ and filtering allows the system to be tailored to each room, reducing feedback and bass buildup.
• Simple workflow : combo input and XLR output for quick chaining with active tops or external amps.
• Robust architecture : multi-layered wood enclosure and design for intensive use in rental and fixed installation.
• Scalability : Part of the Manhattan series , combinable with 10A, 12A and 15A for 2.1, 2.2 systems or distributed arrays.

Use cases

• Live events and DJs : subwoofer reinforcement in medium/large venues.
• Fixed installation : clubs, auditoriums, gyms and leisure spaces that require impact and uniformity.
• Mobile production : modular systems with Manhattan satellites for rapid assembly.

Frequently Asked Questions

• Does the subwoofer need an external processor? It's not essential: it includes an internal DSP with a filter and EQ; it can also be integrated with external processors if the project requires it.
• Can I mount a top speaker on a pole? Yes, a stand mount is available that accepts a compatible satellite.
• What power supply do you need? AC 220–240 V, 50 Hz (power consumption varies depending on output level).

Package contents

• 1 × Manhattan 18S Active Subwoofer
• 1 × User Manual

Description for projects

Active subwoofer 18″ ( 4″ voice coil); 1800 W RMS / 3600 W peak ; 35–150 Hz ; 97 dB (1 W/1 m); SPL 142 dB peak (≈131 dB continuous); DSP with low-pass filter , 6-band EQ and CAN BUS/RS485 network ; 1× Mic/Line XLR/Jack input , 1× XLR output ; pole mount ; multi-layer laminated wood enclosure ; AC 220–240 V, 50 Hz ; dimensions 560 × 600 × 655 mm ; weight 40 kg .
