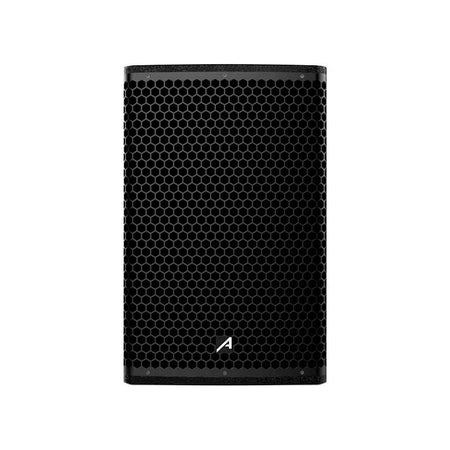

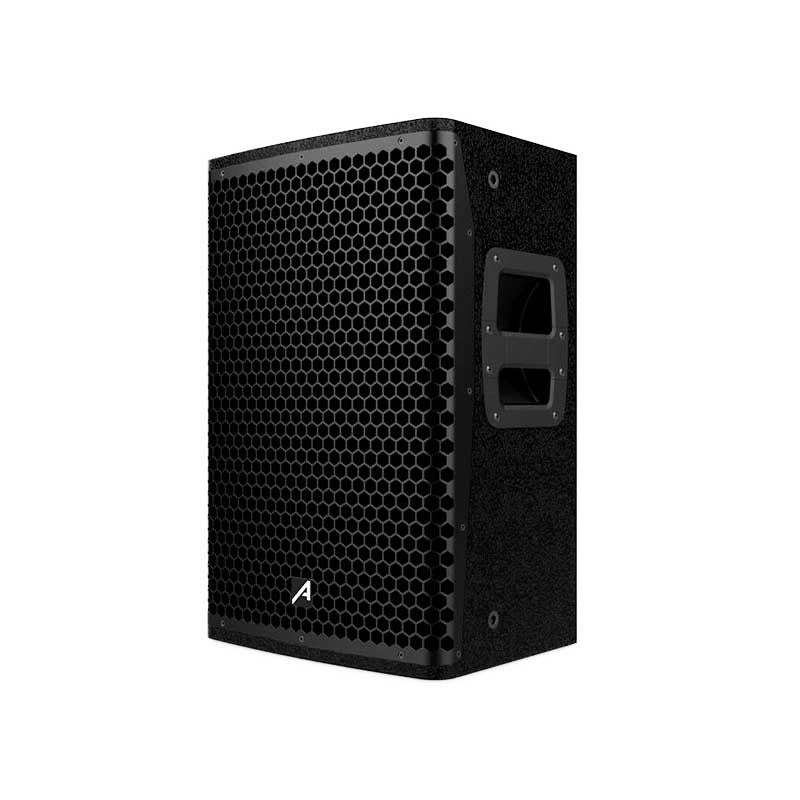

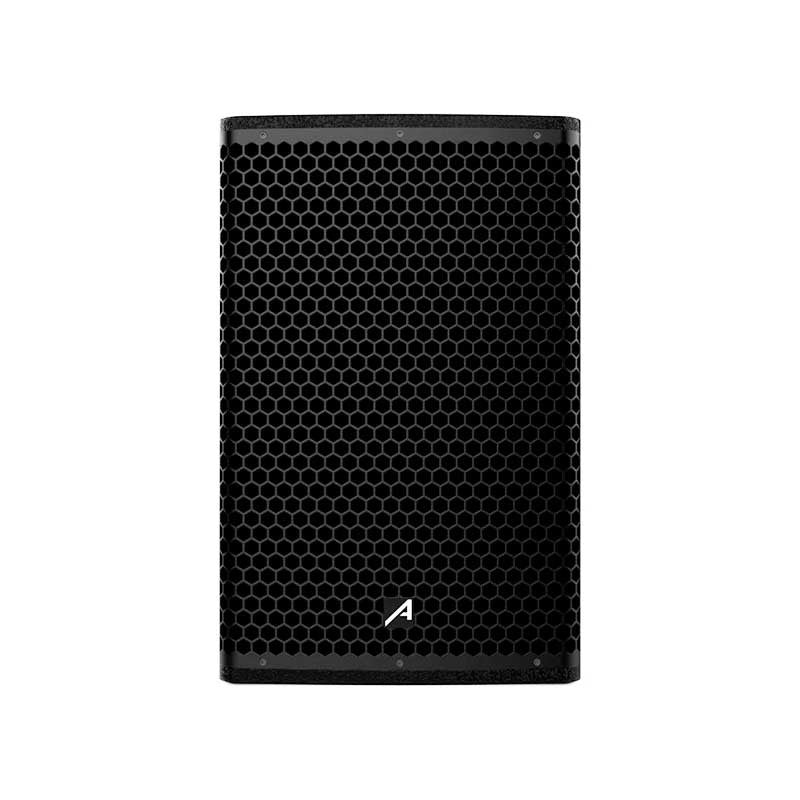

The Audibax Pro Manhattan 12A is a professional 2-way active loudspeaker that combines a 12″ woofer ( 3″ voice coil) with a 1.75″ horn- mounted compression driver ( 4.5″ voice coil) to deliver controlled coverage and punch in PA applications. It features CAN BUS DSP for fine-tuning and monitoring, with a frequency response of 48 Hz–20 kHz , sensitivity of 96 dB (1 W/1 m) , max SPL 136 dB and 90° (H) × 60° (V) dispersion pattern. Direct connectivity ( 1 Mic/Line XLR/Jack combo input and 1 XLR line output ) speeds up integration with mixing consoles, processors and other loudspeakers. Its power stage delivers 1200 W RMS ( 2400 W peak ), the multi-layer laminated wood enclosure guarantees robustness in intensive use, and it can be mounted on a 36 mm mast or using flying points . Dimensions 380 × 380 × 620 mm and weight 23 kg .

Main features

• 2 active ways (PA) : LF 12″ (VC 3″ ) + HF 1.75″ (VC 4.5″ ) in horn .
• Digital processing : DSP CAN BUS for adjustment and control.
• Performance : 48 Hz–20 kHz , 96 dB (1 W/1 m), 136 dB SPL max.
• Directivity : 90° H × 60° V for uniform coverage and greater intelligibility.

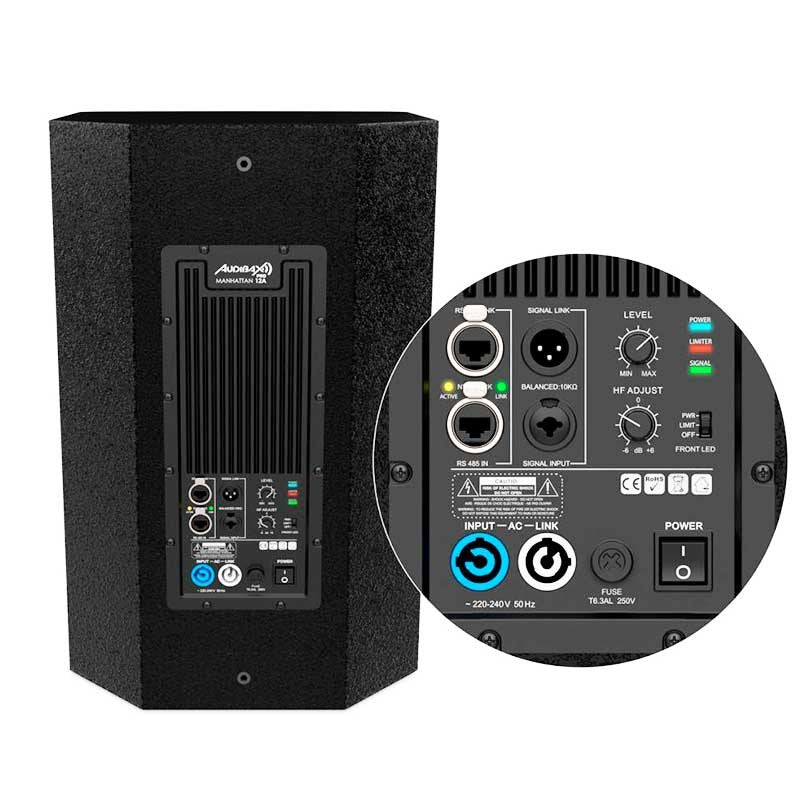

• Connectivity : 1× Mic/Line XLR/Jack combo input and 1× XLR line output .
• Power : 1200 W RMS / 2400 W peak .

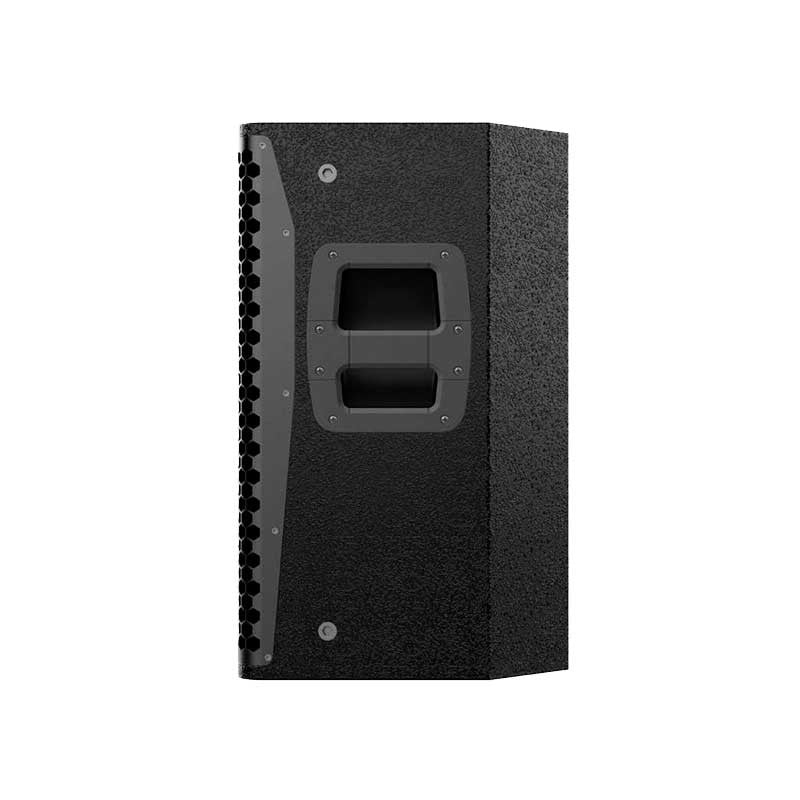

• Mounting : 36mm socket and fly points .
• Construction : Multi-layer laminated wood enclosure for maximum rigidity.
• Power supply : AC 220–240 V, 50 Hz .

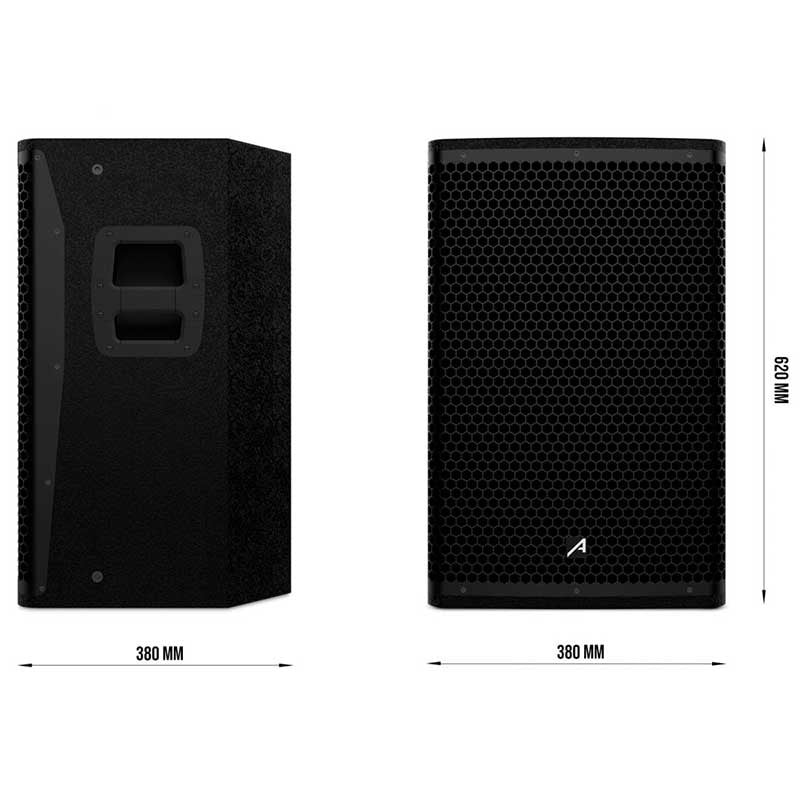

• Format : 380 × 380 × 620 mm , 23 kg .

Product benefits

• Power and control in a versatile format : 12″ with high SPL and 90×60 pattern that concentrates the energy on the audience.
• Quick Setup : Combo input and XLR output for chaining boxes and simplifying routing.
• Consistent sound : DSP allows the response to be adapted to each room and minimizes unwanted resonances.
• Flexible installation : use on a stand (36 mm) or flown depending on the project needs.

Use cases

• Events and live : Main PA in small/medium-sized venues, side-fills or reinforcement on stages.
• Fixed installation : pubs, gyms, educational centers, auditoriums and leisure spaces.
• Modular systems : combination with other models in the Manhattan series (10A/15A/18S) for 2.1/2.2 configurations.

Frequently Asked Questions

• Can it be controlled over a network? Yes. The Manhattan series incorporates RS485 communication for software control (AudibaxNet), via a compatible USB-RS485 interface.
• What mounting options does it support? 36mm socket for standard masts and fly points for suspended installation.
• What audio connectivity does it include? 1 XLR/Jack combo microphone/line input and 1 XLR output for connecting to other units or processors.

Description for projects

2-way active loudspeaker with 12″ woofer (VC 3″) and 1.75″ HF driver in horn (VC 4.5″ ); 48 Hz–20 kHz ; 96 dB (1 W/1 m); 136 dB SPL max.; dispersion 90° × 60° ; DSP CAN BUS ; 1× Mic/Line input XLR/Jack ; 1× XLR output ; 1200 W RMS / 2400 W peak ; laminated wood enclosure; AC 220–240 V, 50 Hz ; dimensions 380 × 380 × 620 mm ; weight 23 kg .
