Audibax Pro M88 WP1 - PoE wall panel with volume control for matrix control (UDP/TCP-IP)

Audibax Pro M88 WP1 - PoE wall panel with volume control for matrix control (UDP/TCP-IP)

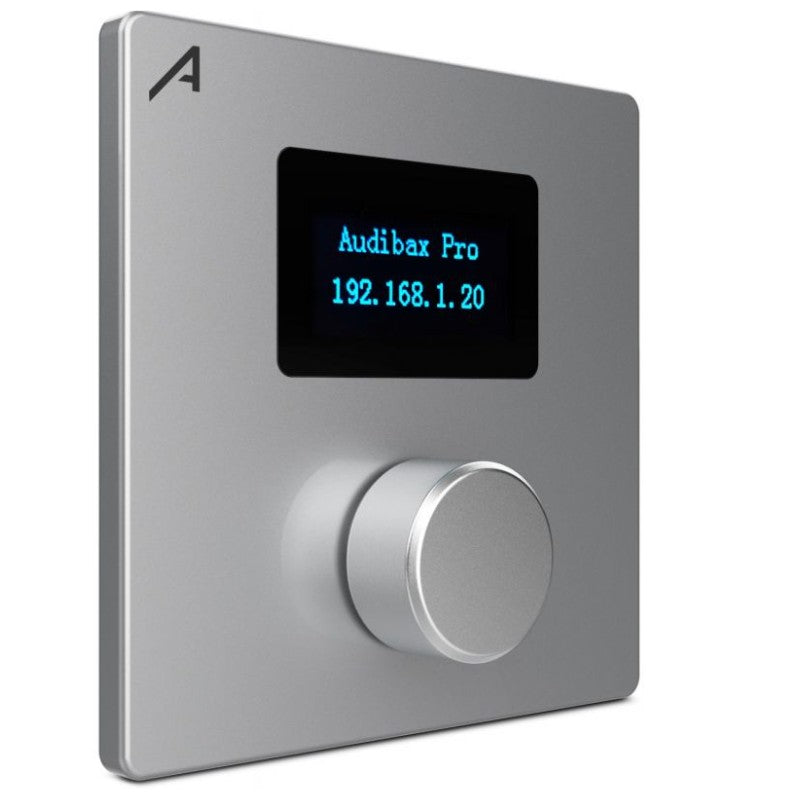

The Audibax Pro M88 WP1 is a wall-mounted control panel for networked audio systems that simplifies wall-mounted management of matrices and zones. It is powered by PoE and connects via Ethernet (RJ-45) , allowing a single cable to connect data and power up to 100 m . It features one rotary control (volume/scene as programmed) and communicates via UDP protocol with TCP/IP addressing, ensuring a fast response and easy configuration for professional projects. Its sandblasted aluminum alloy construction in an aluminum/silver finish offers durability and a discreet aesthetic for corporate, educational, and hospitality environments.

Main features

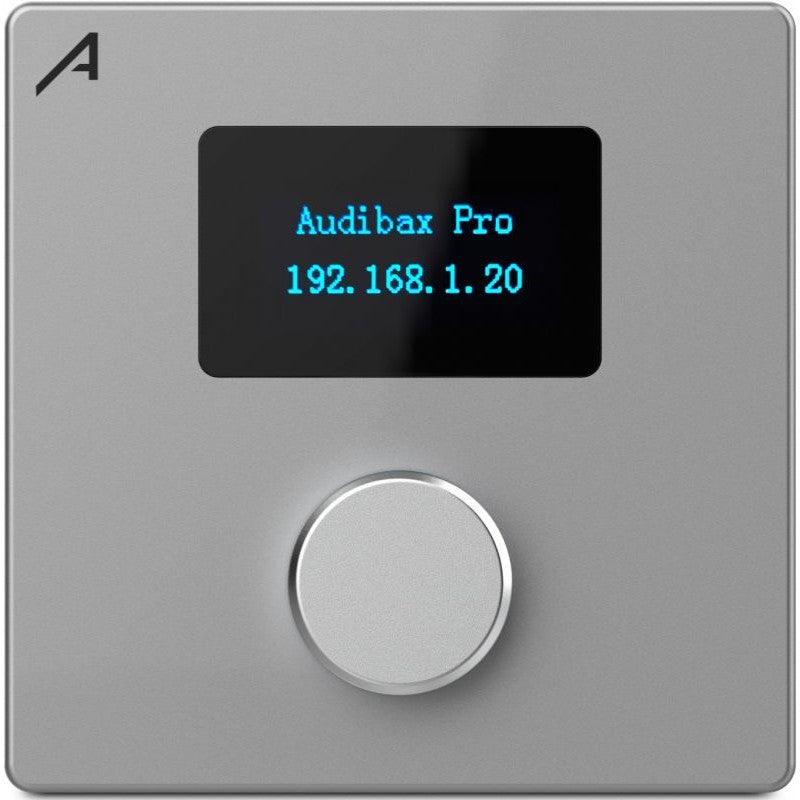

• Simple and robust interface: 1 rotary control knob for volume, mute or preset recall (according to integrator programming).
• Network connectivity: UDP control with TCP/IP address configuration over Ethernet.
• PoE power: data + power over a single cable; clean and quick installation, up to 100 m run.
• Ultra-low power consumption: < 100 mW , ideal for 24/7 operation.
• Professional construction: sandblasted aluminum (high durability and neutral wall appearance).
• Direct integration: designed for Audibax M88 digital matrix ecosystems (DSP/Dante) and their control software.

Product benefits

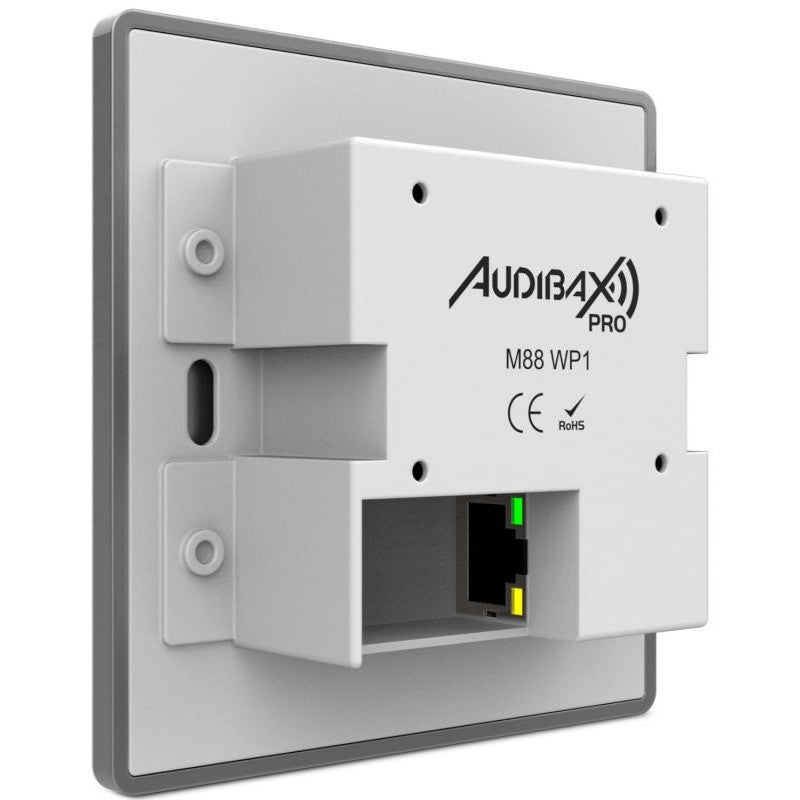

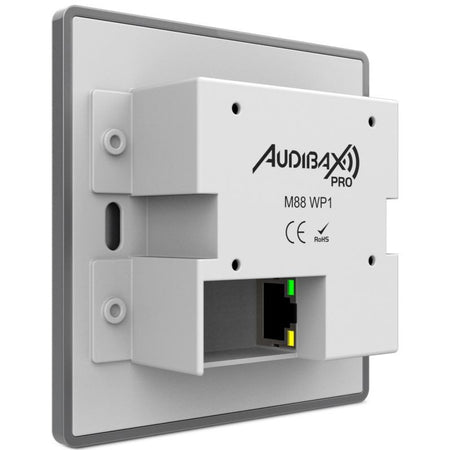

• Simplified installation: PoE bypasses local sources and transforms the control point into a single RJ-45 cable.
• Intuitive for the end user: a single control that prevents errors and speeds up daily operation.
• Scalability over IP: stable UDP/TCP-IP communication for multi-zone projects and remote maintenance.
• Sturdy and discreet design: sandblasted aluminum metal body for aesthetic integration into any room.

Use cases

• Retail and hospitality: local volume control in retail, restaurant, and hotel areas.
• Education and corporate: classrooms, auditoriums, and meeting rooms with accessible basic controls.
• Cultural and religious spaces: non-technical operators adjust levels without accessing the rack.

Frequently Asked Questions

• Does it transport audio over Dante or the network? No. The M88 WP1 is a control panel that sends commands over UDP/TCP-IP; the audio is managed by the system's matrix/DSP.
• How is it powered? Via PoE over the same Ethernet cable.
• What is the maximum distance supported by the cable? Up to 100 meters of standard Ethernet cabling.

Description for projects

PoE wall panel with 1 rotary knob ; UDP control protocol and TCP/IP addressing ; RJ-45 (Ethernet), cable length up to 100 m ; power consumption < 100 mW ; material: sandblasted aluminum alloy ; aluminum/silver color . Use as an Audibax M88 matrix controller (DSP/Dante).
