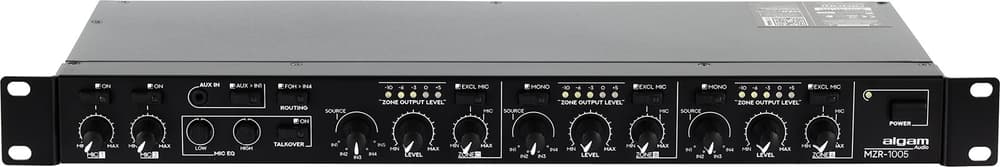

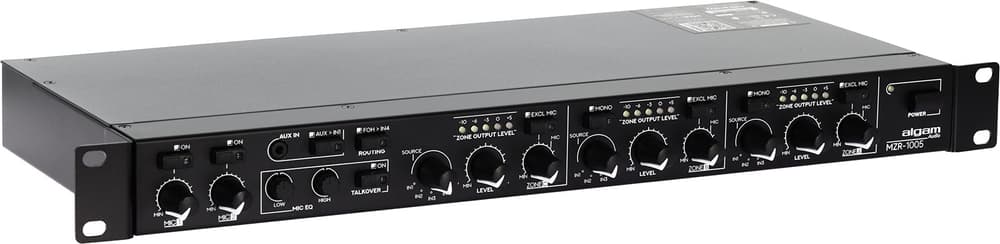

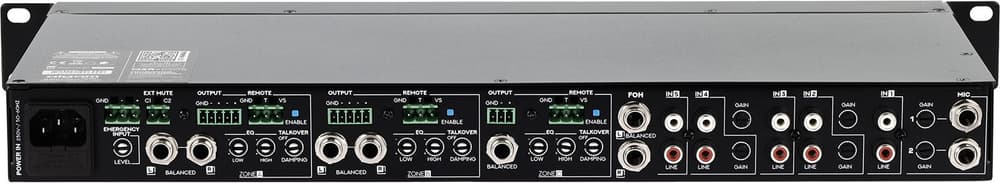

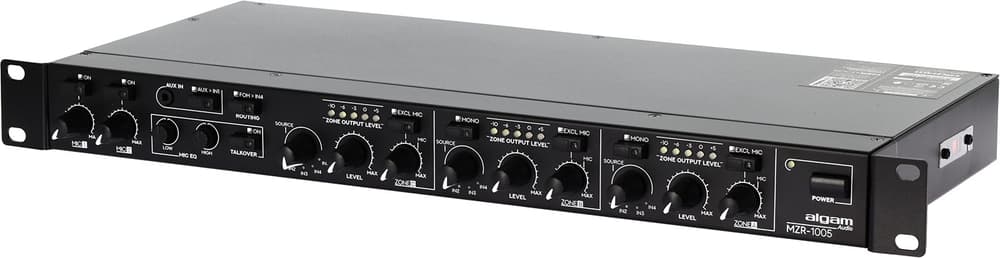

Algam MZR-1005 - Rackmountable 5-input stereo (2+1 zone) zone mixer

- Category: Zone Mixer- Color: Black- Dimensions (mm): 483 x 44.5 x 183.5- Equalization: 2 bands- Number of channels: 7- Number of microphone preamps: 2- Weight (kg): 2.76 kg- Rack mountable: Yes- Rack units: 1Additional specifications- 4 channels with line level RCA inputs and gain adjustment, assignable to the zone outputs- 5th channel only assignable to Zone C, without gain adjustment- Stereo FOH inputs (rear panel) and Aux minijack (front), routable to all zone outputs instead of the RCA input of channel 4 (for FOH) or channel 1 (for AUX)- 2 microphone inputs on balanced 6.35 mm TRS jack format- Microphone input controls: gain and volume on each input, shared 2-band EQ, master talkover activation switch- Input Emergency in Euroblock format: mutes all sources on the main output upon detecting an emergency signal and broadcasts the alert message- Output Mute: cuts the main output by short-circuiting the contacts- Advanced settings via jumpers on the PCB: phantom power for microphones 1 and 2, high-pass filter for microphones 1 and 2, muting of microphones in different zones in case of a signal on the Emergency input- Zones A and B: balanced stereo output on TRS and Euroblock jack- Zone C: balanced mono output on TRS and Euroblock jack- Zone controls (front panel): source selector, general zone level, zone microphone level, microphone signal exclusion, conversion to mono- Zone controls (rear panel): 2-band equalization, talkover attenuation level adjustment, Euroblock input for remote volume control- Main outputs: 2 balanced TRS jacks and one Euroblock- Output level indicator for each zone: 5-LED bar
