Algam SAAAIR-2U - 2U Rack Ventilation Grille

Algam AIR-2U – Ventilation grille for 2U rack

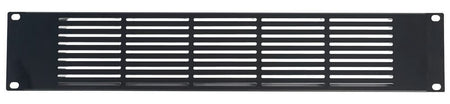

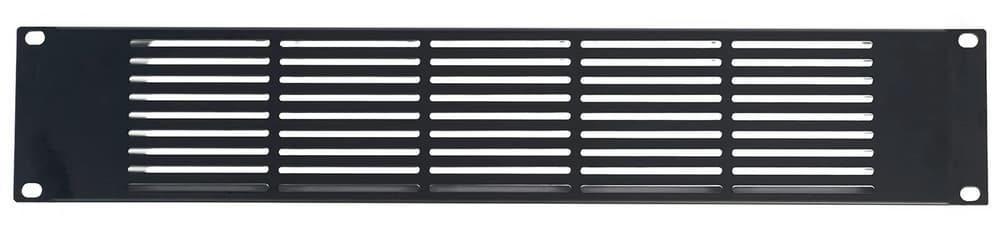

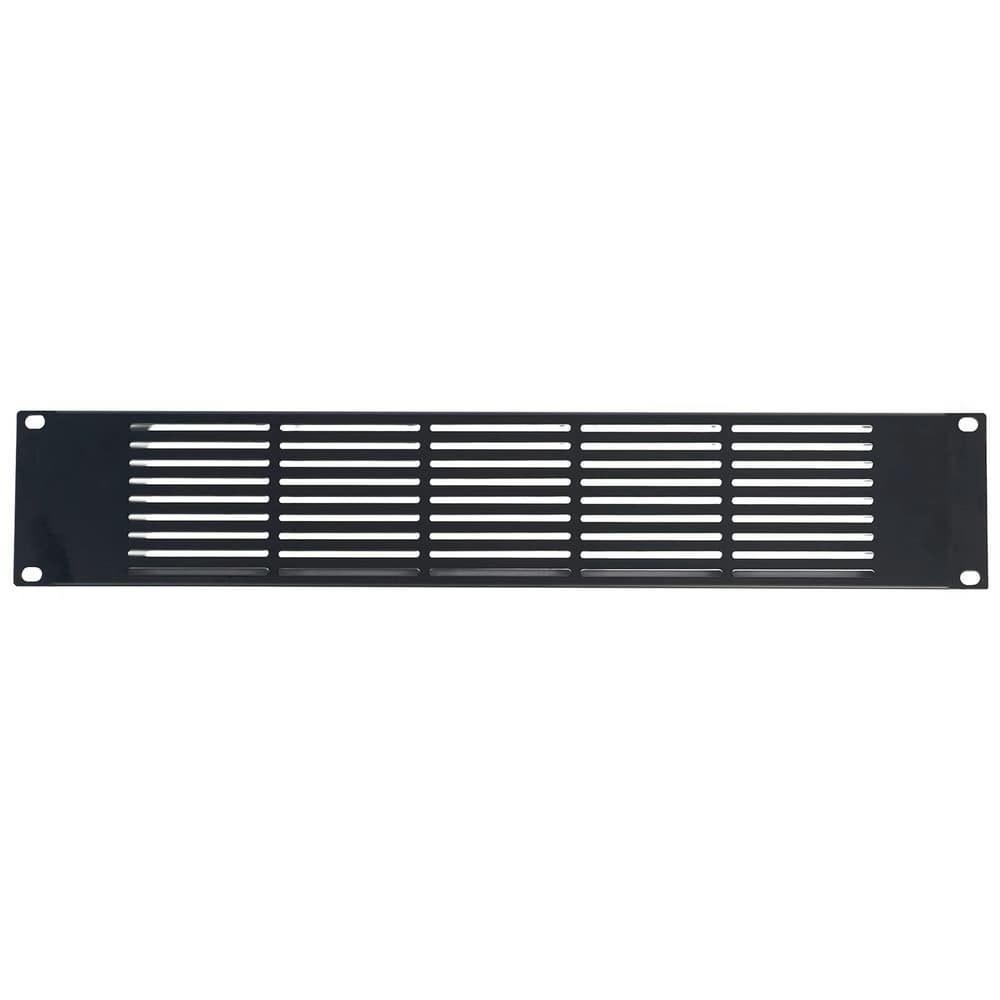

The Algam AIR-2U ventilation grille is designed to improve air circulation in 19" rack cabinets without compromising security or access to equipment. Made of durable steel with a matte black finish, it occupies 2U of space (89 mm total height) and integrates into most standard racks. Its high-density perforated design allows heat generated by electronic and network components to be expelled, maintaining optimal temperatures inside and prolonging the lifespan of installed devices.

Main features

• Format: 2U (89 mm total height; 44.45 mm per unit).
• Material: Rolled steel with black electrostatic paint.
• Design: High-density perforated front panel for maximum ventilation.
• Compatibility: Standard 19" rack, easy mounting on EIA-310 profiles.
• Finish: Matte black, scratch and corrosion resistant.
• Fixing: Standard hardware included for quick installation.

Product benefits

• Passive cooling: Facilitates the expulsion of hot air and the entry of fresh air without the need for additional fans.
• Protection and aesthetics: Limits direct access to the inside of the rack, maintaining a clean and professional appearance.
• Easy installation: Mounts like any 2U rack panel, with standard screws included.
• Durability: Its steel construction guarantees a long service life even in demanding environments.
• Versatility: Useful in server racks, audio, video and telecommunications.

Use cases

• Data centers and server rooms to improve airflow.
• Recording and post-production studios with high residual heat equipment.
• Network and telecommunications cabinets in offices and educational centers.
• Audiovisual and broadcast installations that require passive cooling.
• Racks in industrial or production environments that require continuous ventilation.

Frequently Asked Questions

• How much U space does it take up? It takes up 2U of rack space, equivalent to 89 mm of total height.
• Do you need special hardware? No; standard 19" rack-mount screws are included.
• Does it protect against dust? While its primary function is ventilation, the mesh design prevents the entry of large particles.
• Is it compatible with 18" racks? It's optimized for 19" racks (EIA-310); other widths may require an adapter.

Description for projects

2U rack-mount ventilation grille in matte black steel, high-density perforated front panel, compatible with 19" racks, includes standard hardware.
