Algam MW19X15ZX - Wash Zoom Moving Head 19x15W RGBW

Algam MW19X15ZX – Wash Zoom Moving Head 19x15W RGBW

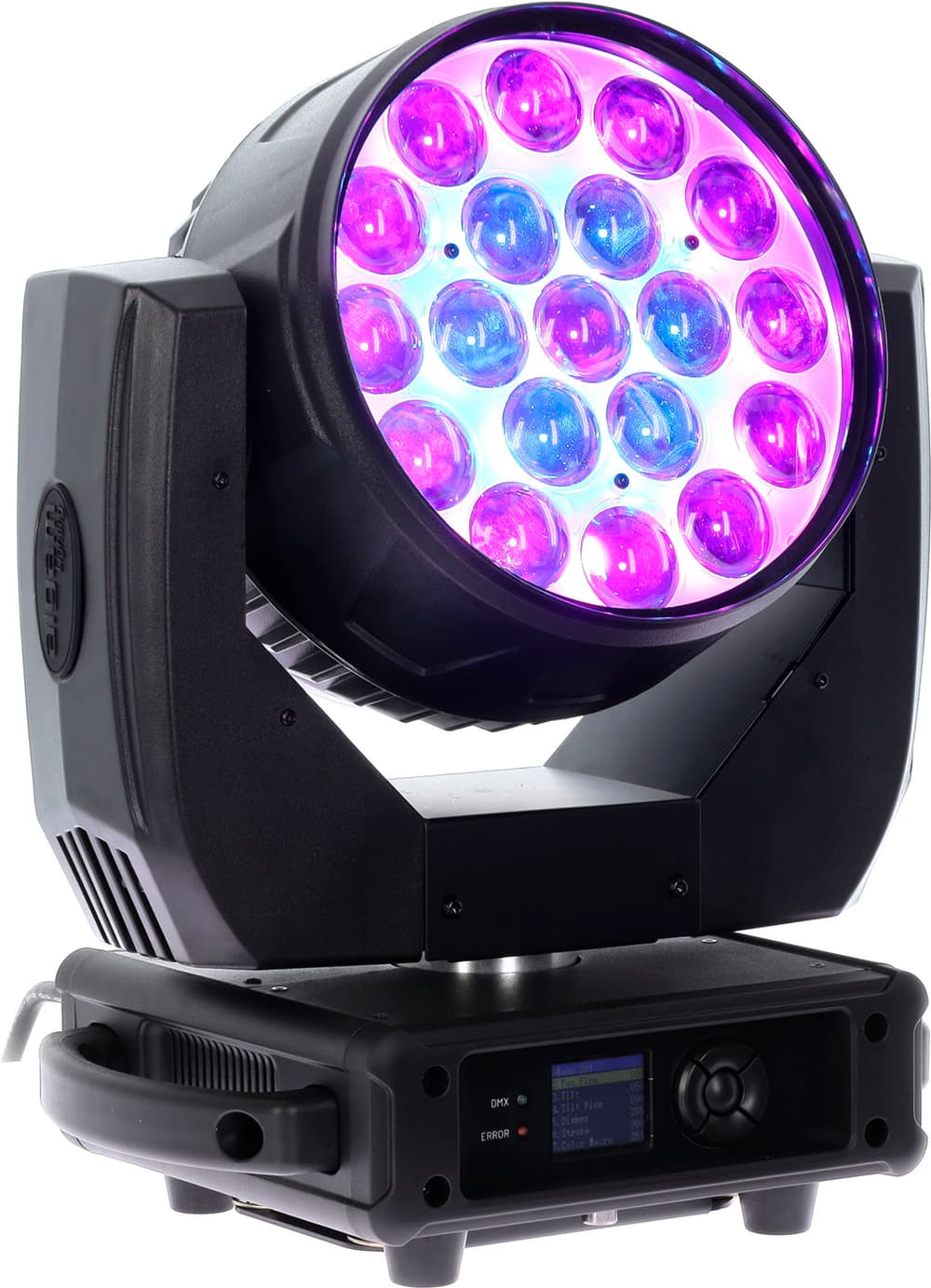

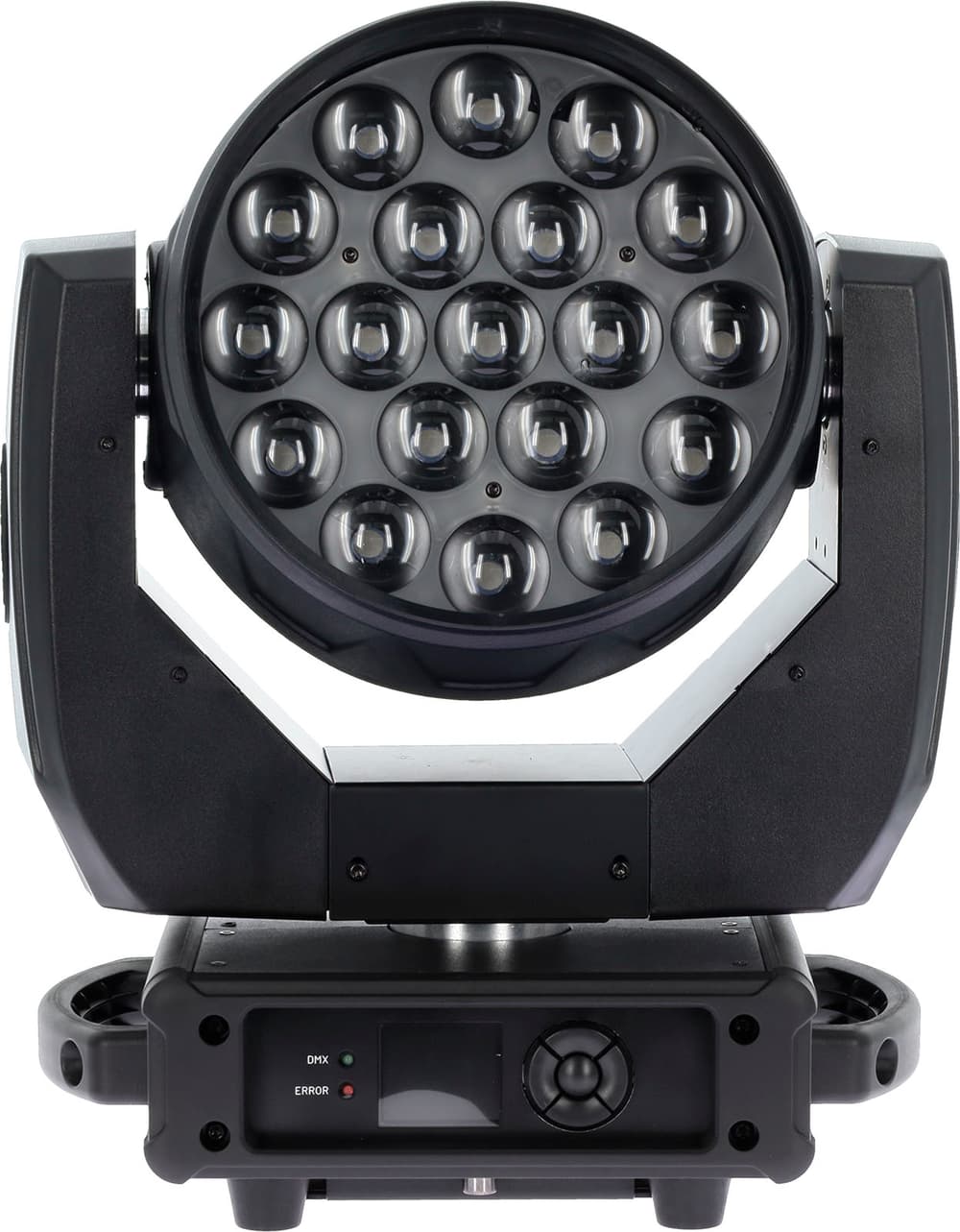

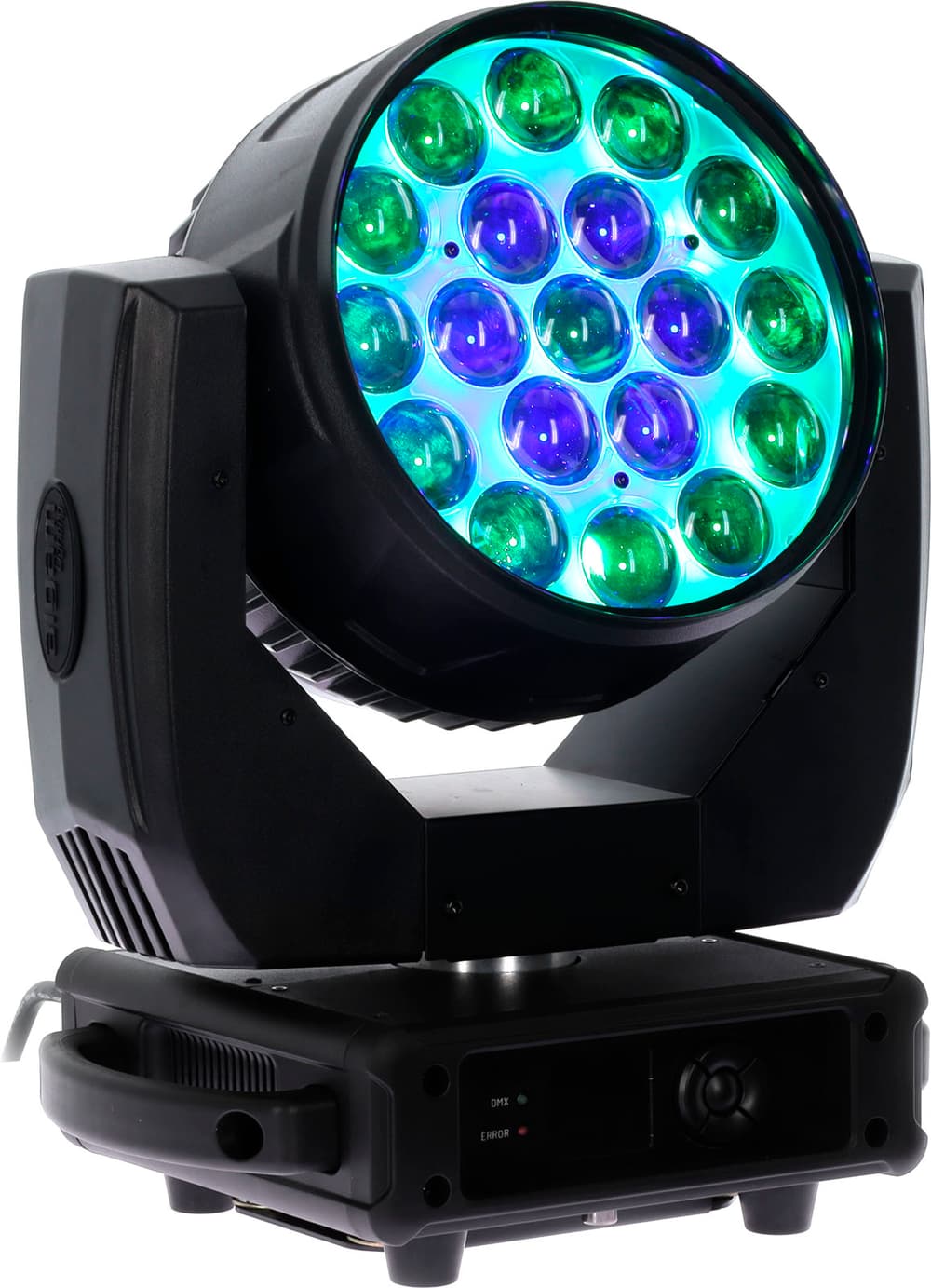

The Algam MW19X15ZX moving head offers a powerful motorized wash zoom, equipped with 19 15W RGBW LEDs that provide intense and versatile color reproduction. Its compact design in a black housing incorporates a 6° to 50° zoom, PAN movements up to 540° and TILT up to 270°, and multiple operating modes: automatic, music control, random and DMX. With a linear dimmer from 0% to 100%, built-in color macros and rainbow effect, this lyra guarantees dynamic and focused effects for events, shows and professional productions. Its 285W power supply, DMX control on 16 or 24 channels, active cooling and LCD display with 5 buttons complete this reliable and easy-to-use equipment for indoor environments (IP20).

Main features

• Color composition: RGBW (19 × 15 W LEDs)
• Power supply: 285 W
• Beam Angle: Motorized Zoom from 6° to 50°
• Movements: PAN 0–540°, TILT 0–270°
• Dimmer: 0–100% with linear curve
• Operating modes: Automatic, musical, random, DMX
• DMX Channels: 16 or 24

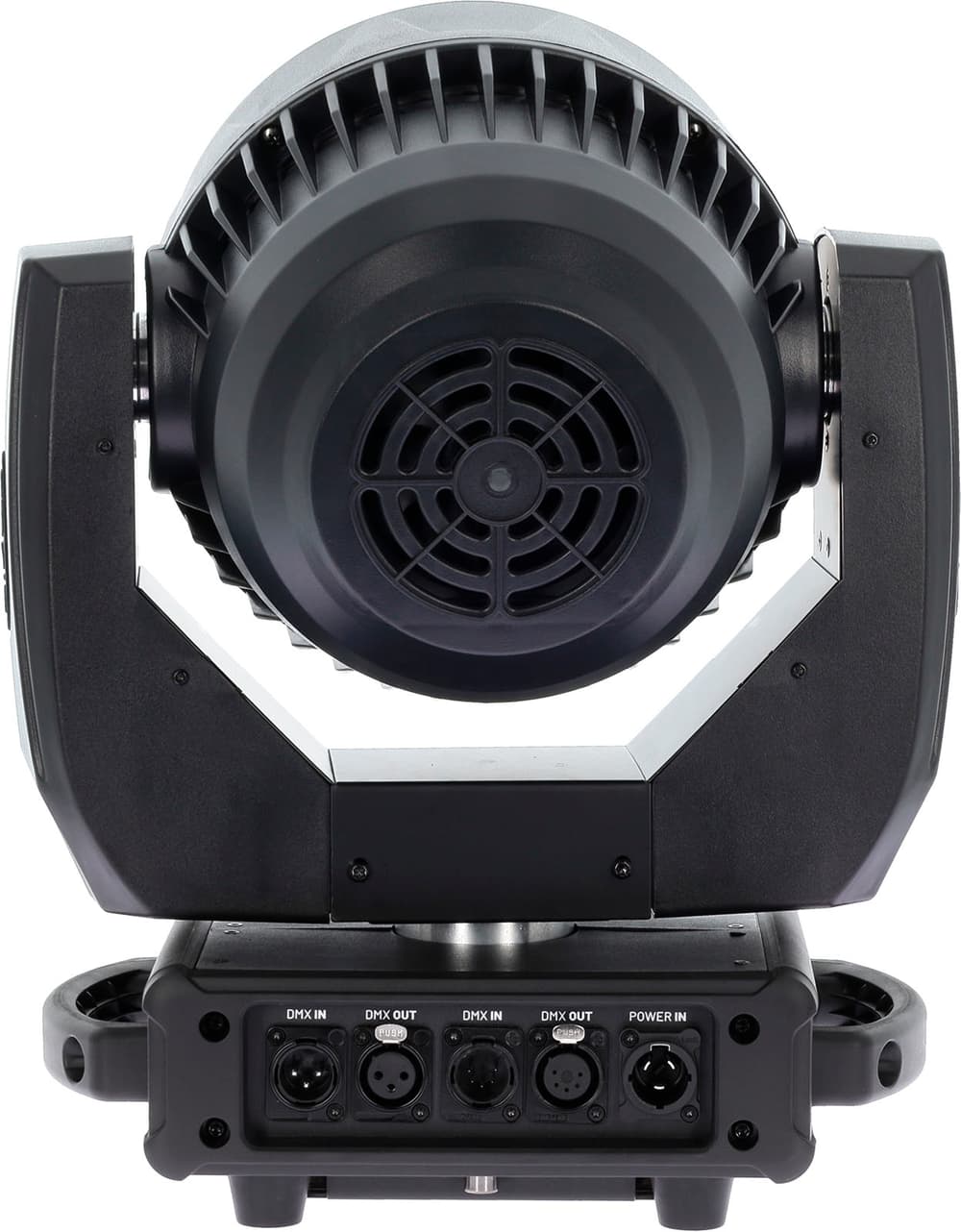

• DMX inputs/outputs: 3-pin and 5-pin XLR
• Display: LCD with 5 control buttons
• Cooling: Active with silent fans
• Chassis: Durable plastic, black
• Installation: Base with 2 OMEGA interfaces and safety sling
• Power connector: PowerCon True1
• Supply voltage: 100–240 V 50/60 Hz
• Power consumption: 285 W
• Weight and dimensions: 8.5 kg; 325 × 188 × 395 mm
• Protection index: IP20 (indoor)
• Includes: Power cable, OMEGA interface and safety lanyard

Product benefits

• Professional color effects: RGBW mixing for saturated tones and pure whites.
• Beam Flexibility: Motorized zoom for smooth transitions between narrow and wide angles.
• Precise movements: PAN and TILT with large range and calibrated position hold.
• Versatile Modes: Operates in DMX, Auto, Music or Master/Slave network mode.
• Intuitive control: Easy-access LCD screen and navigation buttons.
• Secure mounting: OMEGA brackets and sling for stable attachment to structures.
• High reliability: PowerCon True1 power supply and optimal ventilation.

Use cases

• Indoor concerts and festivals.
• Theater and dance performances.
• Corporate events and presentations.
• Installations in nightclubs and entertainment venues.
• Audiovisual projects and professional photography sessions.

Frequently Asked Questions

• How many DMX channels do you need? The MW19X15ZX supports 16- or 24-channel configurations depending on the desired level of control.
• Is the cooling quiet? Yes, its active cooling fans are optimized for quiet operation.
• Can I use it without DMX? Yes, it has automatic, music, and random modes for standalone use.
• How do I install the Lyra on truss? Use the two OMEGA interfaces and a safety sling for secure attachment.
• What maintenance does it require? Periodic cleaning of lenses and vents to ensure airflow.

Description for projects

Wash zoom moving head with 19 x 15 W RGBW LEDs, 6°–50° zoom, PAN 540°/TILT 270°, linear dimmer, DMX modes (16/24 channels), 285 W power supply, PowerCon True1, active cooling, black plastic structure, weight 8.5 kg, IP20.
