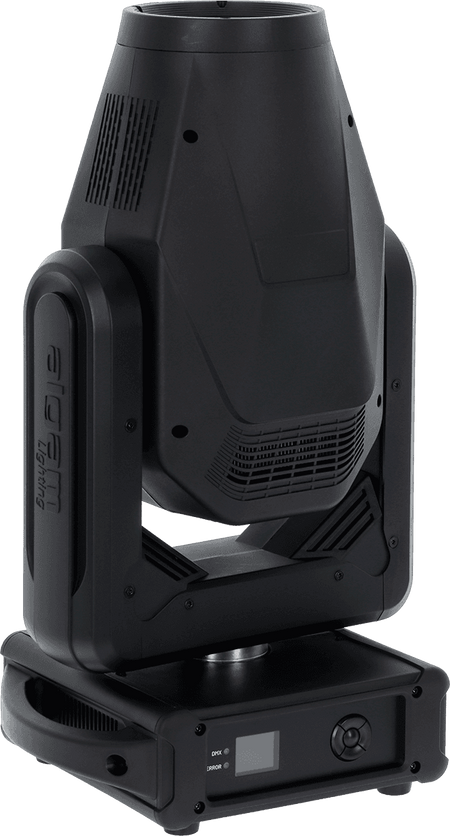

Algam MH200 - Hybrid Moving Head Wash / Spot / Beam 200W LED

Algam MH200 – 200W LED Hybrid Wash/Spot/Beam Moving Head

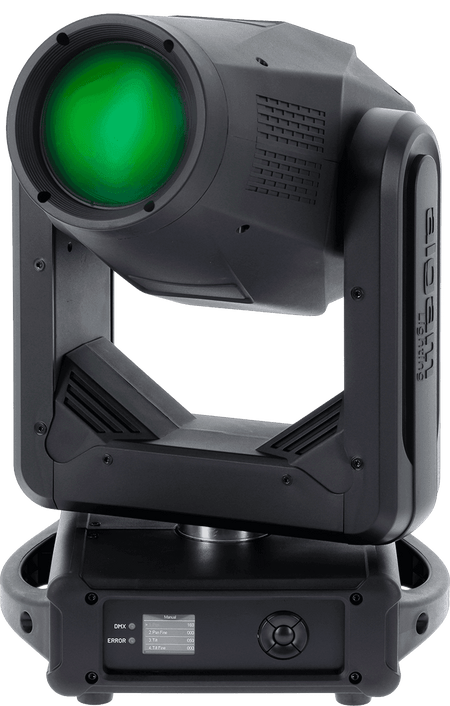

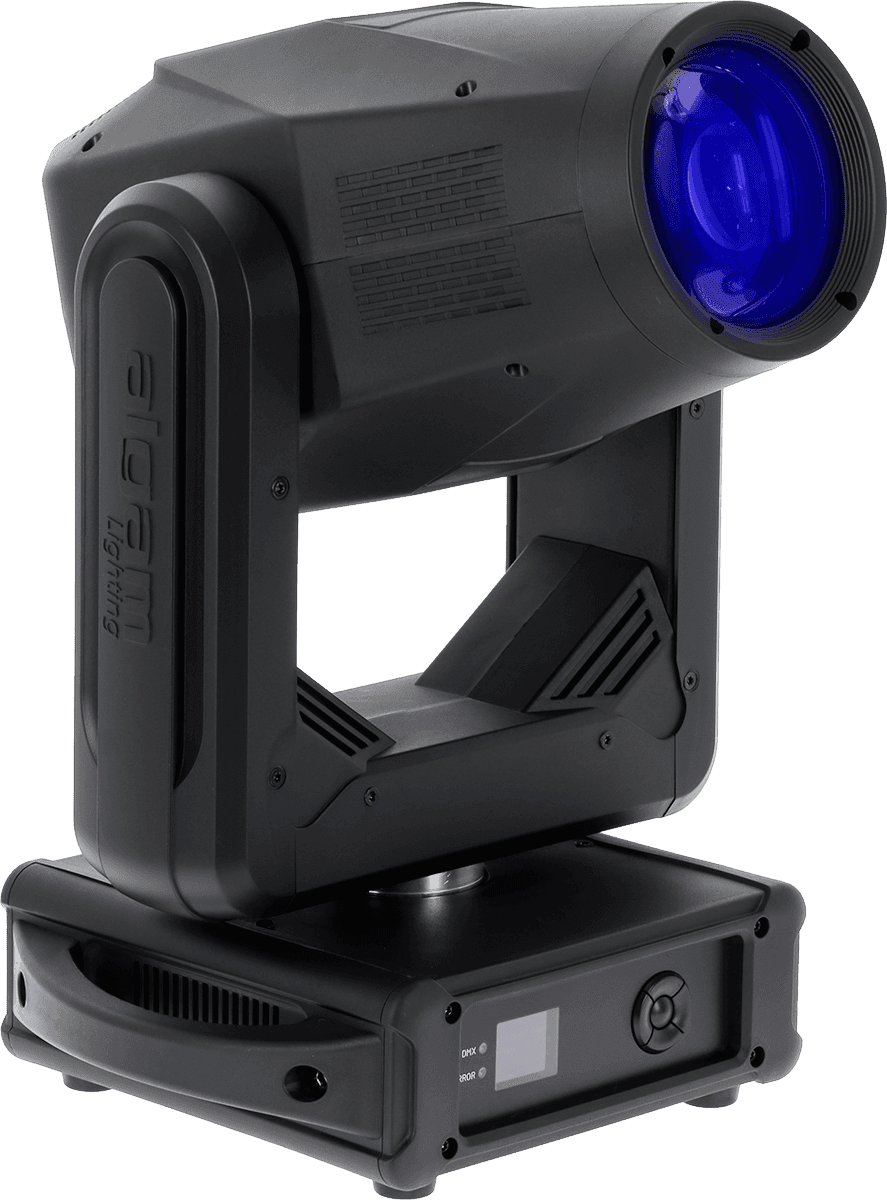

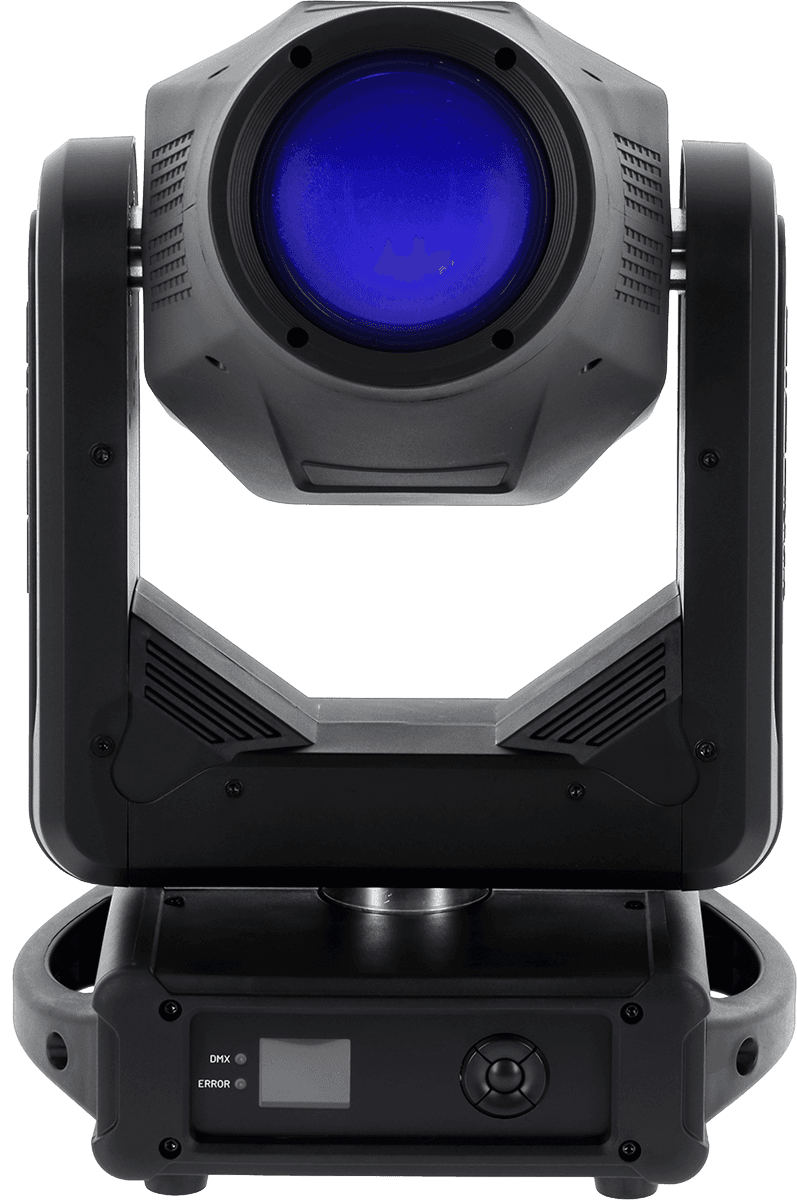

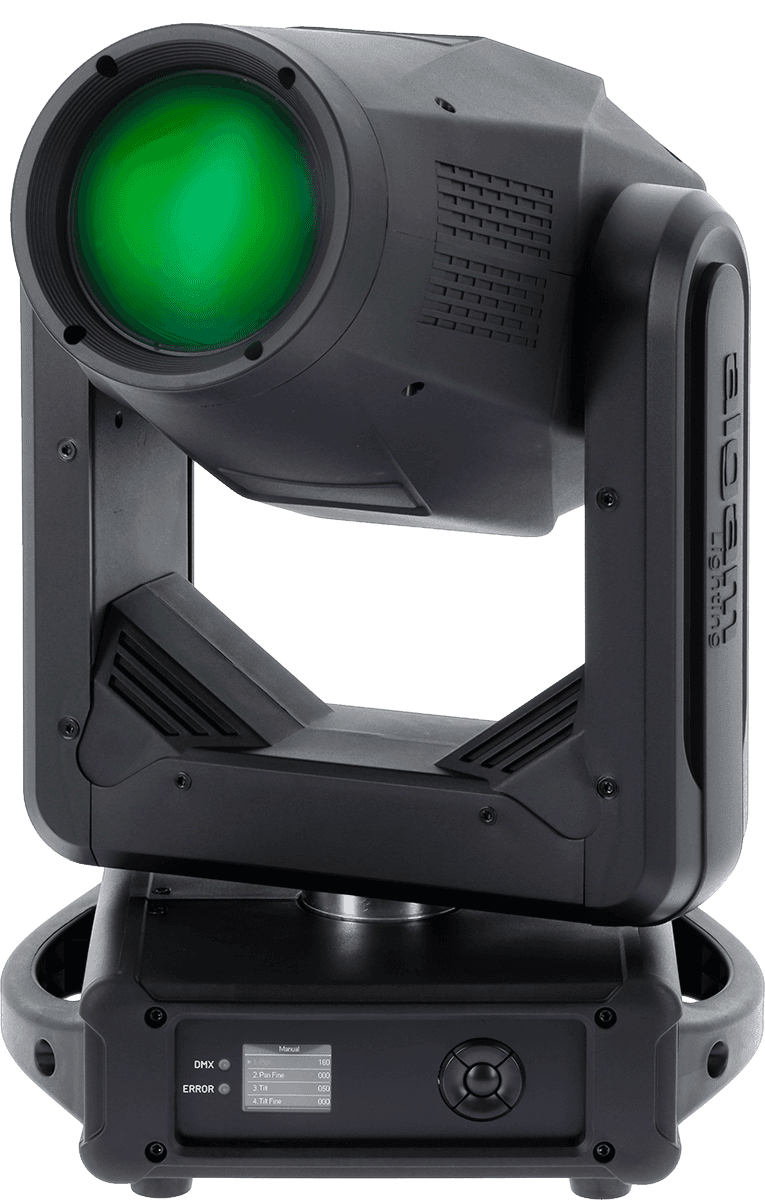

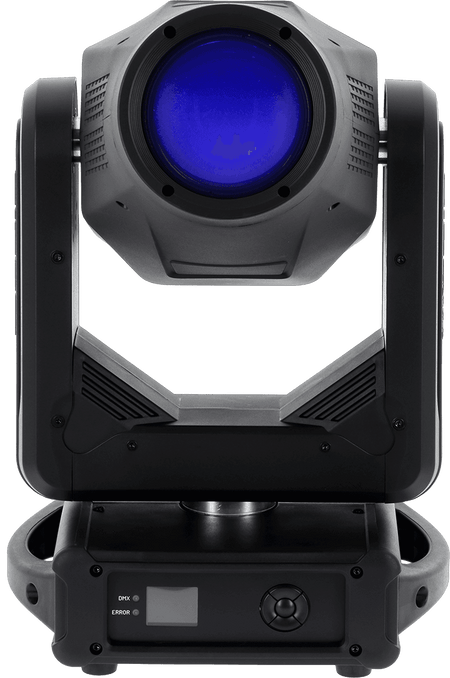

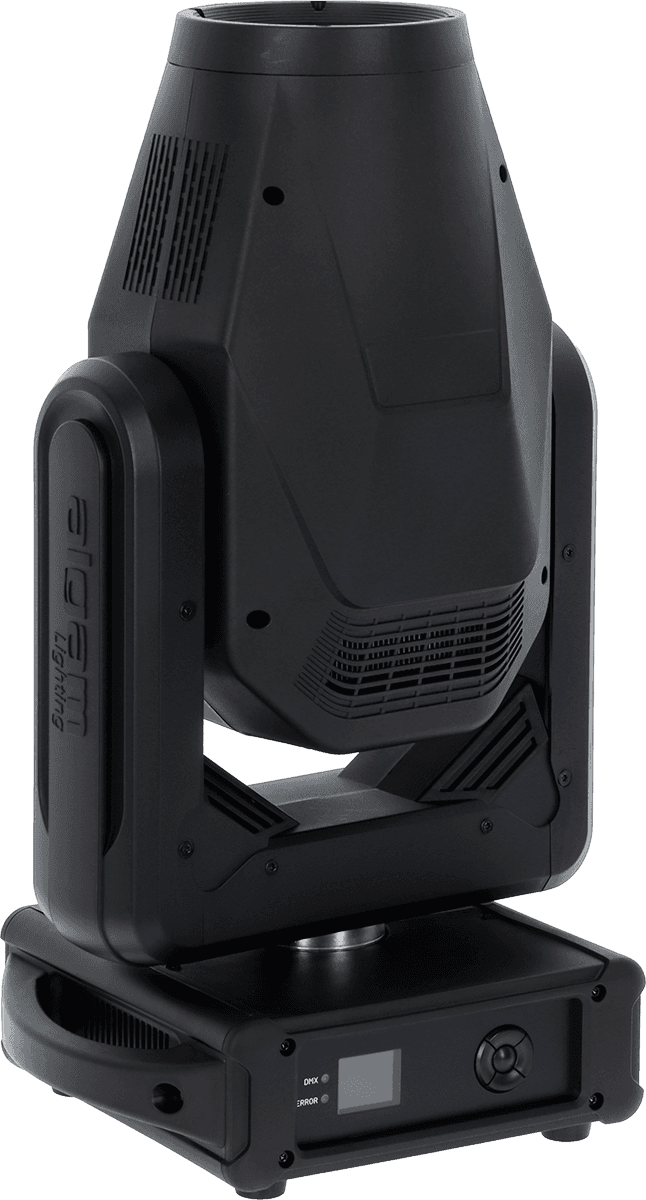

The Algam MH200 is a high-performance hybrid moving head designed to offer three functions in one: Wash, Spot, and Beam. Equipped with a powerful 200W white LED light source, it reaches up to 39,000 Lux at 5m, providing a bright and defined beam. Its motorized optics allow 4° to 35° zoom and linear focus, while its PAN (540°) and TILT (270°) motors ensure smooth and precise movements. With active cooling, RDM compatibility, and auto, music, master/slave, and DMX (16 or 20 channels) operating modes, the MH200 is the ideal fixture for professional indoor events, shows, and productions.

Main features

• Light source: 200 W white LED
• Brightness: 39,000 Lux @ 5 m
• Optics: Motorized zoom 4°–35°; Motorized focus 0–100% linear
• Dimmer: 0–100% with linear curve
• Frost: Motorized
• Prisms: 2 rotating prisms
• Gobos: Fixed wheel (9+white) and rotating (7)
• Color wheel: 9 colors + white
• Movement: PAN 0–540° / TILT 0–270°
• Control modes: Automatic, Musical, Master/Slave, DMX
• DMX Channels: 16 or 20

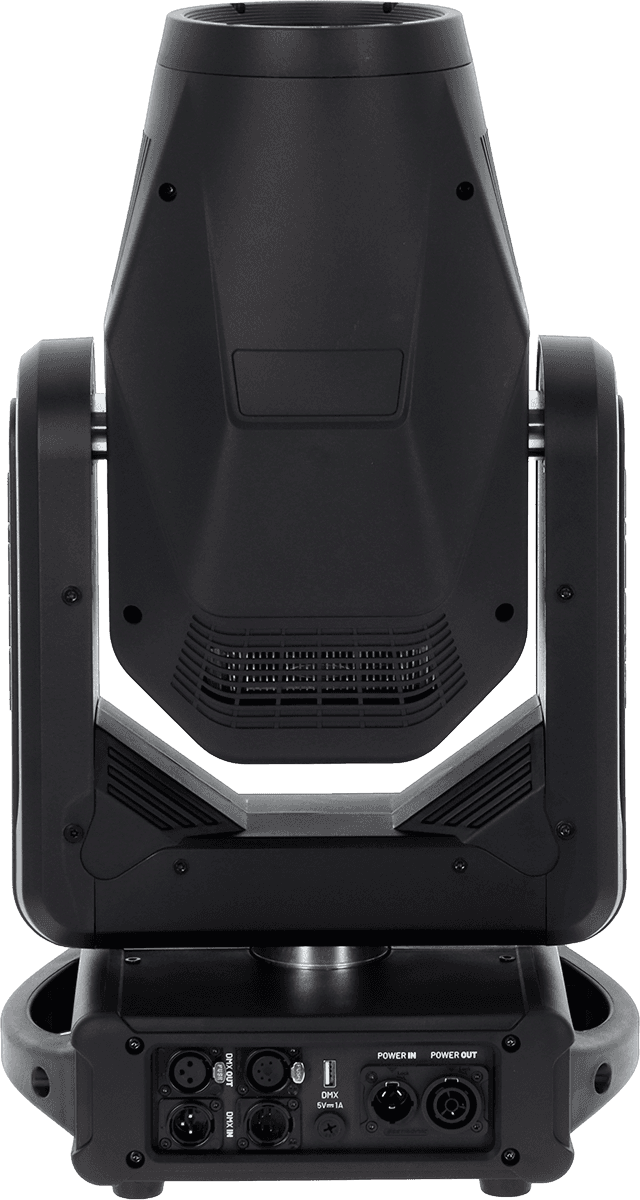

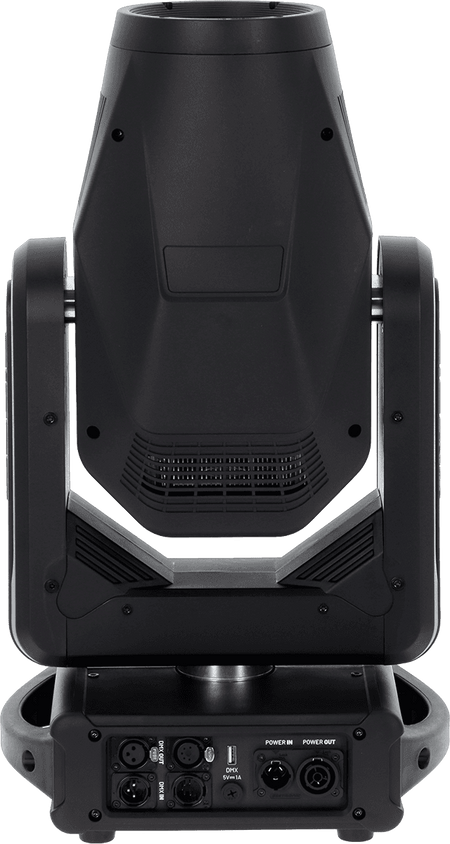

• DMX inputs/outputs: 3-pin and 5-pin XLR
• Display: LCD with 5 control buttons
• Cooling: Active
• RDM Compatibility: Yes
• Chassis: Professional black plastic
• Protection index: IP20 (indoor use)

Product benefits

• 3-in-1 versatility: A single unit for spot beam effects, spot projections with gobos and stage wash.
• Motorized zoom and focus: Quick and precise transitions between different beam angles.
• High light output: Ideal for large stages and spaces with high ambient light.
• Advanced Control: Multiple operating modes and DMX/RDM compatibility to integrate into any installation.
• Efficient cooling: Active cooling ensures continuous operation without overheating.
• Rugged Design: Professional chassis and heavy-duty hardware ensure durability for touring and rental use.

Use cases

• Live music shows and large-scale concerts.
• Theaters and stage productions with rapid changes of atmosphere.
• Corporate events and presentations in auditoriums.
• Discos and clubs that require dynamic, colorful spotlights.
• Photography and video sessions where beam and gobo control is required.

Frequently Asked Questions

• What is the power consumption? 350 W.

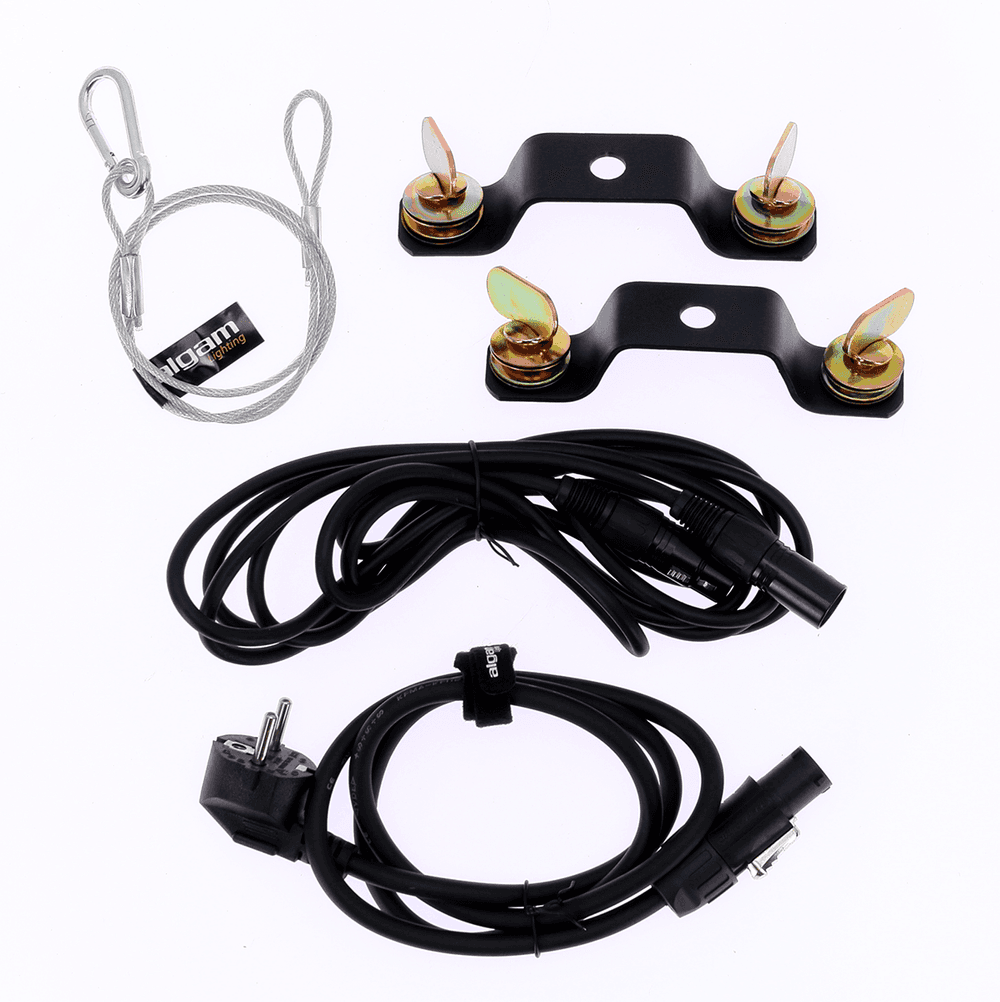

• What type of power connector does it use? PowerCon T1 (input and output).
• Can a wireless receiver be powered? It has a USB port to power external devices.
• What maintenance is required? Periodic cleaning of lenses and vents.
• Is it compatible with RDM systems? Yes, it allows remote configuration and monitoring.

Description for projects

Hybrid moving head with 200W white LED, 39,000 Lux at 5m, 4°–35° zoom, PAN 540°/TILT 270°, motorized dimmer and focus, 2 prisms, fixed and rotating gobos, color wheel, DMX modes (16/20 ch), PowerCon T1, active cooling, IP20.
