AKG PZM11LLWR - Waterproof Outdoor Security Microphone

AKG PZM11LLWR - Waterproof Outdoor Security Microphone (Boundary Hemispherical, Line Level Output)

The AKG PZM11LLWR is a boundary microphone ( Pressure Zone Microphone ) designed for security, intercom and outdoor surveillance applications . Its electret condenser capsule works in a hemisphere when recessed in a wall or ceiling, and its electronics deliver a balanced line-level output , ideal for connecting directly to line inputs on intercoms, recorders/DVRs or matrix systems without the need for a microphone preamp. It is protected by a plastic membrane located behind the grille that makes it resistant to rain and ambient humidity (not submersible). It installs in a standard electrical box with a minimum depth of 51 mm and is wired using screw terminals for audio and power. Its response is optimized for voice (80 Hz–10 kHz), attenuating traffic noise and enhancing articulation.

Main features

• Outdoor design: weather-resistant construction with an internal membrane that protects the capsule from rain and splashes.
• Recessed and discreet installation: mounting in a standard electrical box (minimum depth 51 mm) and connection via AUDIO+/AUDIO−/GND terminals .
• Line-level output: Internal electronics with balanced (or unbalanced by wiring) output for long lossless runs; impedance 75 Ω .
• Single power supply: 12–24 V AC or DC (typical consumption 4 mA); phantom power available upon request.
• Clear voice pickup: hemispherical pattern; 80 Hz–10 kHz response with bass cut and treble boost for intelligibility.

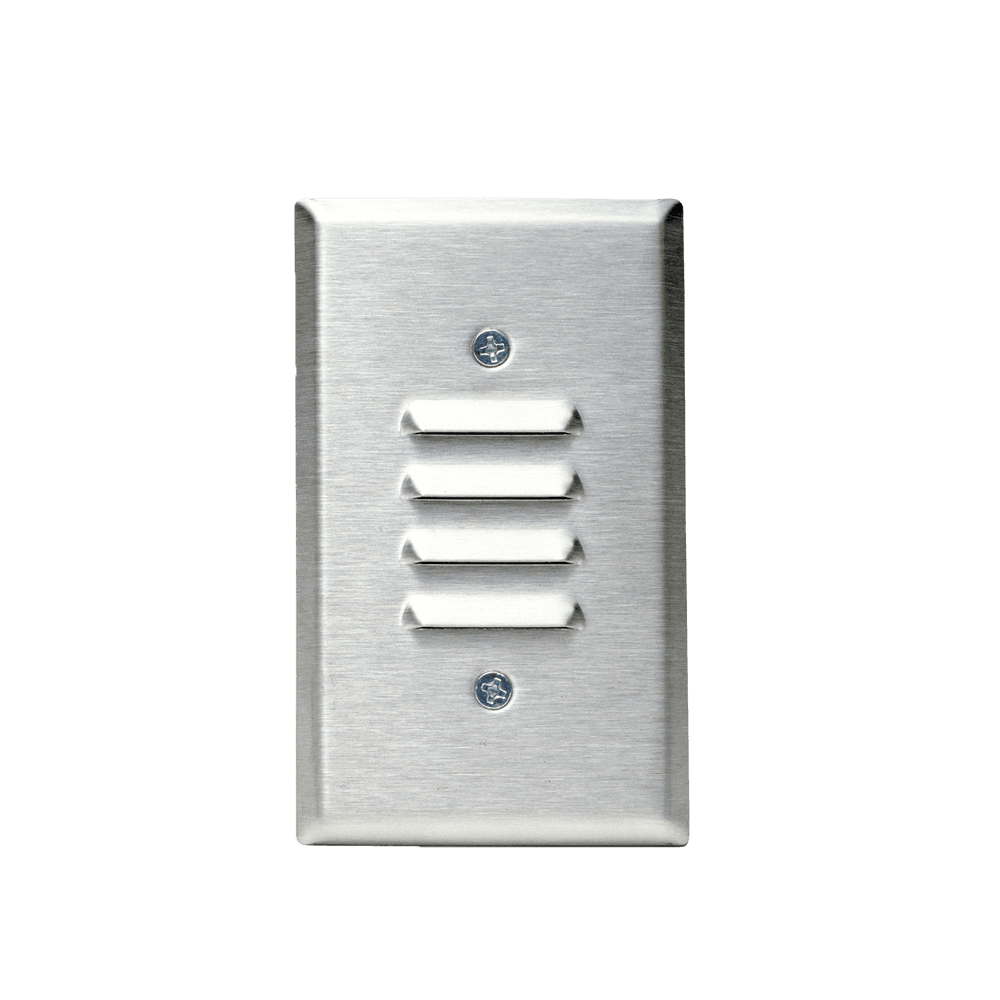

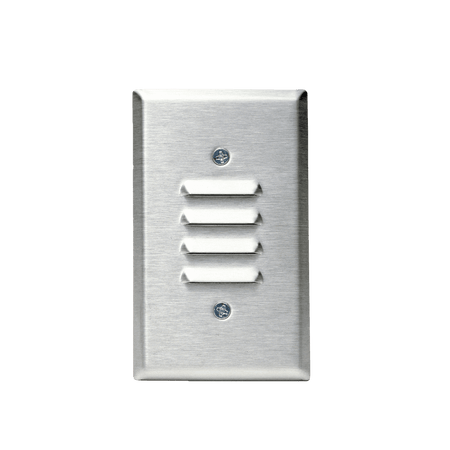

• Wall format: metal plate with ventilation slots; silver finish (can be painted with caution).
• Stable performance: Self-noise 26 dB-A , SNR 68 dB(A) , max. SPL approx. 100 dB (3% THD at max. gain).

Product benefits

• Direct integration into security systems: The balanced line output allows direct connection to recording or intercom equipment without additional preamps.
• High intelligibility in noisy environments: speech-optimized response that reduces traffic rumble and improves consonants.
• Quick and maintainable installation: mounts to a common electrical box and uses screw terminals for reliable wiring.
• Outdoor operation: Operates during and after rain; predictable behavior when drying after water or ice.

Use cases

• Outdoor intercoms (fast food, parking, SOS, tolls).
• Discreet surveillance at entrances, pergolas, booths, portals and lockers.
• Home automation/security integration in smart homes or buildings.

Frequently Asked Questions

• Is it waterproof or submersible? No. It is weather-resistant (rain), but it is not designed for immersion or high-pressure jets directly onto the membrane.
• Need 48V phantom power? This version is powered by 12–24V AC/DC . Phantom power is factory-configured upon request.
• How is it mounted? In a standard electrical box (min. 51 mm deep). Audio is output via the AUDIO+/AUDIO−/GND terminals, and power is output via terminals marked “~”.
• Can it be painted? Yes, the silver finish is paintable. Avoid painting the inside of the grille to avoid damaging the membrane.

Description for projects

AKG PZM11LLWR outdoor boundary microphone; hemispherical pattern; electret condenser transducer; response 80 Hz–10 kHz ; balanced line-level output (75 Ω) via AUDIO+/AUDIO−/GND terminals; self-noise 26 dB-A , SNR 68 dB(A) , max. SPL 100 dB (3 % THD at max. gain); power supply 12–24 V AC/DC (≈ 4 mA); temperature range −10 to +60 °C ; dimensions 115.1 × 70.6 × 43.7 mm ; weight 0.071 kg ; electrical box mounting (min. 51 mm).
