AKG H500 - Suspension stand for gooseneck microphones

AKG H500 – Shock mount for DAM/DAM+ gooseneck microphones with 12 dB vibration attenuation

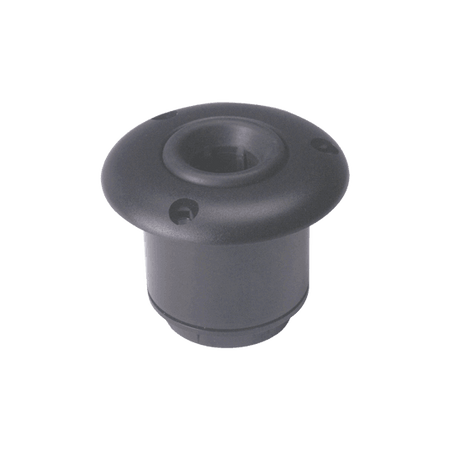

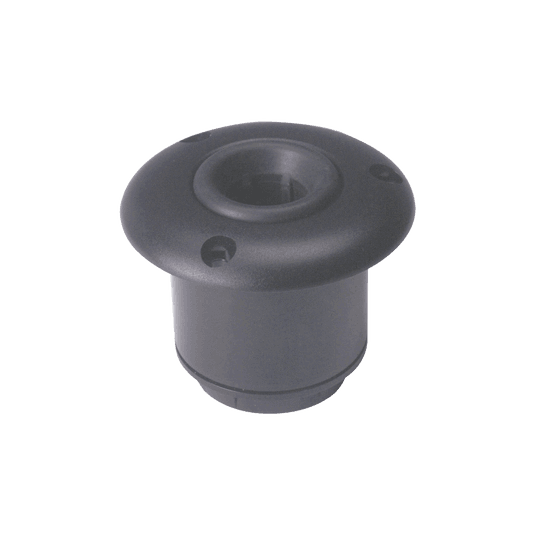

The AKG H500 is a suspension shock mount designed for flush-mounting AKG's modular installation gooseneck microphones. It isolates the microphone from structure-borne noise from a table or lectern with up to 12 dB attenuation , improving intelligibility in lecture halls, houses of worship, parliaments, or auditoriums. Its construction combines a low-profile plastic housing with an elastic inner insert , facilitating a secure, durable, and low-maintenance mount.

The H500 is designed to fit Discreet Acoustics Modular (DAM) Series “E” and “ES” gooseneck modules (e.g. GN15E/GN30E/GN50E ) and, in the DAM+ generation, is designed to accommodate even longer goosenecks such as the GN50 M . It requires a 50mm diameter hole for flush mounting in a tabletop or pulpit, and allows for quick installation and removal when mobile mountings are required.

Main features

• Mechanical isolation : reduction of structure-borne noise by approximately 12 dB .
• Compatibility : AKG goosenecks of the DAM (E/ES) and DAM+ series (capable of supporting long necks such as GN50 M ).
• Flush mount : hole Ø 50 mm (2”), ideal for tables, lecterns and fixed furniture.
• Robust construction : Low-profile plastic housing with elastic insert that decouples vibrations.
• Professional use : economical and reliable solution for AV installations with gooseneck microphones.

Product benefits

• Improved intelligibility by minimizing table tapping, typing, and furniture vibrations.
• Easy installation : standard 50mm cut-out and designed for quick assembly/disassembly .
• Versatility : Suitable for different gooseneck lengths and table or music stand configurations.

Use cases

• Meeting and conference rooms with built-in microphones in tables.
• Temples, parliaments and auditoriums where minimum surface noise absorption is required.
• Presentation tables or lecterns for corporate and educational events.

Description for projects

AKG H500 suspension stand for gooseneck microphones. Vibration attenuation approx. 12 dB ; flush-mountable in Ø 50 mm (2 ”) hole; low-profile plastic housing with elastic insert . Compatibility : AKG DAM gooseneck modules ( E/ES versions, e.g. GN15E/GN30E/GN50E) and DAM+ (capable of supporting long necks such as GN50 M). Application: structure-borne noise reduction on tables/music stands.
