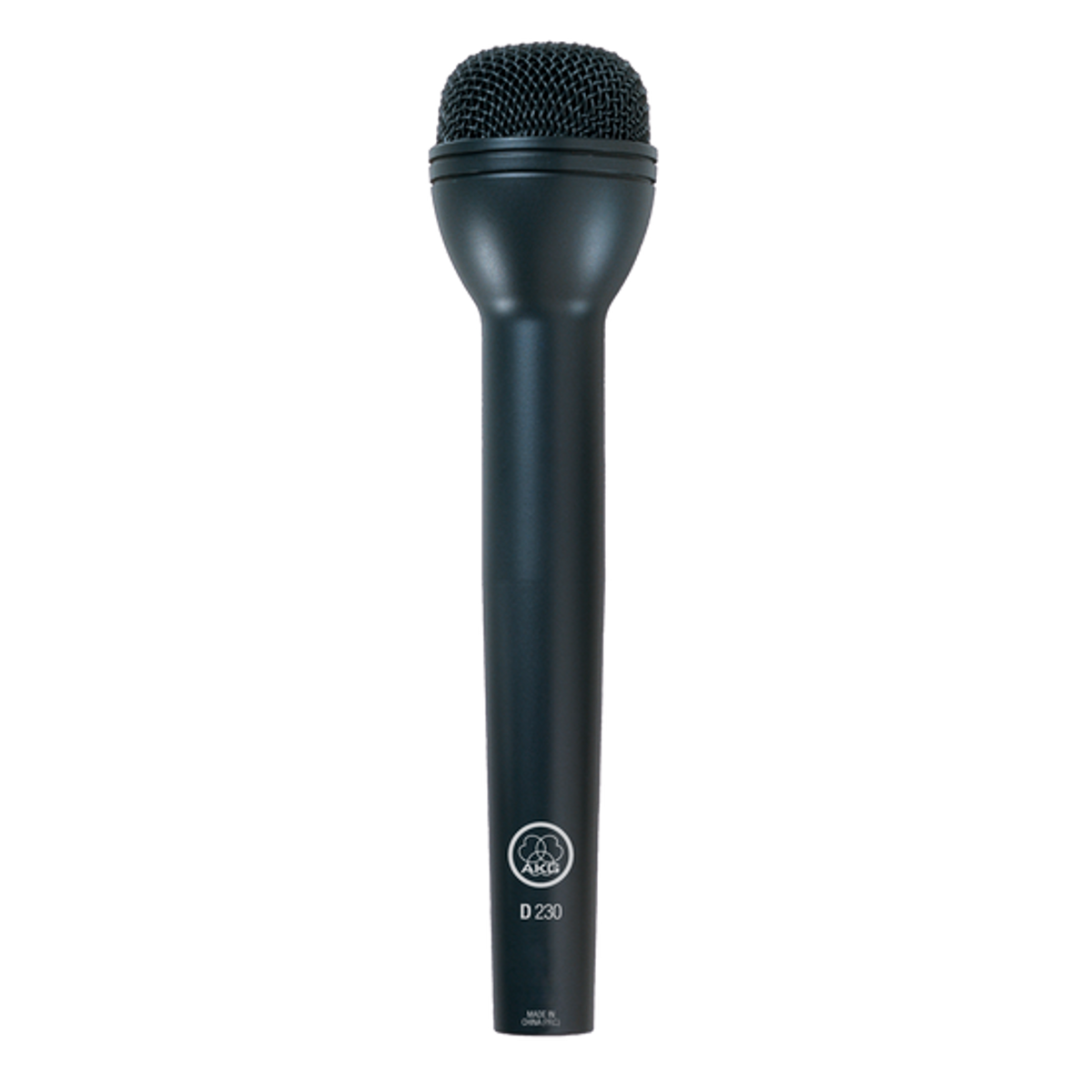

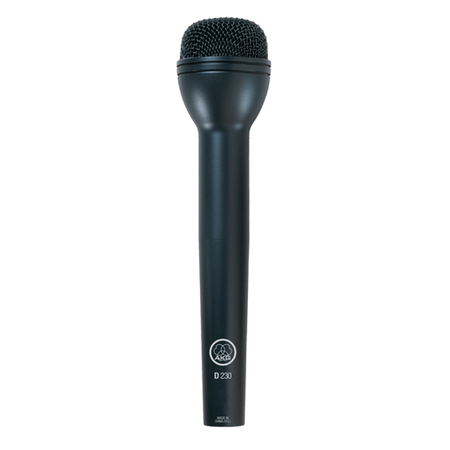

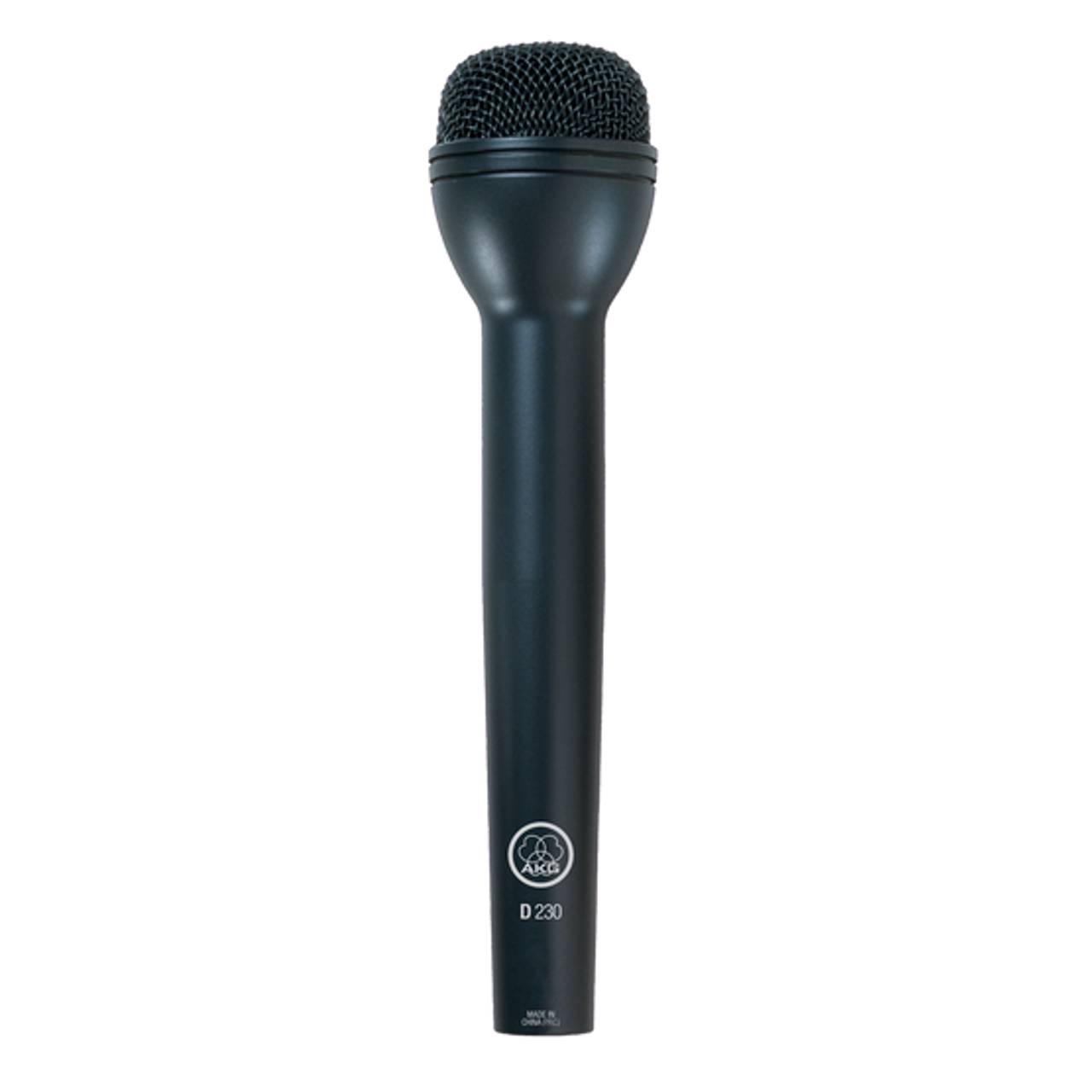

AKG D230 - Omnidirectional dynamic microphone for ENG/EFP with low handling and integrated windscreen

AKG D230 - Omnidirectional dynamic microphone for ENG/EFP with low handling and integrated windscreen

The AKG D230 is a handheld dynamic microphone designed specifically for journalism and reportage ( ENG/EFP ). Its omnidirectional polar pattern ensures uniform pickup angle and eliminates proximity effect , maintaining a natural timbre even when the interviewee moves closer to or further from the mic. It features an internal windscreen and the transducer element is elastically suspended to minimize handling noise . A hum-compensation coil allows working near AC-powered equipment and power lines with reduced risk of interference. Its extremely rugged metal body and non-reflective dark gray finish make it unobtrusive on camera. With a 30–20,000 Hz response , 2.5 mV/Pa sensitivity and balanced XLR output , it sets the standard for reliability in radio and television.

Main features

• Omnidirectional pattern with no proximity effect for consistent interviews from any angle.
• Internal windscreen and transducer suspension for low handling noise in mobile situations.
• Hum compensation coil to reduce interference from nearby magnetic fields.
• All- metal construction with non-reflective dark gray finish suitable for camera use.
• Professional connectivity : 3-pin XLR output, 600 Ω and recommended load > 2 kΩ .
• Frequency response 30–20,000 Hz and sensitivity 2.5 mV/Pa (−52 dBV re 1 V/Pa).
• Dimensions and weight : 218 mm length, 50 mm max diameter, 225 g .
• Included accessory : SA44 foot adapter; recommended accessories: W23 (windproof), SA61 , ST1/ST45/ST46/ST305 .

Product benefits

• Interviews without surprises : Omni pickup prevents dropouts when the interviewer moves the microphone between multiple voices or changes the angle.
• Clean audio on the road : less wind and handling noise thanks to the internal design and element suspension.
• True field reliability : ultra-durable metal body and discreet finish designed for on-camera shooting .
• Universal Integration : Standard balanced XLR output and dynamic operation (no power required).
• Ergonomics for TV : its elongated shaft makes it easier to place station flags without compromising grip.

Use cases

• ENG/EFP : on-site reports, press conferences and live coverage.
• Radio : hallway interviews and mobile units.
• Institutional and corporate : statements to the media, events and fairs.

Frequently Asked Questions

• Is it cardioid? No. The D230 is omnidirectional , ideal for interviews where the pickup angle is constantly changing.
• Does it need phantom power? No. Because it's dynamic , it doesn't require power to operate.
• What accessories are included and which are recommended? Includes SA44 (stand adapter). W23 (foam windscreen) is recommended for outdoor use.

Description for projects

AKG D230 Handheld Dynamic Microphone for ENG/EFP; omnidirectional pattern ; 30–20,000 Hz ; 2.5 mV/Pa (−52 dBV re 1 V/Pa); impedance 600 Ω ; recommended load >2 kΩ ; 3-pin XLR output; length 218 mm ; diameter 50 mm ; weight 225 g ; internal windscreen ; low handling (sprung element); hum compensation coil ; metal body, dark gray finish; includes SA44 .
