AKG CK49 - Shotgun format capsule with W49 windshield

AKG CK49 - Supercardioid shotgun capsule for DAM+ systems with W49 windscreen

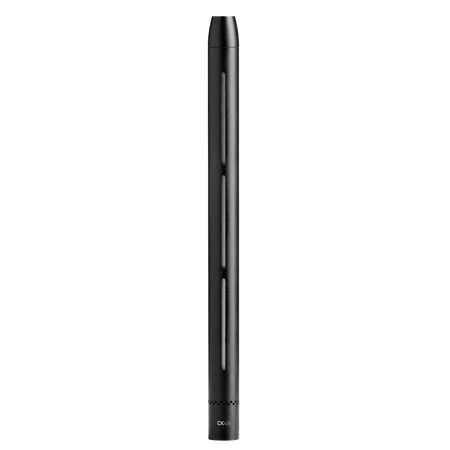

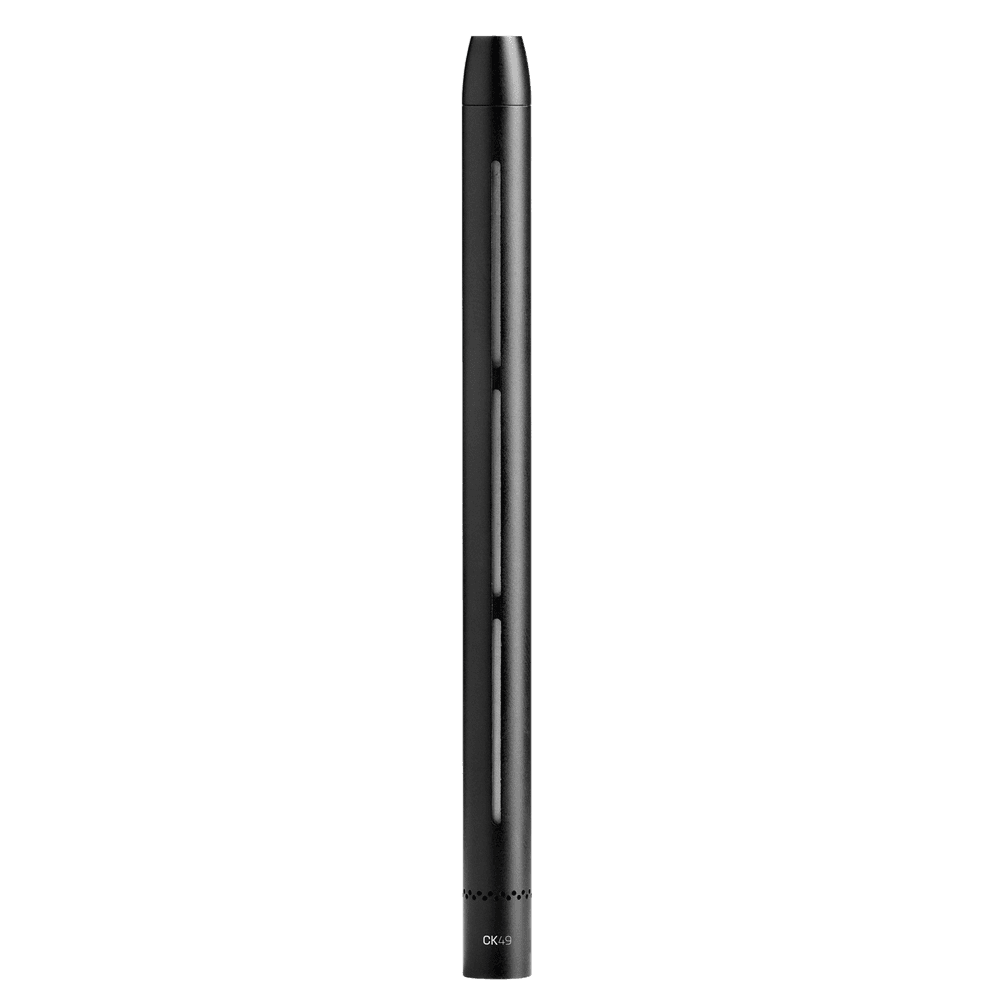

The AKG CK49 is a supercardioid shotgun condenser capsule designed for AKG's Discreet Acoustics Modular Plus (DAM+) modular system. It offers an 80° pickup angle with clean off-axis response, delivering clear vocal capture from greater distances from lecterns or pulpits, as well as close-quarters use with reduced pop noise. Its design is derived from the renowned CK47, utilizing AKG's signature staple capsule technology for studio-quality audio in demanding fixed installations.

The CK49 is housed in a slim metal body and attaches directly to DAM+ goosenecks (GN15 M/GN30 M/GN50 M) and the HM1000 M pendant module . It is supplied with the W49 foam windscreen , which effectively reduces wind noise and plosives. Its specifications are optimized for speech: 60 Hz–20 kHz , sensitivity 10 mV/Pa , equivalent noise frequency 30 dB(A) , S/N ratio 64 dB(A) and max SPL 136 dB (3% THD). With a matte black finish and a very discreet form factor ( 122 mm × Ø 9 mm , 24.9 g ), it is ideal for conference rooms, theaters, universities and houses of worship.

Main features

• Supercardioid Shotgun (80°) : High directionality with side rejection for improved intelligibility in reverberant spaces.
• Natural response from 60 Hz to 20 kHz and precise transients in voice and speech.
• Includes W49 windscreen : effective reduction of wind and pops on music stands and close use.
• Full DAM+ compatibility : direct mounting on GN15 M/GN30 M/GN50 M and on HM1000 M (modularity for tabletop or suspension).
• Large surface area, deep threaded gold-plated contacts : reliable connection and long service life.
• Narrow and discreet construction : 122 mm high and Ø 9 mm , matte black finish.

Product benefits

• Greater usable reach from the lectern or pulpit without sacrificing clarity thanks to the narrow pattern and 80° angle.
• Less ambient noise and better feedback control in difficult or multi-monitor rooms.
• Plug & play integration with the DAM+ family and possibility of pendant use with HM1000 M for choirs or conferences.
• Reliable operation in permanent installations: self-cleaning contacts and included windscreen to reduce maintenance.

Use cases

• Lecterns and lectures : main voice with high distance intelligibility.
• Worship centers : readings and sermons with control of the choir stall or hall.
• Theatre and auditoriums : spot voice reinforcement on stage or discrete pendant pickup.
• Universities and multipurpose halls : fixed installation with DAM+ goosenecks or HM1000 M suspension.

Description for projects

AKG CK49 supercardioid shotgun capsule for DAM+ system, 80° pickup angle, 60 Hz–20 kHz , 10 mV/Pa , Noise 30 dB(A) , S/N 64 dB(A) , max. SPL 136 dB (3 % THD) . Matte black metal body, 122 mm × Ø 9 mm , 24.9 g . Modular Series (DAM+) connector. Compatible with GN15 M/GN30 M/GN50 M and HM1000 M. Includes W49 windscreen .
