Samson AirLine 77 Guitar System AF1 (N2) - UHF Wireless Guitar/Bass System without Bodypack (with True Diversity Receiver)

Samson AirLine 77 Guitar System AF1 (N2) - UHF Wireless Guitar/Bass System without Bodypack (with True Diversity Receiver)

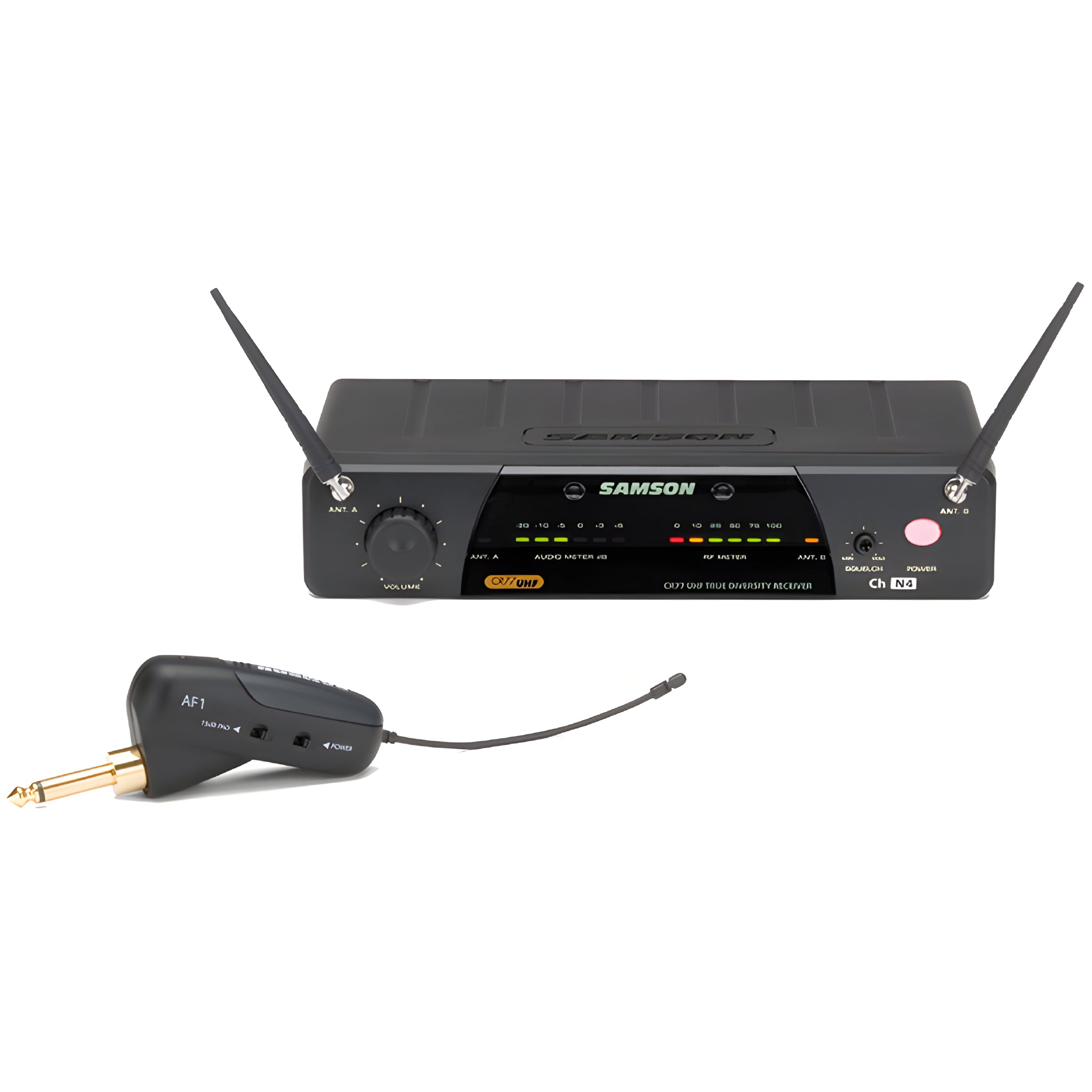

The Samson AirLine 77 Guitar System AF1 is a wireless guitar and bass system that completely eliminates the need for a bodypack: the AF1 transmitter connects directly to the guitar via an angled 1/4" jack (designed for Fender/Stratocaster-style inputs with recessed connectors). The system includes the CR77 UHF True Diversity receiver , which provides link stability with A/B antenna indicators , RF and audio level LED meters , and balanced XLR and unbalanced 1/4" jack outputs switchable to Mic/Line level. The N2 version operates on the 642.875 MHz (UHF) channel , ideal for stages and backline applications that demand reliability.

The AF1 offers up to 14 hours of battery life on a single AAA battery and features a −15 dB pad for matching the output of high-gain instruments. The CR77 adds squelch control, mic/line level selection, and a typical range of up to 90 m (300 ft ) line-of-sight. It's a compact, straightforward solution for guitarists and bassists who want cable-free mobility and a simple workflow.

Main features

• Bodypack-free system: AF1 transmitter plugs into the instrument (1/4" jack), optimized for Fender/Strat type inputs with flush-mount connector (~45° angle).
• CR77 True Diversity Receiver: two antennas with A/B indicator , RF and audio meters , and Squelch control .
• Band/channel N2: 642.875 MHz (UHF with PLL control).
• Transmitter battery life: up to 14 h with 1 × AAA; −15 dB pad , power/battery LED.
• Receiver Connectivity: Balanced XLR and unbalanced 1/4" Jack with Mic/Line switching .
• Audio performance: system response 50 Hz – 15 kHz , S/N ~90 dB(A) .
• Typical range: up to 90 m line of sight.
• Includes: power adapter for the receiver and 1/4"–1/4" cable for connection to amplifier/table.

Product benefits

• Complete freedom of movement: no guitar cases or cables; just plug in the AF1 and play.
• Live stable link: True Diversity with active antenna reading and VU meters to monitor RF and audio.
• Easy integration: XLR and Jack outputs with Mic/Line selection to adapt to amps, interfaces or mixers.
• Long battery life: up to 14 hours with a single AAA battery; fewer battery changes and greater reliability on tour.

Use cases

• Live guitar/bass with clean sets and quick changes.
• Rehearsal and backline avoiding cables and bodypacks.
• Recording/reamping by sending stable wireless signal to the controller.

Frequently Asked Questions

• Does it work with any guitar? The AF1 is designed for recessed Fender/Strat inputs . For "flat" jacks, use the transmitter from the straight-connector series (AG1).
• What's in the box? CR77 receiver, AF1 transmitter, receiver power adapter , and 1/4"–1/4" cable .
• Can I adjust the output level? Yes. The receiver has a Mic/Line switch and level control; the transmitter has a −15 dB pad .

Description for projects

UHF wireless system for guitar/bass without bodypack; N2 channel = 642.875 MHz ; AF1 transmitter with angled (~45°) 1/4" jack for Fender-type inputs; up to 14 h battery life (1 × AAA), −15 dB pad , battery LED; CR77 True Diversity receiver with A/B antenna indicators , RF/AF meters, squelch , XLR and 1/4" jack outputs with Mic/Line switching ; system response 50 Hz–15 kHz , S/N ≈ 90 dB(A) ; typical range up to 90 m (line of sight); includes power adapter and 1/4"–1/4" cable.
