ADAM Audio A44H - Active Studio Monitor

ADAM Audio A44H - 4" 2-Way Active Studio Monitor

The ADAM Audio A44H is a low-profile, landscape-oriented active studio monitor designed to function as a center speaker in immersive 5.1, 7.1, and 3D systems. At 19 inches wide, it integrates effortlessly into standard racks or beneath displays, delivering accurate and detailed sound reproduction.

Main features

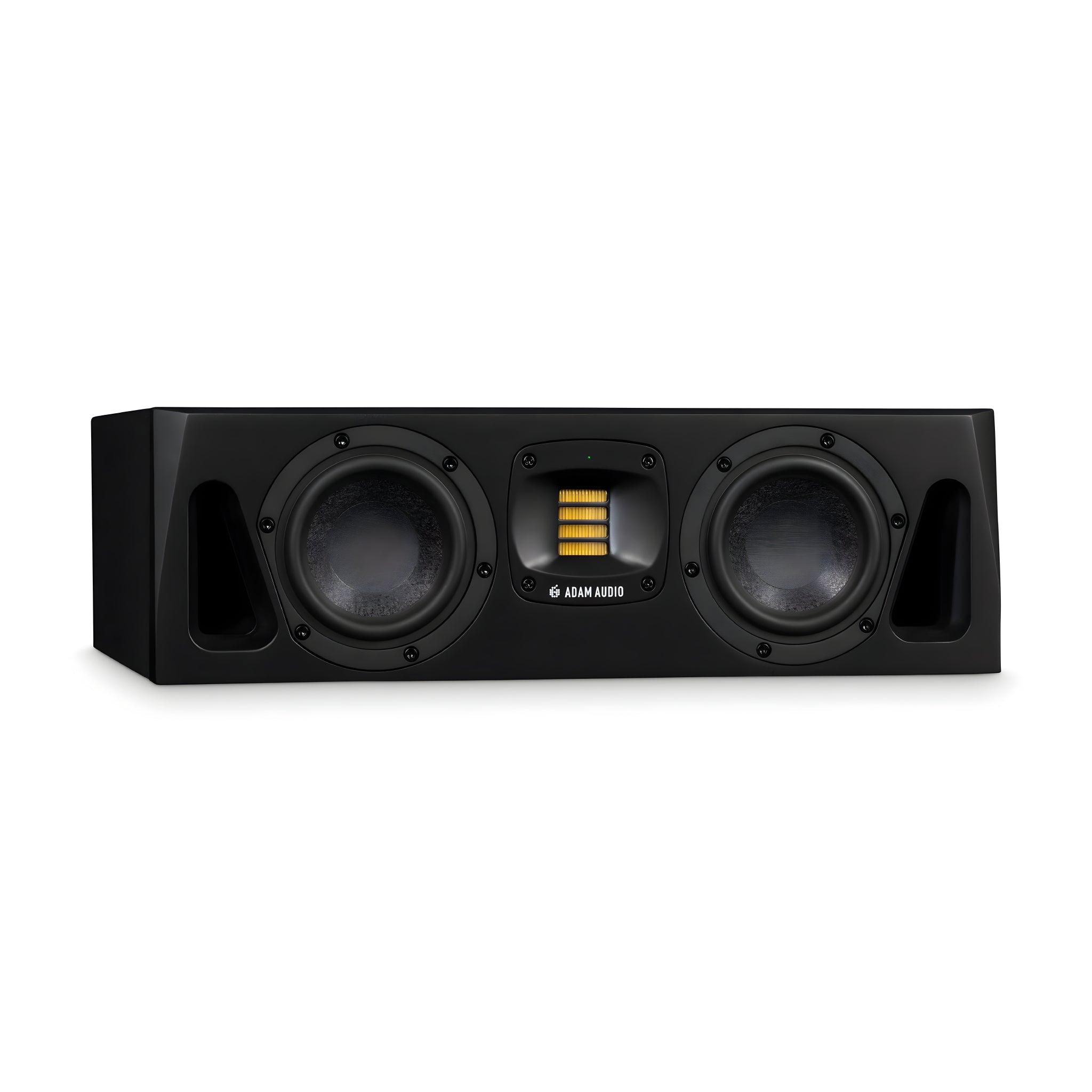

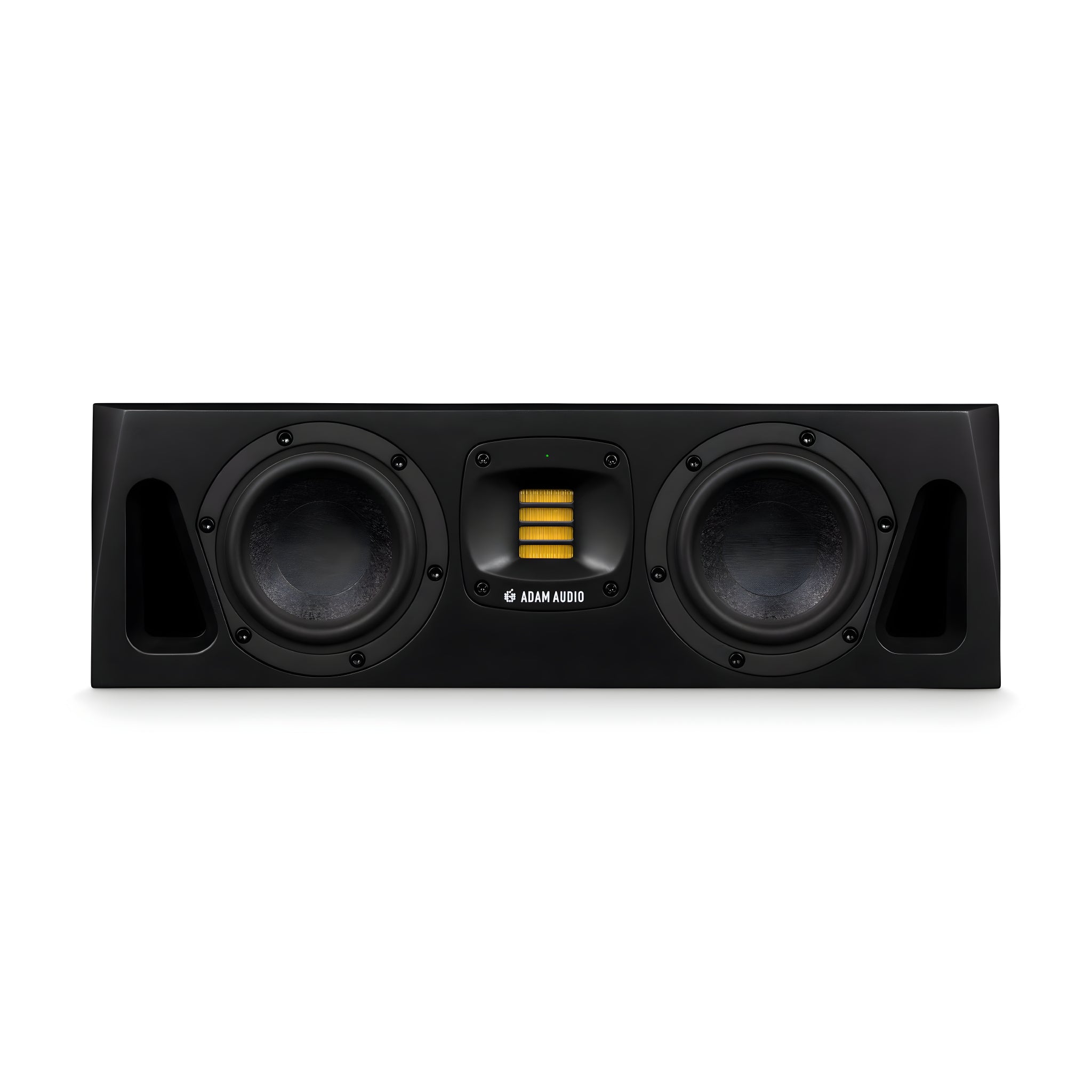

• 2-way design: 2×4″ MLM woofers and X-ART tweeter with rotating HPS waveguide.
• Frequency response: 46 Hz – 45 kHz (@ –6 dB).
• Maximum SPL: 103 dB at 1 m (sine bursts) / 110 dB IEC.
• Peak amplification of 130 W (woofers 110 W PWM, tweeter 20 W Class AB).
• 24-bit/96 kHz DSP with 4-band EQ and 3 voicing profiles (UNR, Pure, Ext).
• 2.4 kHz digital crossover managed by DSP.
• Room Adaptation: Bass, Desk, Presence, Treble (100+ settings).
• Ethernet Remote Control (OCA) with A-Control software.

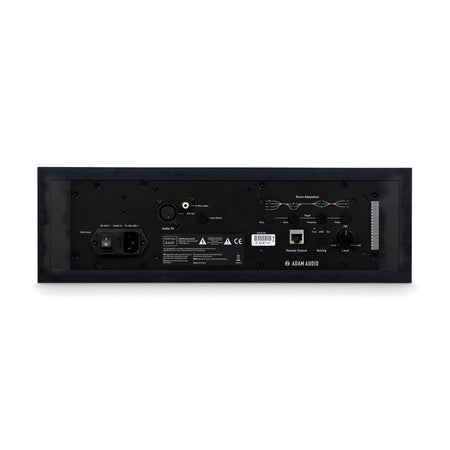

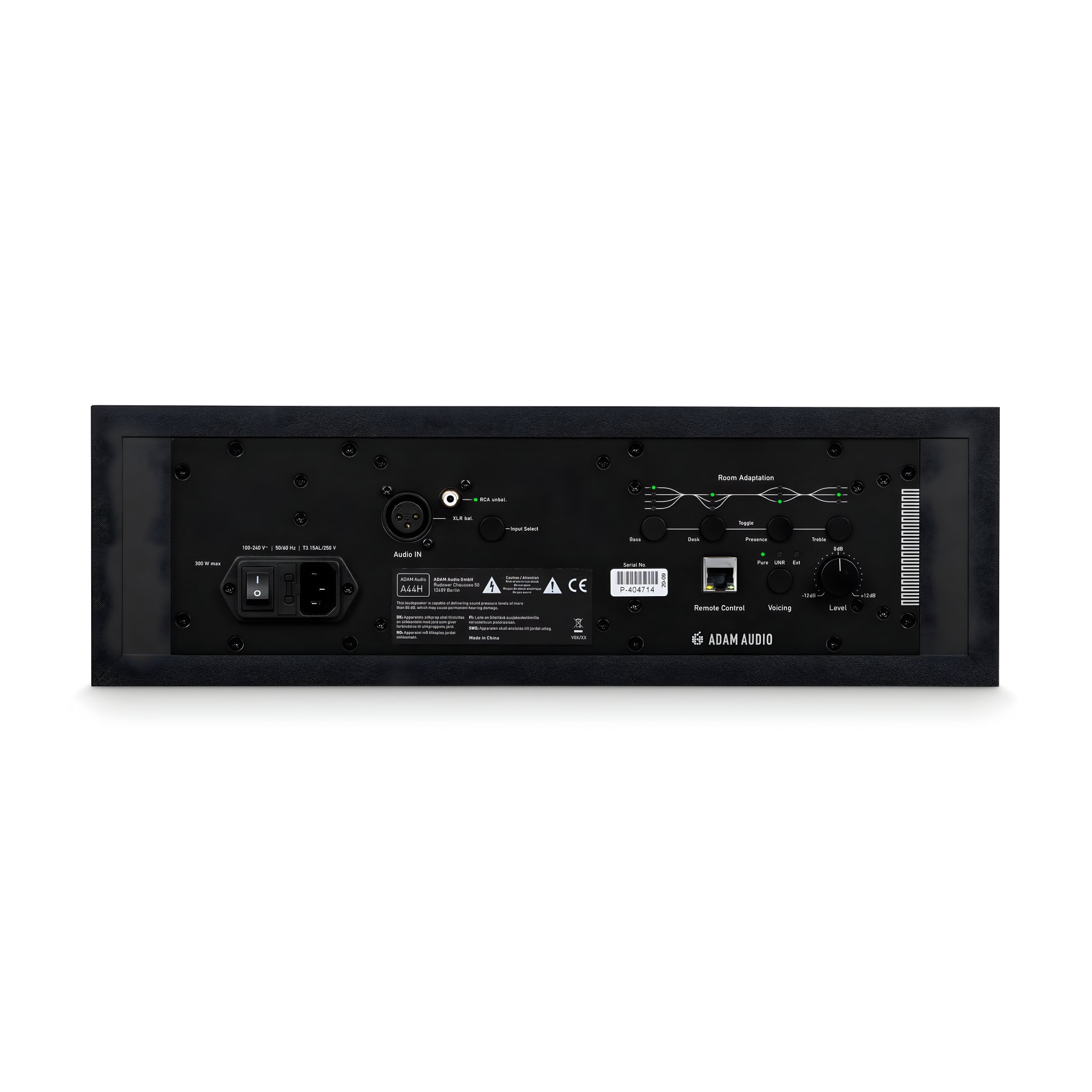

• Connectivity: Balanced XLR and unbalanced RCA.
• Vinyl MDF cabinet with front bass-reflex port.
• Mounting: 4 M8 inserts in the base.

Product benefits

• Consistent playback without unwanted resonances, thanks to the rotating HPS guide.
• Integrated acoustic tuning: eliminates dependence on external processors.
• Compact and horizontal format, ideal as a central monitor or in racks.
• Fine-tune remote control of DSP parameters from anywhere in the room.

Use cases

• Central monitor in 5.1/7.1/3D immersive systems.
• Production and mixing in medium-sized studios.
• Post-production, broadcast and sound design.

Frequently Asked Questions

• Why does it have two woofers? To provide more consistent bass and greater headroom in horizontal systems.
• How do you apply room correction? Use the 4-band filters on the rear panel or via the built-in Sonarworks SoundID Reference.
• What gain does the “Ext” voicing have? It allows for extended configurations and future profiles via A-Control.

Description for projects

2-way active monitor with 2x4″ MLM woofers and rotatable X-ART HPS tweeter; 130 W peak amplification; 24 bit/96 kHz DSP with 4-band EQ, 2.4 kHz crossover; 46 Hz–45 kHz response; 103 dB maximum SPL; XLR/RCA inputs; OCA Ethernet control; integrated room adjustment.
