The Triton Blue OBM-U100D24+5R power supply is a highly reliable component specifically designed to meet the demanding requirements of professional lighting equipment. This model is the central component powering, among others, the Triton Blue WALLY 336 Zoom moving head projector, ensuring stable operation and consistent light output. Thanks to its robust design and precise specifications, this power supply is the ideal solution for the maintenance and repair of stage lighting equipment, LED projectors, and industrial machinery requiring dual, regulated power.

With a universal input voltage ranging from 100V to 240V AC, this power supply automatically adapts to different electrical standards, making it perfect for international tours and events. It offers two independent and stabilized voltage outputs: a primary 24V/6A output for powering the projector's powerful LEDs and motors, and a secondary 5V/1A output, crucial for the proper functioning of the control circuits, microprocessors, and information displays. This dual-output architecture ensures that the control electronics receive a clean and stable current, protecting them from fluctuations and extending the projector's lifespan.

Main Features

• Specific Compatibility: Designed as a direct and official replacement for the Triton Blue WALLY 336 Zoom projector, ensuring a perfect fit and operation.
• Dual Voltage Output: Provides two simultaneous and regulated output voltages (24V and 5V) to power both the power components and the electronic control circuits of the equipment.
• Full Range Input: Its ability to operate on an input range of 100-240V AC at 50/60Hz makes it a versatile power supply suitable for global use without the need for adapters or manual voltage selectors.
• Robust Construction: Manufactured with high-quality components to withstand the conditions of intensive use on tours, live events, and fixed installations.
• Stable Performance: Offers a constant and efficient current delivery, essential to maintain the consistency of the color and intensity of LED projectors and the accuracy of the positioning and zoom motors.

Benefits for the Technician and the User

For entertainment professionals and maintenance technicians, a reliable power supply like the OBM-U100D24+5R is essential. An incorrect or unstable power supply can cause flickering, color inconsistencies, DMX control failures, or irreparable damage to the electronics. This power supply ensures that the WALLY 336 Zoom and other compatible equipment always operate within their optimal parameters, delivering an uninterrupted visual experience. Its design as an original replacement part simplifies repairs, reduces equipment downtime, and ensures that the integrity of the unit is not compromised.

Use Cases

This power supply is an essential component for a variety of professional scenarios. It's the top choice for lighting equipment rental companies that need to perform quick and reliable repairs on their inventory. It's also indispensable for theaters, concert halls, clubs, and television studios that manage their own technical maintenance. Furthermore, system integrators and independent service technicians will find it vital for providing quality support to their clients, restoring full functionality to malfunctioning projectors and moving heads.

Frequently Asked Questions

Is this power supply compatible with other models besides the WALLY 336 Zoom?
This model is specifically designed for the Triton Blue WALLY 336 Zoom. Although its specifications (24V/6A and 5V/1A) may be compatible with other devices, it is recommended to use it only with equipment for which it has been certified by the manufacturer to ensure safety and proper operation.

Is installing this power supply complicated?
Installation must be performed by a qualified technician. It involves opening the lighting equipment chassis and handling internal electrical connections. Improper handling may cause damage to the equipment or risk of electric shock.

How do I know if I need to replace my computer's power supply?
Common symptoms of a power supply failure include the equipment not turning on, intermittently turning off, displaying error lights, or exhibiting erratic operation of its functions (such as dimmer, color, or motion).

Project description

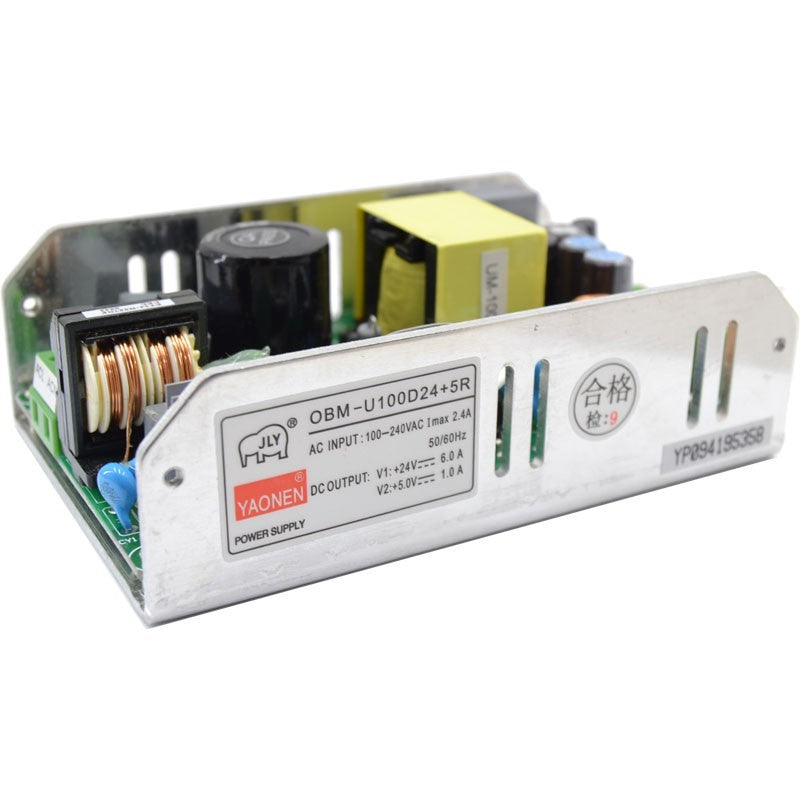

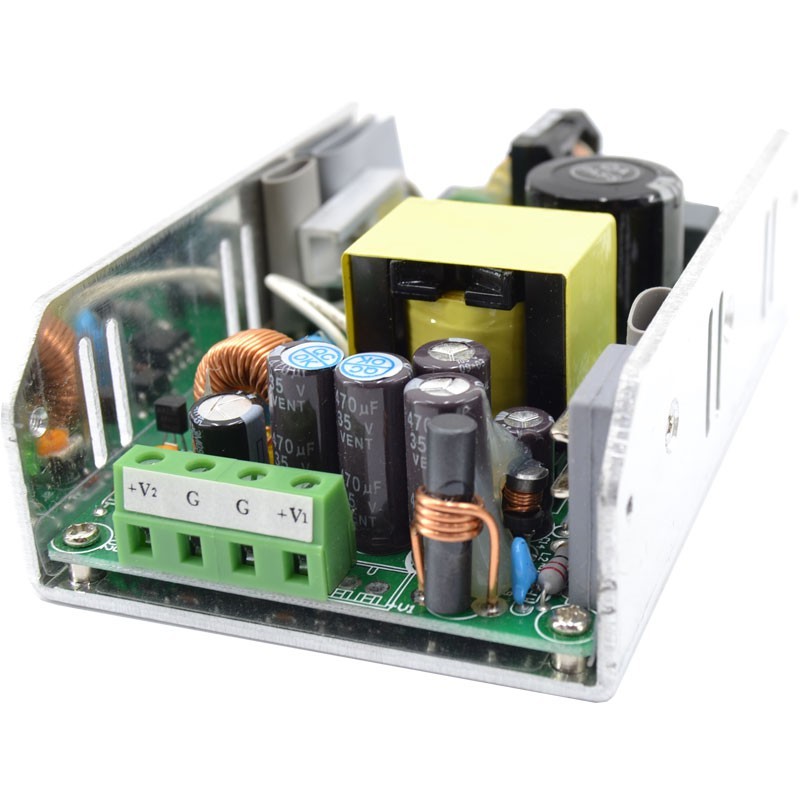

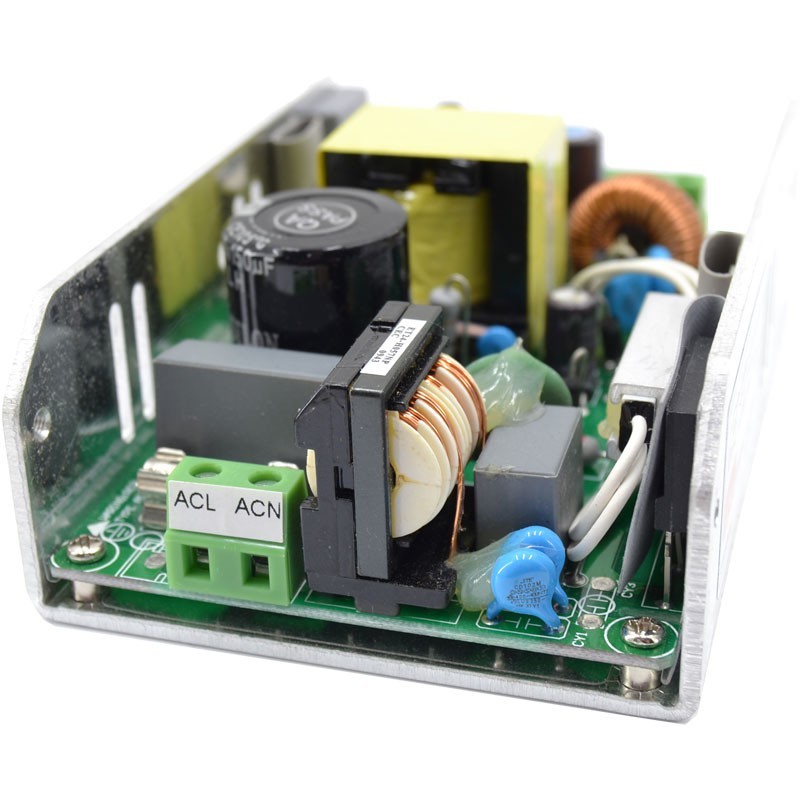

Switching power supply, model OBM-U100D24+5R. Universal input voltage of 100-240V AC, 50/60Hz. It has two DC outputs: a main 24V output with a maximum current of 6A and a secondary 5V output with a maximum current of 1A. Designed for integration into professional lighting equipment and industrial machinery.
