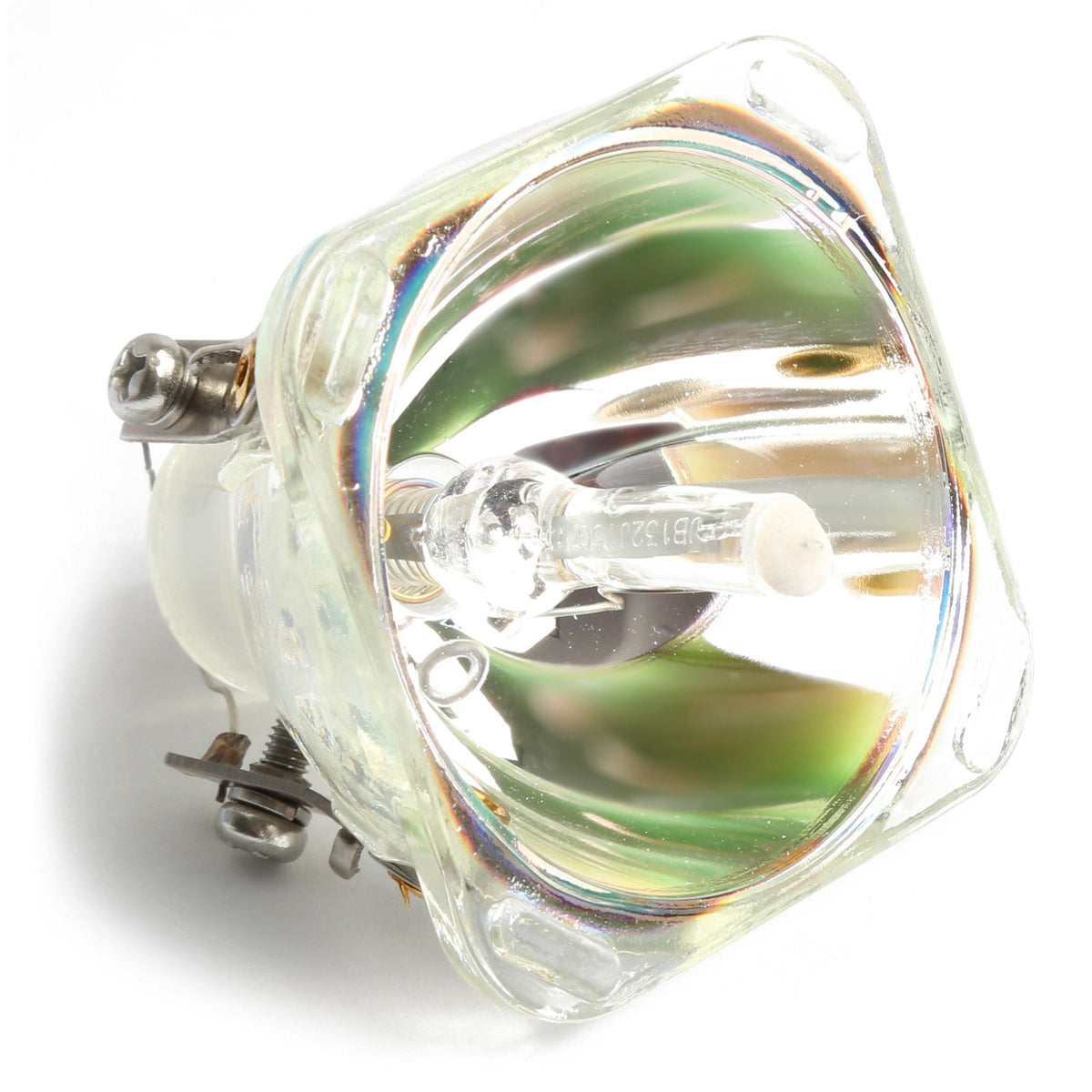

beamZ 150.483 - Replacement bulb 2R 132 W (HID) for moving heads

beamZ 150.483 - Replacement bulb 2R 132 W (HID) for moving heads

The beamZ 150.483 is a 132W 2R replacement bulb with an integrated reflector, designed to restore the performance of beam moving heads and fast effects. Its short 1.1mm arc and 8000K color temperature produce a highly focused, high-contrast beam with vibrant colors . With a typical luminous flux of around 5000 lm , this bulb offers comparable output to a 300W MSD but with less than half the energy consumption . It operates in any working position and fits 2R-compatible fixtures. Its compact dimensions (66.8 × 46 mm) and weight of only 0.08 kg make it easy to handle on tours and in rental applications.

Main features

• 2R discharge (HID) technology, 132W with integrated reflector for maximum intensity.
• 1.1 mm arc and 8,000 K for a sharp beam and well-defined colors.
• ≈5,000 lm output: comparable to 300W MSD lamps with lower consumption.
• Universal working position (any) for greater flexibility in assembly.
• Nominal operating voltage : ≈85 V (according to specification 2R).
• Average lifespan indicated : > 2,000 h (dependent on use, cycles and equipment).
• Compact and lightweight format: 66.8 × 46 mm; 0.08 kg.
• Compatibility : 2R replacement for multiple 132W beam heads (e.g., “Panther 2R”, “Platinum 2R”, and equivalent families).

Product benefits

• Recover the beam punch : short arc and 8,000 K for defined beams, crisp gobo and saturated colors.
• More light with less consumption : 300W type performance with lower energy demand, optimizing power lines.
• Easy maintenance : reduced dimensions and universal position simplify replacement on the road or in a fixed installation.
• Visual consistency : stable flow and color reproduction designed for entertainment.

Frequently Asked Questions

• Is it LED? No. It's a 132W 2R HID discharge lamp with an integrated reflector.
• How long does it last? The replacement part datasheet indicates >2,000 h . In the reference 2R family (e.g., Philips MSD Platinum 2R) up to 6,000 h is documented under optimal conditions; actual lifespan depends on switching cycles, temperature, vibrations, and the equipment.
• What halogen/MSD wattage is it equivalent to? Its output is around 5,000 lm and is considered equivalent to ~300 W MSD in beam application.
• Can I mount it in any orientation? Yes, it supports "Any" working position .

Project description

132W 2R discharge bulb with integrated reflector; 1.1mm arc ; ≈5,000lm flux ; 8,000K ; working position: any ; voltage ≈85V ; average life >2,000h; dimensions 66.8 × 46mm ; weight 0.08kg ; replacement for beam -type moving heads compatible with 132W 2R lamps.
