Triton Blue TRAFO PLATE EI0096-057 - Transformer for Professional Lighting Equipment

Triton Blue TRAFO PLATE EI0096-057 - Transformer for Professional Lighting Equipment

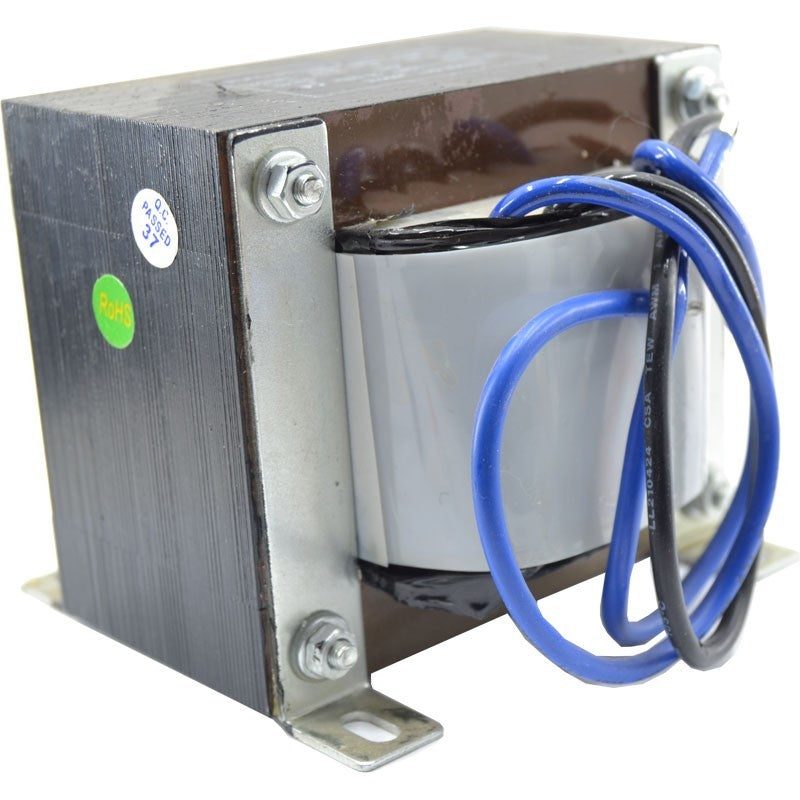

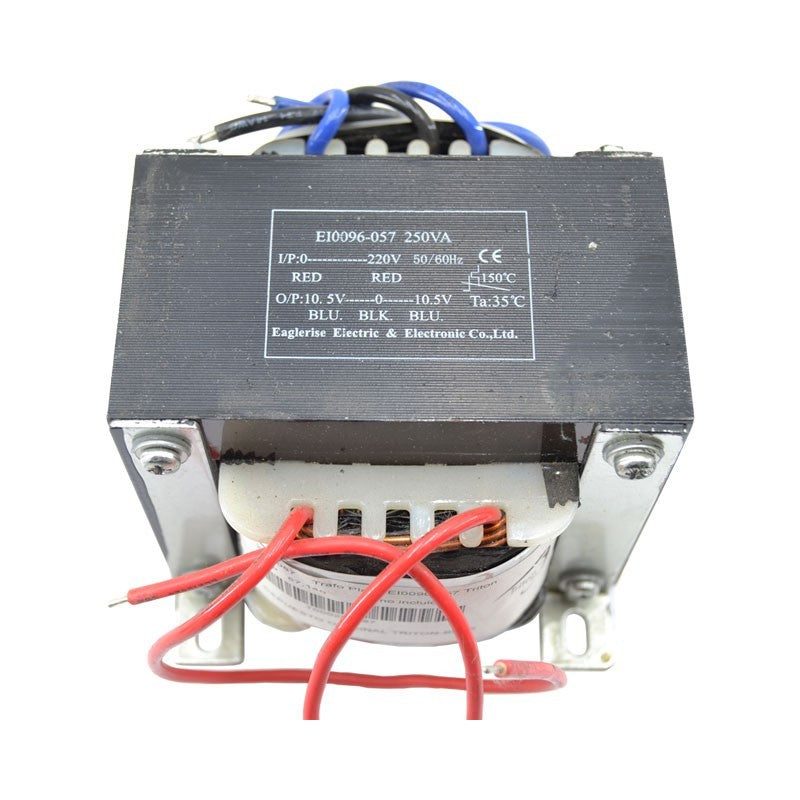

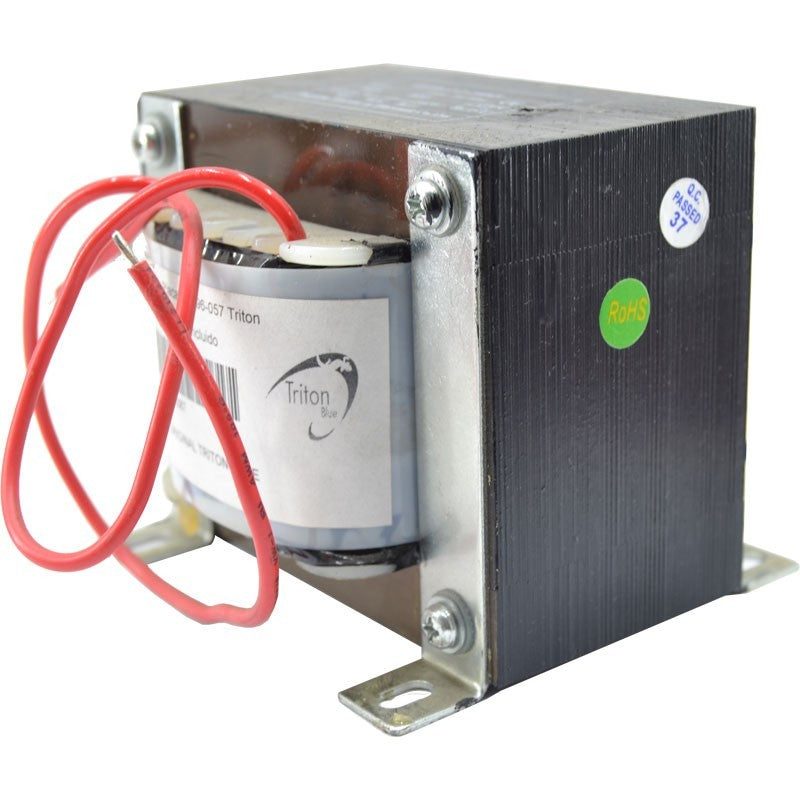

The Triton Blue TRAFO PLACA EI0096-057 is a highly reliable power transformer specifically designed to meet the demanding requirements of professional lighting equipment. Manufactured by Eaglerise Electric & Electronic Co., Ltd. , a recognized leader in power solutions, this component is crucial for the proper functioning of a wide range of devices. Its primary function is to convert alternating current (AC) from the electrical grid into a stable and safe direct current (DC) voltage for the delicate internal electronic components.

This transformer is designed to accept a standard 220V AC (50/60Hz) input and provide two independent 5V DC outputs. This dual-output configuration is ideal for simultaneously powering different circuits within the same device, such as control boards, digital displays, cooling systems, or effects modules.

Main Features

• Quality Manufacturing: Produced by Eaglerise, it guarantees a robust construction and stable long-term performance, using high-quality materials to ensure excellent heat dissipation and a long service life.
• Dual 5V Output: Provides two 5V power outputs, allowing for isolated and safe powering of multiple electronic components, such as microprocessors, LCD screens, and DMX control circuits.
• Versatile Compatibility: It is the original replacement for numerous Triton Blue brand equipment, but its design and specifications make it compatible with a wide variety of equipment from other leading brands in the spectacular lighting sector, such as Terbly, Ayrton, ADJ and FutureLight.
• Standard Power Supply: Operates on a 220V AC 50/60Hz input, making it suitable for use in most standard electrical installations in Europe and other regions.
• Compact Design: Its plate format (PLATE) is designed for easy and secure integration into the chassis of moving heads, spotlights, and other lighting fixtures.

Benefits for Lighting Technicians and Professionals

For maintenance technicians and equipment rental companies, having the EI0096-057 transformer is a guarantee of reliability. Its status as an original replacement part for Triton Blue equipment ensures a direct and hassle-free replacement, restoring the equipment's functionality to its factory specifications. Its broad compatibility with other brands makes it a versatile component and an essential stock item in any repair shop, reducing downtime and optimizing spare parts inventory.

Use Cases

This transformer is a fundamental internal component in a variety of professional lighting equipment. Its most common application is in moving heads (spot, wash, beam), where it powers the control electronics that manage positioning (pan/tilt), color changes, gobos, and other effects. It is also used in other devices such as scanners, effects projectors, and lighting control consoles that require a stable 5V power supply for their logic circuits and information displays.

Frequently Asked Questions

Is this transformer compatible with my equipment if it's not a Triton Blue brand?
Yes, although it's an original replacement part for Triton Blue, it's designed to be compatible with equipment from brands like Terbly, Ayrton, ADJ, and FutureLight. However, it's crucial to verify that your equipment's specifications (220V input, need for two 5V outputs) match before installation.

What type of components does this transformer power inside a moving head?
The two 5V outputs are typically used to power low-voltage circuitry, such as the microprocessor motherboard, menu display, positioning sensors, and DMX signal receivers.

Does the installation require technical knowledge?
Yes, replacing an internal transformer must be carried out by a qualified technician. It involves working with mains voltages and requires knowledge of electronics to ensure a safe and correct installation.

Project description

Printed circuit board power transformer, model EI0096-057, manufactured by Eaglerise Electric & Electronic Co., Ltd. Input voltage 220V AC, 50/60Hz. Provides two 5V DC output voltages. Designed for integration into professional lighting equipment from brands such as Triton Blue, Terbly, Ayrton, ADJ, and FutureLight.
