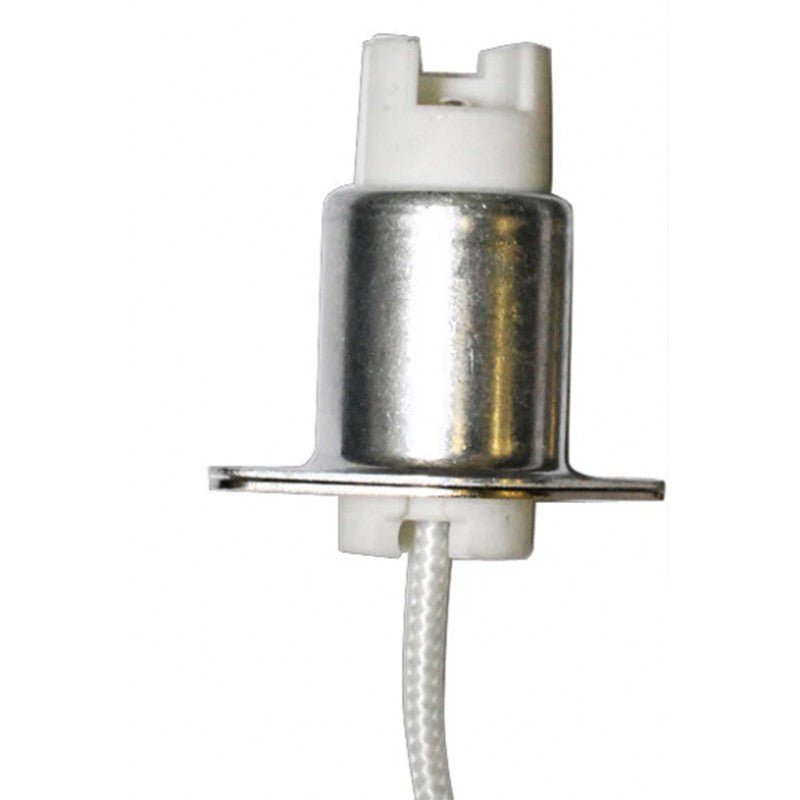

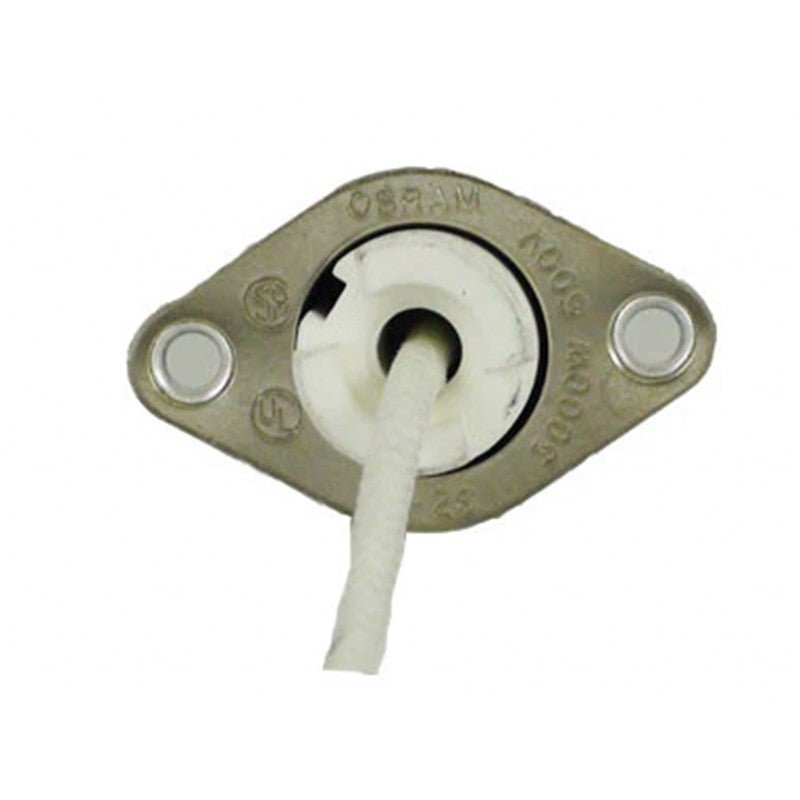

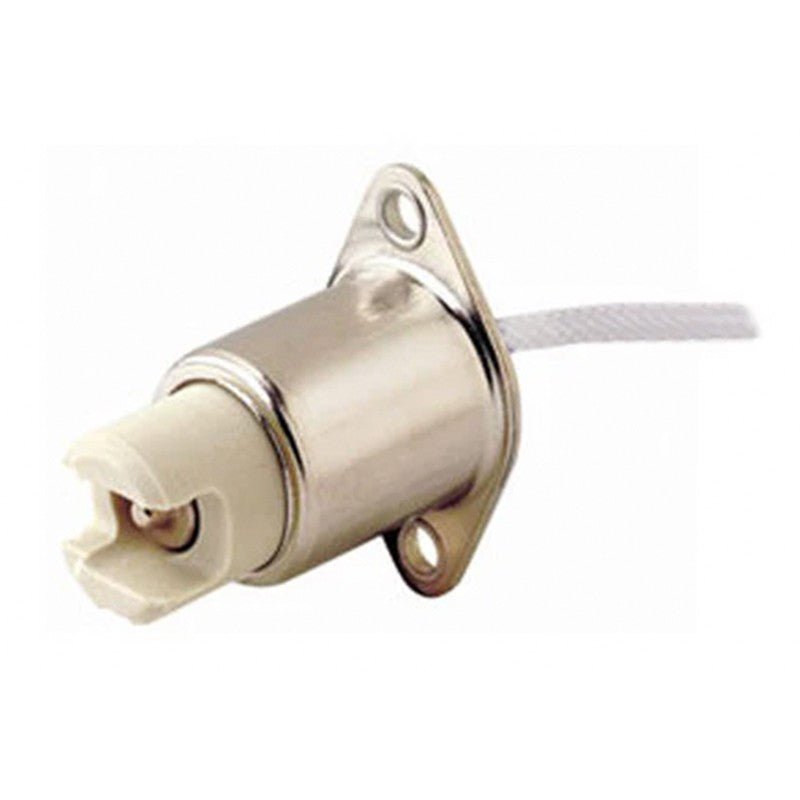

OSRAM - S26 Lamp Holder for R7 and RX7 (69012)

R7S, RX7S, or RSC double-ended lamp holders S26AWG16 | Osram

• Price per unit
• This lamp holder is rear mounted
• Brand: OSRAM

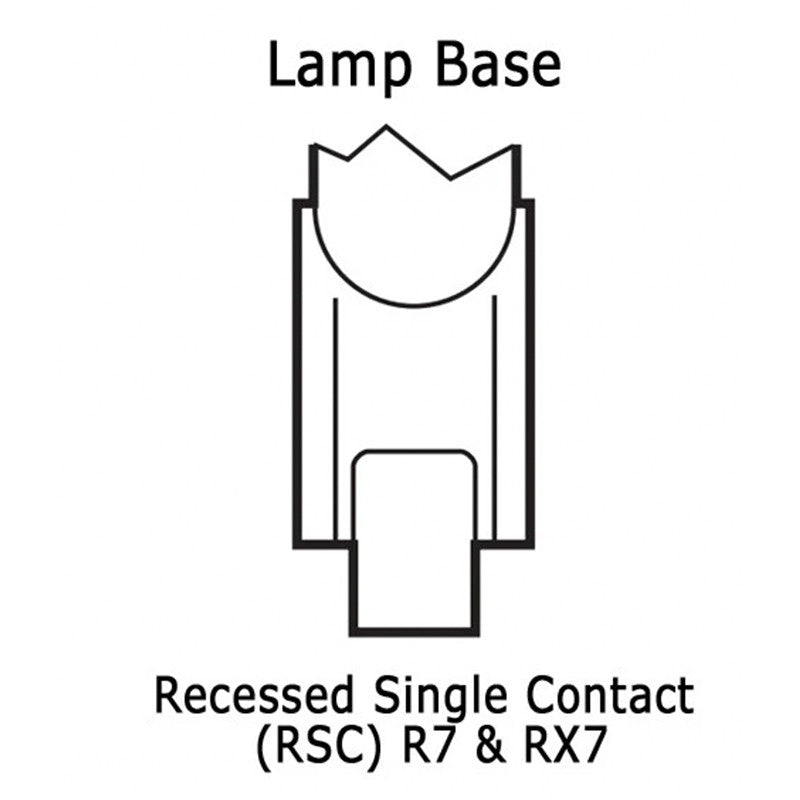

• Recessed single contact socket (RSC) R7s, RX7s
• Wire gauge: 16 AWG
• Maximum voltage 600V
• Maximum power 3000W

• This base is used in the following lamps
  • 150/25T4, - FCM, - FFM, - DWT, - FDA, - FHM, - DXW, - FDB, - 64579 115, -120V, - EHP, - FDN, - FFT, - EHR, - FER, - 6,6A/200T5/CL/64380, - EJG, - FEX/230, - 6.6A/45T3/CL/64315, - FAD, - FEX/240, - 1600T3Q/IR/7 240V, - FAL, - FEY, - 2500T3Q/IR/7 480V, - FCB, - FFJ, - 500T3Q/IR/7 120V

• Characteristics
  • Body material: Ceramic, aluminum, steel
  • Contact material: Silver plated brass

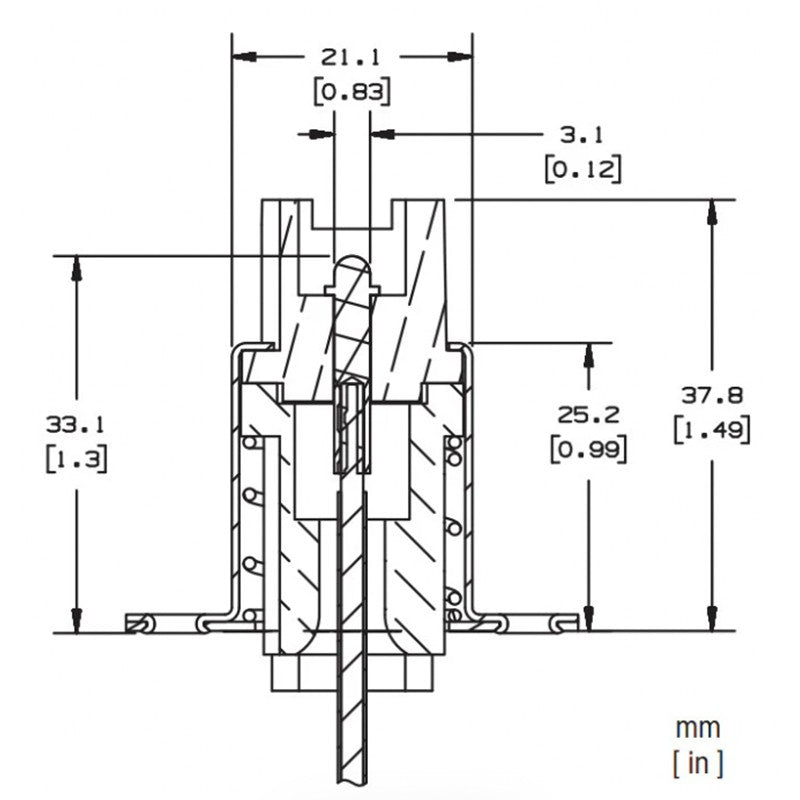

  • Height: 37.8 mm
  • Lead strip length: 6 mm
  • Cable length: 900 mm

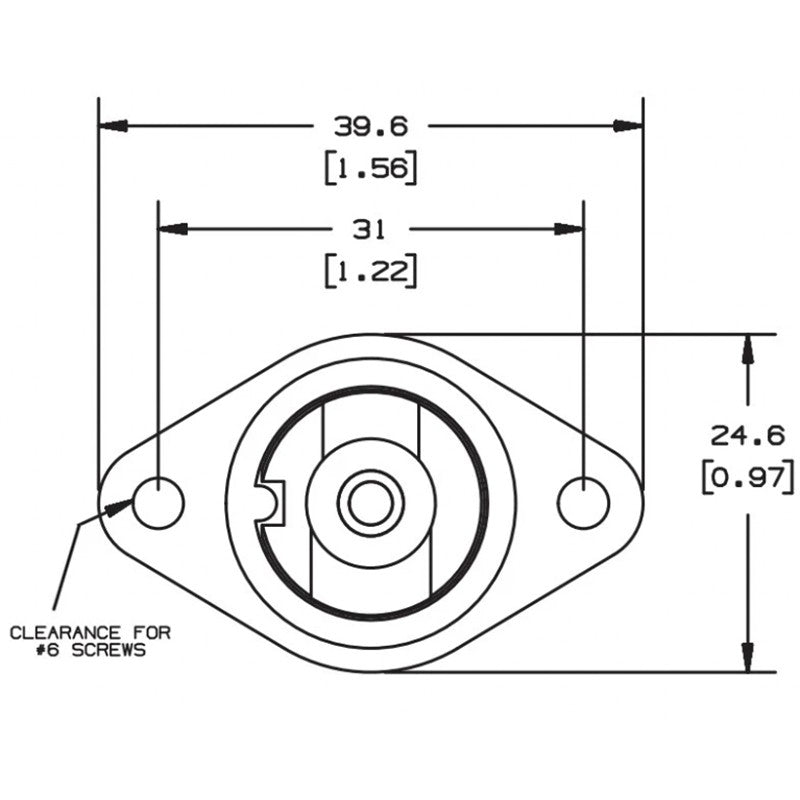

  • Length: 39.7 mm
  • Max. working temperature: 350ºC
  • Max. Voltage: 600V
  • Max power: 3,000W
