Triton Blue Horizon T36 - 36° Halogen Cutoff with 4 Blades and Filter Holder (No Lamp)

Triton Blue HORIZON T36 - 36° halogen cutoff with 4 blades and filter holder (without lamp)

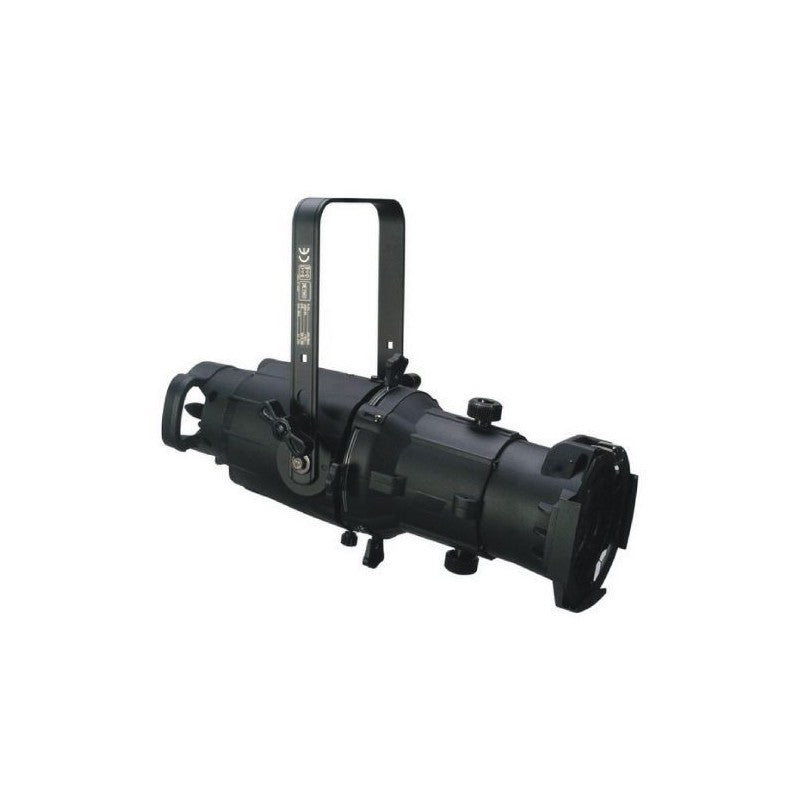

The Triton Blue HORIZON T36 is a profile/ellipsoidal projector with 36º fixed optics , designed for professional applications in theaters, auditoriums, stages and sound stages . It uses 575 W or 750 W HPL type lamps (not included) with G9.5 lamp holders and emits light at 3200 K (tungsten). It incorporates 4 internal blades for fine beam cutting and a filter holder as standard. Its die-cast aluminum body facilitates access to the lamp and maintenance, while the high-efficiency aluminum reflector and 36º lens ensure a sharp and uniform projection.

Main features

• 36º Fixed Optic : High quality lens for precise cuts and defined edges.
• 4 integrated trimming blades for precise beam shaping.
• Filter holder included for use with correction gels/media.
• Compatible lamps : HPL 575 W or 750 W (not included), G9.5 , 3200 K.
• Power supply : 230–240 V, 50/60 Hz; consumption depends on the lamp (575/750 W).
• Professional construction : cast aluminum body with easy access for lamp replacement and cleaning.

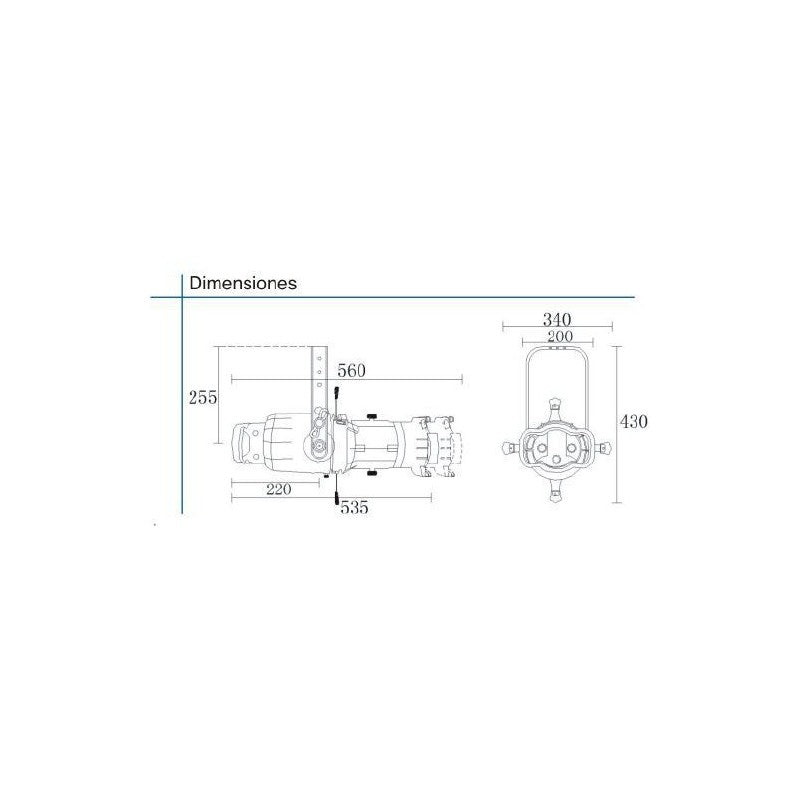

• Dimensions and weight : 535 × 430 × 340 mm; 6.2 kg (approx.).
• Finish : Black, Professional use with CE/RoHS certification.

Product benefits

• Total beam control : 4 blades allow for clean masking on backdrops, cycloramas and stage sets.

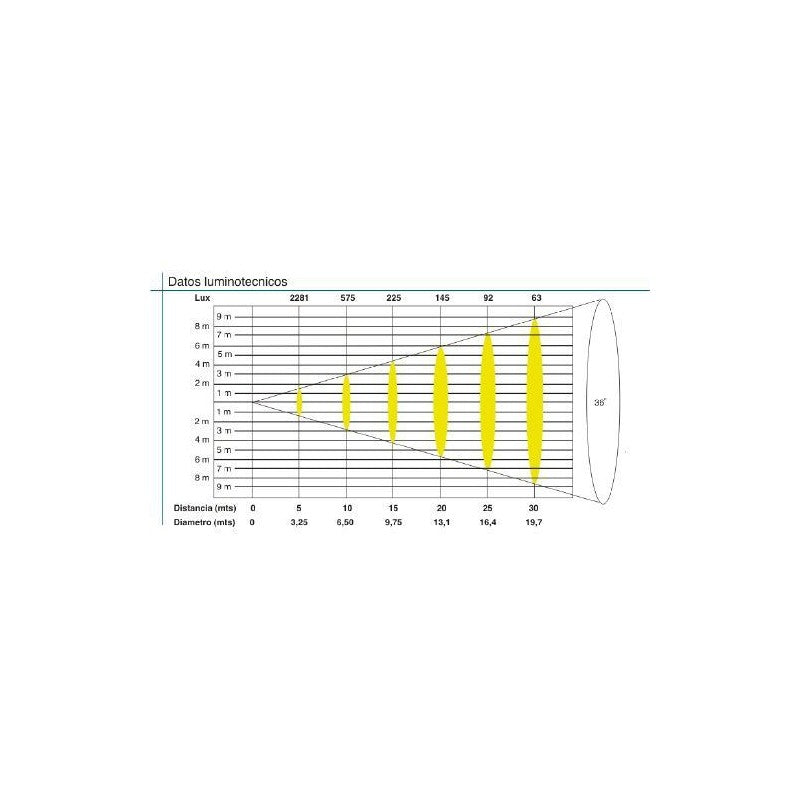

• Image quality : 36º lens and high-performance reflector for uniform projection and high contrast.
• Versatility : Accepts color/CTO/CTB filters; compatible with gobo holders from the series (optional accessory) for logos and textures.
• Easy maintenance : quick access to the lamp and internal components to reduce downtime.

Use cases

• Theatre and musicals : sharp cuts to stage areas, controlled backlighting and light windows.
• Corporate events : lectern cutting, gobo logos (accessory) and selective dipping.
• Television and education : smooth and controlled cuts on sets and in classrooms.

Frequently Asked Questions

• Does it include a lamp? No. It is compatible with 575/750 W G9.5 HPL lamps.
• Can I project gobos? Yes, using the optional Triton Blue Profile Series gobo holder (not included).
• What filters can I use? Any standard gel compatible with the included filter holder.

Description for projects

Halogen cutout with fixed 36º optics , 4 blades and filter holder included . Power supply 230–240 V, 50/60 Hz . HPL 575/750 W lamp (not included), G9.5 , 3200 K. Optics: aluminum reflector and 36º lens. Die-cast aluminum body. Dimensions 535 × 430 × 340 mm ; weight 6.2 kg . CE/RoHS certification. Use: theater, auditoriums, stages.
