Triton Blue Horizon T19 – 19° halogen cutoff with 4 blades and filter holder (without lamp)

Triton Blue Horizon T19 – 19° halogen cutoff with 4 blades and filter holder (without lamp)

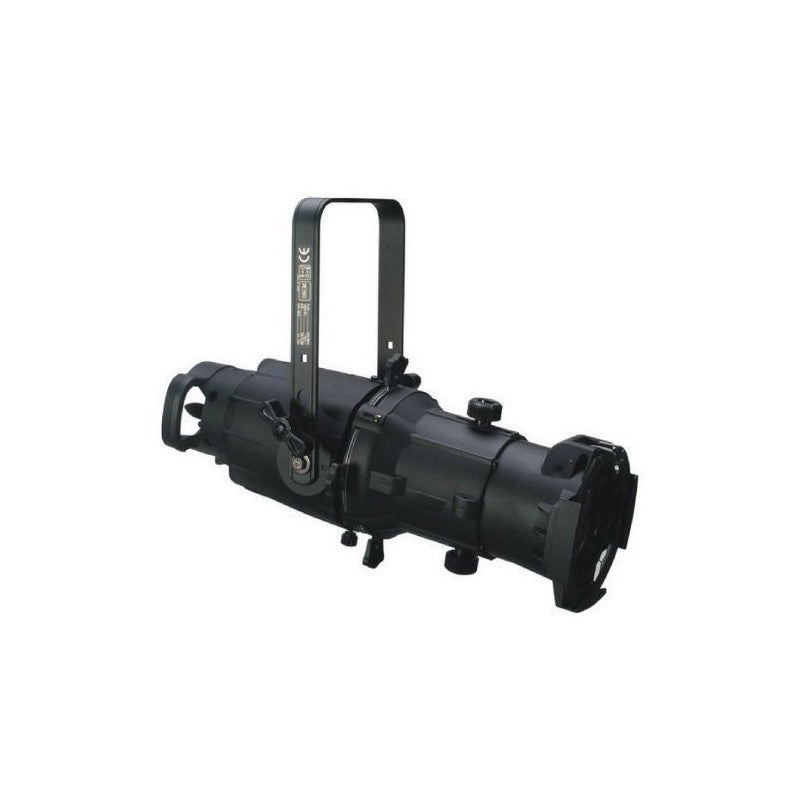

The Triton Blue Horizon T19 is a profile/ellipsoidal projector with a 19° fixed optic , designed for theaters, auditoriums, stages and sound stages where precise and clean beam shaping is required. It works with 575W or 750W HPL lamps (not included), G9.5 lamp holders and 3200K (tungsten) color temperature. It incorporates 4 internal blades to cut the beam and a filter holder as standard. Its die-cast aluminum body facilitates access for maintenance and the aluminum reflector together with the 19° lens provide a uniform projection with defined edges and high performance.

Main features

• High-quality 19° fixed optic for sharp cuts and light spill control.
• 4 integrated blades for precise masking on backdrops, cycloramas and stage sets.
• Filter holder included for use with gels and color corrections.
• Compatible lamps : HPL 575 W or 750 W (not included), G9.5 base, 3200 K.
• Power supply : 230–240 V, 50/60 Hz; consumption depends on the lamp (575/750 W).
• Construction : die-cast aluminum chassis with easy access to lamp and optics.

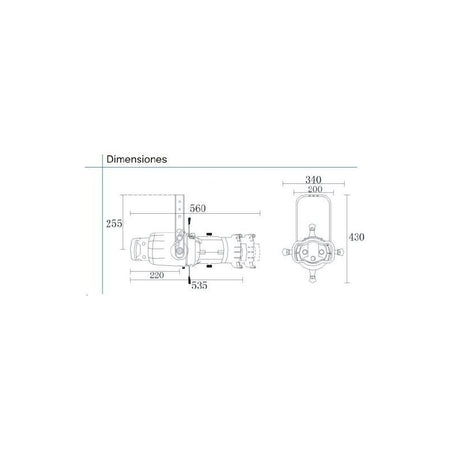

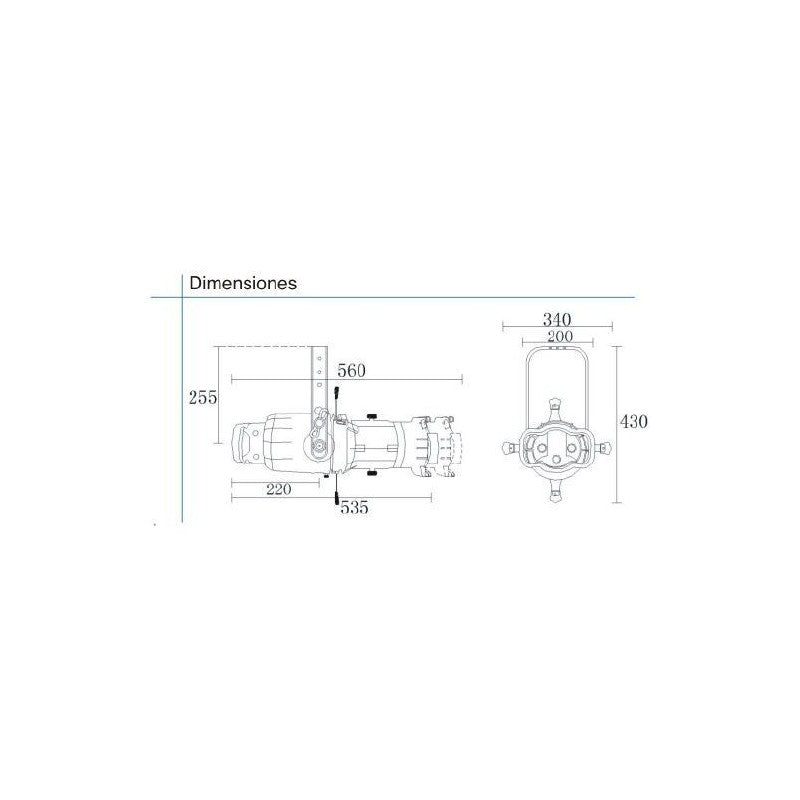

• Format : 535 × 430 × 340 mm ; 6.2 kg (approx.) in black finish.
• Professional use : CE and RoHS certifications.

Product benefits

• Total beam control : clean cutouts for light windows, reading areas and stage cutouts.
• Projection quality : high-performance lens and reflector for a uniform and contrasting beam .
• Quick maintenance : direct access to the lamp and internal components, reducing downtime.
• Easy integration : standard filter holders to adapt colorimetry and apparent temperature.

Use cases

• Theatre and musicals : precise cuts of stage areas and backlighting.
• Corporate events : delimitation of lecterns, speaker areas and backdrops.
• Television and education : controlled cuts in studios and classrooms.

Description for projects

Halogen cut-out with 19° optics , 4 blades and filter holder included. Power supply 230–240 V, 50/60 Hz ; consumption 575/750 W depending on the lamp. HPL lamp 575/750 W (not included), G9.5 , 3200 K . Optics: aluminium reflector + 19° lens. Die-cast aluminium body. Dimensions 535 × 430 × 340 mm ; weight 6.2 kg . Black finish. Certifications CE , RoHS .
