Triton Blue Horizon T10 - 10° Halogen Cutoff with 4 Blades and Filter Holder (No Lamp)

Triton Blue Horizon T10 - 10° Halogen Cutoff with 4 Blades and Filter Holder (No Lamp)

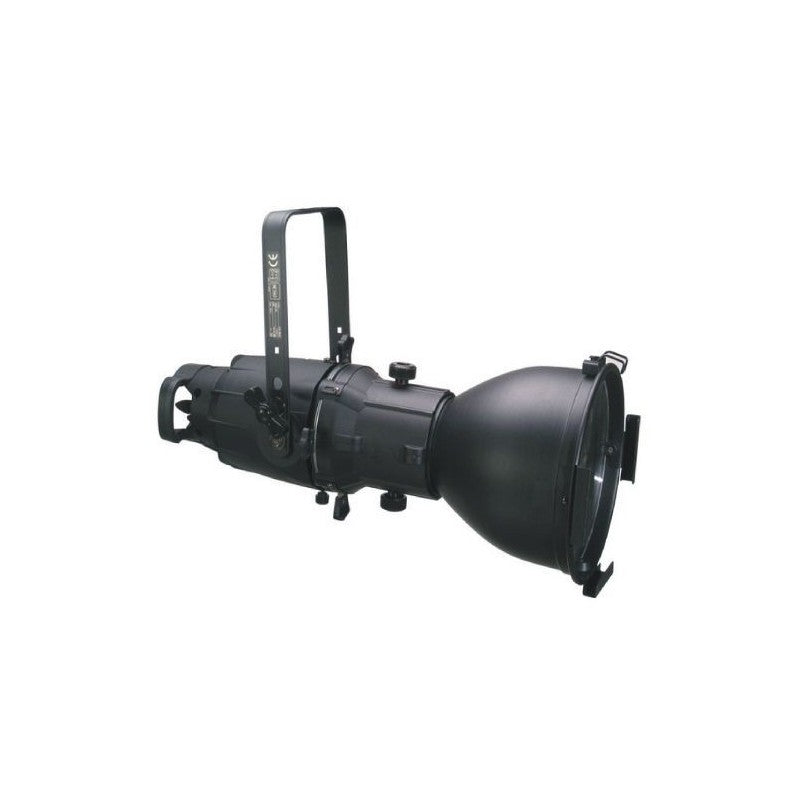

The Triton Blue Horizon T10 is a profile/ellipsoidal projector with 10º fixed optics designed for professional applications in theaters, auditoriums, stages and sound stages. It works with 575 W HPL or 750 W HPL lamps (not included), G9.5 lamp holders and emits at 3200 K. It incorporates 4 internal blades for beam shaping and filter holders as standard. The die-cast aluminum body and high-efficiency aluminum reflector guarantee a clear projection with quick access to the lamp for agile maintenance.

Main features

• Fixed 10º optic for very defined cuts and spill control.
• 4 integrated trimming blades for precise masking on stage.
• Filter holder included for using gels and corrections (CTO/CTB, diffusion, etc.).
• Compatible lamps: HPL 575W / 750W (not included), G9.5 base, 3200K .
• Power supply: 230–240 V, 50/60 Hz; consumption depends on the lamp (575/750 W).
• Professional construction: cast aluminum chassis with easy access to lamp and optics.

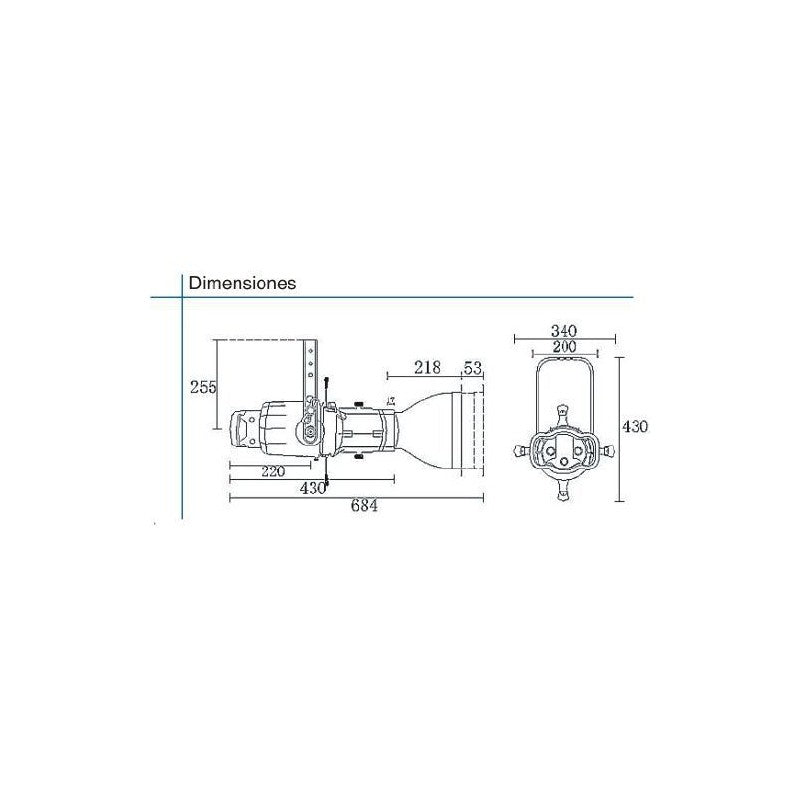

• Dimensions and weight: 684 × 430 × 340 mm ; 6.2 kg (approx.).
• Finish: Black; Professional use with CE and RoHS certification.

Product benefits

• Total beam control : 4 blades allow for light windows, curtain cutouts, and clean contours.
• Quality projection : 10º lens and high-performance reflector for a uniform and contrasting beam .
• Easy integration : standard filter holder; compatible with Profile Series accessories (optional gobo/iris holders).
• Quick Service : Direct access design to reduce downtime on tour or in the theater.

Recommended applications

• Theater and musicals : highly focused cutouts, cut-out backlights, and reading areas.
• Corporate events : delimitation of lecterns, backdrops and stage elements.
• Stage sets and stage training : controlled cuts in television, schools and auditoriums.

Compatible accessories (optional)

• Profile series gobo holders (for Horizon 10º/19º/36º/50º and Zoom 15–30º / 25–50º) for projecting standard or custom gobos.
• Profile series Iris for continuously varying beam diameter.

Description for projects

Halogen cutout with fixed 10º optics , 4 blades and filter holder included. Power supply 230–240 V, 50/60 Hz ; consumption 575/750 W depending on the lamp. HPL lamp 575/750 W (not included), G9.5 , 3200 K . Optics: aluminium reflector + 10º lens. Die-cast aluminium body. Dimensions 684 × 430 × 340 mm ; weight 6.2 kg . CE/RoHS certification . Use: theatre, auditoriums, stages.
