Triton Blue SOLAR 480 - Professional Mobile LED Bar with Zoom and Pixel-by-Pixel Control

Triton Blue SOLAR 480 - Professional Mobile LED Bar with Zoom and Pixel-by-Pixel Control

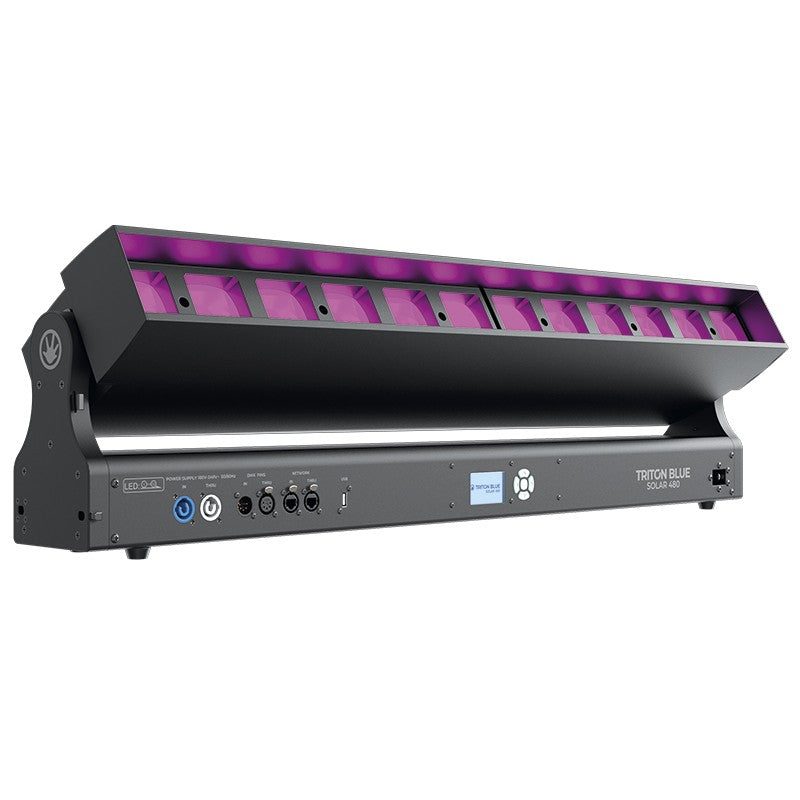

The Triton Blue SOLAR 480 is a state-of-the-art mobile LED bar designed to meet the highest demands of professional lighting for events, tours, and permanent installations. This innovative piece of equipment stands out for its exceptional power, unique optical design, and unparalleled versatility, allowing lighting designers to realize their creative visions without limitations. Equipped with 12 powerful LED chips and a wide motorized zoom range, the SOLAR 480 is the ultimate tool for creating everything from striking beam effects to broad, seamless washes of color.

At the heart of the SOLAR 480 are twelve 40W LEDs, each featuring 4-in-1 RGBW technology . This configuration not only guarantees outstanding light intensity, reaching 18,460 lux at 5 meters, but also delivers an exceptionally rich and uniform color mix. The ability to adjust the color temperature from a warm 2200K to a cool 8000K, along with the option to create vibrant rainbow effects, makes it a lighting solution adaptable to any atmosphere or stage requirement. Its robust aluminum construction ensures the durability required for rigorous use in the rental industry.

Main Features

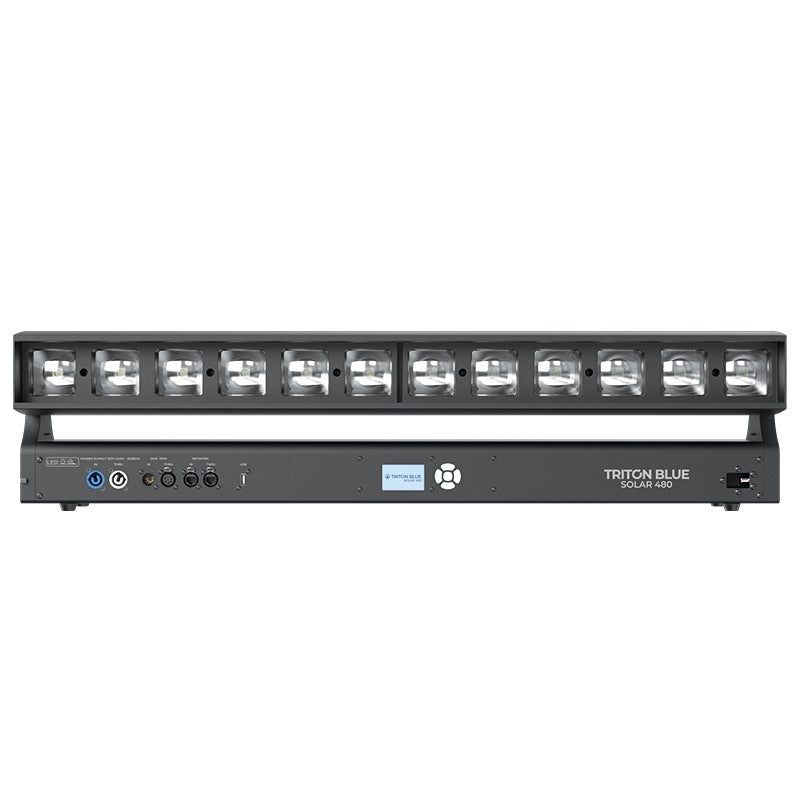

• High Power Light Source: Features 12 x 40W 4-in-1 RGBW LED chips, offering intense light output and an estimated lifespan of 30,000 hours.
• Advanced Optical System: 57 x 57 mm PMMA lenses which, together with its optical system, provide a sharp and well-defined beam of light.
• Wide-Amplitude Motorized Zoom: An impressive electronic zoom range that goes from an ultra-tight 4.2° beam to a 53° opening, ideal for beam and wash functions.
• Pixel-by-Pixel Control: Each of the 12 LEDs can be controlled individually, opening up a world of possibilities for creating dynamic effects, patterns, and video mapping.

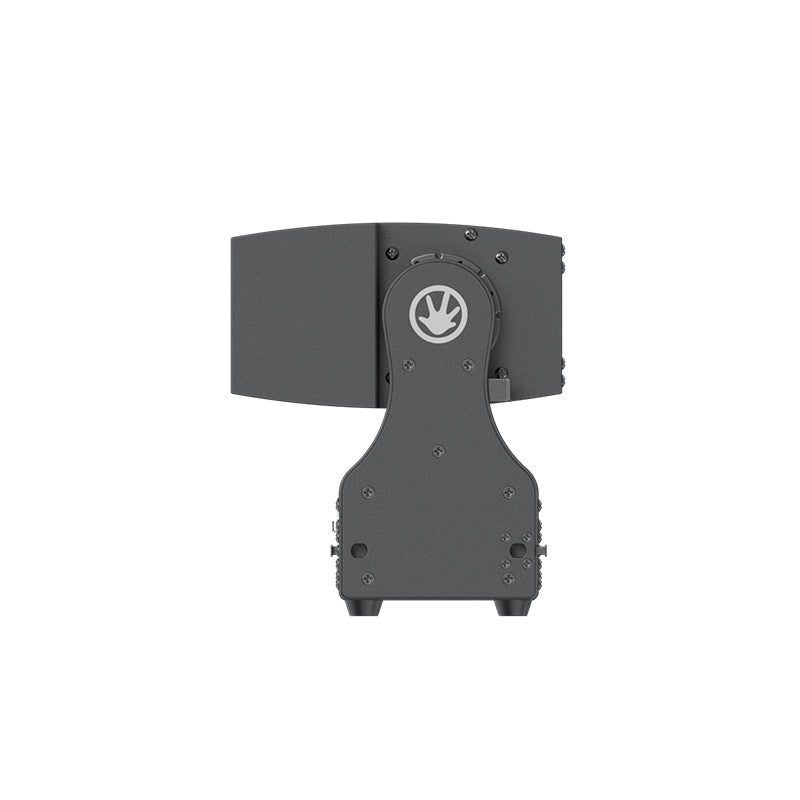

• Precise Movement: It offers 185° tilt movement with 16-bit resolution, allowing for smooth and accurate positioning. It also includes a locking system for safe transport.

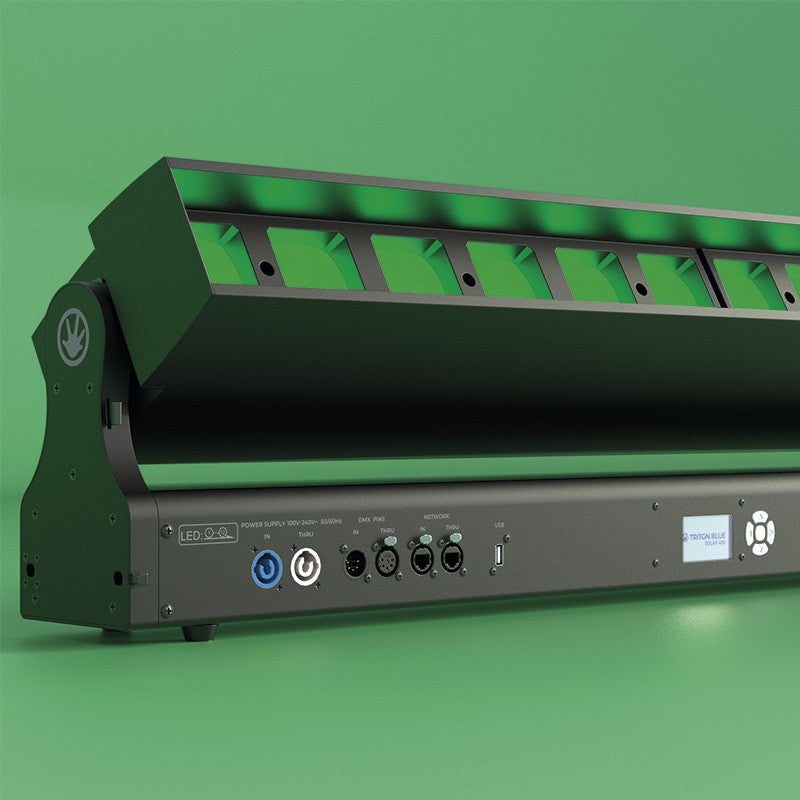

• Professional Connectivity: Equipped with REAN-Neutrik connectors, including 5-pin XLR for DMX, PowerCON for power and Ethercom for Art-Net, ensuring a reliable connection in any environment.
• Versatile Control: Compatible with DMX512, RDM and Art-NET protocols, with 19 and 64 channel modes to suit everything from simple to complex configurations.

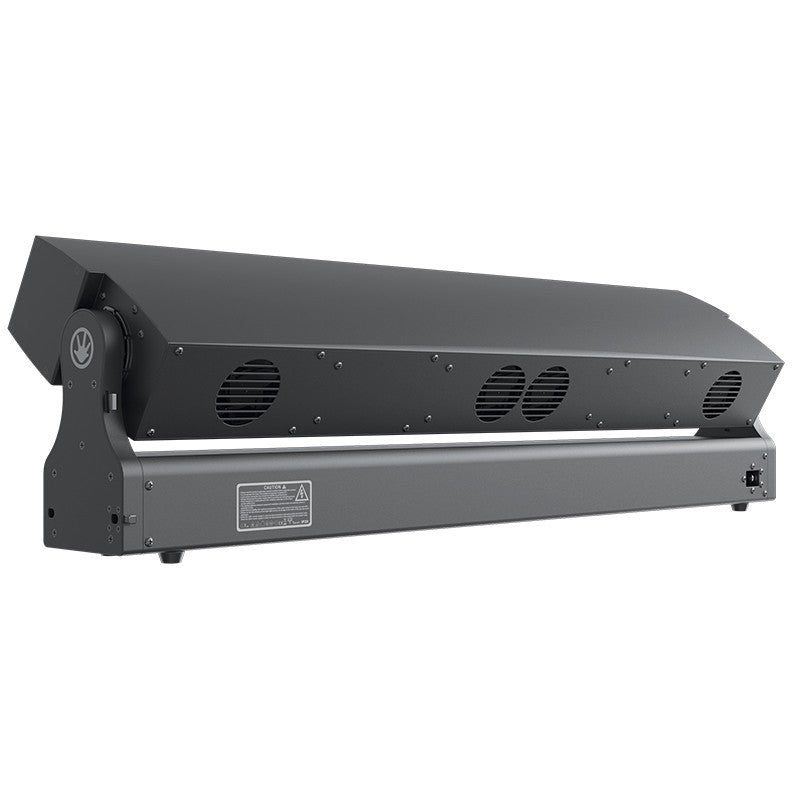

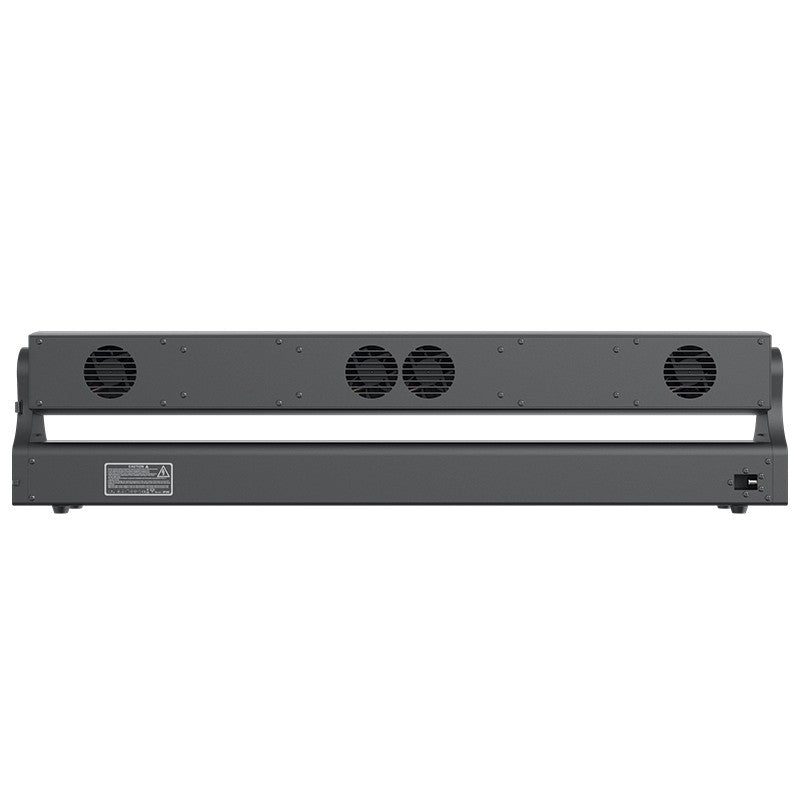

• Silent Operation: It has several ventilation modes, including a Theater mode (52dB) and an SLN mode (49dB), for operating in noise-sensitive environments.

Benefits for the Lighting Professional

The SOLAR 480 was designed to maximize creativity and efficiency. Its individual pixel control capability allows designers to go beyond conventional lighting, creating complex visual effects and fluid animations that previously required multiple fixtures. The wide zoom range eliminates the need for separate equipment for beam and wash effects, optimizing truss space and budget. Integration with protocols like Art-Net facilitates its implementation in advanced network-based control systems, while the RDM function enables remote monitoring and configuration, streamlining setup and adjustment times.

Use Cases

Thanks to its robustness, power and flexibility, the Triton Blue SOLAR 480 is the perfect choice for a wide range of professional applications:

• Concerts and Festivals: Ideal for creating stunning aerial effects, dynamic light curtains and powerful washes of color on stages of any size.
• Television and Film Productions: Its precise color temperature control and quiet operation make it suitable for recording studios.
• Theater and Performing Arts: Allows you to design subtle environments or dramatic effects with smooth transitions and precise positioning.
• Corporate Events: Adds a touch of distinction and dynamism to product launches, conferences and galas.
• Fixed Installations: Its durability and versatility make it a solid investment for nightclubs, concert halls and other entertainment venues.

Frequently Asked Questions

Is it possible to control each LED on the bar independently?

Yes, the SOLAR 480 offers complete pixel-by-pixel control. Each of the 12 LEDs can be individually managed in color and effect, allowing for the creation of complex visual mappings and patterns, especially when using the 64-channel DMX or Art-Net mode.

What control protocols does it support?

It is compatible with the three industry standard protocols: DMX512, RDM for remote configuration and monitoring, and Art-NET for control via Ethernet networks, ensuring seamless integration into any professional lighting system.

Is it suitable for use in theaters or other noise-sensitive environments?

Absolutely. The unit includes several manageable ventilation profiles, including a "Theater Mode" that reduces the noise level to 52 dB and an "SLN" (Super Low Noise) Mode that lowers it to 49 dB, making it perfectly suitable for this type of application.

How do multiple units connect to each other?

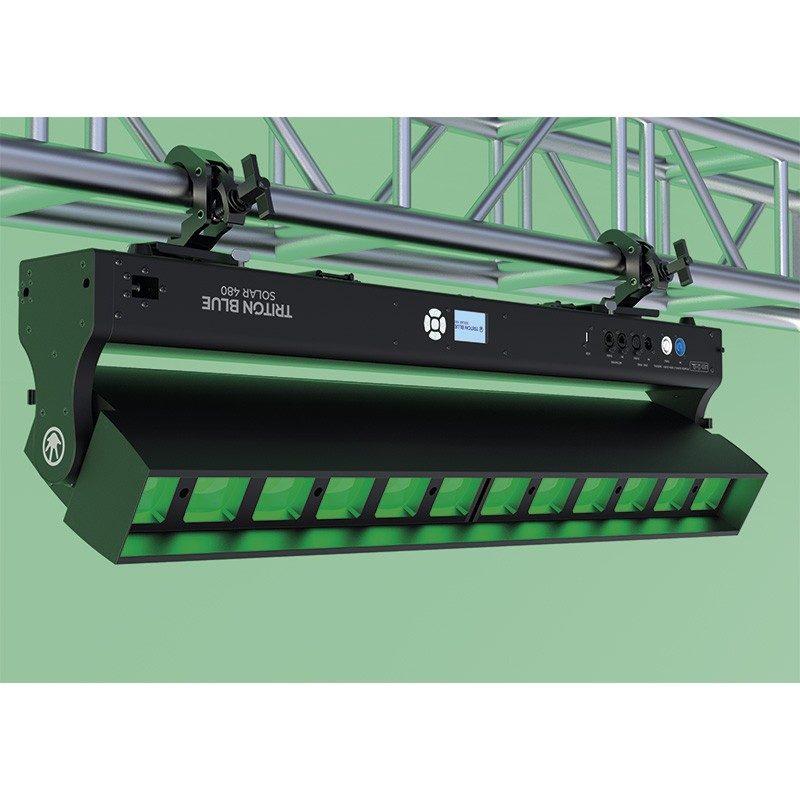

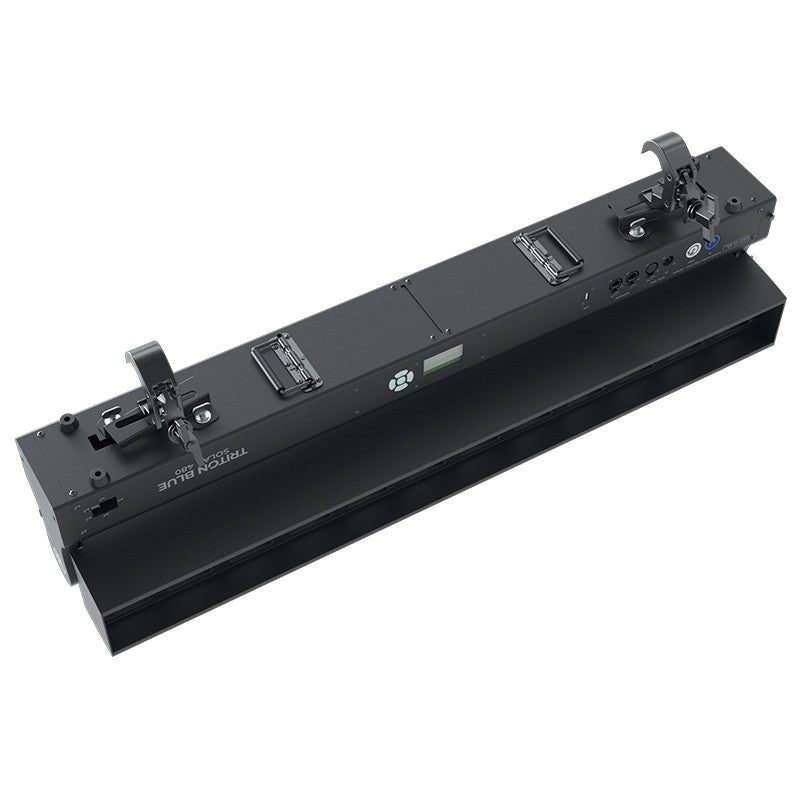

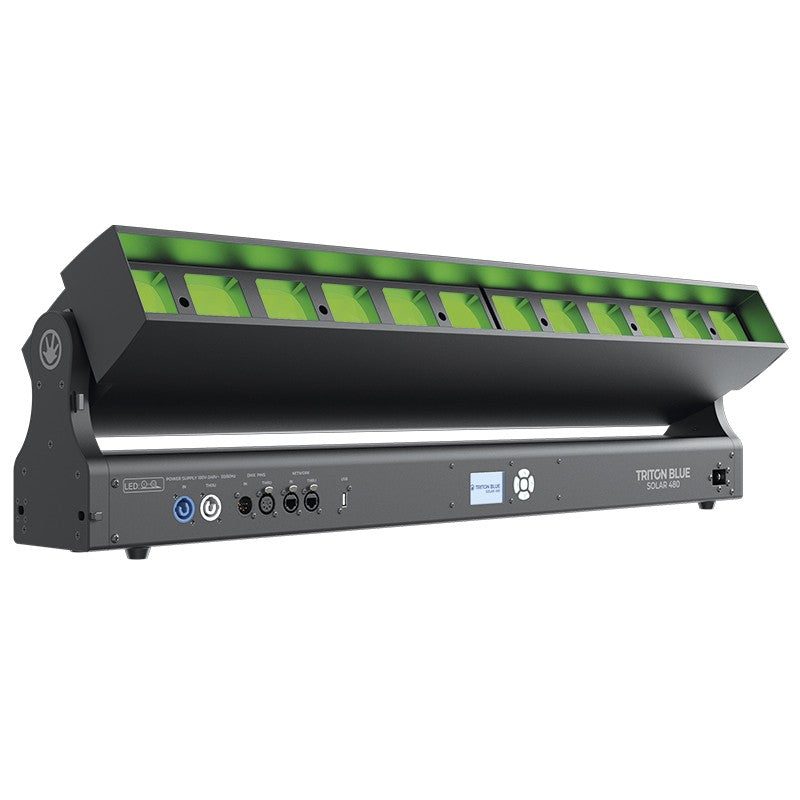

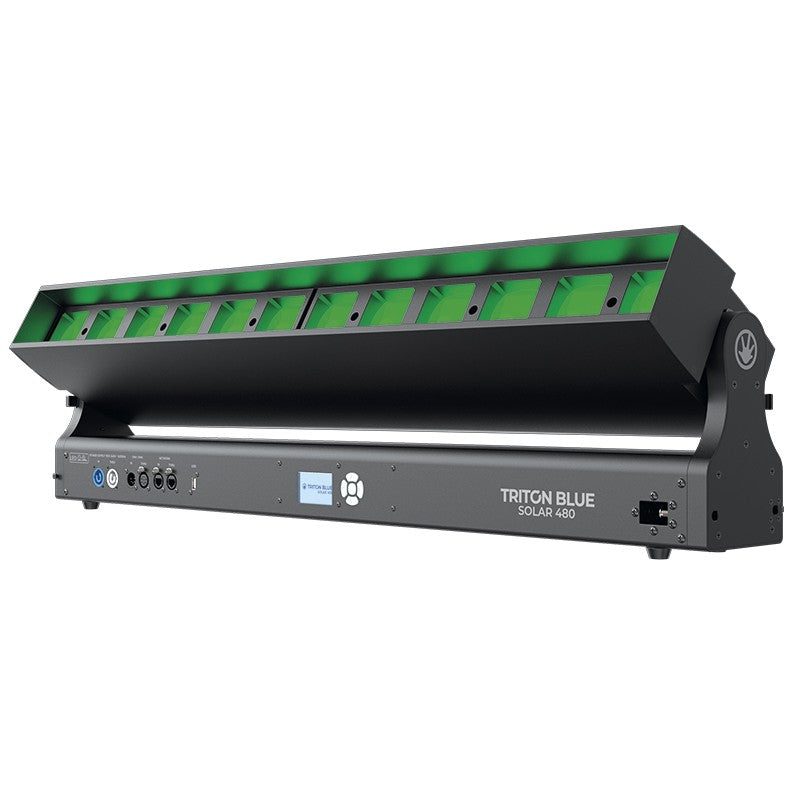

The SOLAR 480 is designed for modular mounting. It features a quick-connect system that facilitates the assembly of multiple bars to create continuous light lines. In addition, it includes input and output connectors for power (PowerCON), DMX signal (5-pin XLR), and Art-Net (Ethercom), allowing for simple and organized daisy-chaining.

Project description

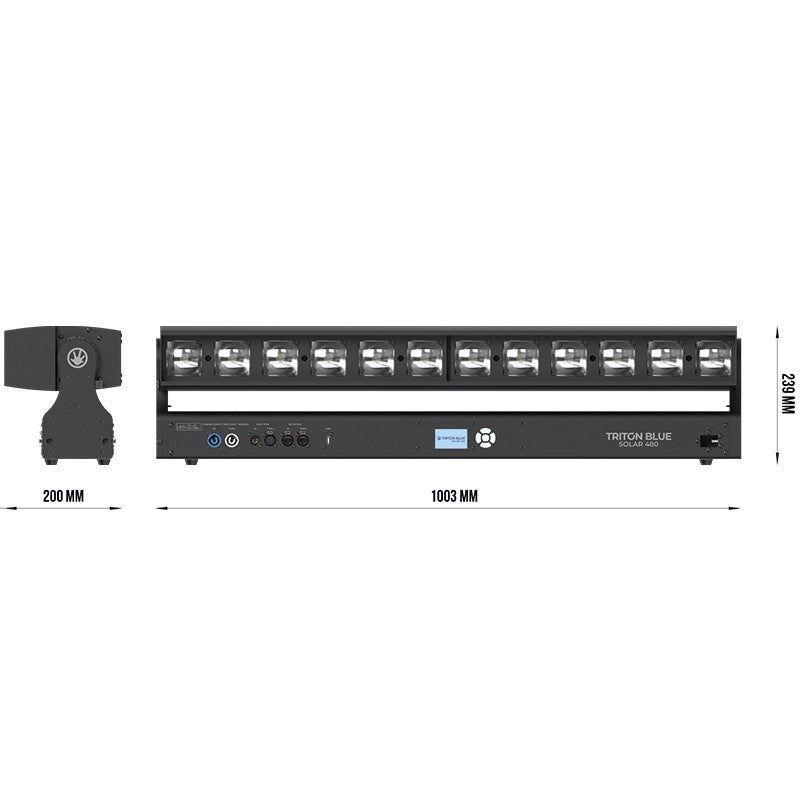

Movable LED light bar with 185° tilt and 16-bit resolution. Light source composed of twelve 40W RGBW 4-in-1 LEDs, with individual pixel control and a 30,000-hour lifespan. Adjustable color temperature range from 2200K to 8000K. Optical system with linear motorized zoom, beam angle of 3.6°-38° and field angle of 4.2°-53°. Control via DMX512, RDM, and Art-NET protocols, with 19- and 64-channel modes. Electronic dimmer from 0-100% with four curves and a 1-30Hz strobe. Aluminum and steel construction with IP20 rating. Connectivity via 5-pin XLR, PowerCON, and Ethercom. AC 100-240V 50/60Hz power supply with a maximum consumption of 425W. Dimensions: 1003 x 126 x 308 mm. Weight: 20.3 kg.
