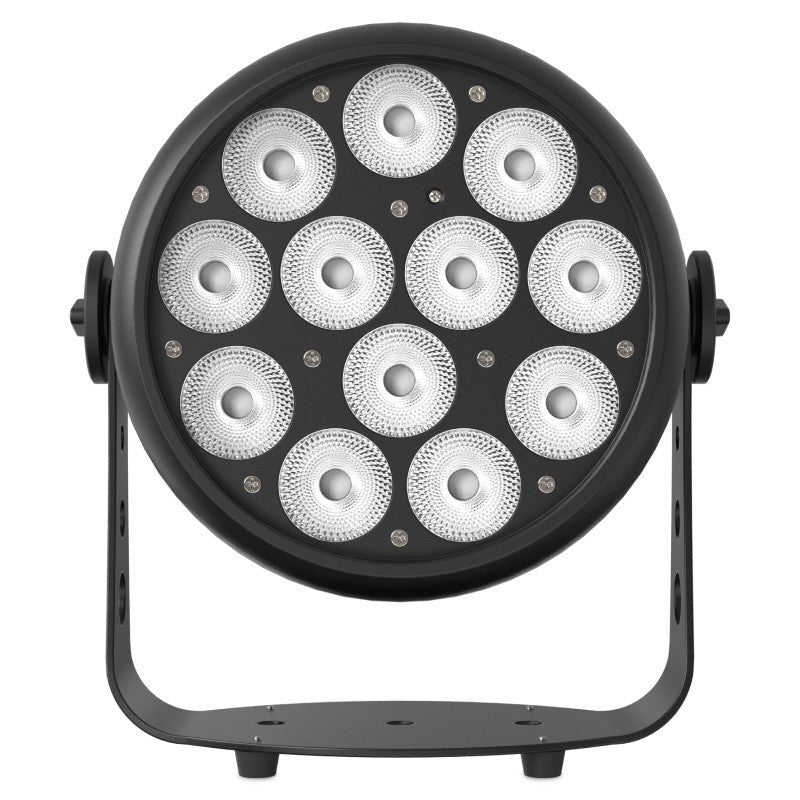

Audibax Irwin 120 - 120 W RGBW 4-in-1 LED PAR spotlight with DMX and IR control

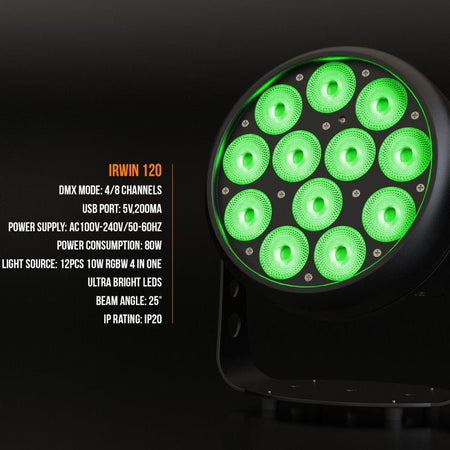

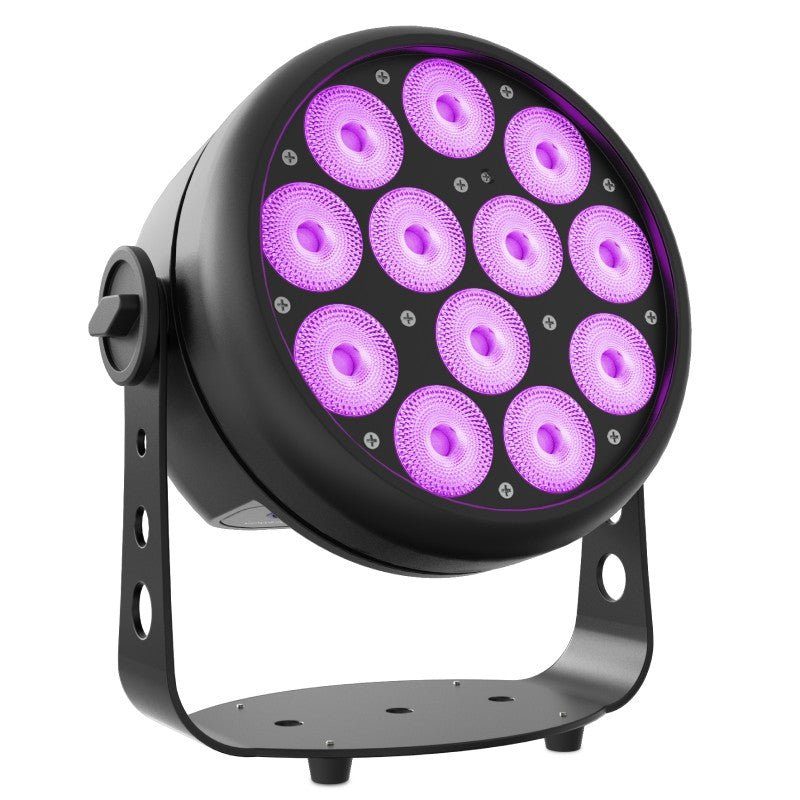

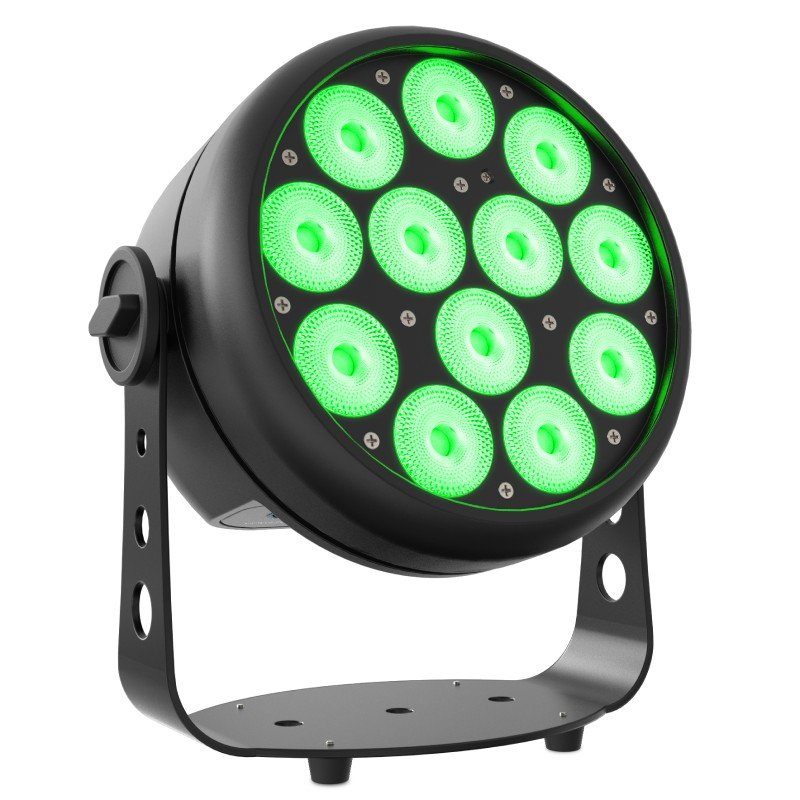

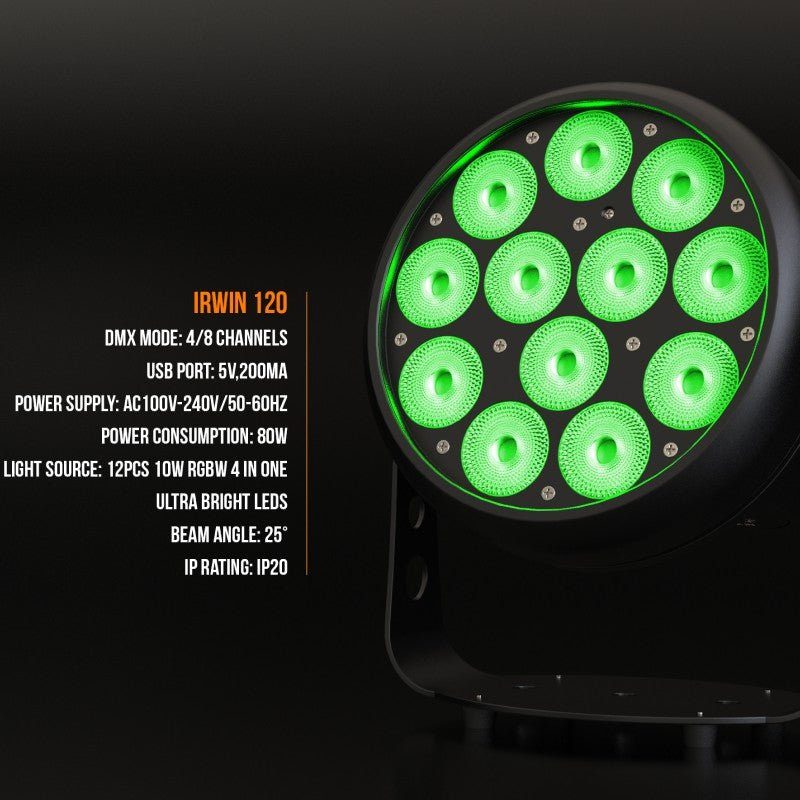

The Audibax Irwin 120 is a professional 120W LED PAR projector that combines a powerful light source with simple and reliable operation for events, theaters, studios, and rentals. It features twelve ultra-bright 10W RGBW (4-in-1) LEDs that deliver uniform color mixing and a clean wash, with a 25° beam angle optimized for solid color coverage without artifacts. Its electronics operate with 4 or 8 DMX channels, offering automatic and sound-activated modes, and includes an IR remote control for quick adjustments without a console. Professional Seetronic PowerCON In/Out and 5-pin XLR connectivity facilitate daisy-chaining and integration into existing installations, while the USB port (5V/200mA) enables compatible accessories. With its compact chassis, 4-button LED display, and heavy-duty construction, it's a versatile tool for production companies, theater companies, mobile DJs, and integrators.
Main features
- Total power of 120W with 12 RGBW 4-in-1 LEDs of 10W each, homogeneous color mixing.
-
Factory-set 25° beam angle , ideal for controlled wash and clean stage cuts.
-
Control modes : DMX-512 (4/8 channels), Master/Slave, Automatic, Sound Active and IR remote control (included).
-

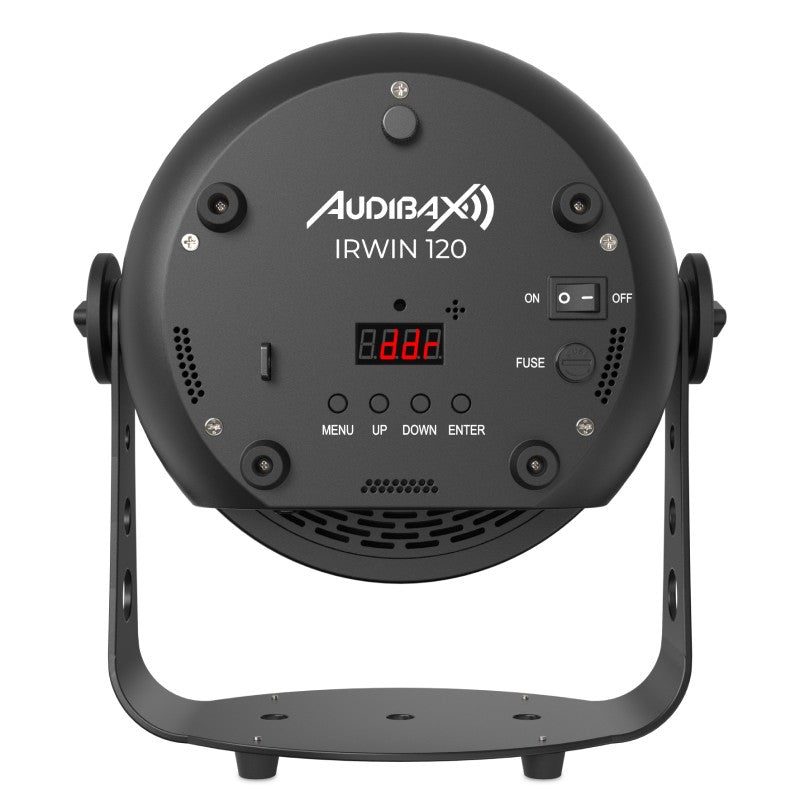

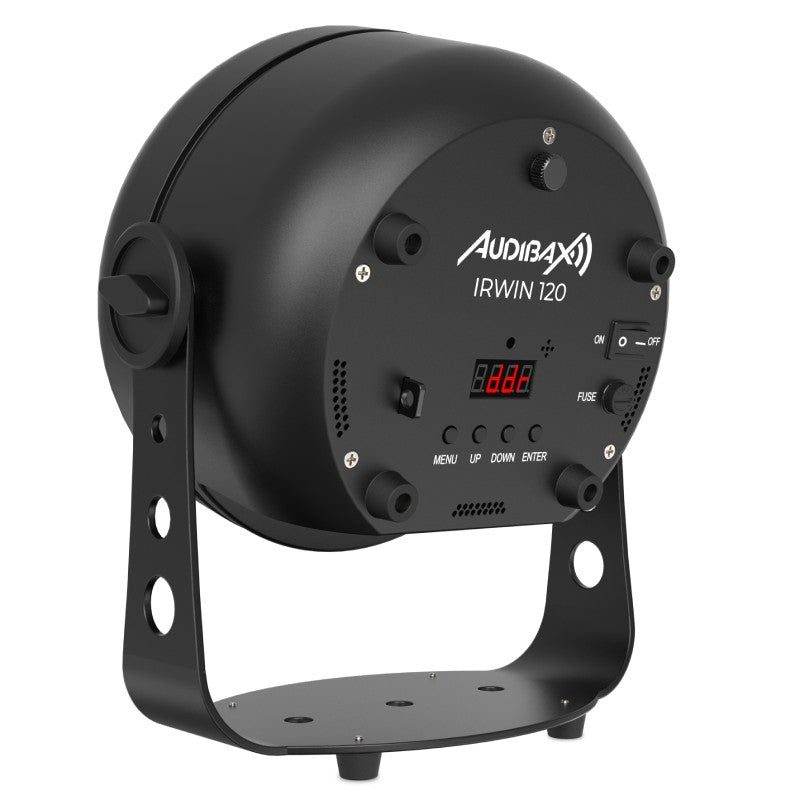

LED display with 4 buttons for direct configuration.
-

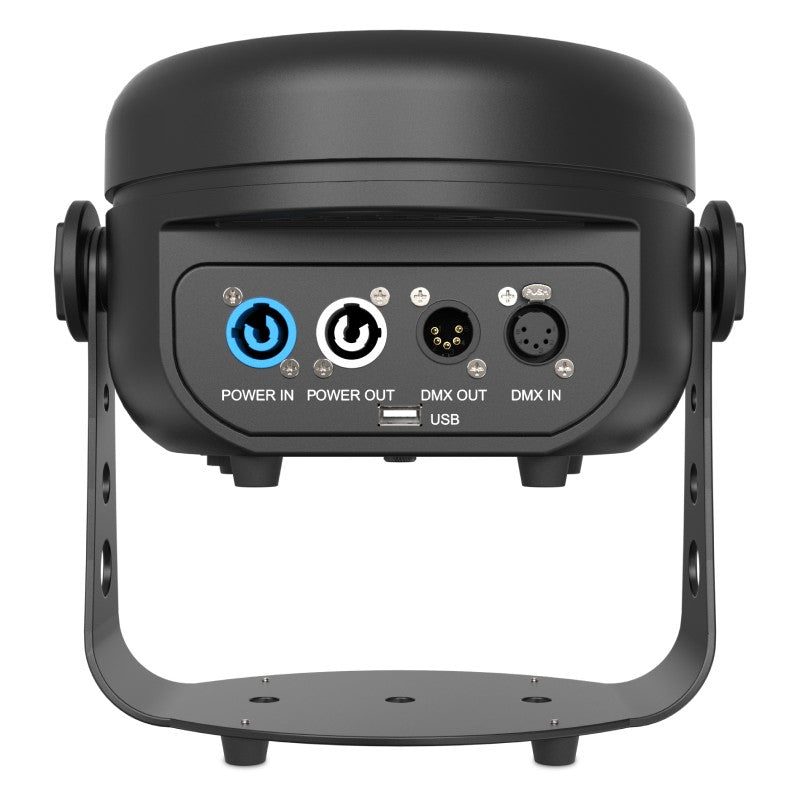

Professional connectivity : Seetronic PowerCON In/Out and 5-pin XLR for DMX data.
-
Universal power supply AC 100–240 V, 50/60 Hz; typical consumption 80 W.
-
5V/200mA USB port for compatible accessories.
-

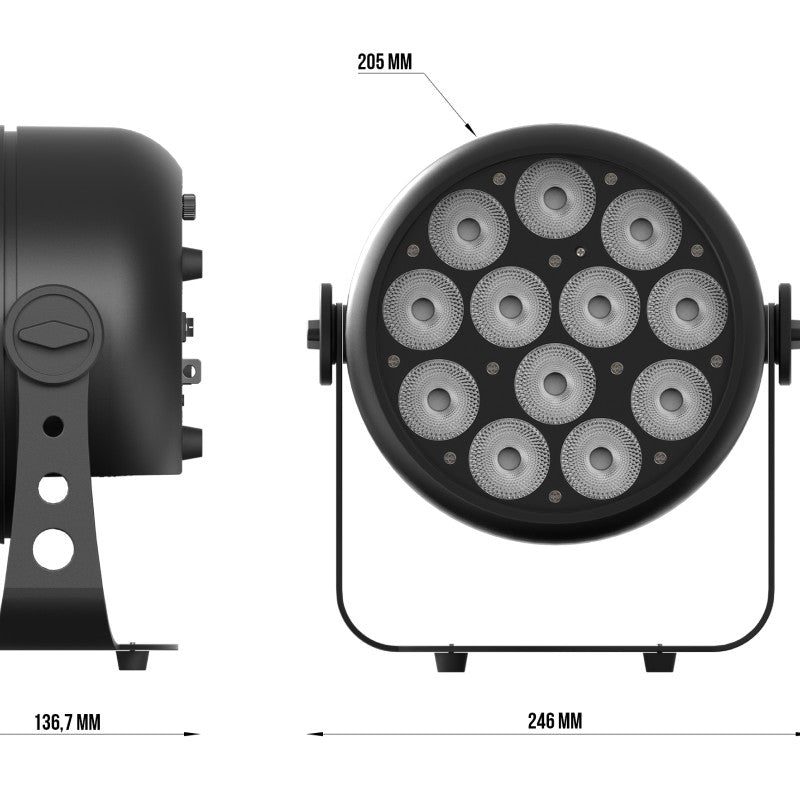

Compact (268 × 246 × 137 mm) and lightweight (1.9 kg) design for quick mounting on truss or floor.
-
IP20 rating for indoor use.
-
Long LED lifespan of around 50,000 hours (standard usage conditions).
Product benefits
-
Consistent color and coverage thanks to the 4-in-1 optical block: fewer color shadows and smooth transitions.
-
Flexible operation with or without a console: from presets and audio-reactive to DMX programming.
-
Easy integration into long chains using PowerCON In/Out and 5-pin XLR.
-
Save time on assembly and adjustments with the 4-button display and included IR remote.
-
Reduced maintenance costs due to the long lifespan of the LEDs and stable electronics.
Use cases
-

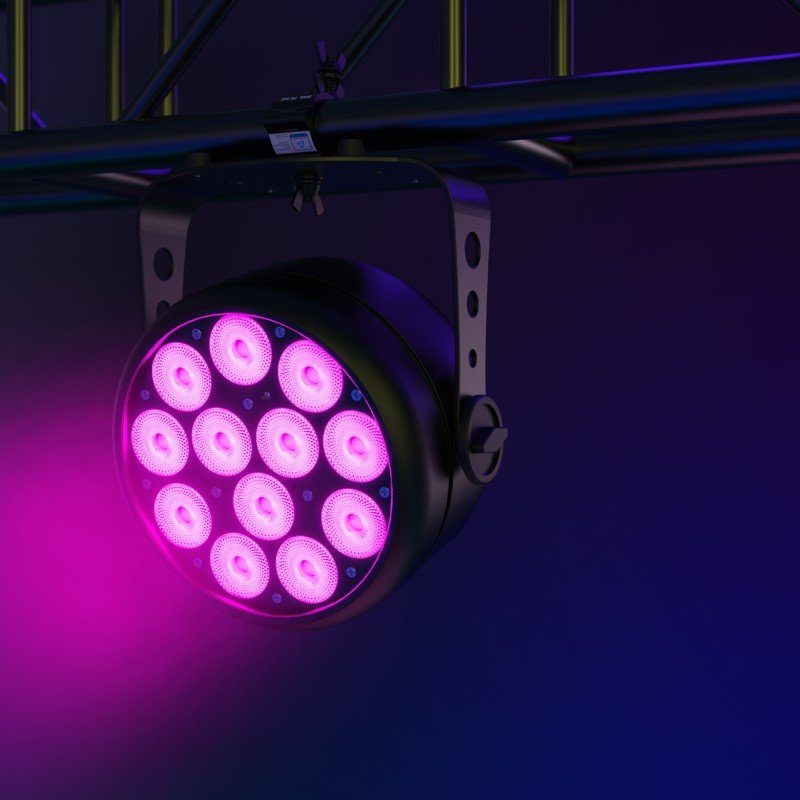

Events and rental : wall washing, cycloramas, trusses and modular stages.
-
Theatre and auditoriums : ambient color, backlighting and stage fills.
-
Studio and streaming : color accents and backgrounds in video sets (indoor use IP20).
-
Clubs and mobile DJs : automatic programs/sound and DMX control in small booths.
-
Fixed facilities : music bars, multipurpose rooms and cultural centers.
Frequently Asked Questions
-
Does it include a remote control? Yes, the package includes an infrared remote control.
-
Does it allow RDM control? No, the control is conventional DMX-512 (4/8 channels), plus Auto/Sound/Master-Slave and IR.
-
Can it be used outdoors? No, it's rated IP20 (indoor). For outdoor use, it needs appropriate protection.
-
What DMX connectors does it have? 5-pin XLR for data; power with Seetronic PowerCON In/Out.
-
What is the power consumption? 80 W at full load.
Installation and control

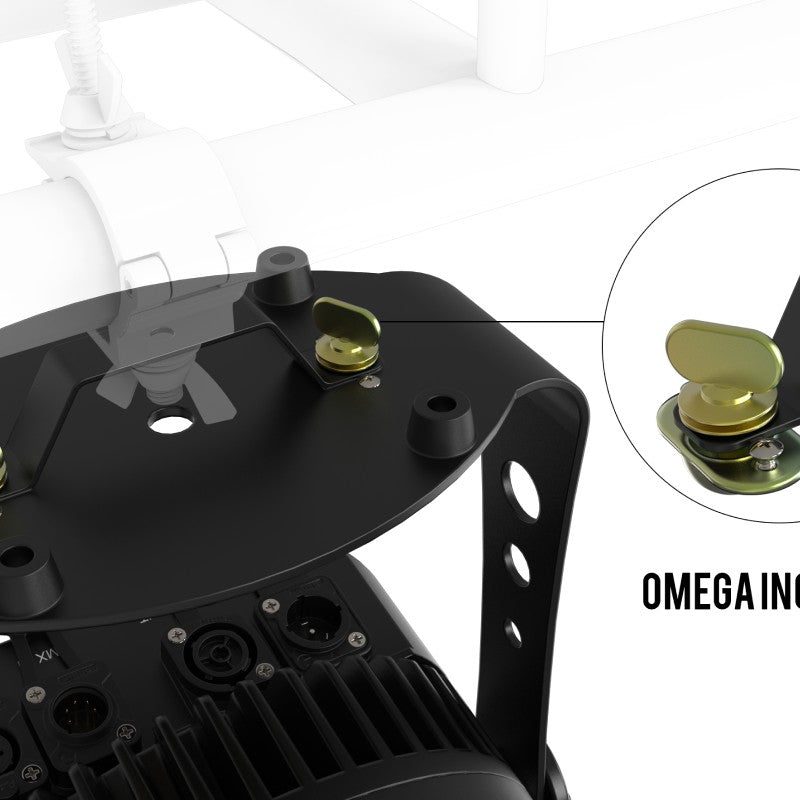

The Irwin 120 is mounted using the U-shaped bracket, ensuring secure attachment with certified hardware and a safety cable. For DMX control, assign the address from the panel ( Addr menu) and select the channel mode (4CH/8CH). In applications without a console, activate the automatic programs or sound-activated mode and adjust sensitivity from the corresponding menu; the IR remote provides direct access to blackout, strobe, fade-in/fade-out, and color dimming.
Project description
120W LED PAR Projector; 12 x 10W RGBW LEDs (4-in-1); 25° beam angle; DMX-512 control (4/8 channels), Master/Slave, Auto, Sound, IR; 4-button LED display; AC power supply 100–240V 50/60Hz; 80W consumption; PowerCON In/Out; 5-pin XLR data; 5V/200mA USB port; IP20; dimensions 268 x 246 x 137 mm; weight 1.9 kg; includes IR remote, power cable and manual.
