Audibax Irwin 60 - 60W RGBW LED PAR spotlight with 4/8 channel DMX control

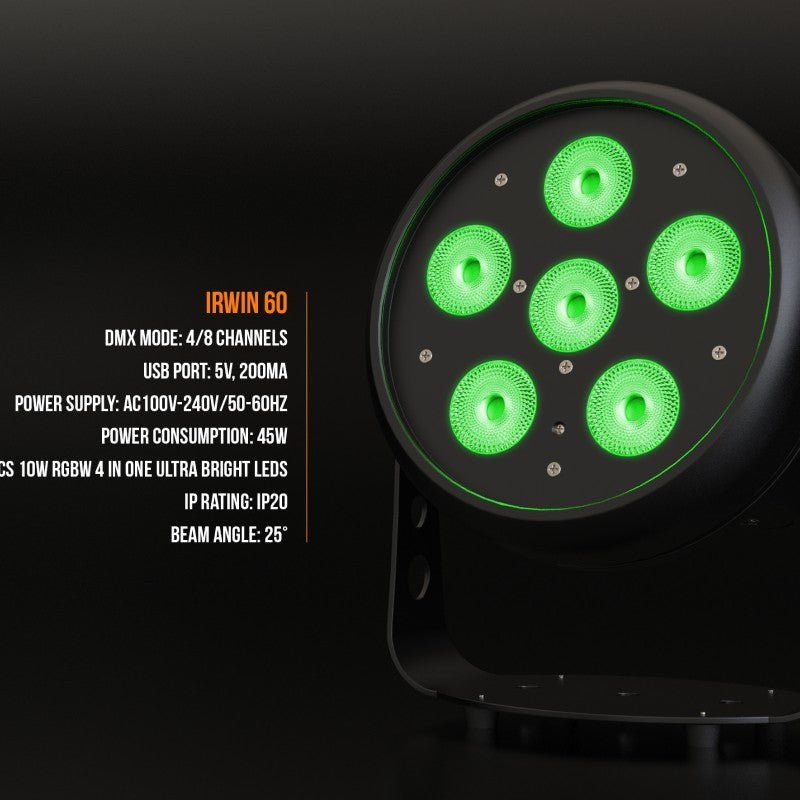

The Audibax Irwin 60 is a compact and reliable LED PAR light designed to deliver uniform color washes and precise RGBW mixing for events, stages, studios, and entertainment venues. It features six 10W RGBW 4-in-1 LEDs (60W total) that produce intense, clean colors, with a 25° beam angle ideal for illuminating walls, backdrops, and stage elements. Its DMX512 control (4 or 8 channels), automatic and sound-activated modes , and included IR remote control allow for quick integration into any set. For easy setup on tours and installations, it is equipped with professional Seetronic PowerCON In/Out and 5-pin XLR connectors, as well as a 4-button LED display for quick configuration. With a maximum power consumption of 45W , an IP20 rating, and a lightweight chassis, the Irwin 60 balances power, control, and efficiency for intensive use.
Main features
-

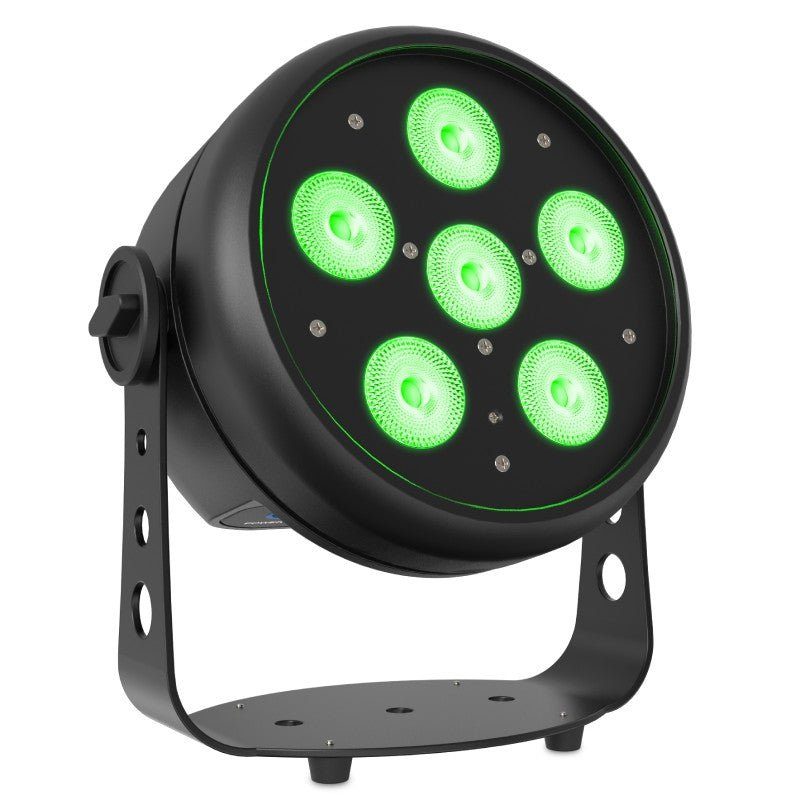

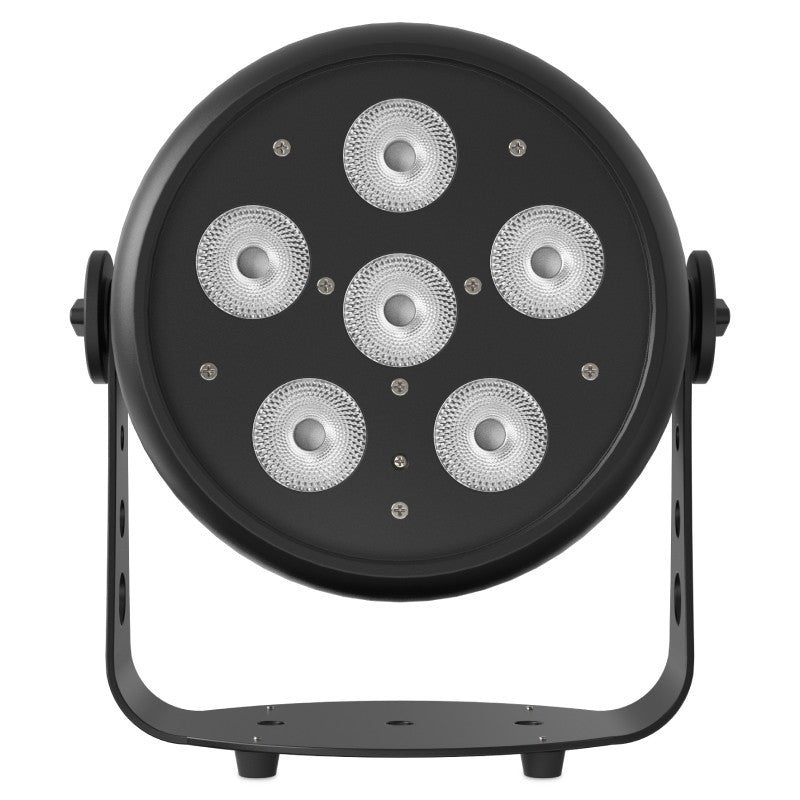

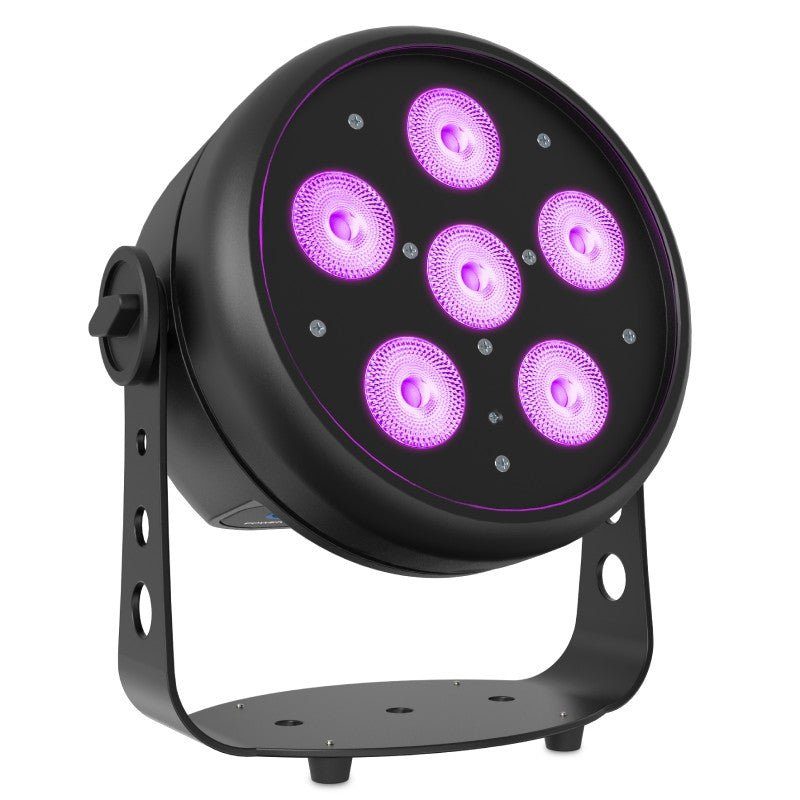

Light source: 6 x 10W high-intensity 4-in-1 RGBW LEDs for a natural and solid color mix.
-
Optics: Fixed 25° beam that provides a clear and wide-range wash effect, perfect for uniform washes.
-
Control modes: DMX512 (4/8 channels), Master/Slave, Automatic, Sound Activation and Infrared (IR) Remote Control.
-
Interface and connectivity: LED display with 4 buttons, PowerCON Seetronic input/output and 5-pin XLR for data.
-
Power supply and consumption: AC 100–240 V, 50/60 Hz; maximum consumption 45 W.
-
Other functions: electronic color dimmer (R, G, B, W), jump and fade effects, adjustable strobe (1–20 Hz).
-
Construction and size: Lightweight (1.84 kg) and compact design for truss or tripod mounting.
-
Environment: IP20 rating for indoor use.
Product benefits
-
Consistent colorimetry: 4-in-1 RGBW LEDs avoid color shadows and offer solid whites and saturated colors for modern stage sets.
-
Immediate integration: With 4/8 DMX channels, Auto/Sound modes and included IR remote, you can use it as a standalone fixture or within a DMX network.
-
Professional workflow: PowerCON In/Out and 5-pin XLR connectors ensure secure, daisy-chained connections with stage standards.
-
Energy efficiency: 45W maximum consumption and long LED lifespan to reduce operating and maintenance costs.
-
Real portability: lightweight and compact chassis that facilitates transport, quick assembly and intensive use in rental.
Use cases
-
Events and weddings: walls, columns and backgrounds bathed in coherent color palettes.
-
Concerts and clubs: color reinforcement on stage, side trusses and backlighting.
-
Theater and studio: general washes, environments and transitions with smooth fades.
-
Fixed installation: bars, auditoriums, multipurpose rooms and convention centers.
-
Rental and mobile production: agile assembly/disassembly and professional assembly line cabling.
Frequently Asked Questions
Does it include a remote control?
Yes. The package includes an IR remote control for basic operation without a console.
Can I control it via DMX?
Yes. It has DMX512 with 4 or 8 channels , plus Master/Slave, Auto and Sound modes.
What is the beam angle?
The Irwin 60 uses a 25° angle as standard, according to the official manual. This is the recommended angle for stage and wall washes.
Does it have RDM?
The manual does not specify RDM compatibility. If you need RDM, check the console/infrastructure or consider a model that explicitly indicates it.
What power and data connections does it have?

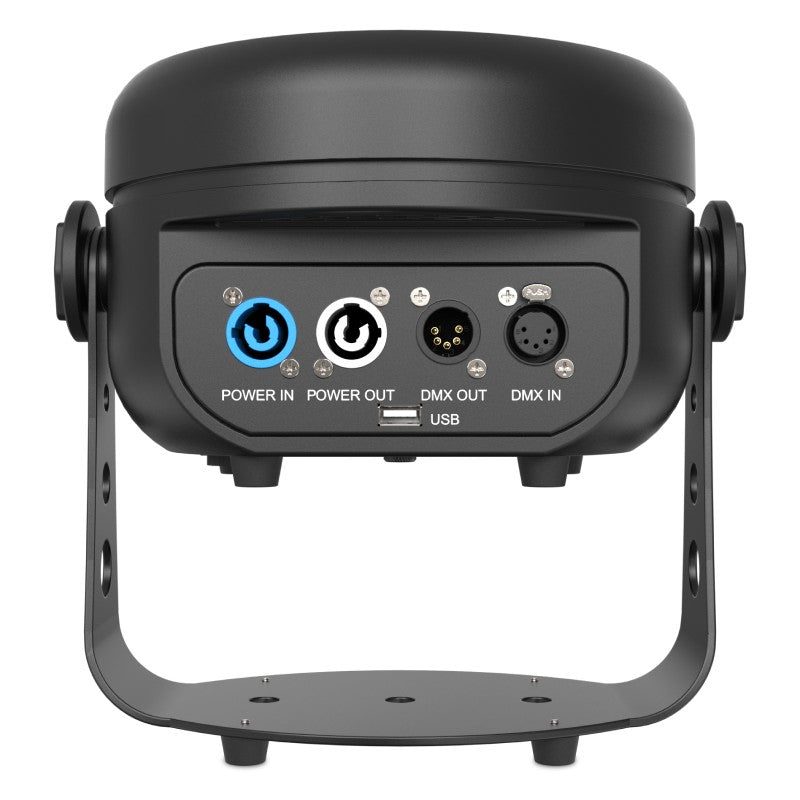

PowerCON Seetronic In/Out for daisy-chain power and 5-pin XLR for DMX.
Installation and handling

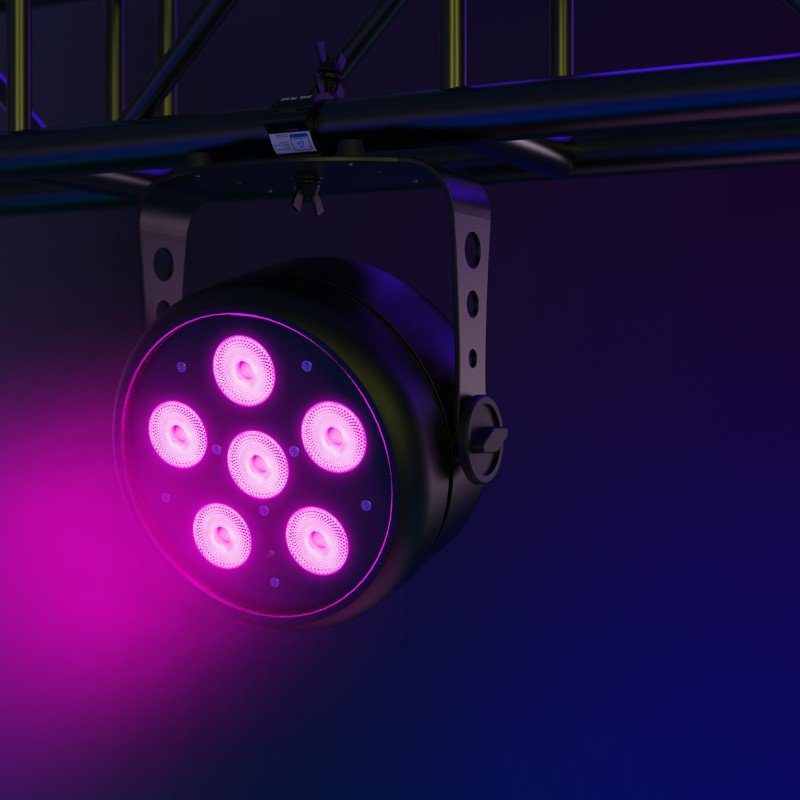

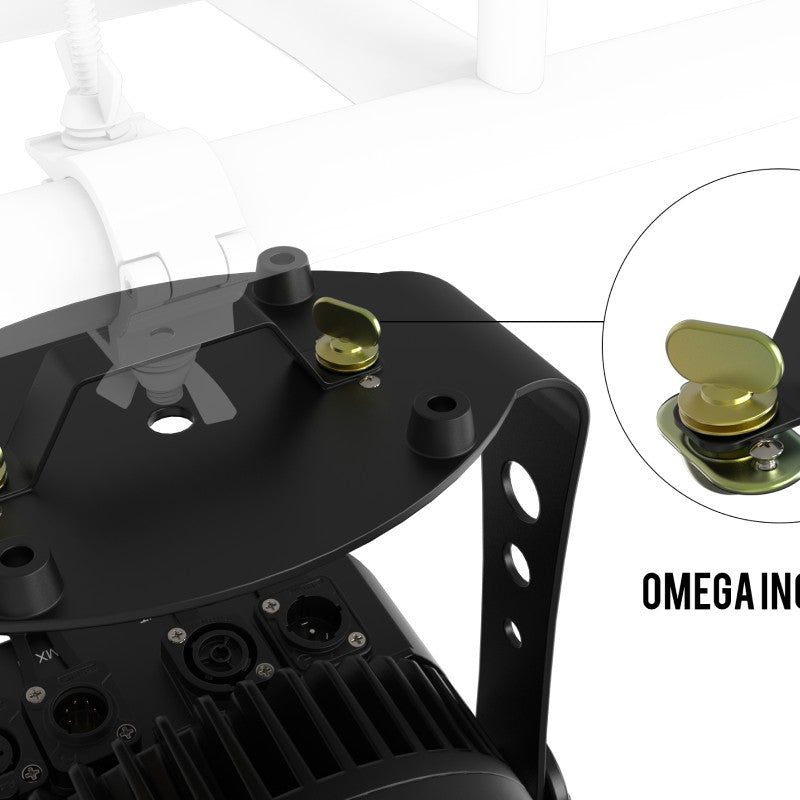

- Mounting using a “U” bracket with holes for secure attachment to a truss or tripod.

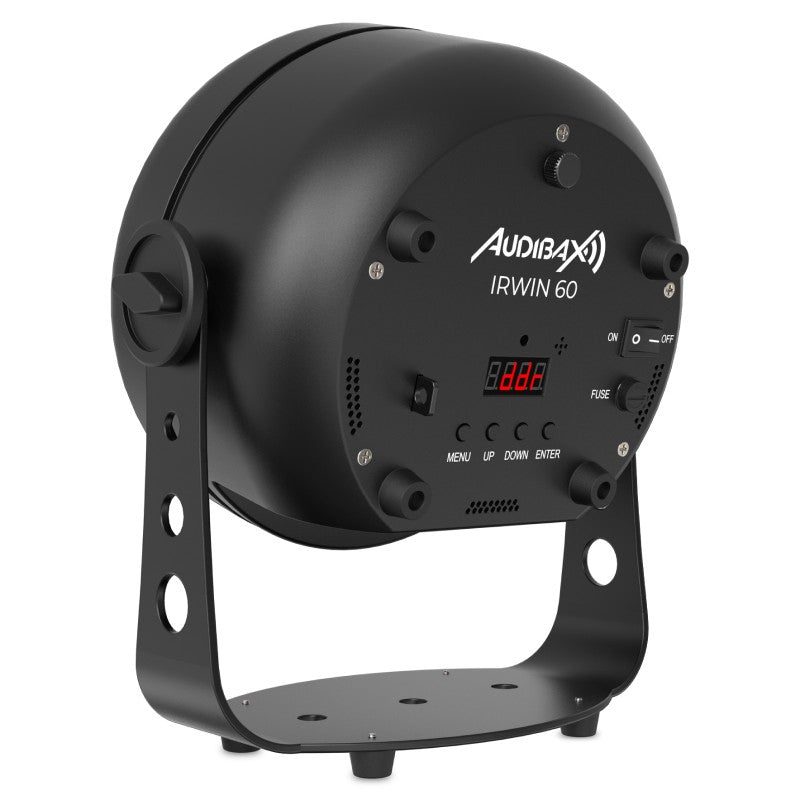

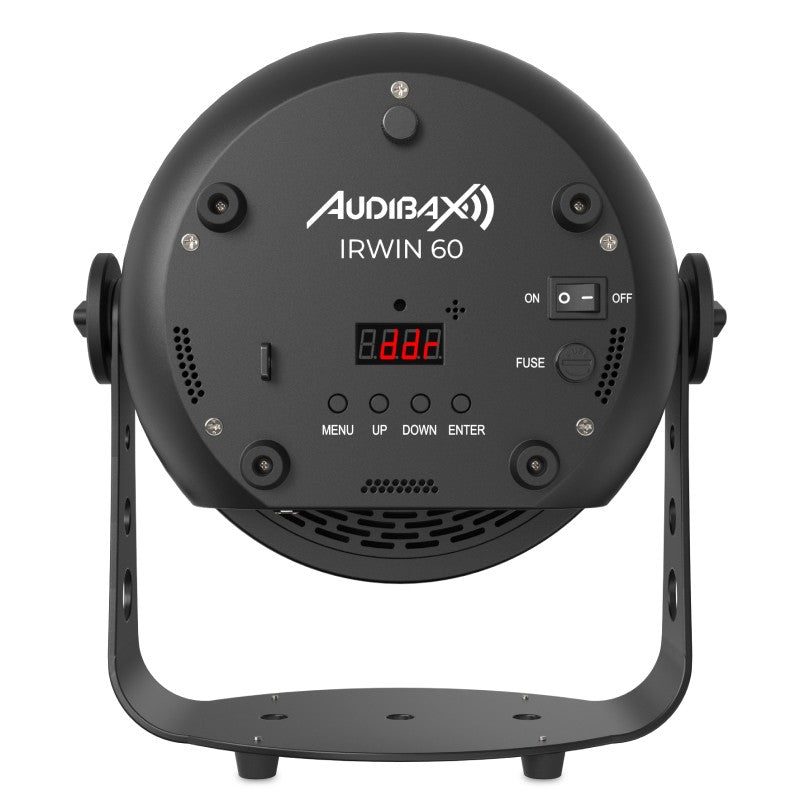

- Configurable from the 4-button screen: DMX address, channel selection (4/8), Auto/Sound modes, static colors and strobe/fade speeds.
- Includes a 5V/200mA USB port for manufacturer utilities.
Project description

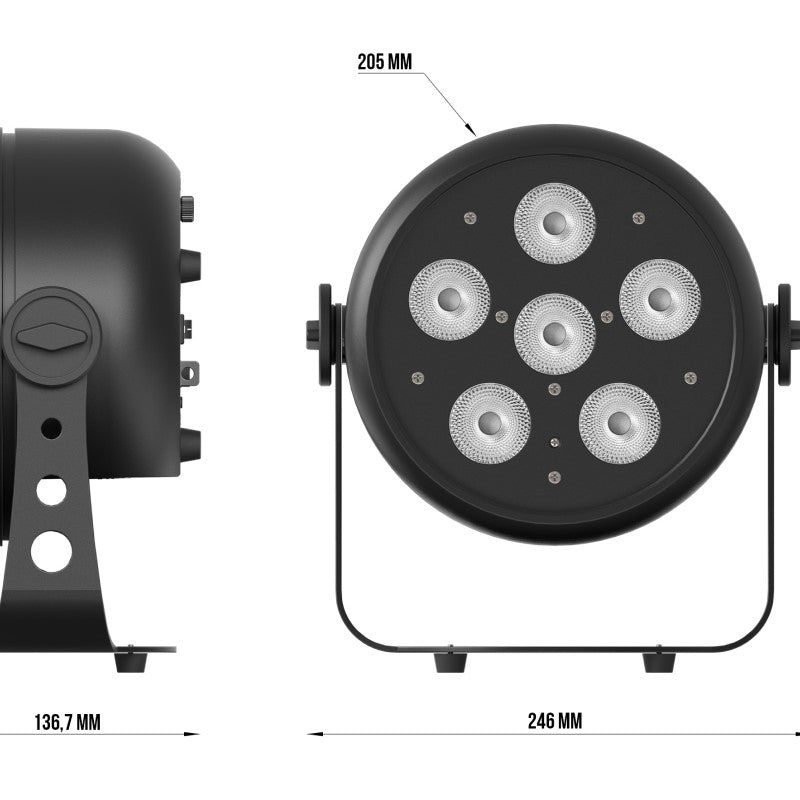

IP20 rated indoor LED PAR spotlight with 6 x 10W RGBW 4-in-1 LEDs (60W total), 25° beam angle, 4/8 channel DMX512 control, Auto/Sound/Master-Slave/IR modes, 4-button LED display, 45W power consumption, AC 100–240V 50/60Hz power supply, Seetronic PowerCON In/Out and 5-pin XLR connectors, 5V 200mA USB port, dimensions 268 x 246 x 137 mm, weight 1.84 kg. Includes IR remote control, power cable, and manual.
