Audibax MC XLR 164-15 - 15m 16/4 Multicore Stage Box with XLR and 6.3mm Jack

Audibax MC XLR 164-15 - 15m 16/4 Multicore Stage Box with XLR and 6.3mm Jack

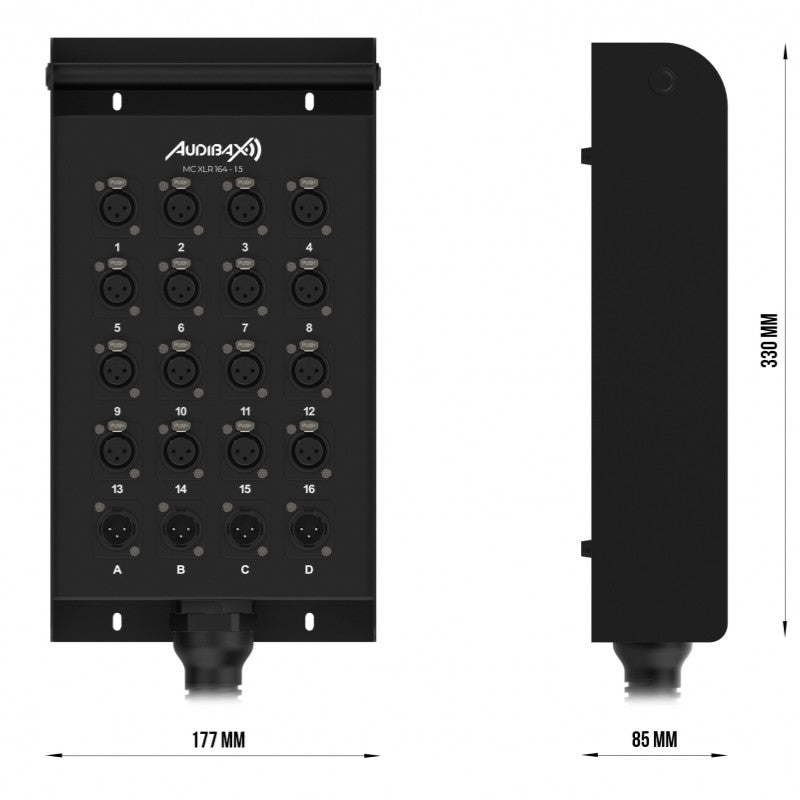

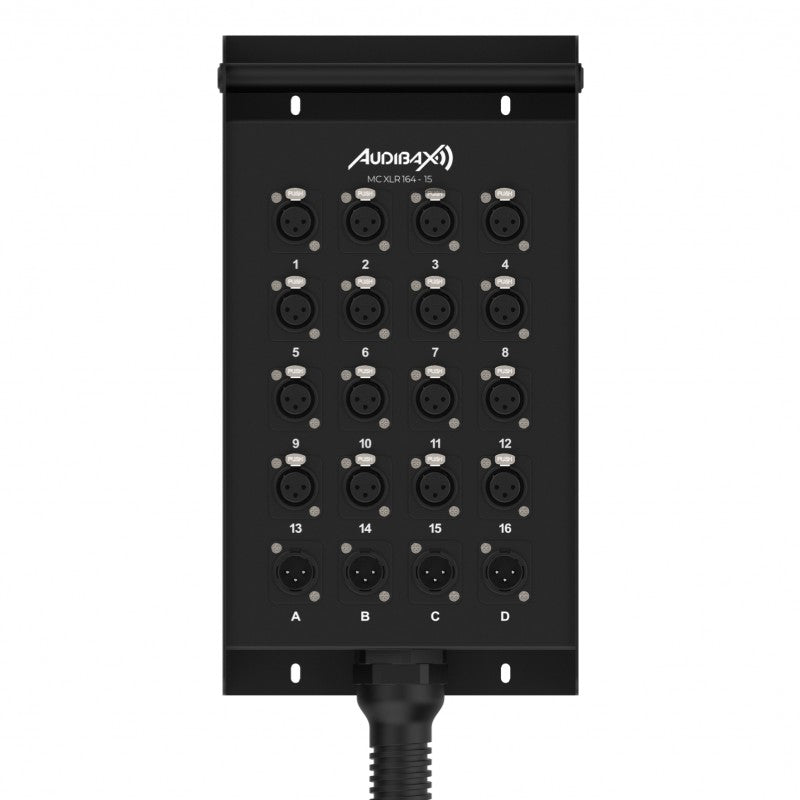

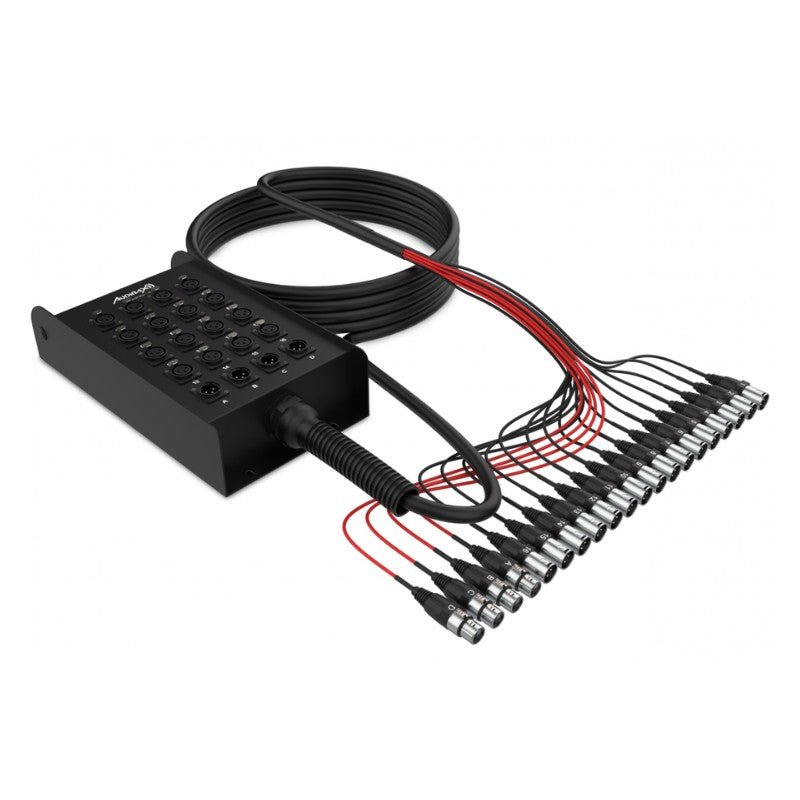

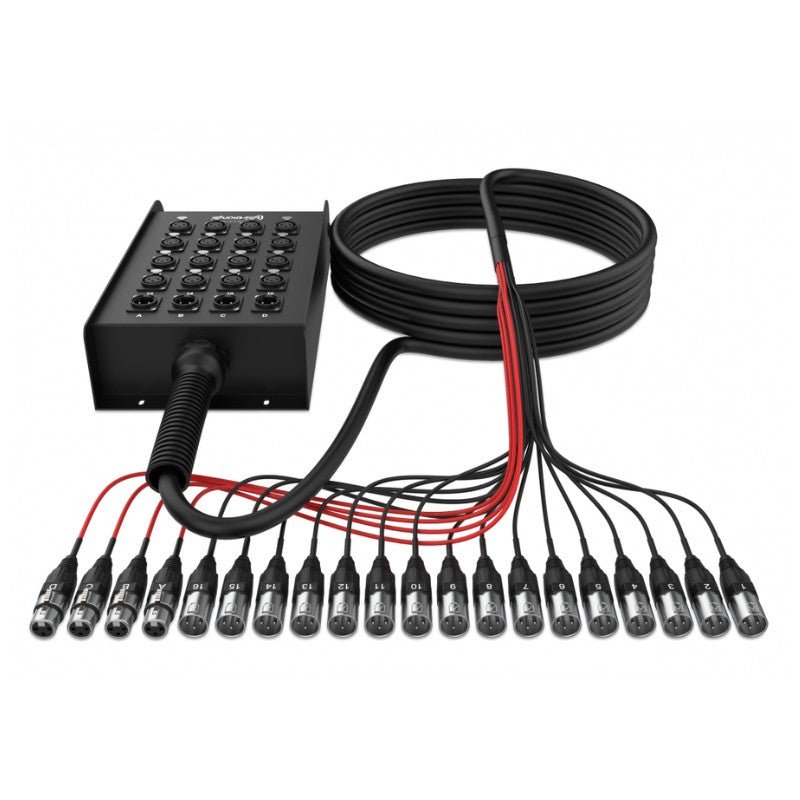

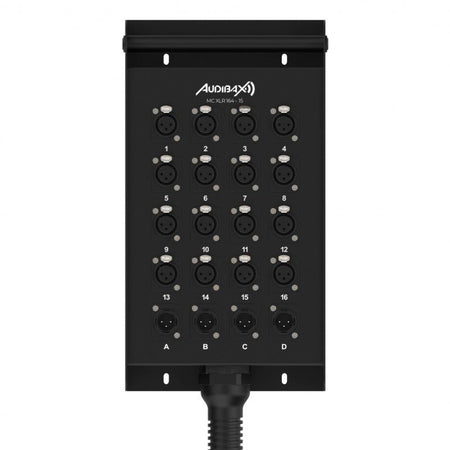

The Audibax MC XLR 164-15 is a 16/4 multicore stage box designed to streamline cabling and ensure stable connections in professional sound . With a length of 15 meters , it integrates 16 female XLR inputs for microphones/line signals and 4 male XLR returns for sending signals to monitors, amplifiers, or processors. At the opposite end (tail/fan-out), it offers 16 male XLR connectors and 4 6.3 mm jack connectors , facilitating direct integration with consoles and racks without additional adapters. Its main cable uses 25 AWG (7×0.15) with an outer diameter of 20 mm , and the entire unit weighs 9 kg for a robust and reliable structure. A compact and tidy solution for rental and permanent installations , in venues such as theaters, concert halls, studios, and corporate events.

Main features

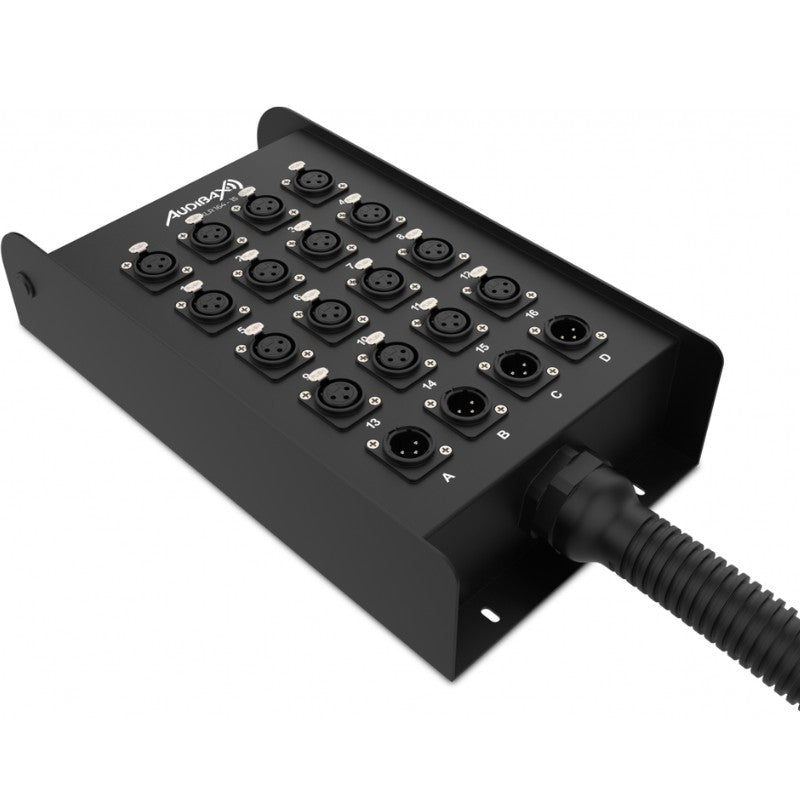

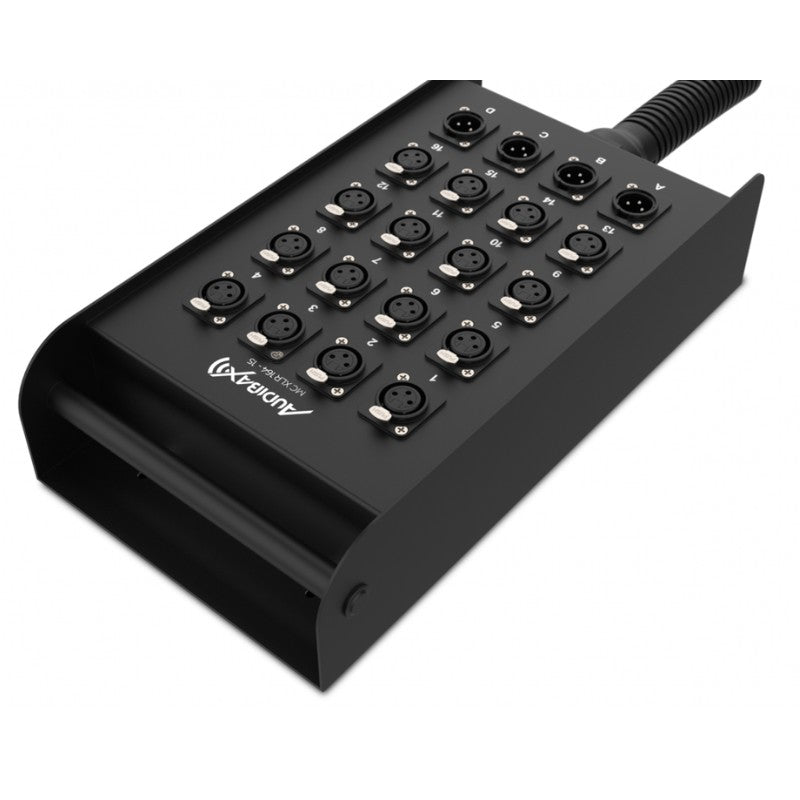

• 16/4 configuration: 16 XLR inputs (box) + 4 XLR returns (box) for stage signals and return sends.

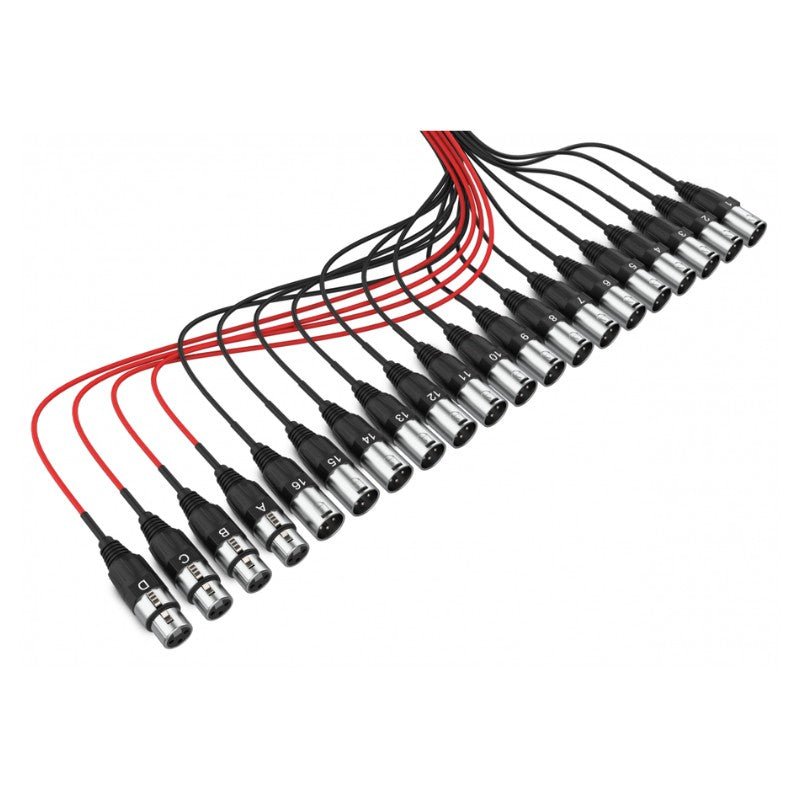

• Optimized fan-out: 16 XLR male + 4 6.3 mm jacks at the cable end, ready to connect to the table or rack .
• Working length: 15 m, ideal for medium-sized stages and mobile setups.
• Wiring: 25 AWG (7×0.15) with 20 mm outer diameter , balance between flexibility and durability.
• Stage box format: clear distribution of inputs and returns for an orderly setup and reduction of individual runs.
• Finish: black color, design intended for intensive use in professional environments.
• Logistics: packaging dimensions 400 × 400 × 250 mm; approximate total weight 9 kg.

Product benefits

• Fewer loose cables, more speed: a single cable bundles all the lines, speeds up assembly and minimizes connection errors.
• Clear signal flow: physically separate inputs and returns to place equipment at FOH or side of the stage with total control.
• Professional compatibility: XLR and 6.3 mm jack connectors, standard on analog and digital consoles, processors and amplifiers.
• Everyday reliability: construction designed for rental and continuous use, with a generous diameter cable to withstand frequent routes and winding.

Use cases

• Live performances in halls and theaters: full band microphones with monitor/PA returns.
• Corporate events and trade fairs: conferences, presentations and showrooms with multiple sources.
• Studios and rehearsal rooms: permanent organization of cabling between room and control.
• Fixed installation in venues: auditoriums, cultural centers and educational spaces.

Frequently Asked Questions

• What does 16/4 mean? It indicates 16 input lines from the stage to the mixing console and 4 return lines from the mixing console to the stage.
• Are the 6.3 mm jacks TS or TRS? The manufacturer specifies " 6.3 mm jack " without detailing the type. For balanced routing, check the standard required by your equipment and use appropriate adapters or cables if necessary.
• Is it compatible with digital mixers? Yes, as long as the connection is XLR or 6.3 mm jack, compatibility is direct at the connector level.
• Can it be used outdoors? It's a cable and box assembly; occasional outdoor use is possible, but it's recommended to protect it from moisture and abrasion and use cable trays or conduits.

Usage and care recommendations

• Label inputs and returns to speed up microphone setup and troubleshooting .
• Avoid stress on connectors; when winding, follow a wide and constant loop to increase its lifespan.
• Keep the connectors clean and dry; periodically check solder joints and clamping clips.

Project description

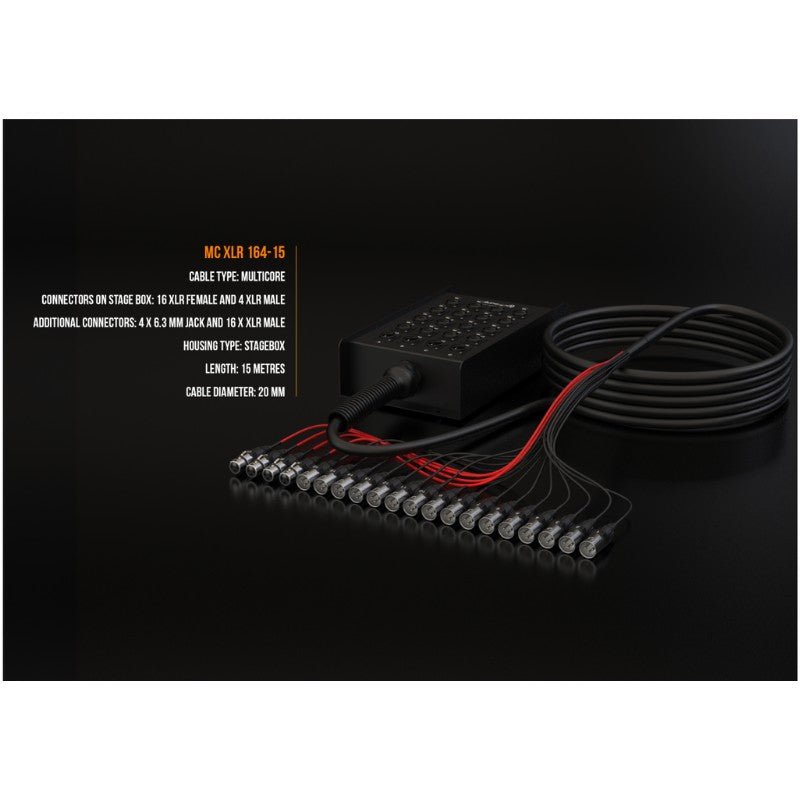

Multicore cable with 16/4 stage box; length 15 m; connectors on box: 16 female XLR and 4 male XLR; connectors on cable: 16 male XLR and 4 6.3 mm jack; gauge 25 AWG (7×0.15); outer diameter of cable 20 mm; color black; packaging dimensions 400 × 400 × 250 mm; weight 9 kg.
