Audibax Brooklyn 5T WH - Pair of 100V, 2-way (5") wall-mounted speakers, white, for installation and background music
The Audibax Brooklyn 5T WH is a pair of passive, two-way in-wall speakers designed for 70/100V line sound systems where uniform coverage, discreet aesthetics, and everyday reliability are essential. Each unit features a 5" woofer with a 1" voice coil and a silk dome tweeter , delivering a frequency response of 80 Hz to 20 kHz . Its 90°H × 70°V dispersion pattern ensures even sound distribution in rooms, restaurants, shops, classrooms, or corporate spaces. The ABS enclosure and wall bracket provide a clean and robust mounting system, while the screw-type Euroblock connector simplifies professional wiring. Working with a line transformer with 3/6/15/30W RMS taps allows for scaling the installation and adding multiple speakers along long runs while maintaining stability and control from the 70/100V amplifier.
Main features
-
Pair of passive 2-way speakers for 70/100V installation systems.
-
Transducers : 5” woofer (1” voice coil) + silk dome soft tweeter.
-
Frequency response : 80 Hz – 20 kHz; Max. SPL : 115 dB; Sensitivity : 86 dB (1 W/1 m).
-
Dispersion : 90° (H) × 70° (V) for wide and controlled coverage.
-
100V/70V lines with selectable RMS sockets : 3W / 6W / 15W / 30W.
-

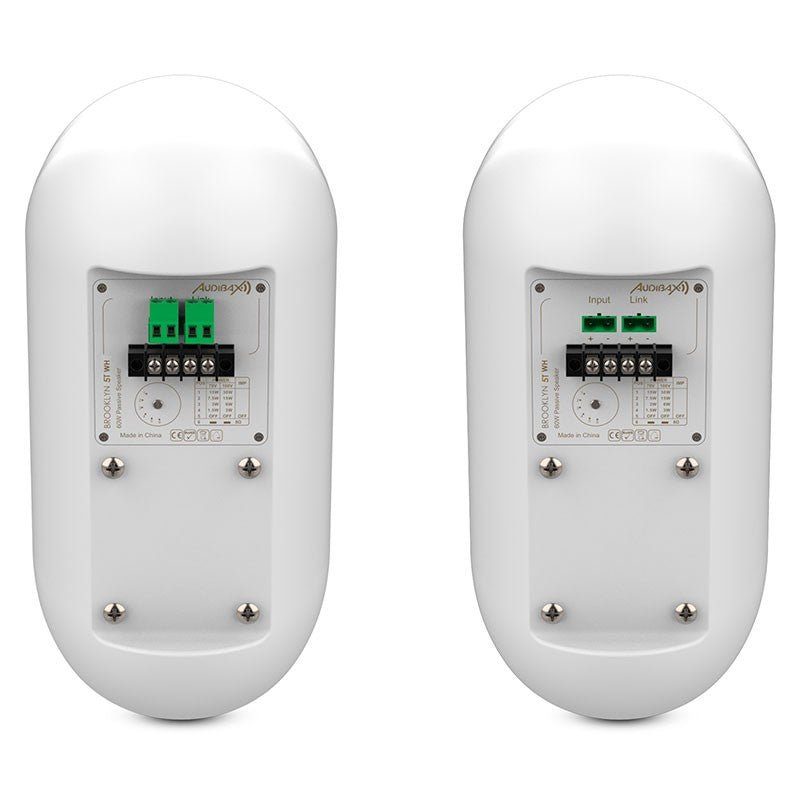

Connection via Euroblock + screw for secure installation.
-

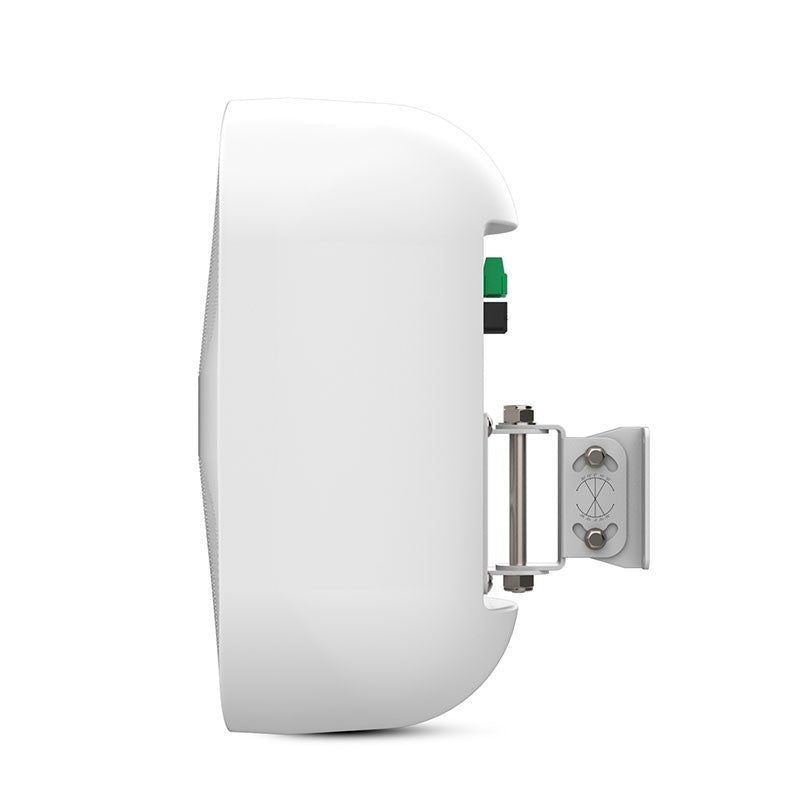

Wall mounting with included bracket; enclosure finish in ABS, white color.
-
Dimensions per unit : 170 × 282 × 365 mm; Weight : 3.2 kg.
-
Indoor use (IP20), ideal for background music and quality public address systems.
Product benefits
-
Clear and balanced sound in background music and vocal reinforcement installations thanks to its soft dome tweeter and 5” woofer
-
Consistent coverage with a 90° × 70° pattern, reducing dead zones and facilitating fewer reinforcement points.
-
Scalability : 3/6/15/30W sockets to adjust power per zone and add multiple speakers in long cable runs at 70/100V.
-
Quick installation with Euroblock connection and wall support, optimizing time in retail , hospitality, education and corporate projects.
-
Discreet design in white and ABS enclosure that integrates with the architecture.
Use cases
-
Restaurants and shops : uniform background music in rooms, corridors and checkout areas.
-
Corporate spaces : waiting rooms, receptions and collaborative areas.
-
Educational and cultural centers : announcements, voice reinforcement and multimedia playback.
-

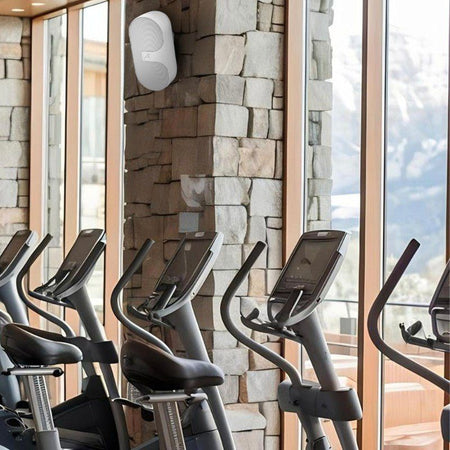

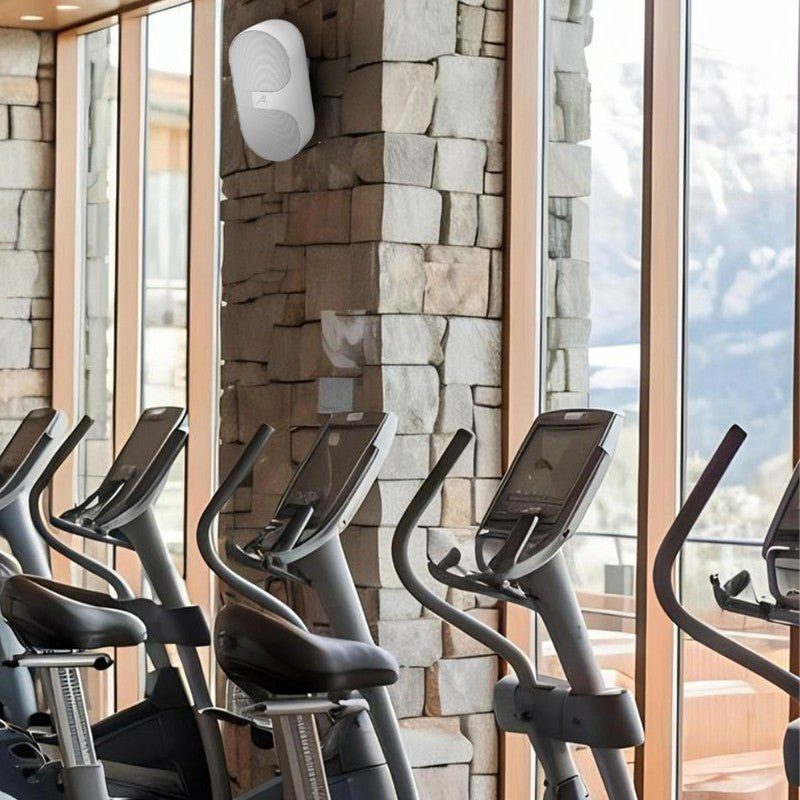

Gyms and wellness centers : continuous musical programming during long days.
Frequently Asked Questions
-
Do they work with home Hi-Fi amplifiers? No. They are 70/100V line speakers; they require an amplifier compatible with 70/100V outputs.
-
Are they sold individually or in pairs? This model is sold as a pair (2 speakers) in a white finish.
-
Can I adjust the power of each speaker? Yes, the transformer incorporates selectable 3/6/15/30 W RMS sockets during installation.
-
Are they suitable for outdoor use? They have an IP20 rating; they are designed for indoor use .
Installation recommendations
- Plan the tap (3/6/15/30 W) based on the desired volume and the available amplifier power 70/100V.
- Respect the 90° × 70° coverage orientation to cover the listening area and minimize early reflections.
- Use professional wiring and properly secured Euroblock terminal blocks to avoid false contacts.
Project description
Pair of passive 2-way wall-mounted speakers for 70/100V line; transducers: 5” woofer (1” voice coil) + soft dome tweeter; frequency response 80 Hz–20 kHz; sensitivity 86 dB (1 W/1 m); max. SPL 115 dB; dispersion 90°H × 70°V; selectable RMS inputs 3/6/15/30 W; Euroblock connector + screw; ABS housing; IP20 for indoor use; dimensions per unit 170 × 282 × 365 mm; weight 3.2 kg; white color.
