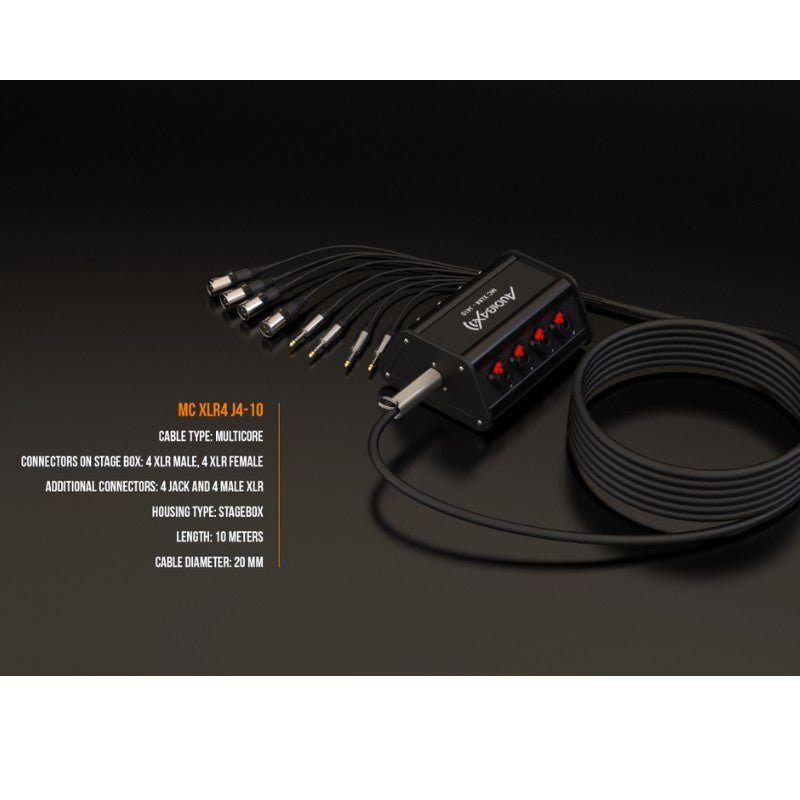

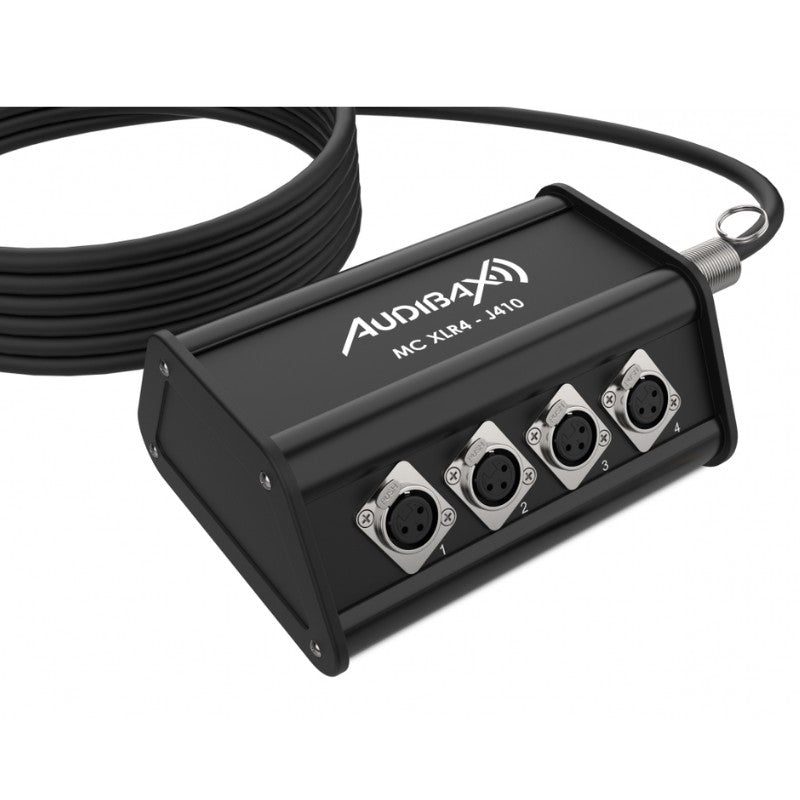

Audibax MC XLR4 J4-10 - 8-channel (4 XLR + 4 TRS) 10m multicore stage box

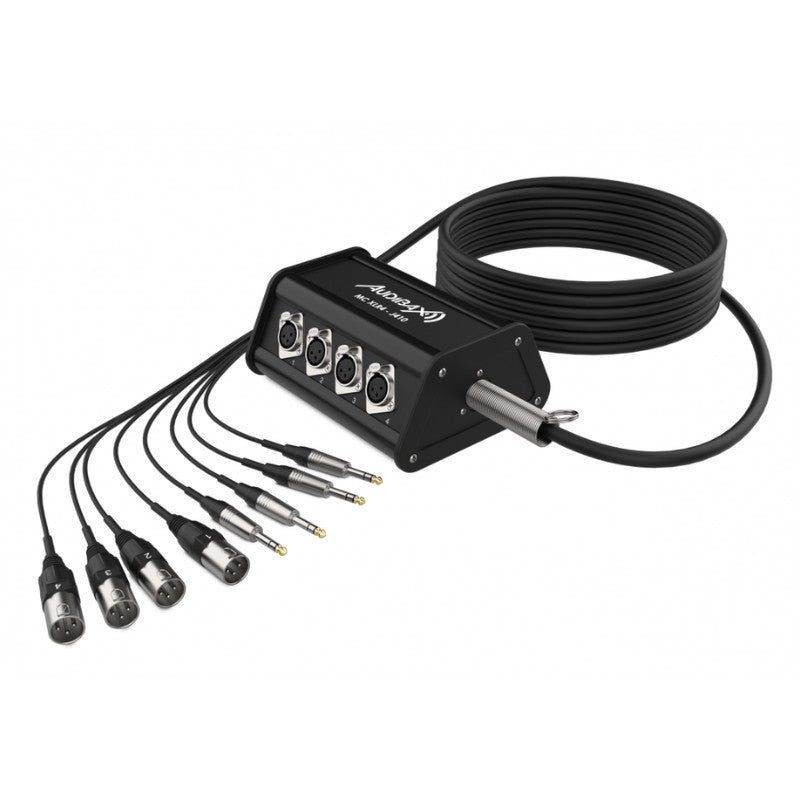

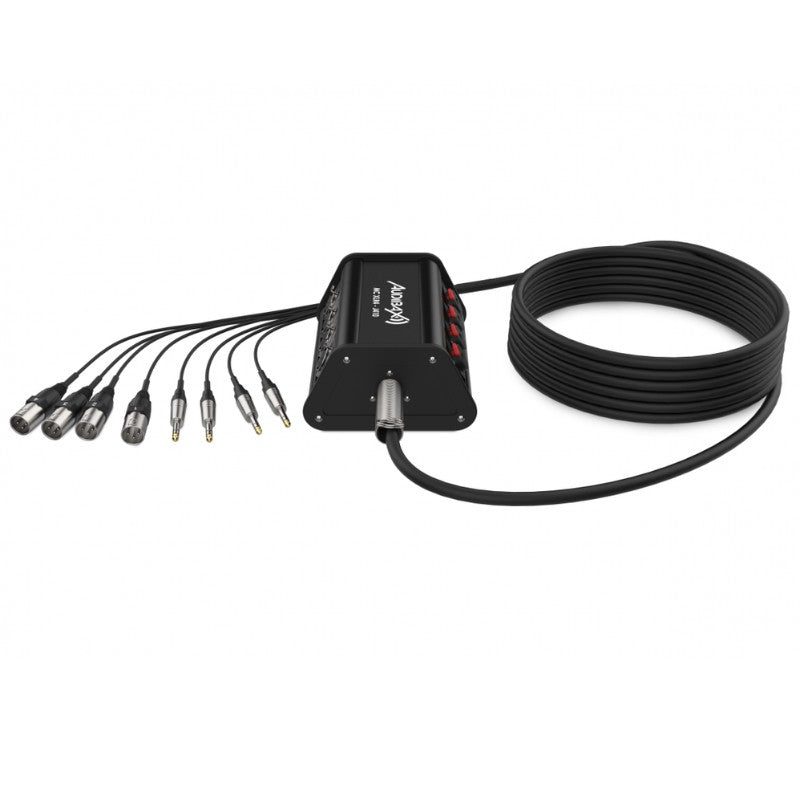

The Audibax MC XLR4 J4-10 is an 8-way multicore cable with a stage box designed to streamline cabling in live performances, studios, and corporate events . Its configuration combines four female XLR inputs and four female TRS jack inputs in the main box, terminating in a fan-out with four male XLR and four TRS jack connectors ready to connect to a mixing console or rack. With a length of 10 meters , a 14 mm outer diameter , and 25 AWG (7 x 0.15) conductors, it offers the perfect balance between robustness and flexibility for quick and tidy setups. Its black construction and professional-standard connectors ensure balanced, stable transmission with excellent noise rejection throughout the stage.
Main features
-

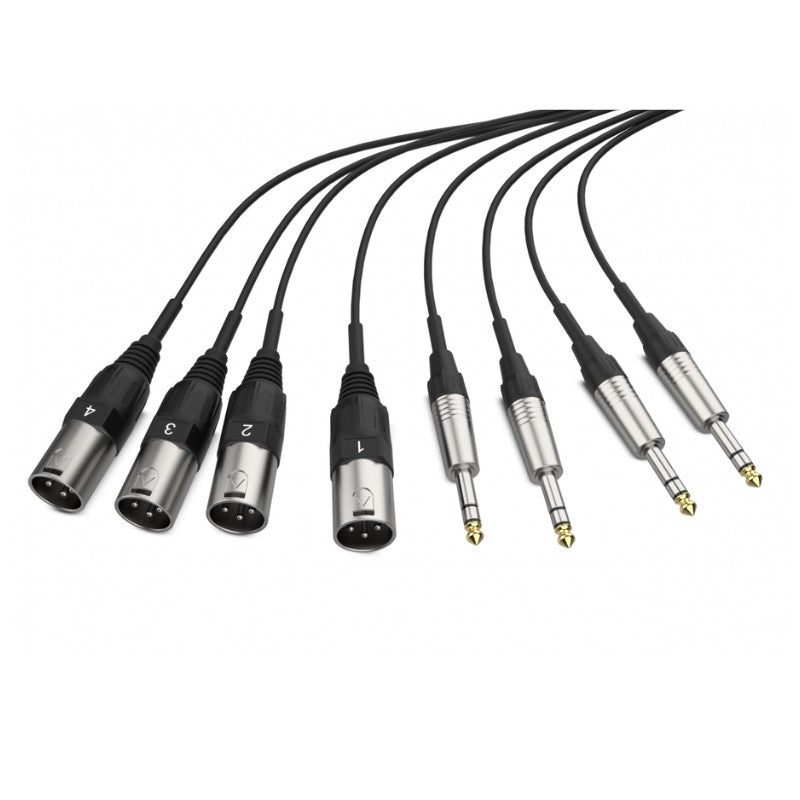

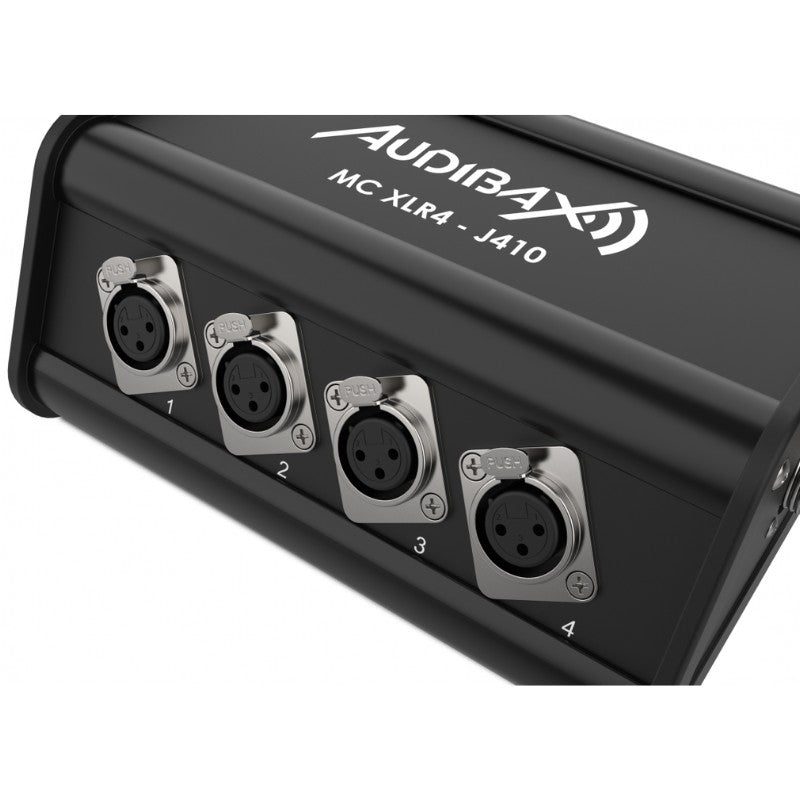

8-channel configuration (4/4): 4 XLR female + 4 TRS female on the stage box ; fan-out with 4 XLR male + 4 TRS.
-
Length: 10 m for stages, studios and medium-sized rooms.
-
Wiring: 25 AWG ( 7×0.15 ) with an outer diameter of 14 mm for strength and manageability.
-
Class: balanced cable (XLR/TRS), standard in professional audio.
-
Compact stage box for organizing and labeling signals from the stage.
-
Dimensions of the set: 280 × 280 × 170 mm; weight approx. 4.5 kg.
-
Finish: black; intended for rental and installation .
Product benefits
-
Faster and cleaner installations: a single installation groups 8 lines, reducing errors and saving time.
-
Universal compatibility: XLR and TRS connectors compatible with analog and digital consoles, interfaces, and processors.
-
Stable and quiet signal: balanced transmission with good interference rejection on stage runs.
-

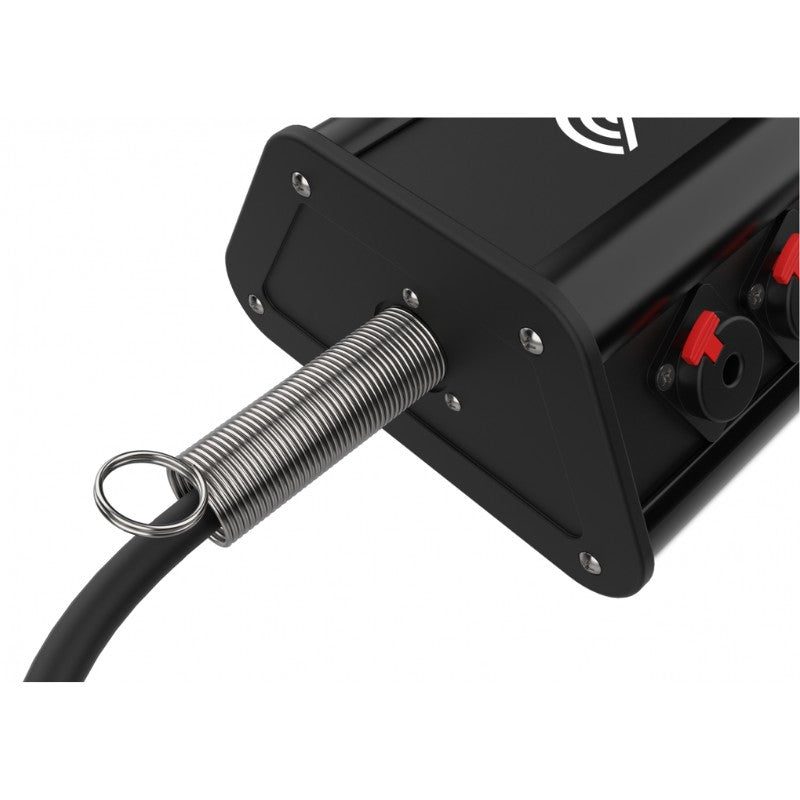

Portability and durability: 14 mm diameter and robust sleeve to withstand frequent winding.
Use cases
-
Live performances and theaters: spot microphones (XLR) and line sends/returns (TRS) from stage to FOH.
-
Corporate events and education: conferences, presentations and sound reinforcement with multiple sources.
-
Study and rehearsal: orderly link between room and control without "tangles" of loose cables.
Frequently Asked Questions
-
How many ports does it offer? Eight in total: 4 XLR and 4 TRS.
-
Are TRS connectors balanced? Yes, the TRS standard allows for balanced lines compatible with professional inputs/outputs.
-
Can it be extended over a greater distance? Yes, but to maintain signal integrity, use high-quality balanced extension cables and avoid excessive lengths without matching.
Usage recommendations
-
Clear labeling of each channel to speed up microphone detection and troubleshooting .
-
Proper coiling (over/under technique) to prolong cable life.
- Protect the cable run with cable protectors in passage areas and prevent crushing.
Project description
Multicore with stage box, 8 channels (4 XLR female + 4 TRS female); fan-out with 4 XLR male + 4 TRS; length 10 m; balanced cable 25 AWG (7×0.15); outer diameter 14 mm; assembly dimensions 280 × 280 × 170 mm; weight 4.5 kg; color black.
