The Audibax ACT1 is a rugged, portable AV cable tester for quickly checking continuity , short circuits , and pin assignments on a wide variety of professional connectors. Its 8-position rotary selector and LED indicators simplify troubleshooting in live performances, studios, or fixed installations. Powered by an internal battery , it requires no external power source and can operate on stages, in racks , or in maintenance areas without a mains connection.

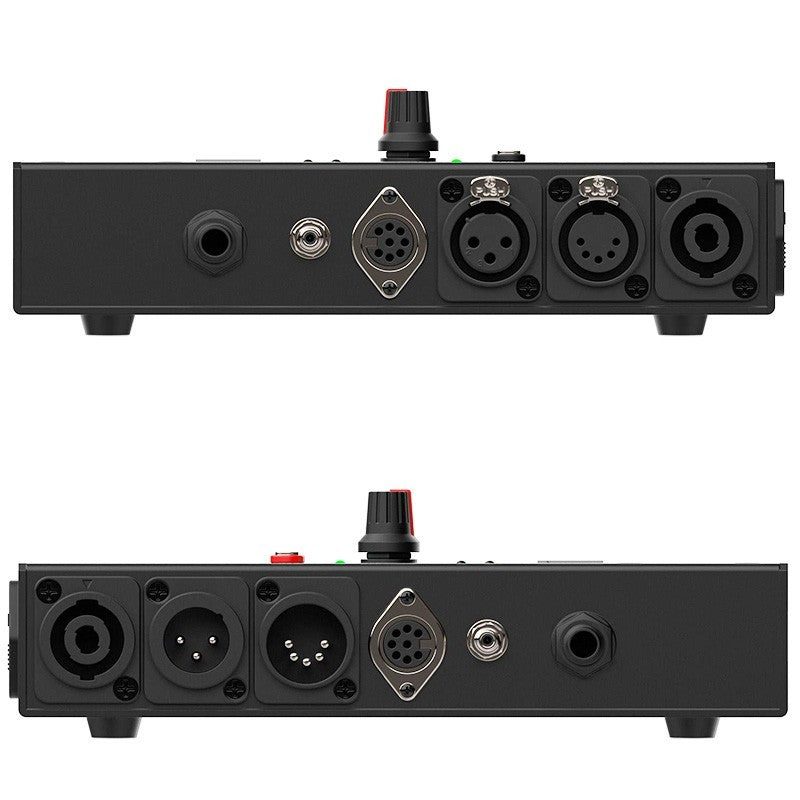

Compatible with most common formats— 1/4″ TRS , balanced XLR , RCA/Phono , Speakon , banana / GND , CAT5/RJ45 , and DIN —the ACT1 covers everything from microphones and line inputs to PA, backline interconnects, and basic network links. It also includes ground (GND) checking and battery verification to ensure reliable diagnostics.

Main features

• Multi-connection : testing with 1/4″ TRS, balanced XLR, RCA/Phono, Speakon, banana/GND, CAT5 and DIN.
• 8-position selector : quickly choose which conductors/pins to check.
• LED indicators : visual confirmation of continuity and detection of crossings or interruptions.
• Integrated checks : ground (GND) status and battery check .
• Autonomous operation : operates on an internal battery for use without external power.
• Portable format : compact construction for intensive use in live and studio environments.
• Equipment dimensions : 190 × 90 × 35 mm ; net weight : 796 g .

Product benefits

• Time saving : Identify faults immediately before or during the event.
• Real versatility : a single tester for most audio cables and basic network connection.
• Reliability : Clear LEDs and step switching minimize diagnostic errors.
• Mobility : testing at any point on the premises without depending on a power outlet.

Use cases

• Direct and rental : verification of hoses, patch cords, stage patches and Speakon links.
• Studio : checking microphones and balanced XLR/TRS lines, routing to patchbays and external equipment.
• AV Installation : maintenance of wall runs, ceilings and cabling in multipurpose rooms.

Frequently Asked Questions

What does each selector position indicate?
The 8-way selector allows you to scan the conductors/pins of a cable to confirm the continuity of each one with the LEDs . It also offers battery verification and ground checking .

Is it suitable for network cables?
Yes, it has a CAT5/RJ45 connection for basic continuity testing and pin assignment.

Does it do acoustic testing (buzzer)?
The device confirms continuity via LED and supports the use of test probes on banana terminals for spot checks with acoustic feedback, according to the procedure described by the manufacturer.

Does it require an external power supply?

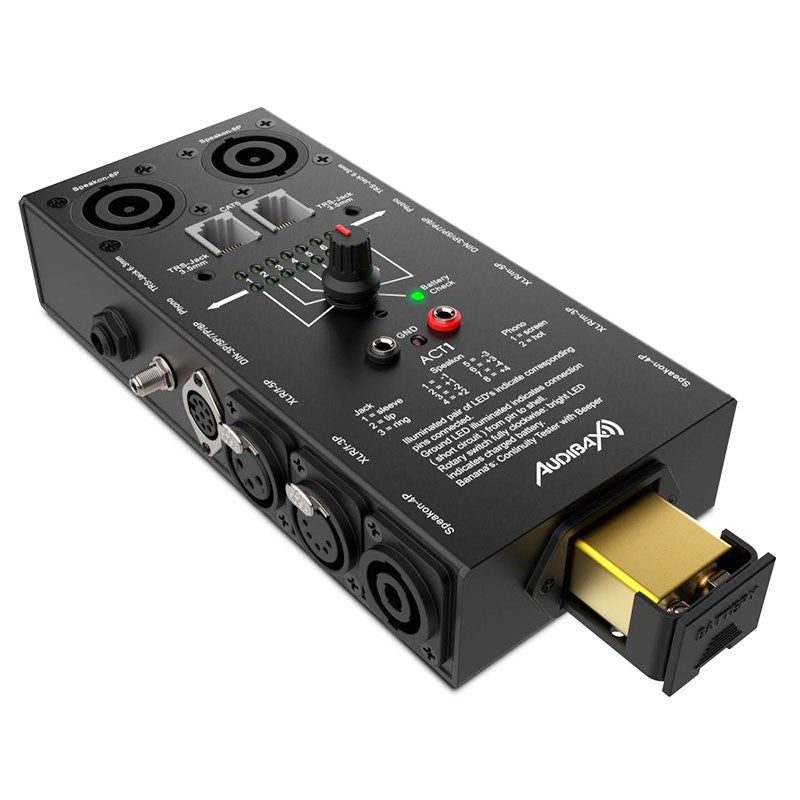

No. It operates on an internal battery (user-installable) and you can check its status from the selector itself.

Usage recommendations

• Before the show, cycle through all positions of the selector to check PIN 1/2/3 on XLR/TRS and detect crosses.

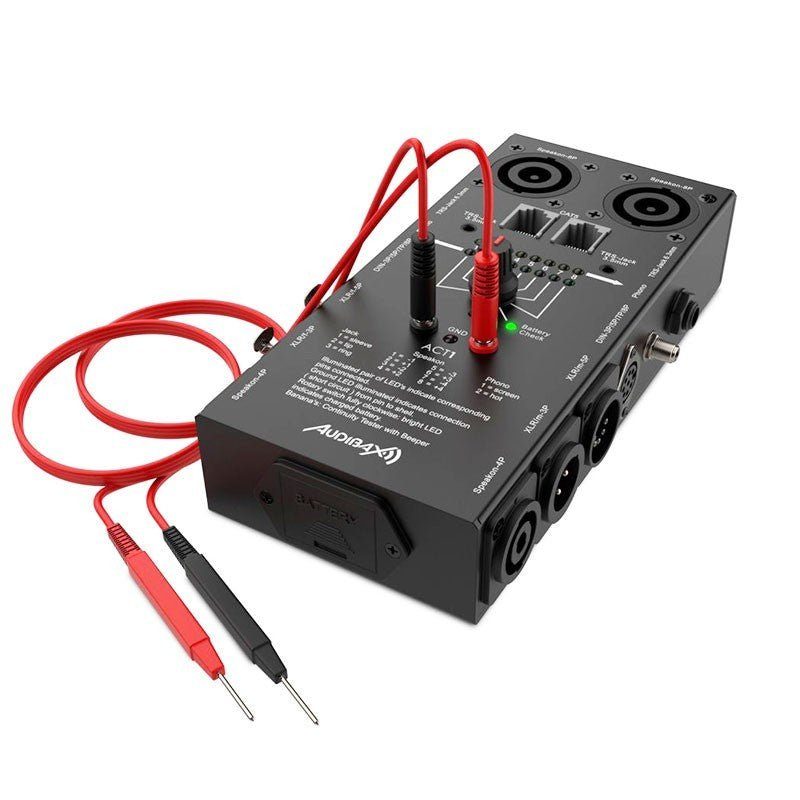

• For cables without a compatible connector, use banana plugs with test leads (not included).
• Check the battery status periodically using the dedicated function.

Project description

Audibax ACT1 multi-connection cable tester with 8-way selector , LED indicators , GND and battery check; compatible connectors 1/4″ TRS , XLR , RCA , Speakon , banana/GND , CAT5/RJ45 and DIN ; powered by internal battery ; dimensions 190 × 90 × 35 mm ; net weight 796 g ; color black .
