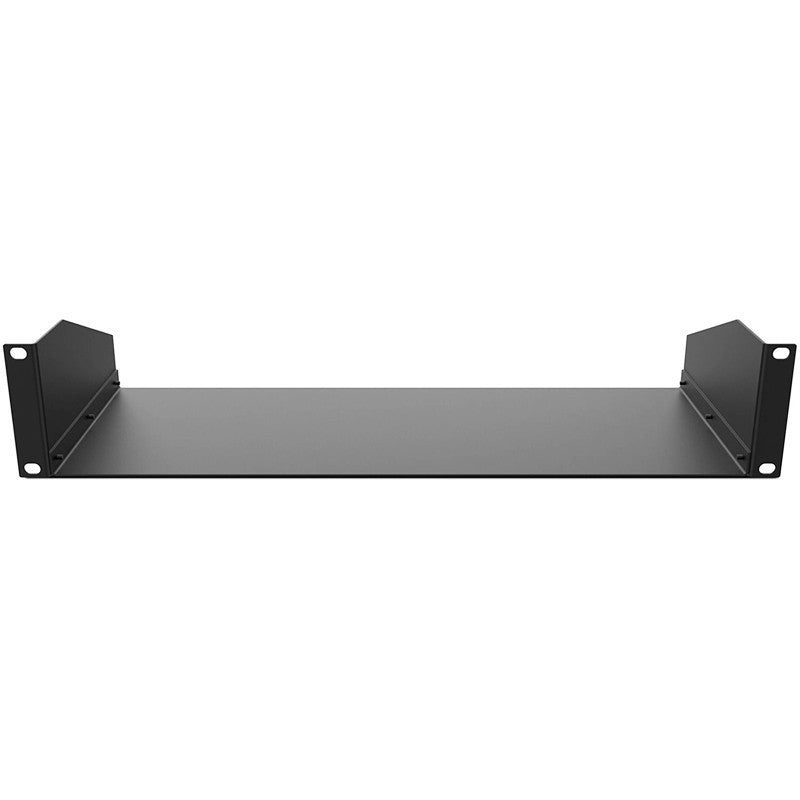

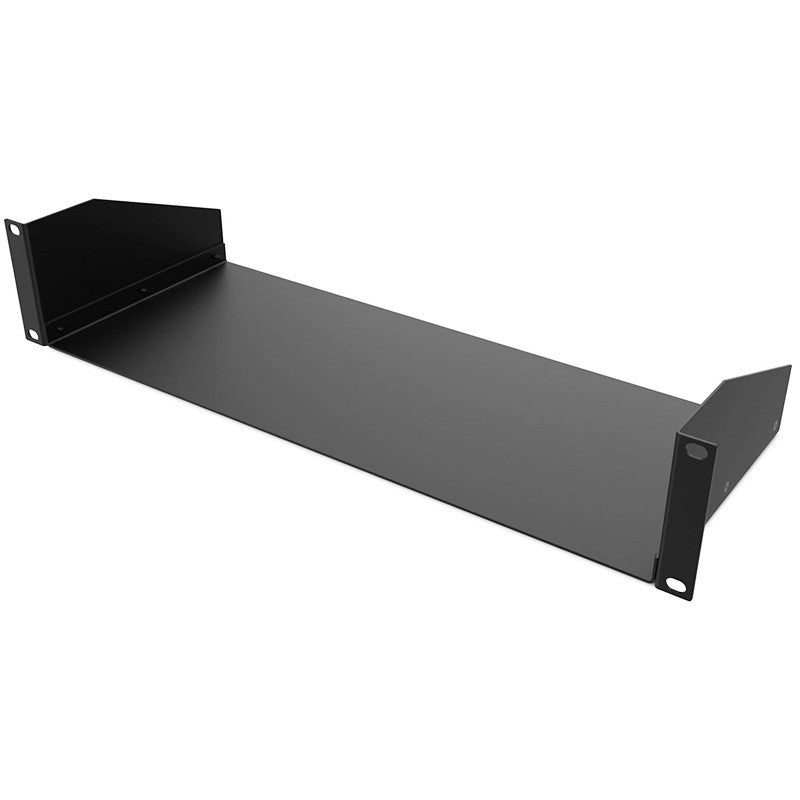

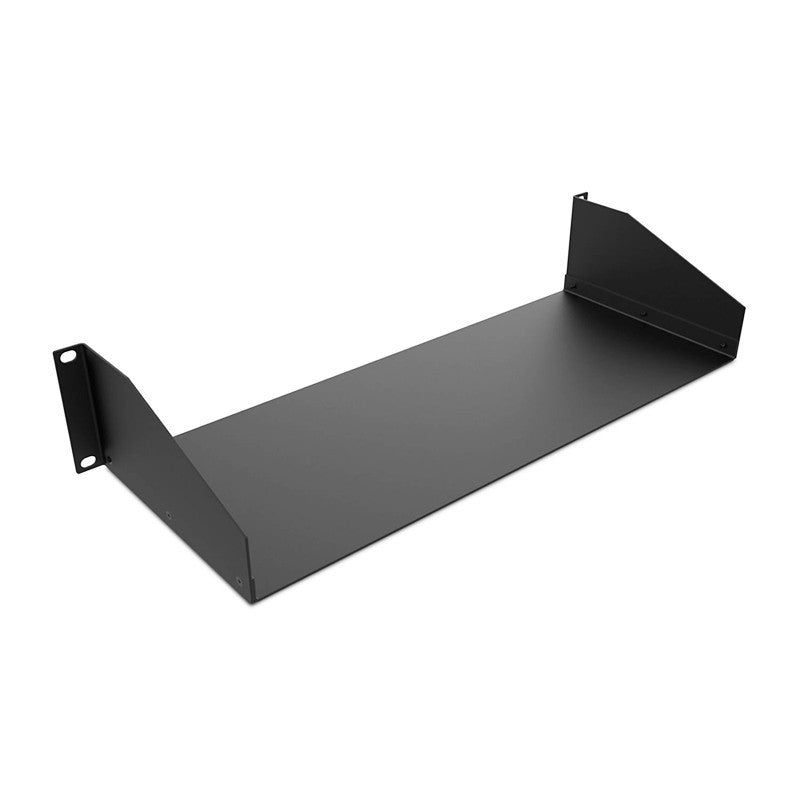

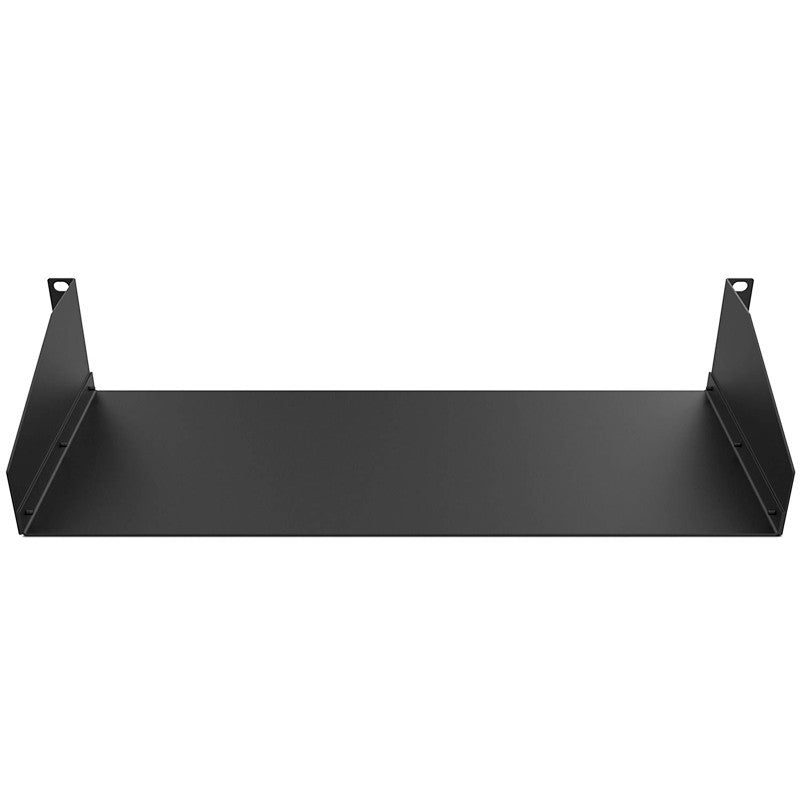

Audibax Pro Rack Shelf 2U - 19" Fixed Metal Rack Shelf (2U, 482.6 × 150 × 88 mm)

Audibax Pro Rack Shelf 2U - 19" Fixed Metal Rack Shelf (2U, 482.6 × 150 × 88 mm)

The Audibax Pro Rack Shelf 2U is a fixed metal rack shelf for 19" racks , 2U high , designed to organize and support equipment, accessories, and peripherals in standard-size racks and flight cases. Its 1.5 mm thick cold-rolled steel construction provides a rigid and stable base, perfect for routers, interfaces, converters, power strips, small computers, or DI boxes. With universal 19" compatibility and dimensions of 482.6 × 150 × 88 mm , it integrates seamlessly into any professional audio, video, or IT setup. The specially cut structure facilitates simple and efficient mounting in racks and flight cases, optimizing available space without adding complexity to the system.

Main features

• Format: Fixed tray for 19" rack , 2U height .

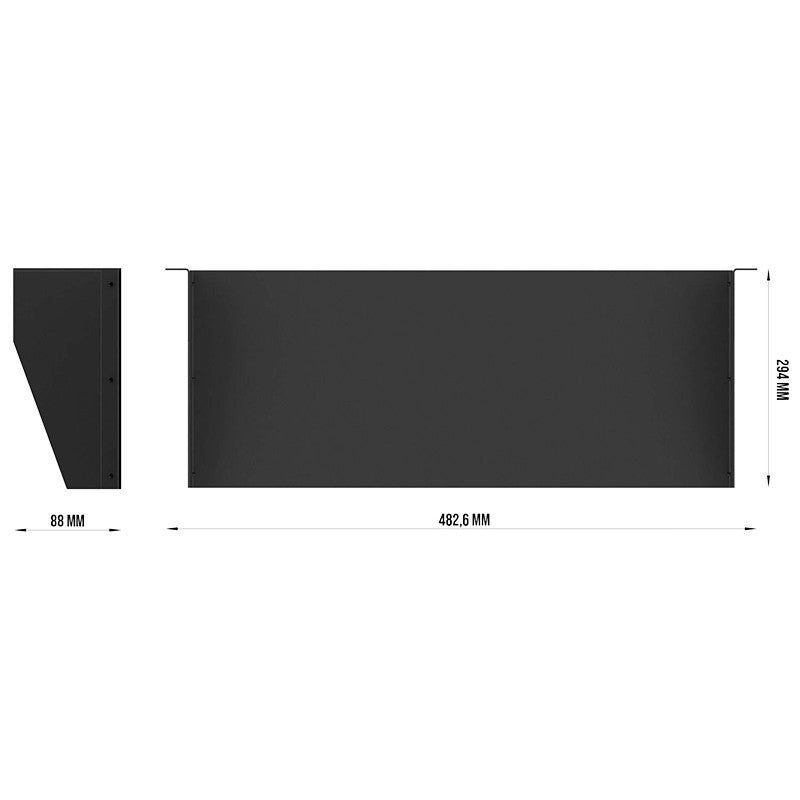

• Dimensions: length 482.6 mm · depth 150 mm · height 88 mm .
• Material: cold rolled steel , 1.5 mm thick for greater rigidity.
• Compatibility: 19" standard (DIN 41494 / IEC 297 / UNE-20539 standards).
• Mounting: Special cut structure that speeds up installation in racks and flight cases.
• Finish: black color for a discreet aesthetic in studios and facilities.
• Weight: 1.9 kg .

Product benefits

• Order and accessibility: Add a stable surface for ear-less equipment or accessories that you need to have on hand inside the rack.
• Professional durability: The 1.5mm thick steel withstands heavy use in rental and installation .
• Universal integration: standard 19" and 2U dimensions to match any rack furniture on the market.
• Quick assembly: the cut-out design makes fixing easier and reduces installation time.

Use cases

• Audio/AV: interfaces, compact processors, wireless receivers, DI boxes and accessories.
• IT/Networking: routers, mini PCs, hubs and converters.
• Studio and live: organization of power supplies, power strips and tools.

Frequently Asked Questions

Does it fit in any 19" rack?
Yes, its compatibility is universal 19" (DIN/IEC/UNE standard).

Does it include screws?
The manufacturer's data sheet doesn't specify it. If needed, add standard 19" cage nuts and bolts .

Is it removable?
No, it's a fixed 2U tray .

Installation recommendations

• Distribute the weight evenly across the tray and place the heaviest items near the back of the rack.
• Use the appropriate screws for the type of upright (threaded or with cage nut) and tighten without exceeding the recommended torque.
• Note that 1U = 44.45 mm ; the total height of 2U is ≈ 88.9 mm (indicated effective height: 88 mm).

Project description

Fixed 19" 2U rack tray, 482.6 × 150 × 88 mm , cold rolled steel with a thickness of 1.5 mm , universal compatibility according to DIN 41494 / IEC 297 / UNE-20539 standards, special cut structure for quick assembly, black color , weight 1.9 kg .
