Audibax Pro Rack 16U - 19″ Metal Cabinet with Wheels (16U Rack for Studio and Installation)

Audibax Pro Rack 16U - 19″ Metal Cabinet with Wheels (16U Rack for Studio and Installation)

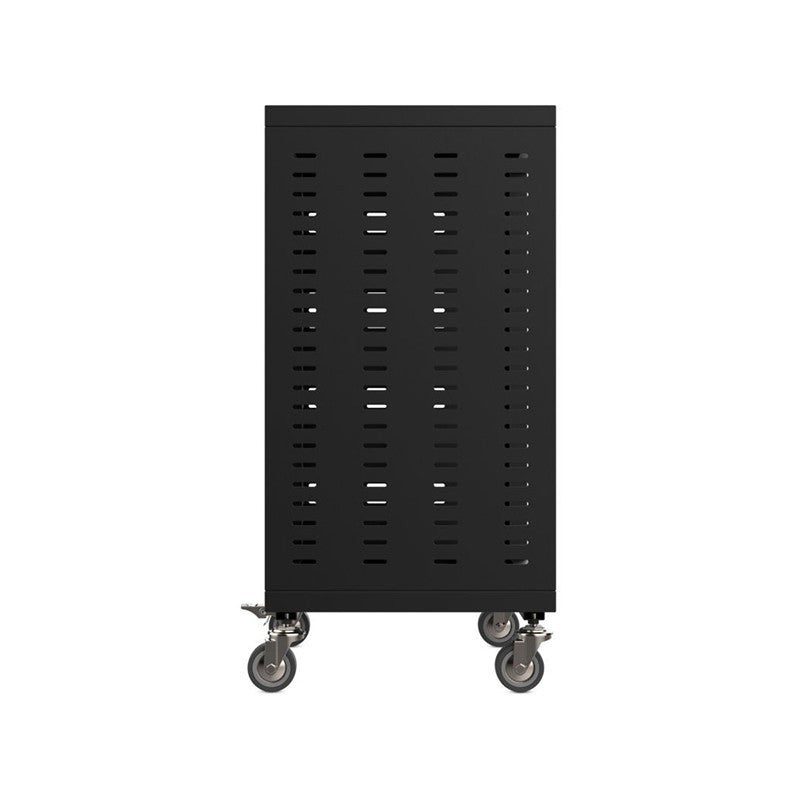

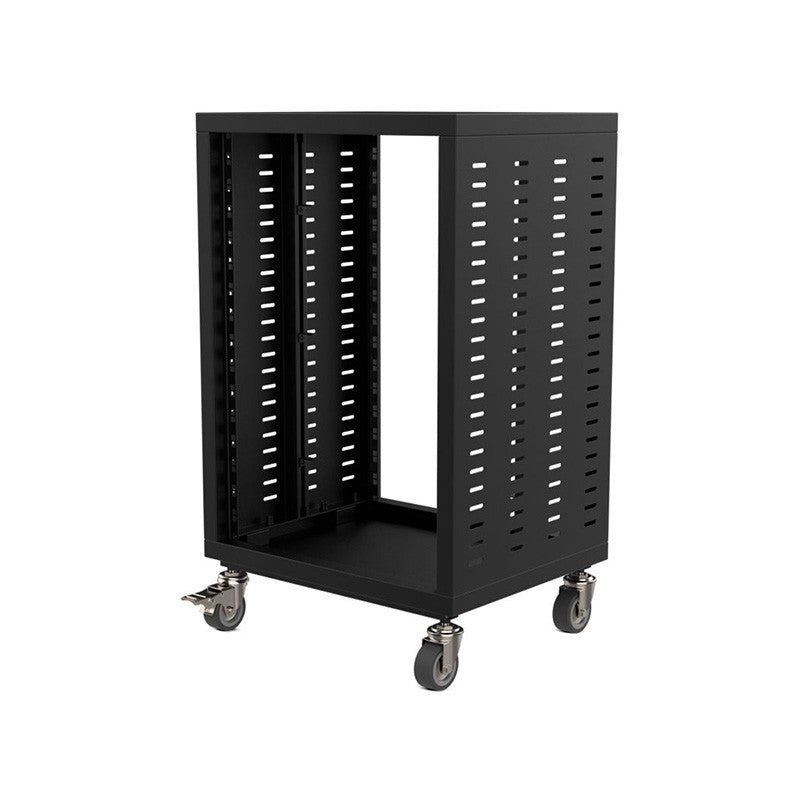

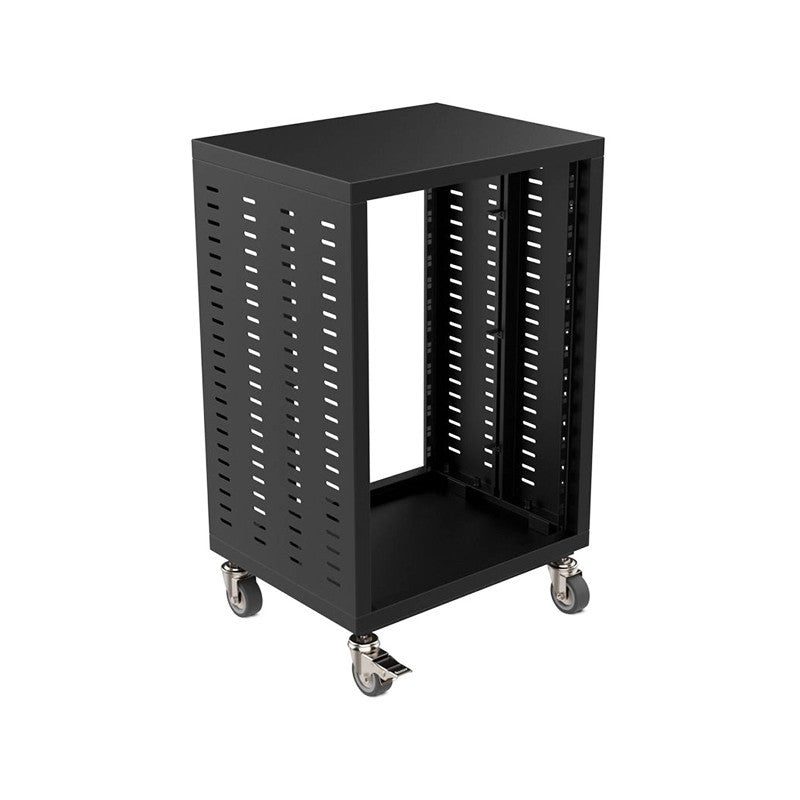

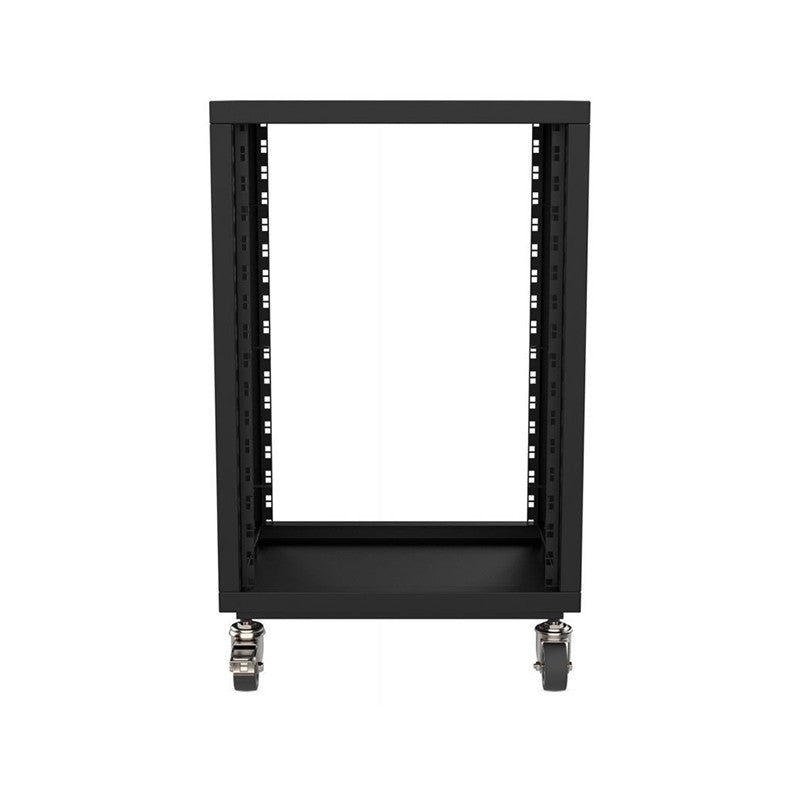

The Audibax Pro Rack 16U is a 19" metal rack cabinet with a 16U rack configuration, designed to organize and protect audio, IT, and A/V equipment in both professional and home environments. Its steel frame ensures rigidity and durability, while the 75mm casters facilitate easy movement and reconfiguration. It offers optimized dimensions for studio use : 46cm deep , 88cm high (including casters) , and 50.7cm wide , with an approximate weight of 18kg . It is supplied unassembled and includes all necessary mounting hardware for quick assembly. It is compatible with the standard 19"/482.6mm rack-mount equipment.

Main features

• Standard 19″ / 16U format : Supports equipment with EIA 19″ mounting, ideal for professional audio, broadcast, A/V and networking.

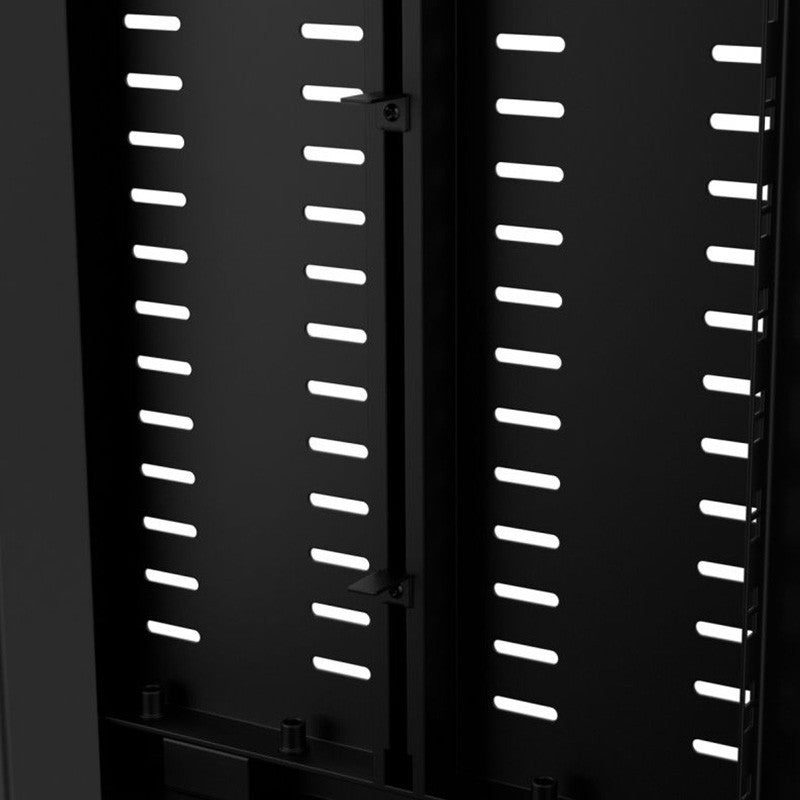

• Steel structure : robust chassis for intensive use in fixed or mobile installations.

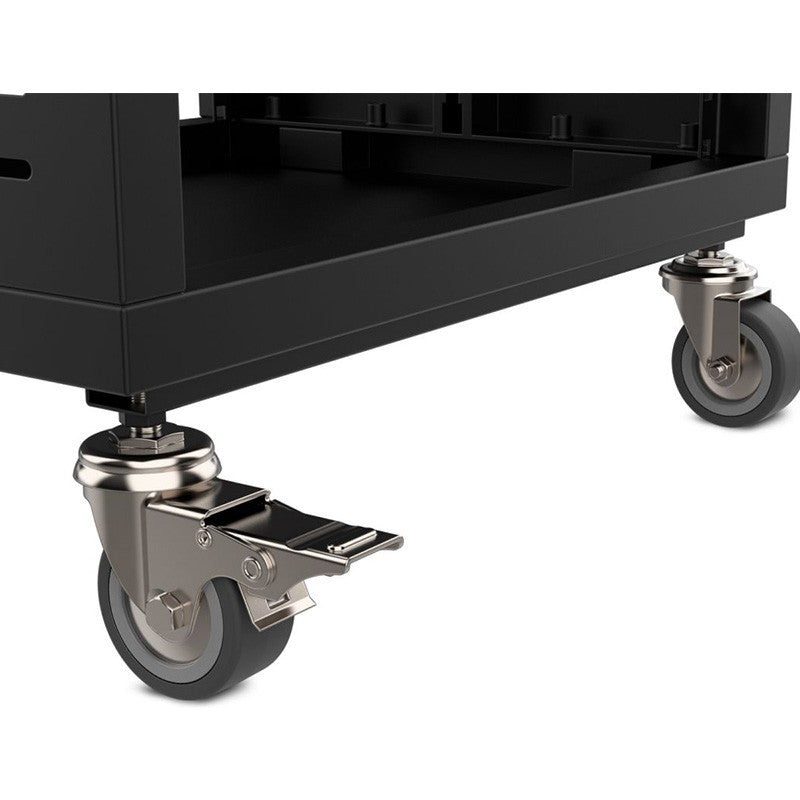

• 75mm wheels : safe mobility for reconfiguring the workstation or moving the rack.
• Dimensions : depth 46 cm , height with wheels 88 cm , width 50.7 cm .
• Easy assembly : delivered disassembled with screws ; quick assembly in a few minutes.
• Approximate weight : 18 kg .

Product benefits

• Order and accessibility : centralizes interfaces, preamps, processors, switches, patchbays and servers in a single piece of furniture.
• Clean installation : Universal 19″ format that simplifies compatibility and mounting of diverse hardware.
• Effortless mobility : large diameter wheels for moving the frame during maintenance or wiring.
• Durability : Solid metal construction prepared for professional use and internal transport.

Use cases

• Recording and post-production studios : integration of interfaces, converters, recorders and signal distribution.
• A/V rooms and events : audio/video routing, DSP and microphone systems in mobile racks .
• Networks and IT : organization of routers, switches, servers and storage systems.

Frequently Asked Questions

• What do 19″ and 16U mean? 19″ (482.6 mm) is the standard width of the front of rack equipment; 1U is equivalent to 44.45 mm in height. This cabinet offers 16U of usable space.
• Does it include screws? Yes, it is supplied disassembled with the mounting screws for your assembly.
• Is it compatible with audio and computer equipment? Yes, any device designed for a 19″ rack is compatible.
• Can it be moved with the equipment mounted? The 75 mm wheels make it easy to move; make sure to lock them and distribute the weight correctly.

Assembly recommendations

• Distribute the weight by placing the heaviest equipment on the lower units for greater stability.
• Leave room for wiring and rear ventilation; use cage nuts , guides, and cable glands for a tidy interior.
• Check the usable depth (46 cm) against the length of your equipment and rear connectors.

Project description

16U 19″ rack metal cabinet; steel chassis with 75 mm wheels ; depth 460 mm , total height 880 mm (with wheels) and width 507 mm ; weight approx. 18 kg ; supplied disassembled with mounting screws .
