Audibax Pro Rack 2U - 19″ Metal Desktop Rack (Steel, 2U, 50 kg, Usable Depth 290 mm)

Audibax Pro Rack 2U - 19″ Metal Desktop Rack (Steel, 2U, 50 kg, Usable Depth 290 mm)

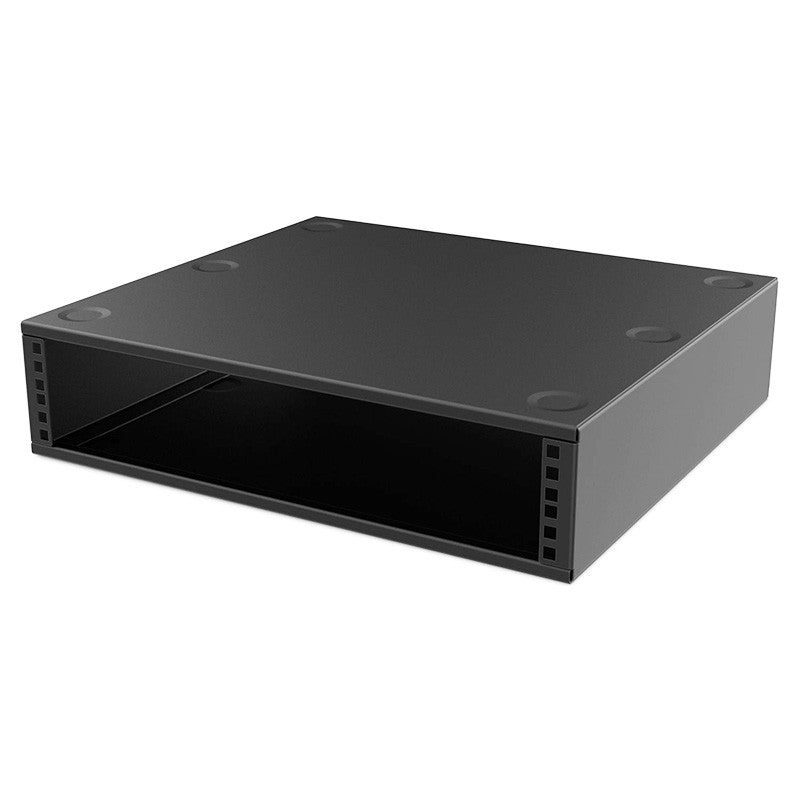

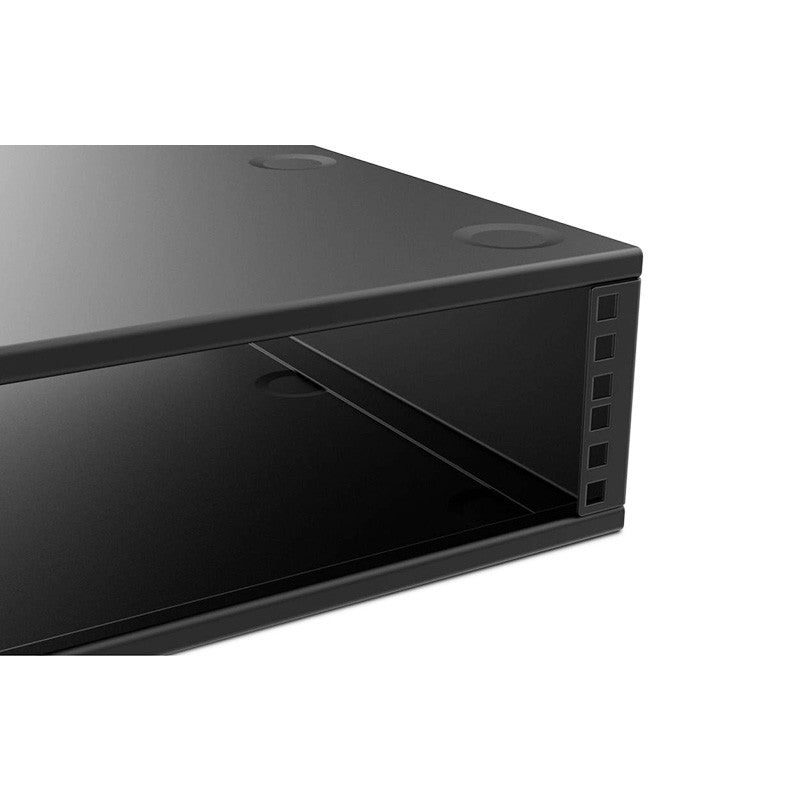

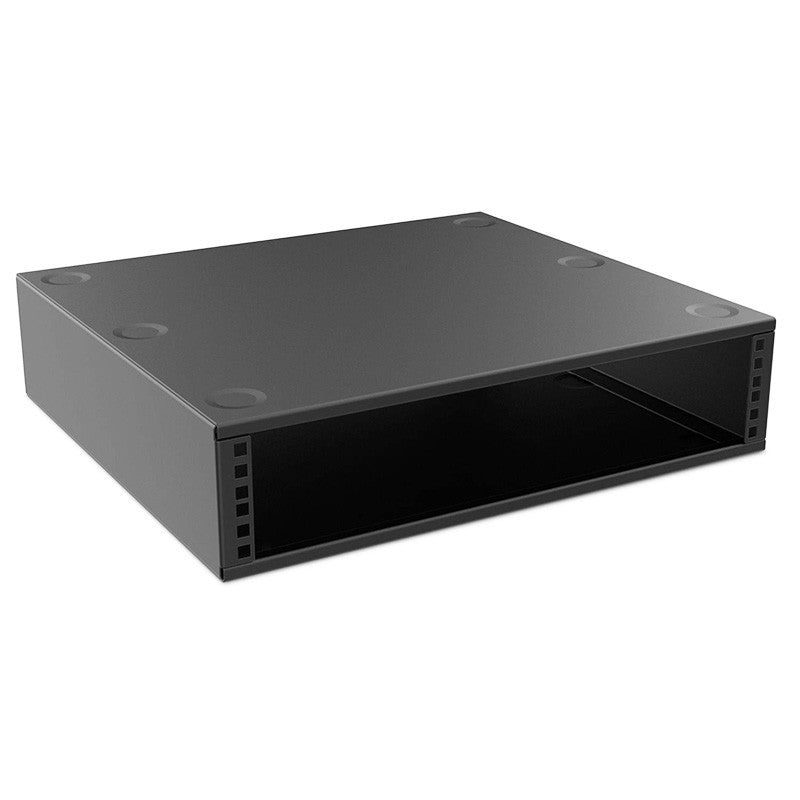

The Audibax Pro Rack 2U is a compact and robust 19" rack for mounting standard-format audiovisual, IT, or communications equipment. Made of steel , it supports up to 50 kg and offers a usable installation depth of 290 mm , sufficient for most processors, interfaces, patch panels, and small servers. It is delivered disassembled with the included hardware for quick and easy assembly in just a few minutes. Its external dimensions are 490 × 450 × 118 mm , with a 19" ( 482.6 mm ) front panel compatible with universal accessories.

It is a practical solution for studios , AV installations , IT and broadcast when order, accessibility and natural ventilation are needed on a desktop or under-desk, without sacrificing compatibility with the 19″ standard .

Main features

• Standard format : 19″ 2U rack (usable height per standard ≈ 88.9 mm ).
• Construction : metal chassis in steel for professional use.
• Maximum load : 50 kg distributed.
• Usable installation depth : 290 mm ; external depth : 450 mm .
• External dimensions : 490 × 450 × 118 mm (width × depth × height).
• Weight : 3.2 kg .
• Assembly : supplied disassembled with screws ; quick assembly.
• Finish : black color, open design for easy access and ventilation.
• Compatibility : Compliant with 19″ accessories (trays, blank panels, patch panels, drawers, etc.).

Product benefits

• Order and ergonomics : centralizes equipment in a compact desktop format.
• Simple installation : assembly in minutes and immediate access to wiring.
• Versatility : 290 mm usable depth suitable for a wide variety of AV/IT equipment.
• Universal compatibility : 19″ standard for mixing brands and accessories seamlessly.
• Durability : Durable steel for installation and rental environments.

Use cases

• Studios and live : interfaces, processors, wireless receivers, patchbays.
• Corporate installations : AV arrays, controllers, DSPs and microservers.
• IT/Telecom : compact switches, routers and 2U/1U communications equipment.

Frequently Asked Questions

Is it compatible with any 19″ device?
Yes, the front panel follows the standard of 482.6 mm (19″) ; ensure that the depth of the equipment does not exceed the 290 mm usable space of the frame.

Does it include screws?
Yes, it is supplied disassembled with the necessary screws for assembly.

What is the difference between 2U and the external height (118 mm)?
2U defines the usable mounting height (≈88.9 mm). The external height of the chassis is greater ( 118 mm ) to provide rigidity and a stable base.

Compatibility and regulatory notes 19″

The 19″ format is regulated by international standards (DIN 41494, IEC 60297 / IEC 297 and UNE 20539), which define widths, drill pitches and heights per U. This ensures the interchangeability of equipment and accessories between manufacturers.

Project description

19″ Audibax Pro Rack 2U in steel; 2U (usable height ≈88.9 mm); max. load 50 kg ; installation depth 290 mm ; external dimensions 490 × 450 × 118 mm ; weight 3.2 kg ; black color; supplied disassembled with screws.
