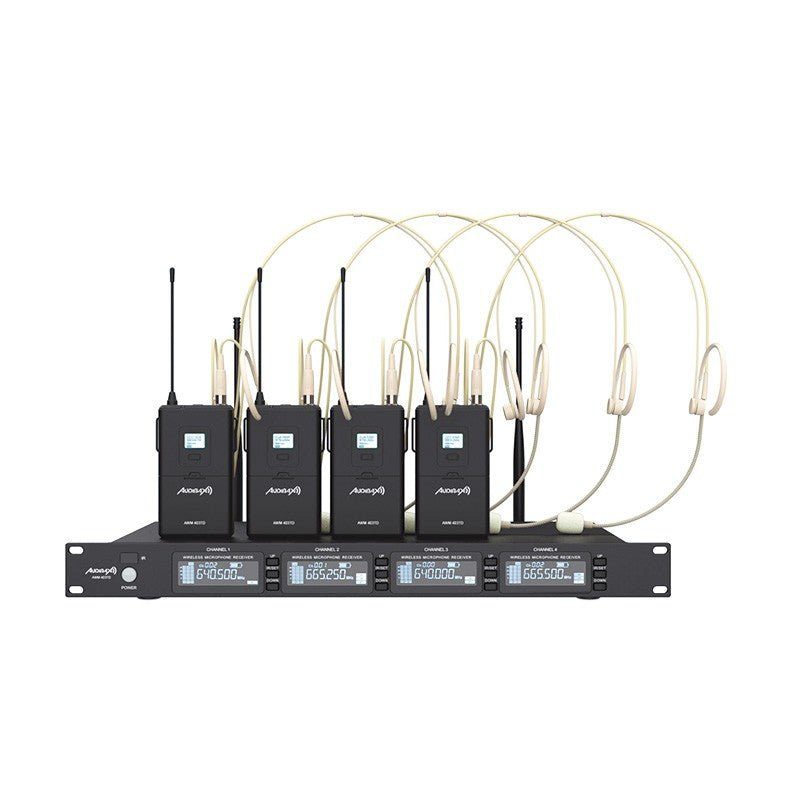

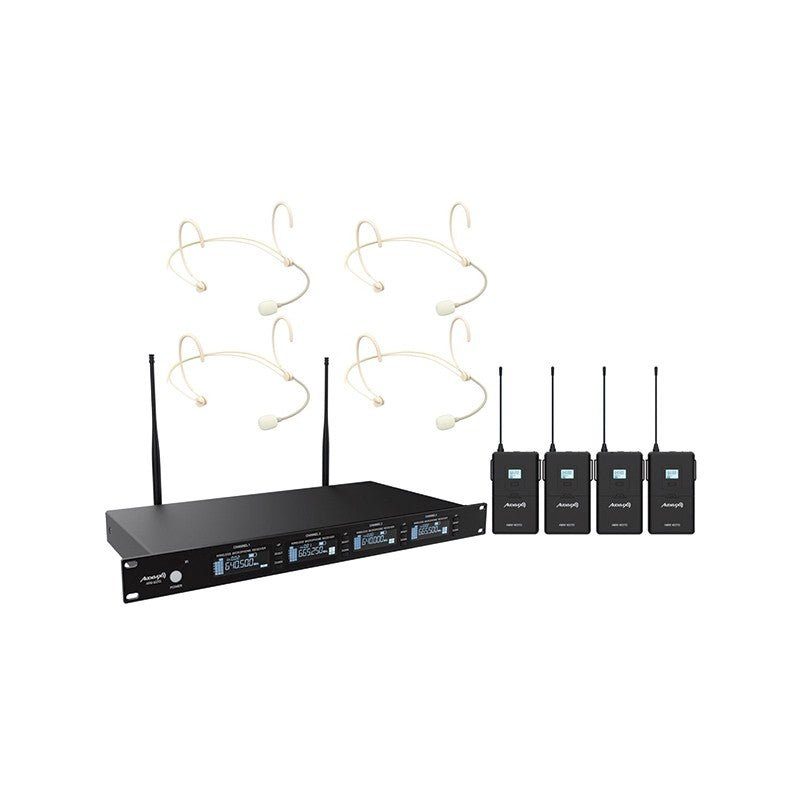

Audibax AWM 403 TD - 4-Channel UHF Wireless Headset Microphone System

4-headset wireless microphone system. 4 UHF channels. Audibax AWN 403 TD

• Experience exceptional sound performance with the Audibax AWM 403 TD , a complete wireless system that elevates your listening experience. Equipped with a state-of-the-art receiver and four body-pack transmitters, this system offers a comprehensive solution to ensure stable and powerful transmission of your voice and sound.
  • Frequency response: 50Hz-15KHz
  • 4 Channels
  • Advanced UHF modulation technology.
  • Mini-XLR connector
  • Microphone: Headband condenser microphone.

• The high-tech receiver operates precisely thanks to its PLL (digital frequency synthesizer) oscillation mode, ensuring stable, interference-free transmission. Its 5dBuV sensitivity allows it to pick up weak signals clearly. It also offers balanced and unbalanced output options for versatile connectivity.
• Each of the four bodypack microphones with a headset mic delivers ultra-precise RF output power, ensuring wide and powerful coverage. PLL oscillation mode and transmission frequency stability of less than 30 ppm guarantee dropout-free and accurate transmission. With an exceptional dynamic range of ≥100 dB (A) and a frequency response of 50 Hz - 15 kHz, these microphones capture every nuance of your voice. Equipped with condenser microphones, they offer a maximum input pressure of 130 dB SPL for a powerful and authentic performance.
• Powered by two AA alkaline batteries, the bodypack microphones offer unrestricted mobility. The efficient receiver, with a voltage of 12-16V and a working current of ≤350mA, completes this high-performance wireless system. The Audibax AWM 401 TD is the ideal choice for live events, delivering an exceptional sound experience in any setting.

• Highlights of the AWM 403 TD Audibax
  • Infrared frequency adjustment
  • Frequency range: 640-690Mhz
  • Modulation mode: UHF
  • Frequency response: 50Hz- 15KHz
  • Signal-to-noise ratio (S/N):>105dB (A) Distortion (1 KHz): <0.3%
  • Working temperature: From -10º to 55º
  • Working distance: 100 meters (ideal environment)

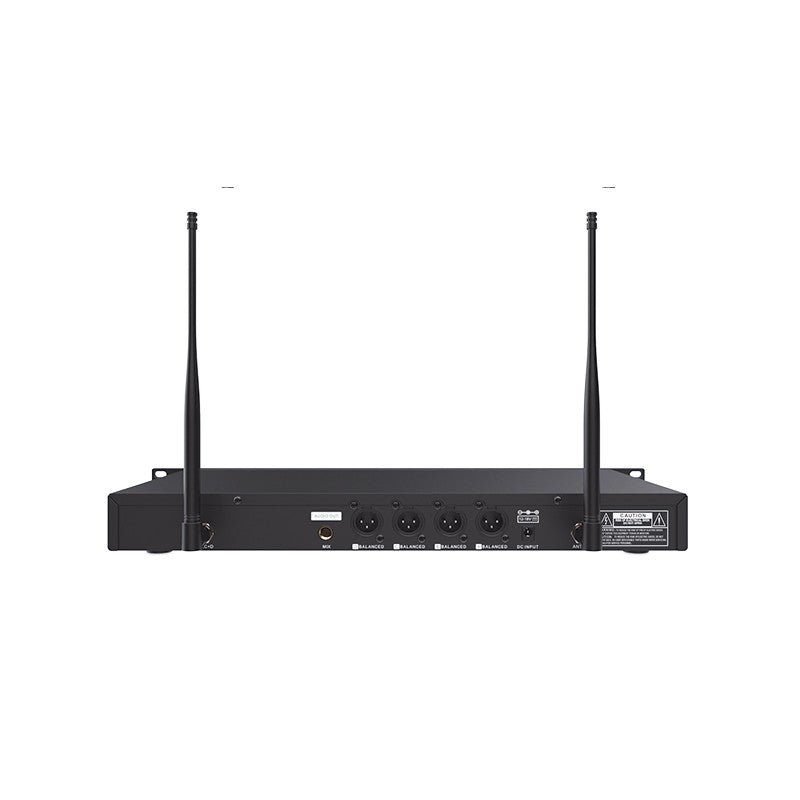

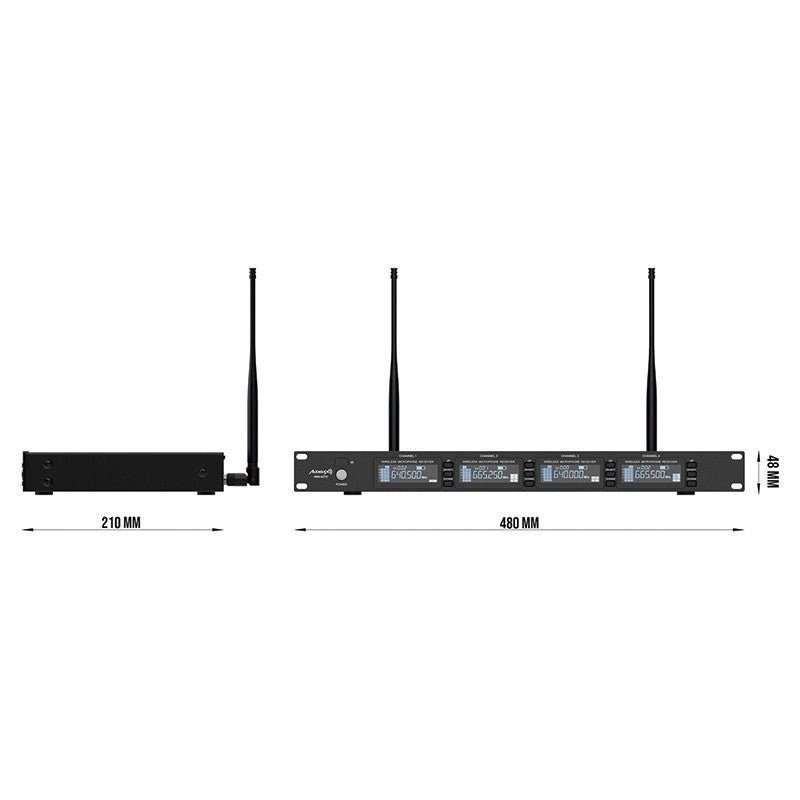

• Receiver
  • Oscillation mode: PLL (digital frequency synthesizer).
  • Frequency response: 50Hz-15KHz
  • Sensitivity: 5dBuV.
  • Balanced output (XLR connector): 250 mV/600 Ω.
  • Unbalanced output (1/4" connector): 400 mV/K3.
  • Working voltage: DC 12-16V.
  • Working current: ≤350mA.

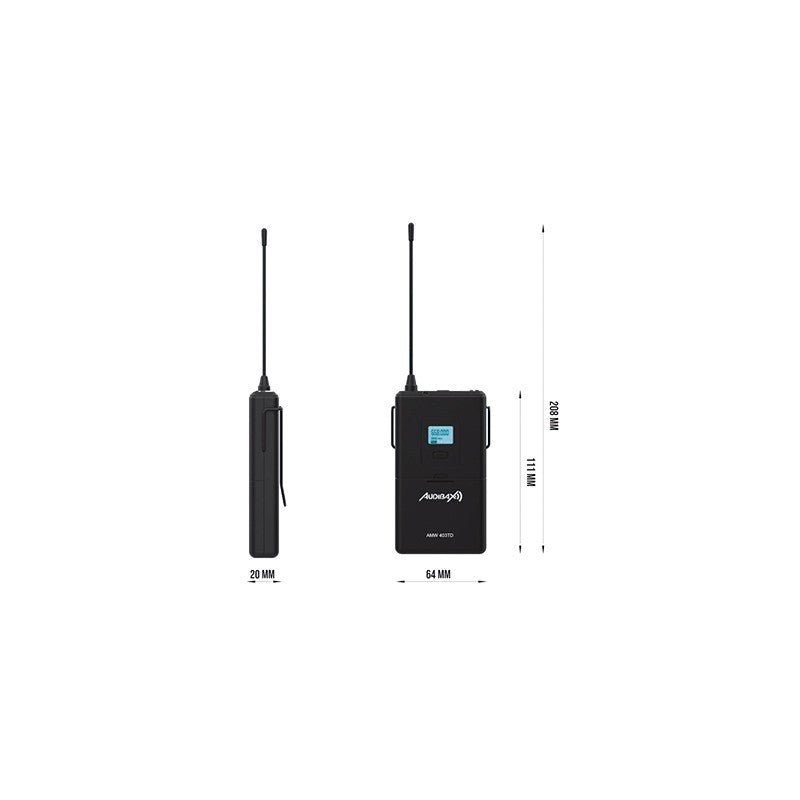

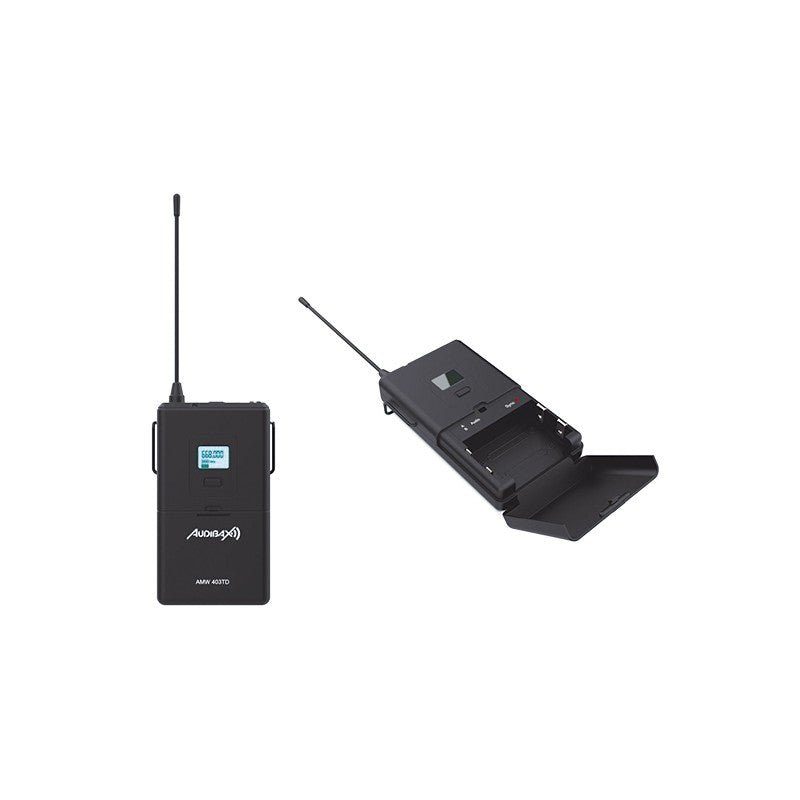

• Beltpack Transmitter
  • High precision RF output power.
  • Mini-XLR connector
  • Oscillation Mode: PLL (digital frequency synthesizer).
  • Emission Frequency Stability: Less than 30 ppm.
  • Dynamic Range: Equal to or greater than 100dB (A).
  • Frequency Response: 50Hz-15KHz.
  • Maximum Input Pressure: 130dB SPL.
  • Microphone: Headband condenser microphone.
  • Power Supply: 2 AA alkaline batteries (1.5 V).

• Product identification
  • Brand: Audibax
  • Audibax Series: AWM Series Wireless Microphones
  • Model: AWM 403 TD
  • Order code: 10268339
  • EAN code: 7427254438930
