Audibax AWM 202 - 2-Channel UHF Wireless System with Lavalier Microphones

Audibax AWM 202 - 2-Channel UHF Wireless System with Lavalier Microphones

The Audibax AWM 202 is a two-channel wireless system designed for events, presentations, and content creation that require mobility and clear voice with minimal interference. It operates in the UHF band 640–690 MHz and offers 200 adjustable channels within a 50 MHz spectrum to find the optimal frequency for any environment. The lavalier condenser capsule ensures natural sound pickup, while the bodypack transmitter uses a PLL with a digital synthesizer for stable transmission. With a frequency response of 50 Hz–15 kHz , a dynamic range of 100 dB , and a maximum deviation of 45 kHz , the system maintains crisp and consistent audio. The system is powered by two AA batteries per bodypack, and the transmitter includes a mini-XLR connector for the lavalier microphone.

Main features

• UHF 640–690 MHz with 200 available channels (effective bandwidth: 50 MHz).
• 2 simultaneous channels for two independent voice sources.
• Condenser lavalier microphones for clear and close voice.

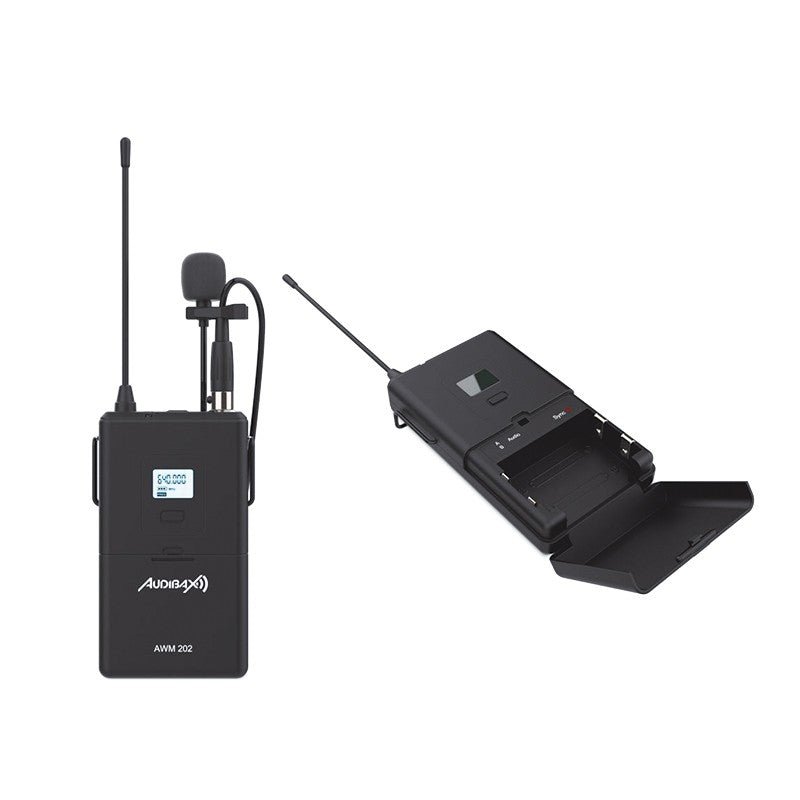

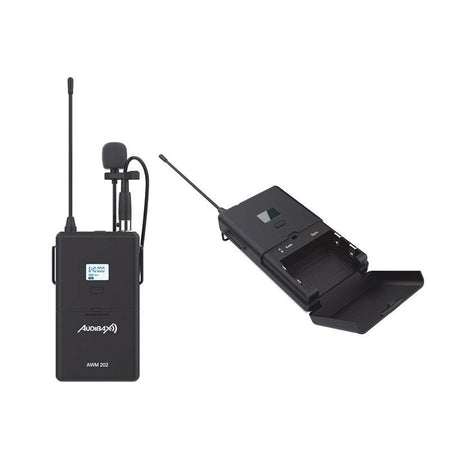

• Bodypack transmitter with PLL and mini-XLR for microphone connection.
• Frequency response 50 Hz–15 kHz; dynamic range 100 dB; max. deviation 45 kHz.
• Stability : receiver ±0.1% and transmitter < 30 ppm.
• Maximum microphone input : 130 dB SPL .
• Power supply : 2×AA (per battery pack) for extended sessions.

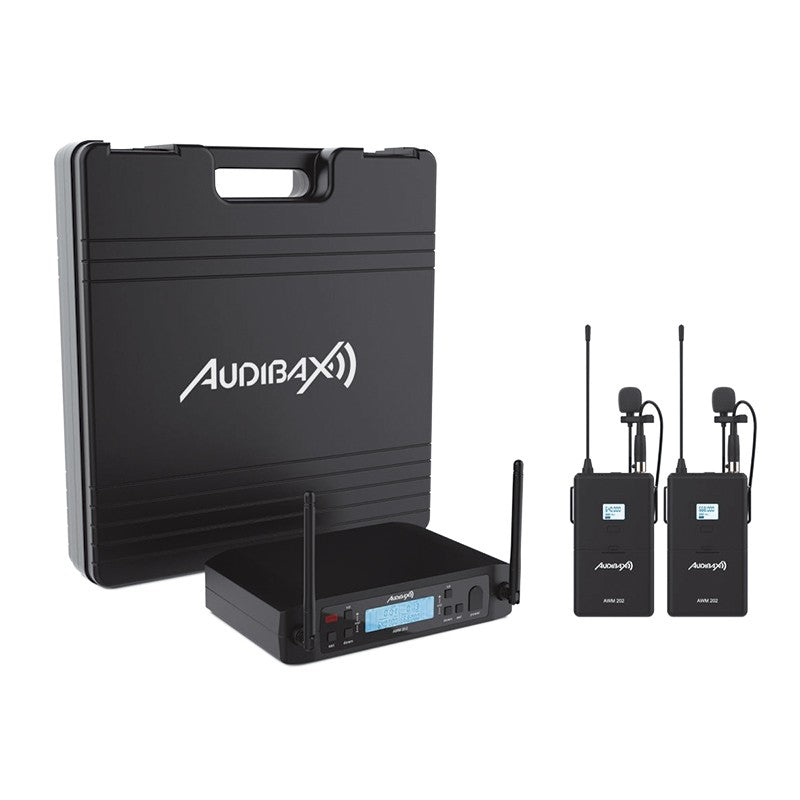

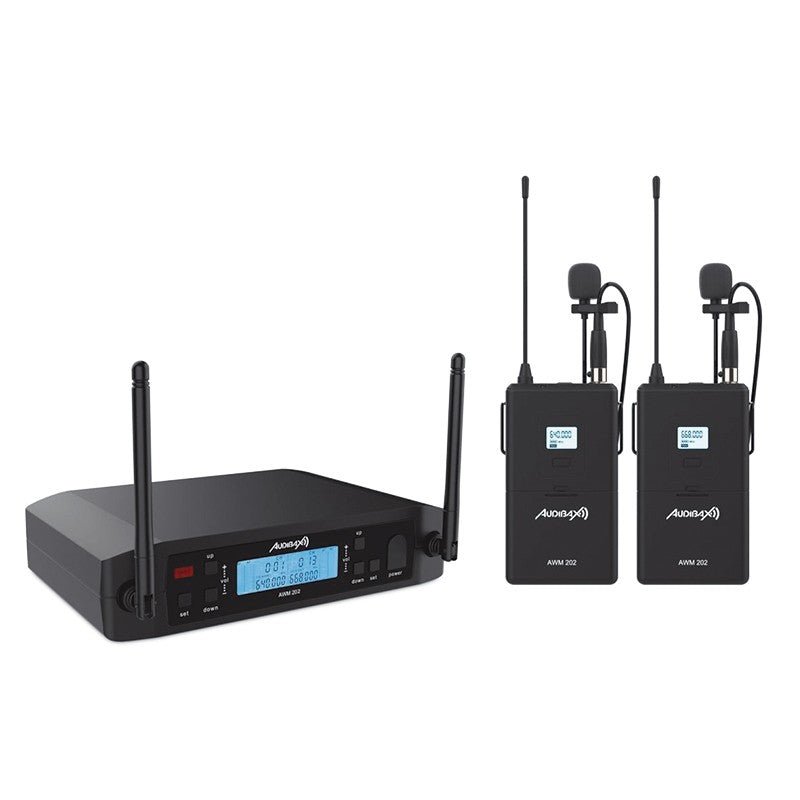

• Complete pack : receiver + 2 bodypacks + 2 lapel microphones.

Product benefits

• Reliable connectivity : the range of 200 channels makes it easy to avoid live interference.
• Simple workflow : discreet lavaliers with consistent sound and full mobility on stage.
• Audio quality : useful vocal bandwidth (50 Hz–15 kHz) and 100 dB of dynamic range for defined voices.
• Versatility : ideal for corporate , education, worship, theater, streaming and events.

Use cases

• Presentations and conferences : speakers and moderators with hidden microphones and hands-free.
• Events and theatre : actors, masters of ceremonies or hosts with wireless mobility.
• Content and education : trainers, streamers , and videographers who require a close and stable microphone.

Frequently Asked Questions

• How many microphones are included? The pack includes 2 bodypacks and 2 lavalier microphones for working with two voices simultaneously.
• What type of connector does the beltpack use? Mini-XLR for the included lavalier microphone.
• What batteries do I need? Each transmitter uses 2 AA alkaline batteries .
• Can I use it in different venues? Yes. With 200 channels within 50 MHz, it's easy to find clear frequencies (always check your country's spectrum regulations).

Project description

2-channel UHF wireless system ( 640–690 MHz band), 200 selectable channels ; condenser lavalier microphones; bodypack transmitter with PLL and mini-XLR ; frequency response 50 Hz–15 kHz ; dynamic range 100 dB ; maximum deviation 45 kHz ; receiver frequency stability ±0.1% and transmitter < 30 ppm ; maximum input SPL 130 dB ; 2 x AA power supplies (per bodypack). Package includes: receiver + 2 bodypacks + 2 lavalier microphones.
