Audibax DSP10 - 10" Active Speaker with DSP, Bluetooth and 450W Peak

Audibax DSP10 - 10" Active Speaker with DSP, Bluetooth and 450W Peak

The Audibax DSP10 is a 2-way active loudspeaker with a 10" woofer and a 1" titanium tweeter, designed to deliver crisp, powerful sound for rental applications, corporate events, and live performances. It features bi-amplified Class D amplification and professional DSP with three-band equalization and selectable presets (Music, Live, DJ, Speech) to tailor the system's response to any environment. With 180W RMS (up to 450W peak ) and a continuous SPL of 120dB / 126dB peak , it maintains stable sound pressure with low distortion. Connectivity includes Bluetooth for wireless playback, an XLR/6.35mm jack microphone input , a 3.5mm auxiliary input , and an XLR output for connecting to other equipment.

It offers a frequency response of 58 Hz to 20 kHz , covering everything from deep bass to crisp highs. The lightweight yet durable enclosure— with a scratch-resistant ABS finish and metal grille —makes it easy to transport and use every day. It operates on AC 230 V 50/60 Hz and is designed for indoor use ( IP20 ). Its compact dimensions of 51 × 30 × 29 cm and gross weight of 10 kg ensure easy logistics for touring or permanent installations.

Main features

• Ways / drivers: 2-way with 10" woofer (VC 2") and 1" titanium HF driver.
• Power: 180 W RMS, 450 W peak; Class D BI-AMP amplification.
• Performance: 120 dB SPL continuous / 126 dB peak.
• Frequency: 58 Hz – 20 kHz.
• Integrated DSP: 3-band equalization and Music , Live , DJ , Speech modes.

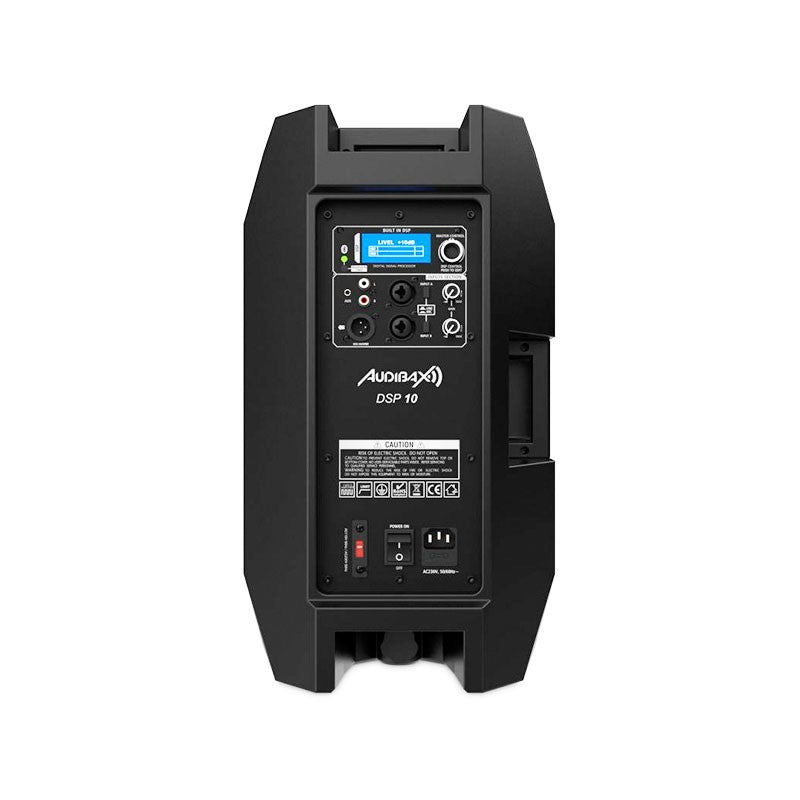

• Connectivity: Bluetooth; XLR/6.35 mm jack MIC input; 3.5 mm AUX input; XLR output.
• Construction: Scratch-resistant ABS enclosure with metal front grille.
• Power supply / use: AC 230 V 50/60 Hz; IP20 (indoor use).

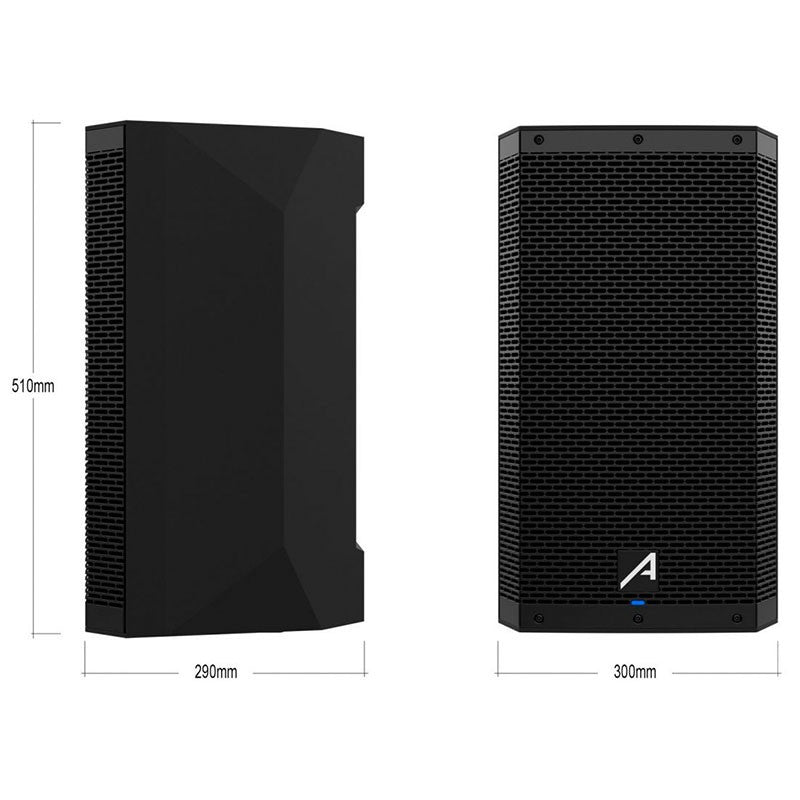

• Dimensions and weight: 51 × 30 × 29 cm; gross weight 10 kg.

Product benefits

• Context-adapted sound: DSP presets optimize the response curve for vocals, live music, or DJ sessions without the need for external processors.
• Efficiency and power: Class D BI-AMP amplification delivers punch and dynamic control with lower power consumption and lighter weight.
• Easy setup: versatile inputs and XLR output for daisy-chaining equipment simplify FOH, side boost or delay configurations.
• Durability: top-quality materials and a durable finish for heavy-duty use on tours and rentals.
• Source versatility: direct playback via Bluetooth or cable from tables, players or mobile devices.

Use cases

• Compact PA reinforcement for live music in halls, bars or small squares.
• Corporate events , conferences and presentations with preset speech for maximum intelligibility.
• Mobile DJ and event rental : quick to transport, set up and adjust.
• Spot reinforcements ( fills , delays ) in large setups where a lightweight active speaker is needed.

Frequently Asked Questions

• What is the actual power? 180 W RMS with peaks up to 450 W. The RMS figure is what you should consider when sizing the system.
• Can I connect a microphone directly? Yes, it has a combined XLR/6.35 mm jack input with level control.
• Does it have an internal battery? No. It operates on AC 230V 50/60Hz .
• Is it suitable for outdoor use? It's IP20 ; use it indoors or protected from rain and humidity.
• How does it differ from the DSP10 G2? The G2 version updates components and specifications (response and power), while this DSP10 model corresponds to the previous version with 180 W RMS and 58 Hz–20 kHz.

Usage recommendations

• Select the DSP preset according to the application and adjust the 3-band equalization only for fine corrections.
• Avoid clipping by keeping mix and gain levels within a safe range.
• Position the enclosure at ear level and clear the front grille for better dispersion.

Project description

2-way active speaker with 10" woofer (VC 2") and 1" titanium HF driver; Class D BI-AMP amplification; 180 W RMS power (450 W peak); 120 dB continuous / 126 dB peak SPL; 58 Hz–20 kHz frequency response; inputs: XLR MIC/6.35 mm jack and 3.5 mm AUX; XLR output; Bluetooth with professional DSP (3-band EQ and Music/Live/DJ/Speech modes); AC 230 V 50/60 Hz power supply; IP20; dimensions 51 × 30 × 29 cm; gross weight 10 kg; contents: speaker, power cable, XLR-XLR cable and manual.
