Audibax CS6T - 6.5" Recessed Ceiling Speaker (Fiberglass) 60 W RMS, 8 Ω / 100 V Line

Audibax CS6T - 6.5" Recessed Ceiling Speaker (Fiberglass) 60 W RMS, 8 Ω / 100 V Line

The Audibax CS6T is a round, ceiling-mounted loudspeaker designed for distributed sound and background music in retail, offices, restaurants, hotels, and educational institutions. It combines a 6.5" woofer with a woven fiberglass cone and a 0.75" titanium dome tweeter , offering a balanced frequency response of 60 Hz to 20 kHz and a sensitivity of 90 dB (1 W/1 m) . With 60 W RMS and dual operating modes— low impedance 8 Ω or 100 V line with 7.5 / 15 / 30 W taps—it is suitable for both simple installations and large-area distributed systems. Its clean integration is ensured by the white finish and quick mounting via a 210 mm diameter circular cutout, resulting in a 234 mm diameter front and a depth of only 87 mm , ideal for suspended ceilings with limited plenum space.

Main features

• 2-way transducer: 6.5" fiberglass woofer + 0.75" titanium tweeter for high clarity in voice and music.
• Power and response: 60 W RMS , 90 dB sensitivity and 60 Hz–20 kHz usable bandwidth.
• Dual connection mode: 8 Ω or 100 V ( 7.5 / 15 / 30 W sockets) to adjust level and consumption per zone.
• Low-height recessed format: Ø 234 × 87 mm ; cut Ø 210 mm .

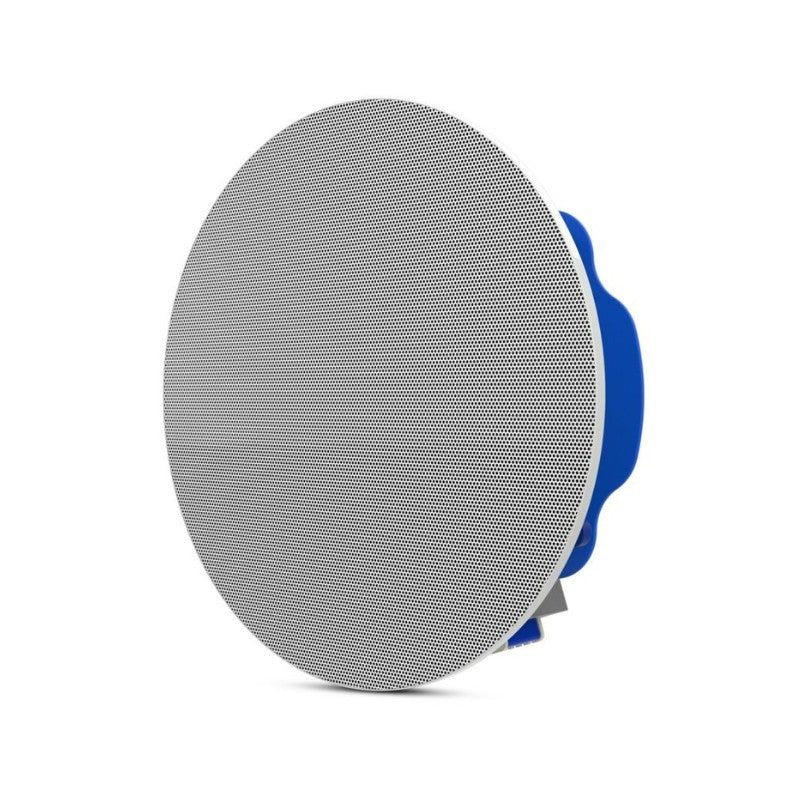

• Finish: white color for discreet integration into modular or plasterboard ceilings.

Product benefits

• System design flexibility: operates at 8 Ω for single rooms or at 100 V for long runs and multiple speakers with minimal loss.
• Intelligibility and detail: titanium dome in the treble and fiberglass cone for a firm mid-bass in ambient music.
• Easy installation: standardized cutout measurements, contained depth and clean ceiling finish.
• Scalability: power selection (7.5/15/30 W at 100 V) to balance each zone without adding processing.

Use cases

• Retail and hospitality: homogeneous background music in shops, cafes and restaurants.
• Offices and education: announcements, voiceovers and BGM in corridors, lobbies, classrooms and meeting rooms.
• Hotels and wellness spaces: ambiance in receptions, spas and common areas.
• Cultural centers and museums: informative messages and supporting sound in exhibition halls.

Frequently Asked Questions

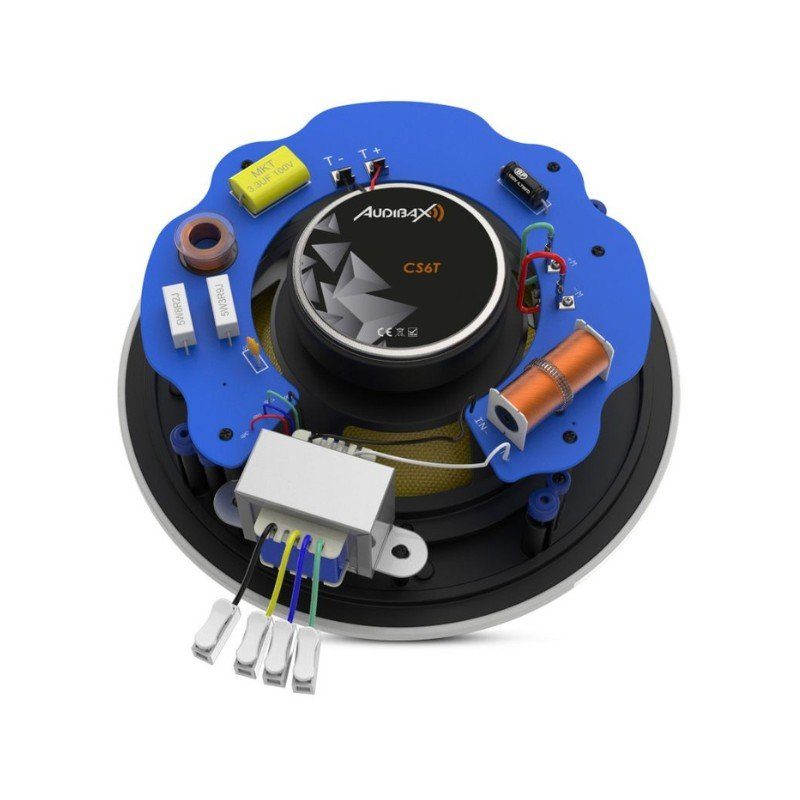

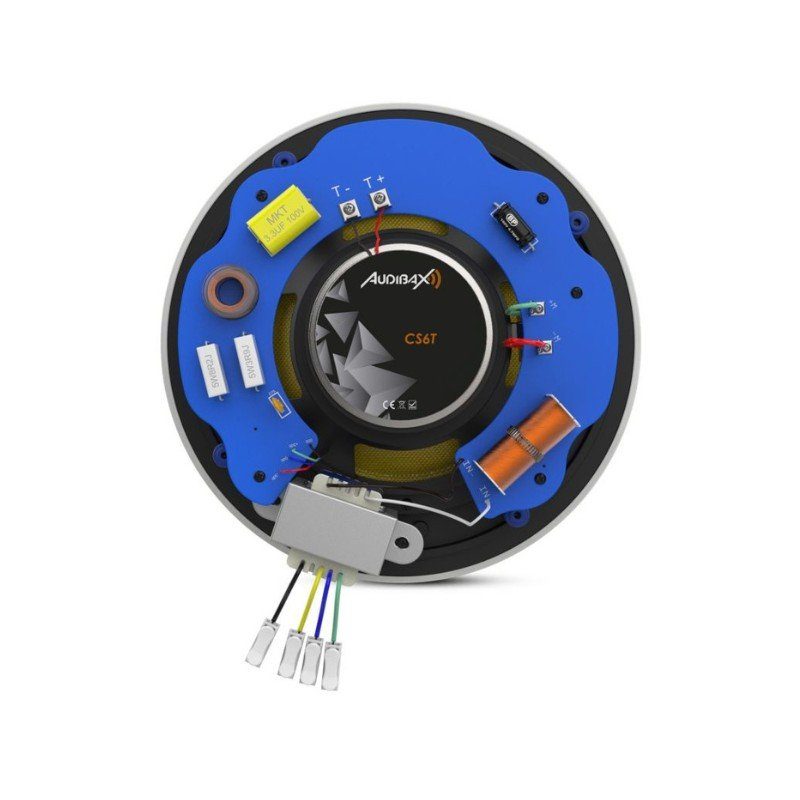

• Does it support 100V line systems? Yes, it includes a transformer with 7.5/15/30W sockets. It can also operate at 8 Ω .
• What size cut do you need? Ø 210 mm ; the visible ring is Ø 234 mm .
• What is the recess depth? 87 mm , suitable for false ceilings with limited space.
• What performance does it offer? 60 W RMS , 90 dB sensitivity and 60 Hz–20 kHz response.
• Available color? White for discreet integration into the ceiling.

Installation instructions

• Plan the number of units and the 100V (7.5/15/30W) socket according to the desired level and the available amplifier power.
• Respect the cutting diameter and check the free depth of the roof (≥ 87 mm).
• In 8 Ω mode, use appropriate wiring and verify the total system impedance.

Package contents

• 1 × Audibax CS6T Ceiling Mount Speaker
• 1 × User Manual

Project description

2-way in-ceiling speaker; 60 W RMS ; 8 Ω and 100 V line with 7.5 / 15 / 30 W sockets; 60 Hz–20 kHz response; 90 dB sensitivity (1 W/1 m) ; 6.5" fiberglass woofer and 0.75" titanium tweeter ; dimensions Ø 234 × 87 mm ; cutout Ø 210 mm ; white color.
