Audibax Wall 12 - 11-step wall-mounted volume control, 12W, white RAL9010

Audibax Wall 12 - 11-step wall-mounted volume control, 12W, white RAL9010

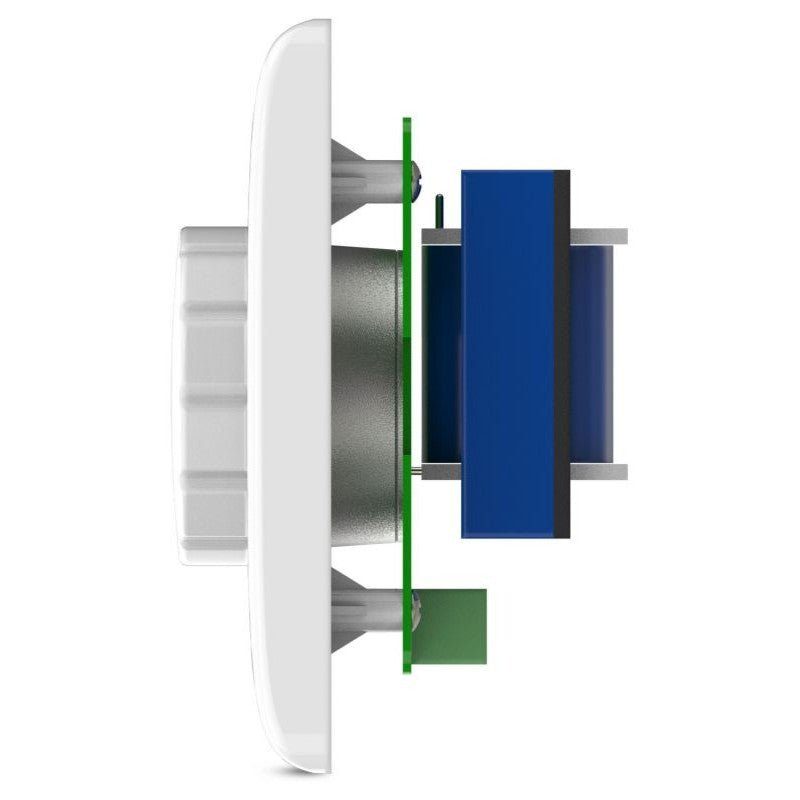

The Audibax Wall 12 is a recessed volume control designed for sound systems where simple and reliable zone level adjustment is required. It features an 11-step rotary mechanism and a single channel, with a maximum power handling of 12 W, and mounts in a standard wall box. Its white RAL9010 finish facilitates aesthetic integration into homes, offices, and commercial spaces. With a mounting depth of 42.5 mm and front dimensions of 86 x 93 x 66 mm, it offers a clean, stable, and durable installation for low-power passive speaker systems.

Main features

• Stepped control: 11-position rotary switch for repeatable and precise volume adjustment.
• Single channel: designed for one speaker line (1 zone).
• Maximum power 12W: suitable for small areas of background music and announcements.
• Recessed in standard box: prepared for conventional wall electrical boxes, with an installation depth of 42.5 mm .
• RAL9010 white finish: discreet integration with standard mechanisms and frames.
• Direct connection between amplifier output and speaker (input/output terminals +/−).
• Recommended wiring: supports speaker wire up to approx. 2.08 mm² (AWG 14); for short runs 0.82–1.31 mm² (AWG 18–16) can be used.

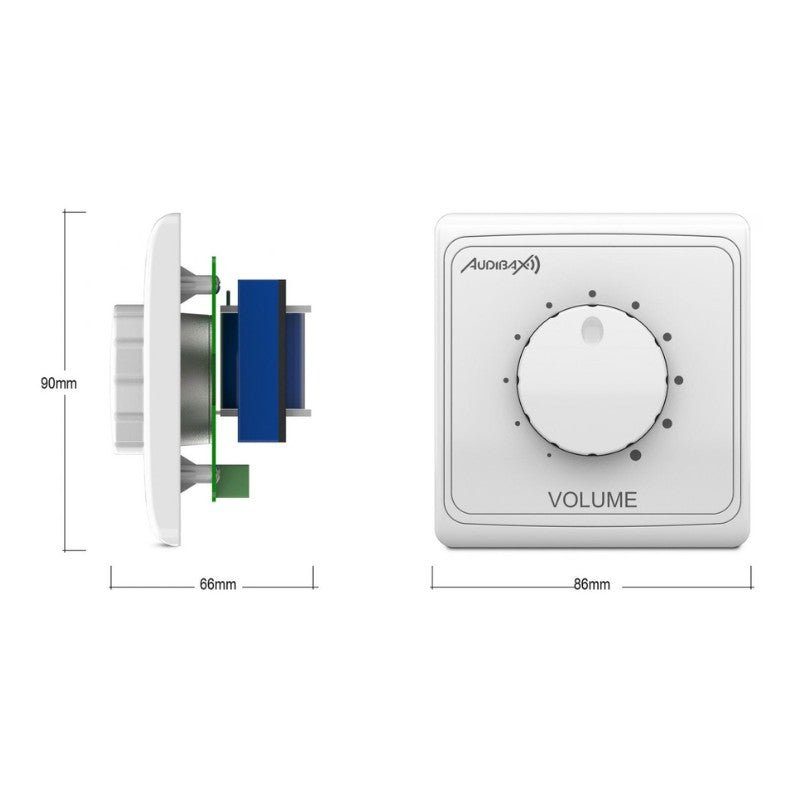

• Dimensions (width x height x depth): 86 x 93 x 66 mm.

Product benefits

• Local level control without accessing the amplifier, ideal for adjusting each room to its actual use.
• Stable adjustment with defined steps that prevent sudden changes or accidental misadjustments.
• Simple installation without additional power supply, as it is a passive control.
• Aesthetic integration thanks to its white RAL9010 front and recessed format.
• Reliability in continuous use in background music and basic sound reinforcement applications.

Use cases

• Volume control in living room, kitchen or office of multi-room systems.
• Shops, cafes, hotels and waiting rooms where it is necessary to adjust the level of each area.
• Classrooms and meeting rooms to adjust the volume to each activity.

Frequently Asked Questions

• Does it need power? No. It's a passive control that's inserted between the amplifier and the speaker.
• Is it suitable for active speakers? No. It's designed for passive speaker lines connected to an amplifier.
• What type of flush-mount box do I need? A standard wall-mounted electrical box with a usable depth ≥ 42.5 mm .

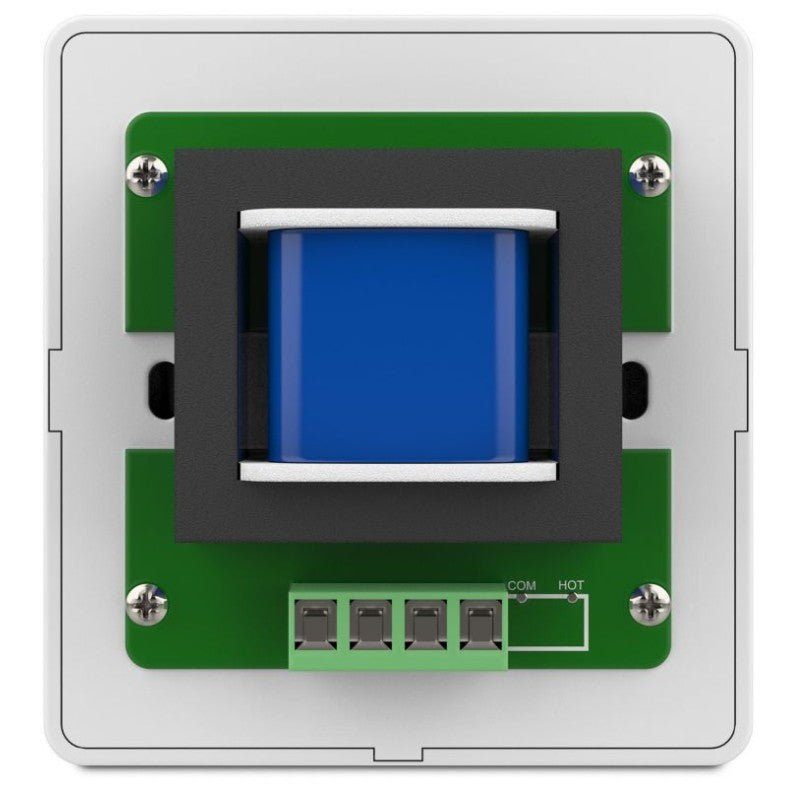

• How is it wired? Input from the amplifier's speaker output (+/−) and output to the speaker (+/−).
• Does it accept thick cable? Yes, up to approx. 2.08 mm² (equivalent to AWG 14).
• Is it for 70/100 V lines? The manufacturer does not specify compatibility with 70/100 V lines for this model. Specific attenuators are recommended for those installations.

Installation and compatibility

The unit is mounted flush in a standard junction box. Ensure correct polarity at the input and output terminals, avoid short circuits caused by loose copper wires, and select the appropriate cable size: 0.82 mm² (AWG 18) is sufficient for distances up to 50 feet (approximately 15 m), and 1.31 mm² (AWG 16) or 2.08 mm² (AWG 14) are recommended for longer runs. Before operating, set the amplifier volume to minimum and perform tests by gradually increasing the level to avoid saturation or damage to the speakers.

Project description

1-channel recessed volume control with 11-step rotary control; maximum power 12 W; white color RAL9010; standard wall electrical box mounting; installation depth 42.5 mm; dimensions 86 x 93 x 66 mm; connection by input/output terminals (+/−); supports cable up to 2.08 mm² (AWG 14).
